Monitor alu Core wheels – standard width hubs

from £300.00

Contact us if you would like these wheels built onto J-bend 6-bolts or J-bend boost hubs for the same price.

build time for this wheelset: 2 days
jump to configure wheels >>

SKU: JRA_MM_8-1-1-1-2 Category: Tags: , ,

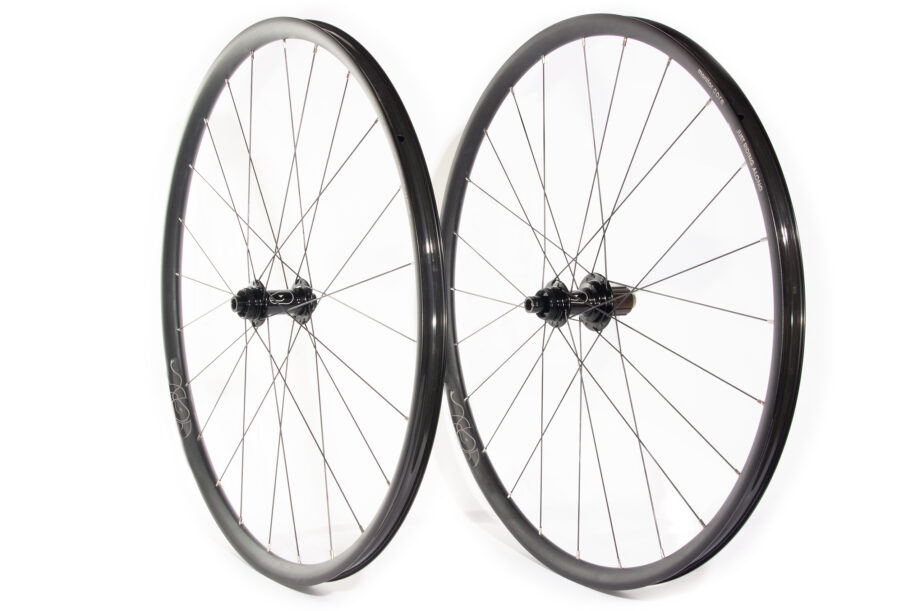

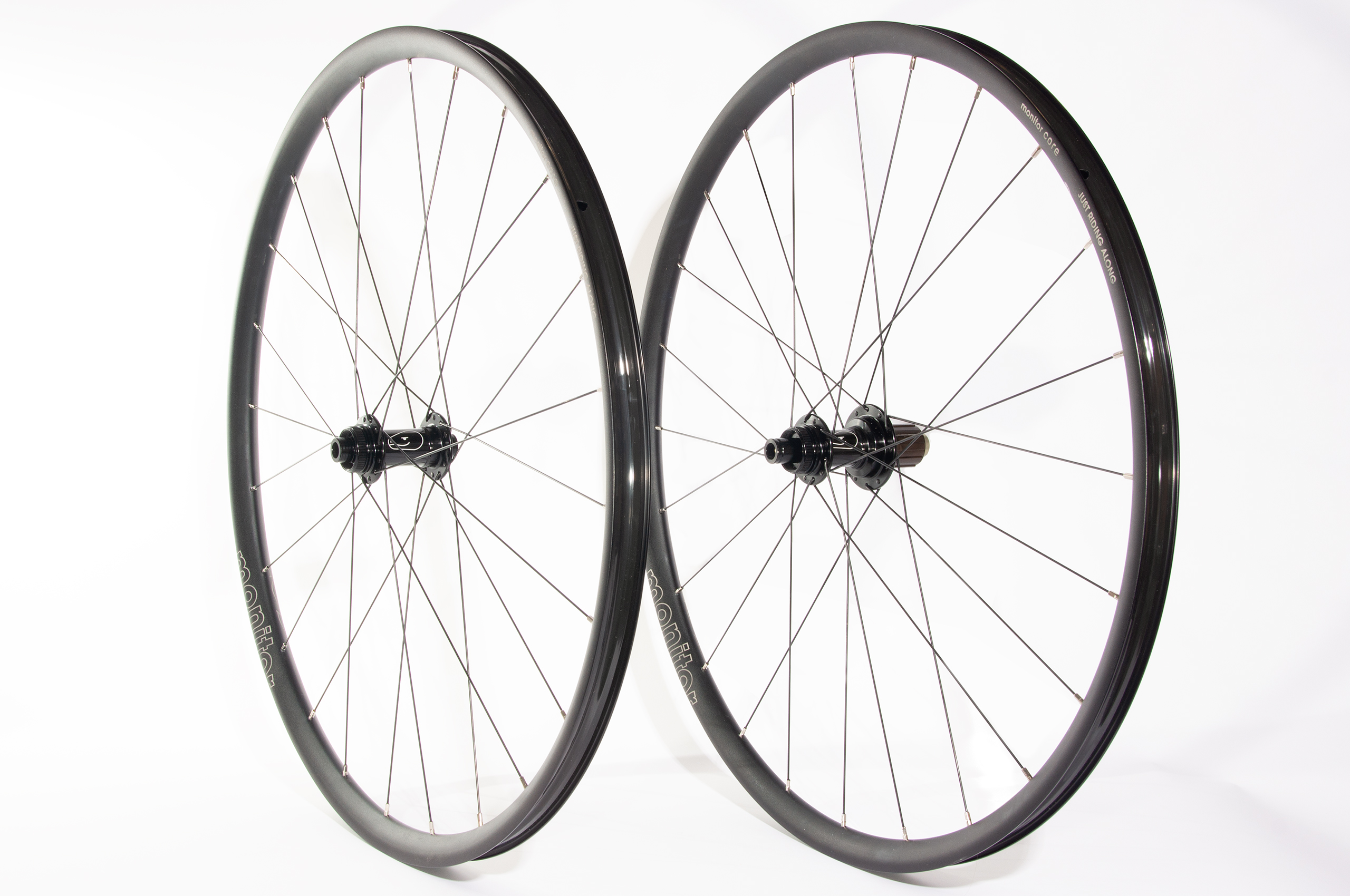

The Monitor is a tough wheelset fast off-road riding with a wide, strong rim suited to 30-57mm tyres. In our Core series wheels it is built onto our proven reliable Centre-lock J-bend hubs for a reliable wheelset at a new lower price.

Monitor Core wheels are built with Sapim D-Light spokes which offer the best mix of light weight, strength and low price. Available in 27.5″ or 29er/700c, with 24 or 28 spokes per wheel depending or rider weight and useage.

Key components

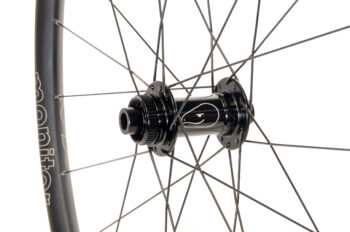

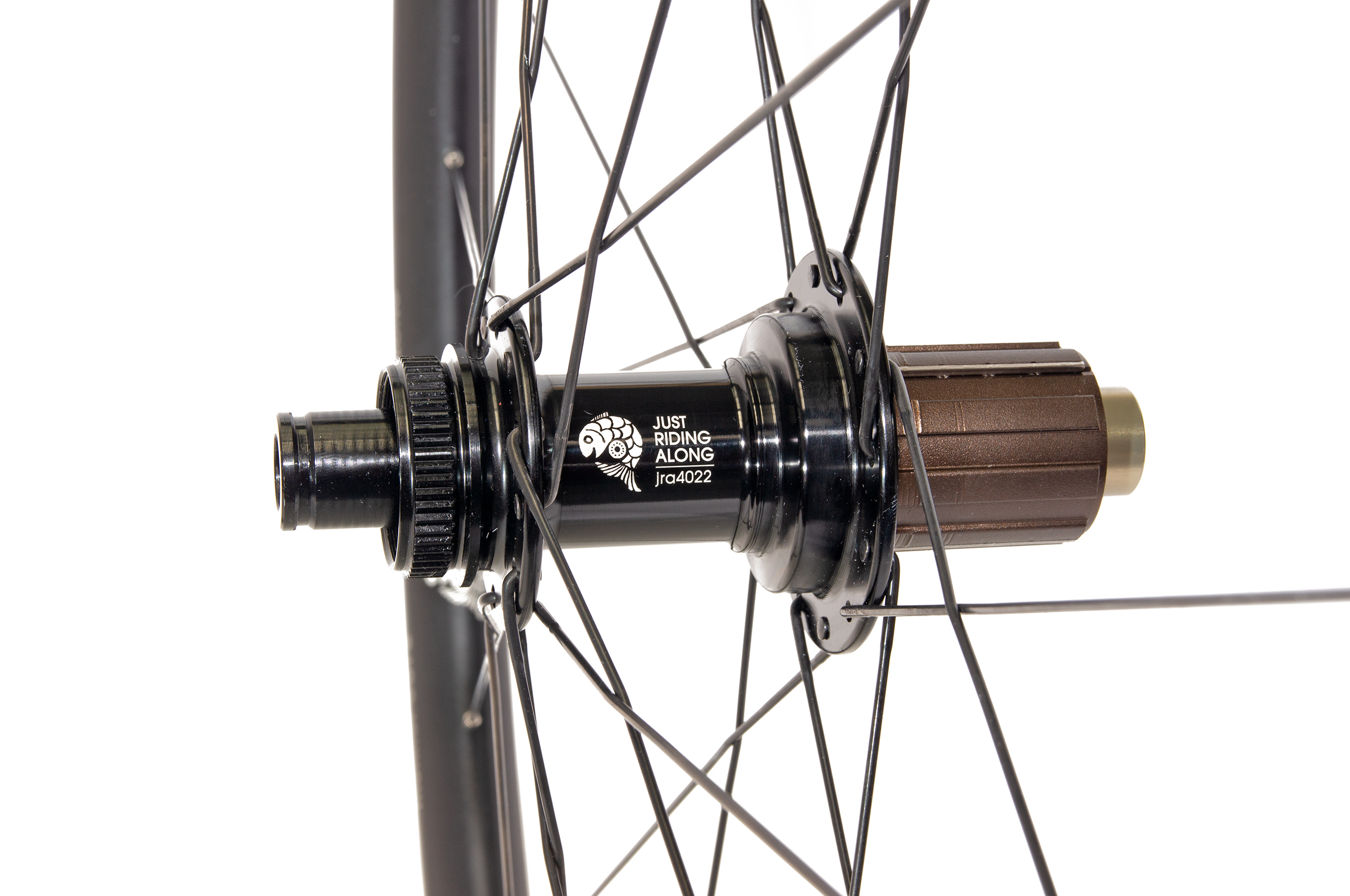

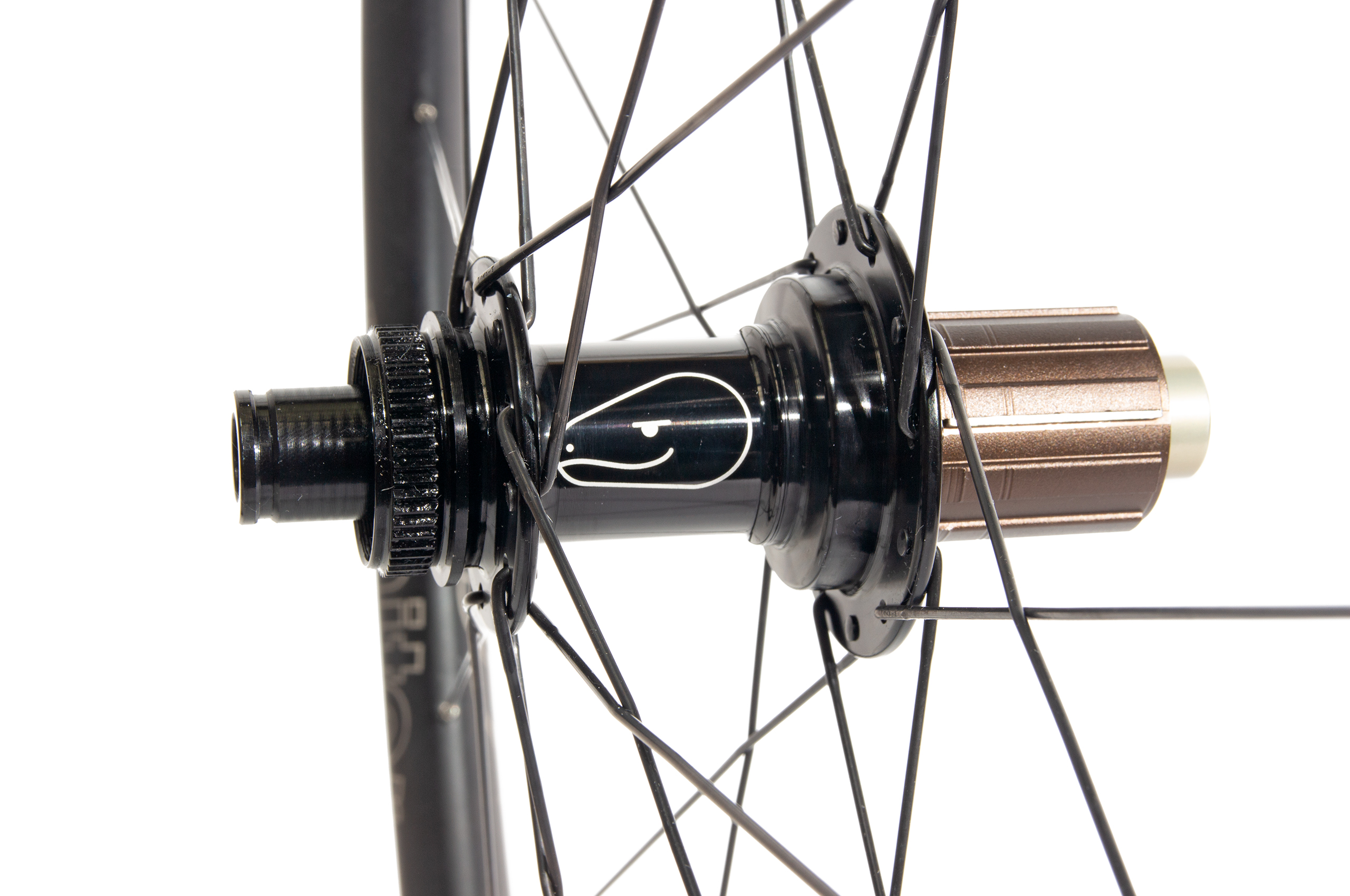

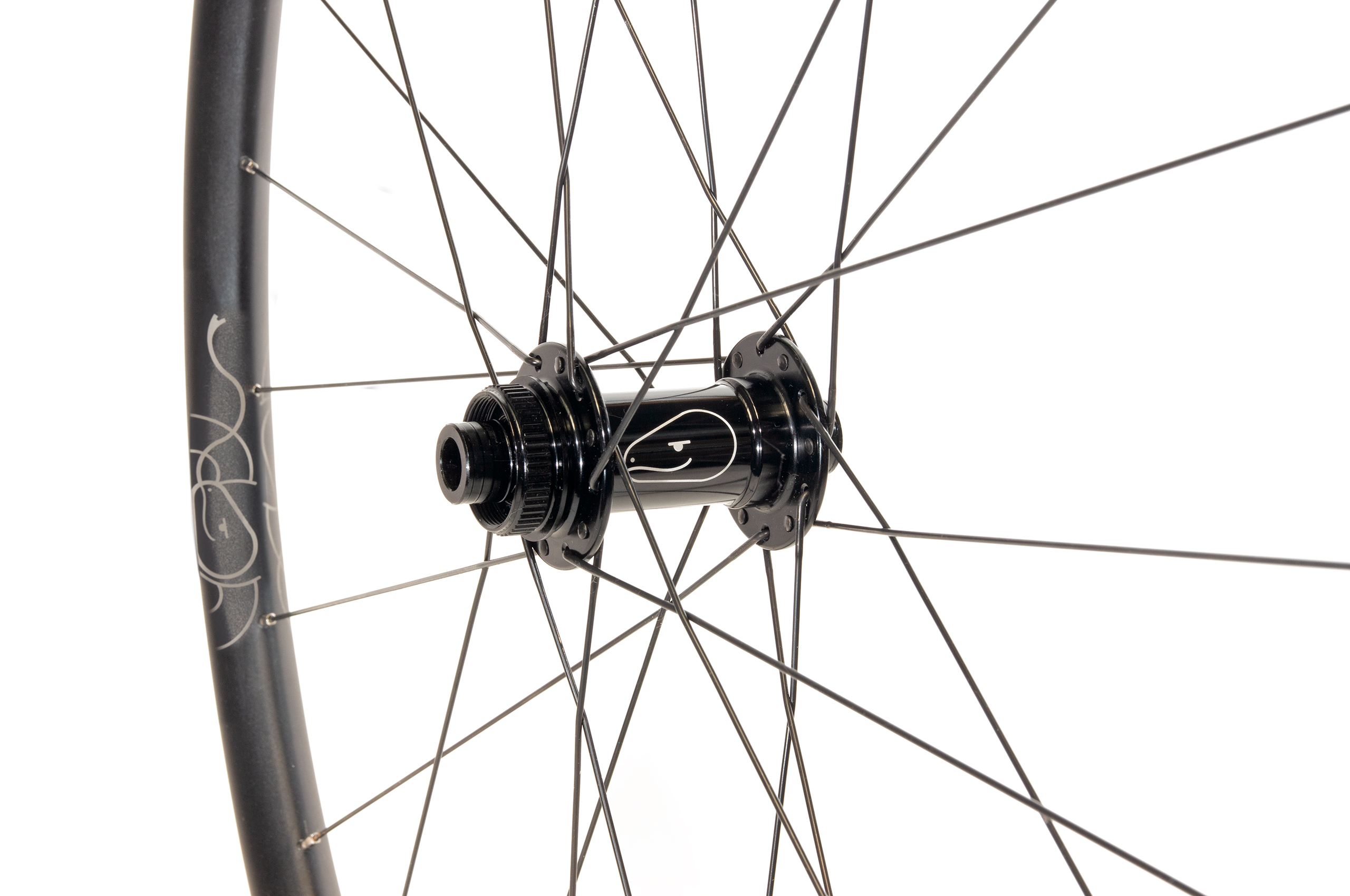

hubs centre-lock J-bend hub, with TPI steel bearings 24 spoke – gloss black / 28 spoke – spoke matt black
rims Monitor aluminium rims with simplified design
spokes Sapim DLight black spokes
nipples Sapim silver brass ssecure-lock nipples
weights 24 spoke 1710g / 28 spoke 1765g
* weighed with rim tape and Shimano freehub

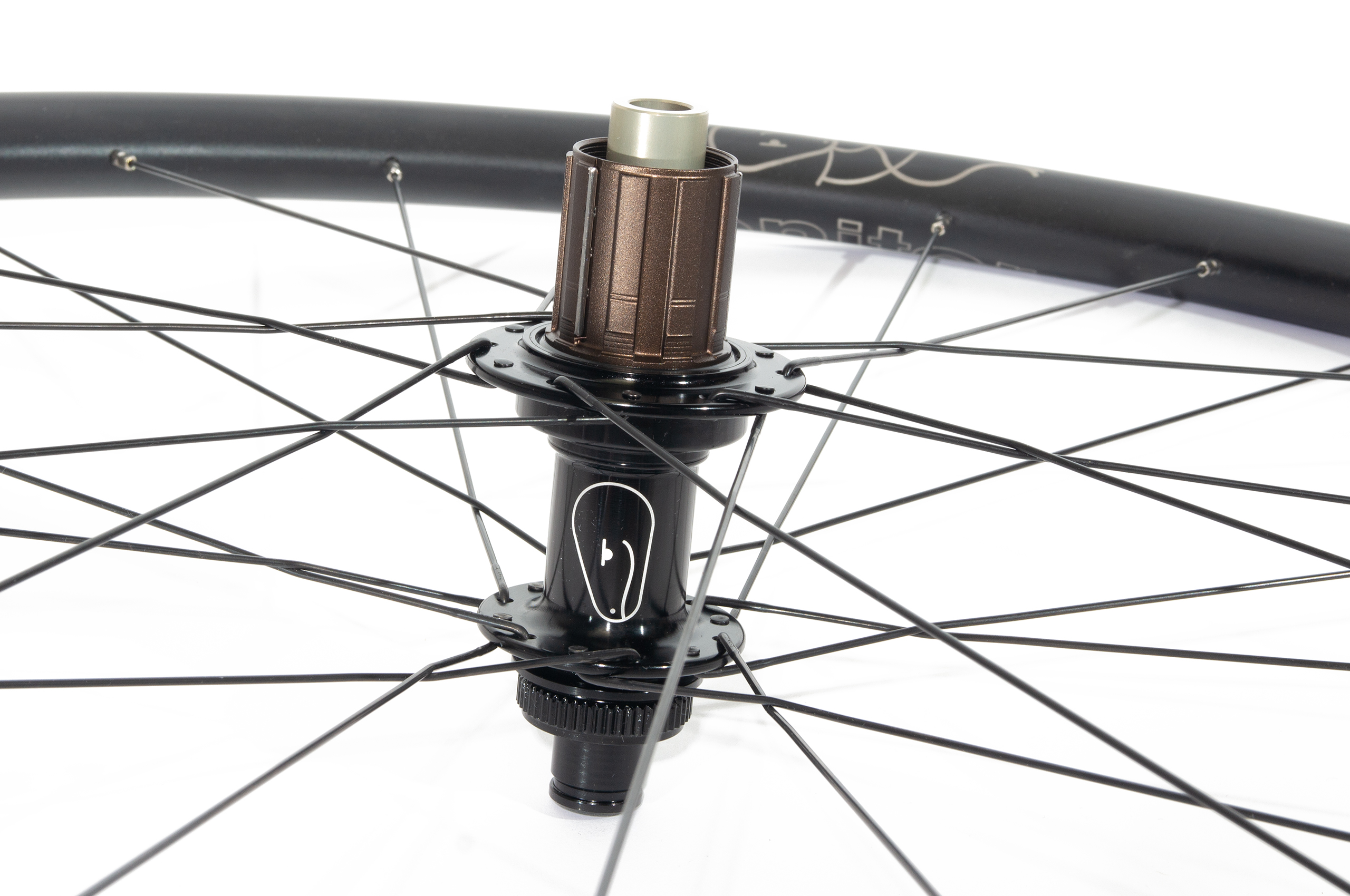

freehub Shimano 11 speed or Campagnolo 12 speed are included in base price. All other freehubs are available at extra cost.
rider weight limit 24 spokes: 85kg, 28 spokes: no limit
recommended tyre widths 30-57mm

core Monitor alu wheels

Monitor aluminium rims

aluminium gravel & XC rims

material: 6069 aluminium with a matt finish and welded join

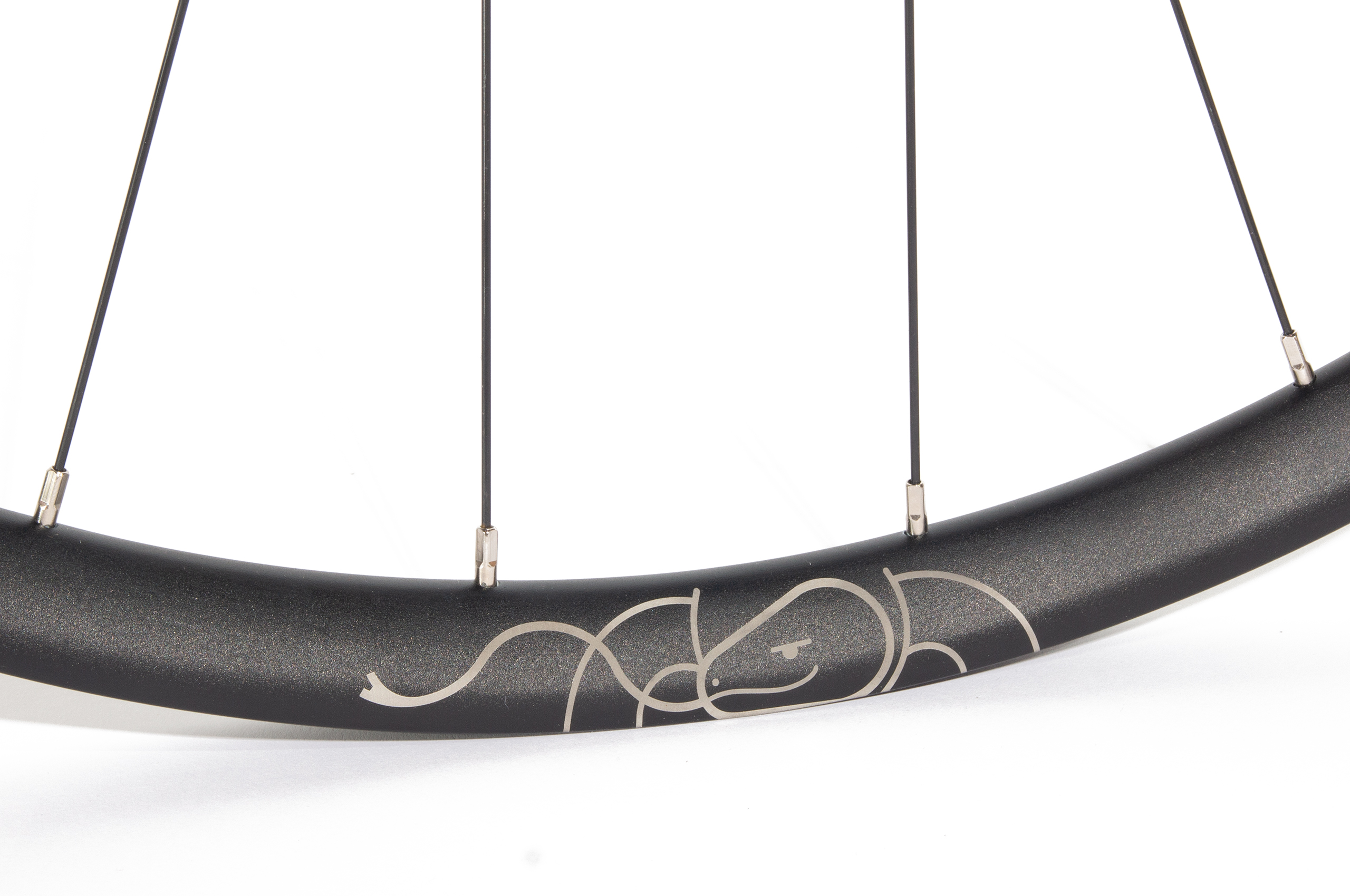

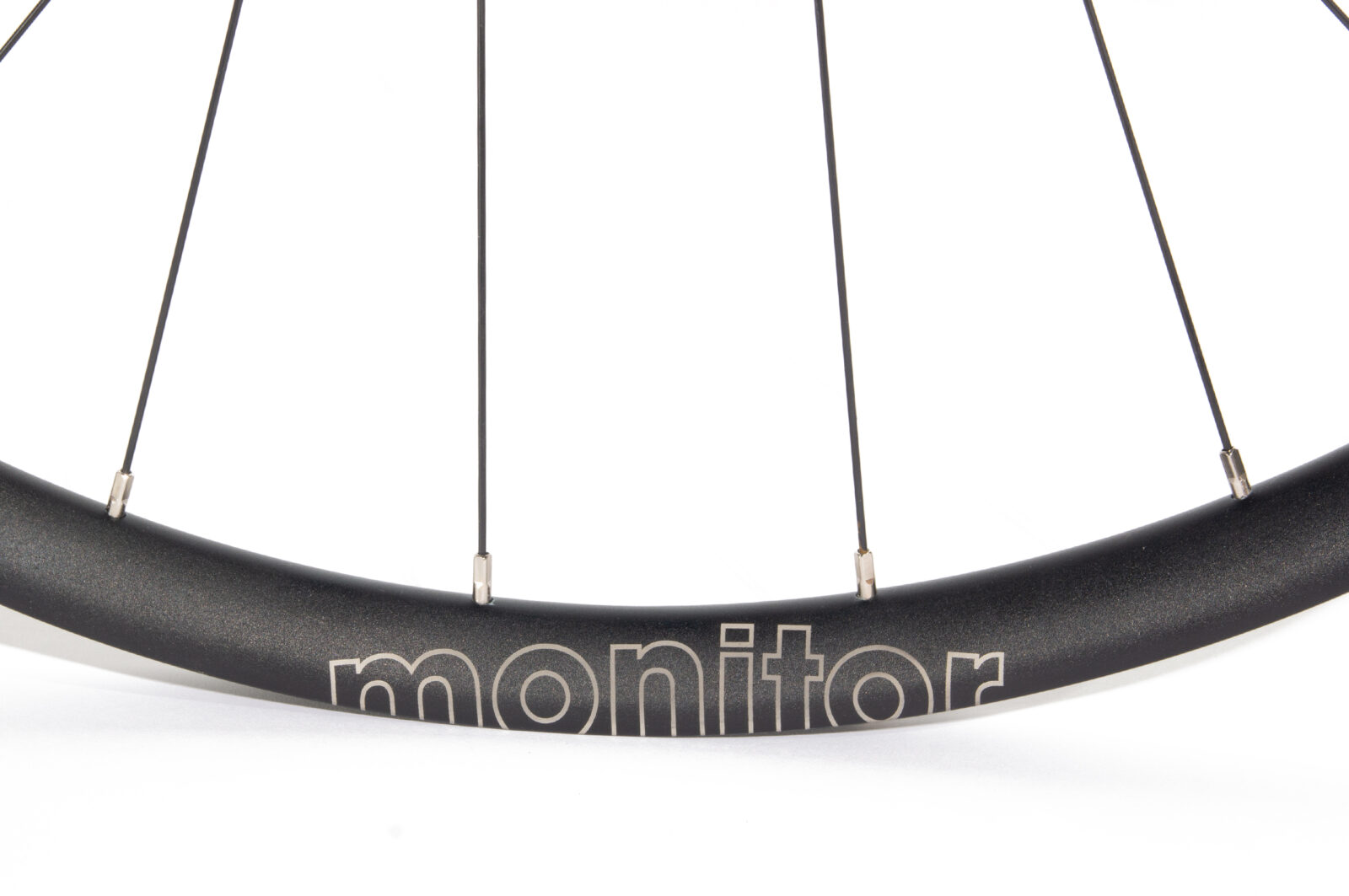

decals: durable laser etched decals
dimensions: 25mm internal and 30mm external width with 23mm depth
weight: 445g (+/-15g) per rim
bead: tubeless compatible with a hooked bead
tyres:  best for 30-57c tyres
click here to go to the Monitor rim page

wheel weights

weights
wheels weighed with rim tape (5g) and Shimano freehub

24 spoke
front 785g
rear 925g

28 spoke
front 815g
rear 950g

Core series wheels

Our back to basics wheel range, we’ve cut out the frills – such as colours and kept to simpler specs to keep the price down. But we haven’t compromised on the build quality or the wheels core functionality, hence the name Core wheels.
  • TPI steel bearings not TPI stainless steel – Excellent bearing without the top prices we pay for stainless
  • Sapim silver brass pro-lock nipples used throughout – These reduce the wheel building time by being non-binding
  • J-bend hubs The lowest price and most reliable hubs in our range
    Limited options allow us to build multiple wheels at once saving time in the workshop.
  • Limited logos Smaller logos that take less time to etch

All our wheels are still handbuilt in our York workshop with the same high quality of finish, backup and warranty you would expect.

why buy from us

warranty

All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.

delivery

To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.

repairability

All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

our hubs

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.

warranty

All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.

drive

6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 6.7 degree, 54 POE, R-type hubs have 7.5 degree, 48 POE.

features

  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

custom built wheels

This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.
