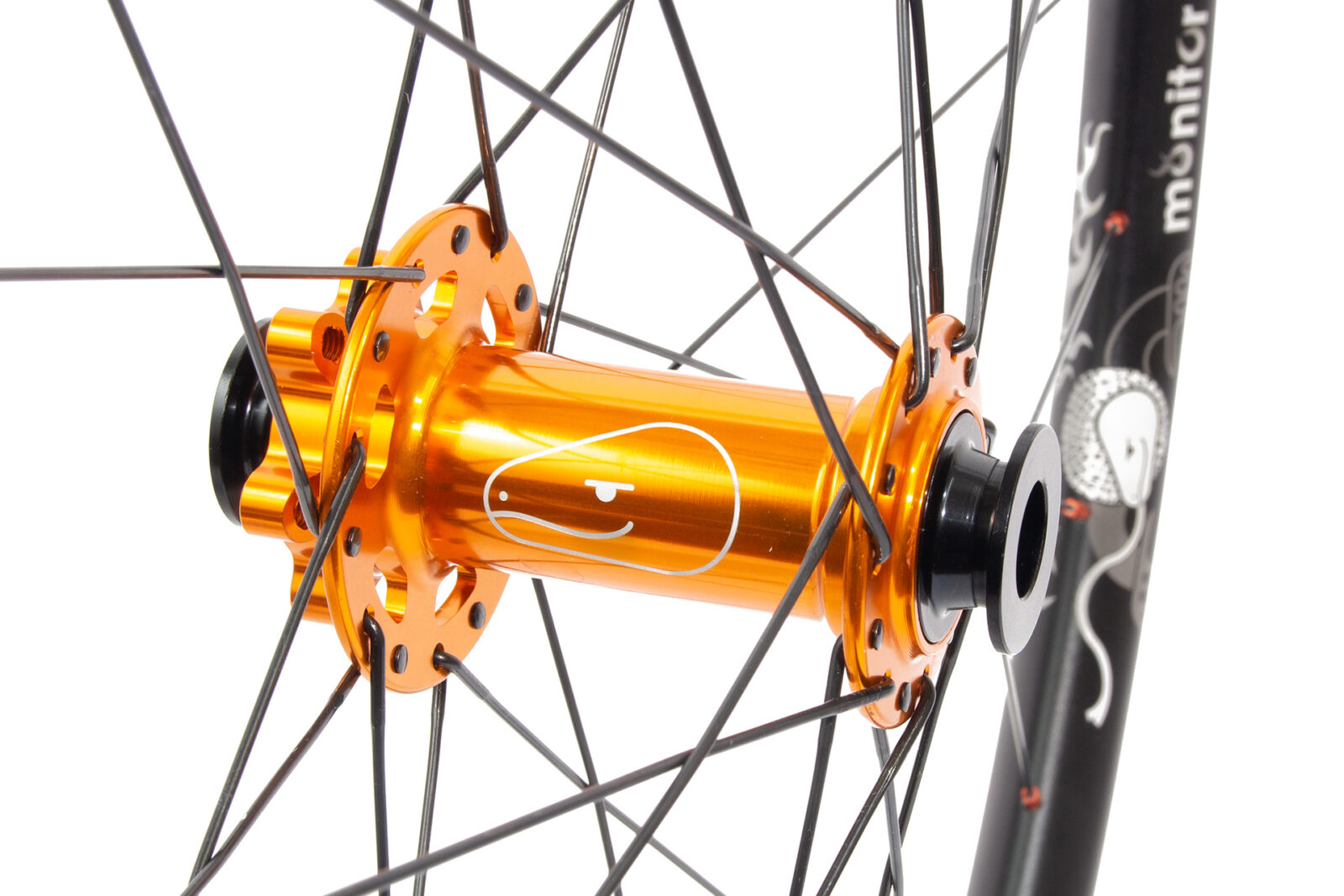

Monitor alu 6-bolt boost orange hub and nipples

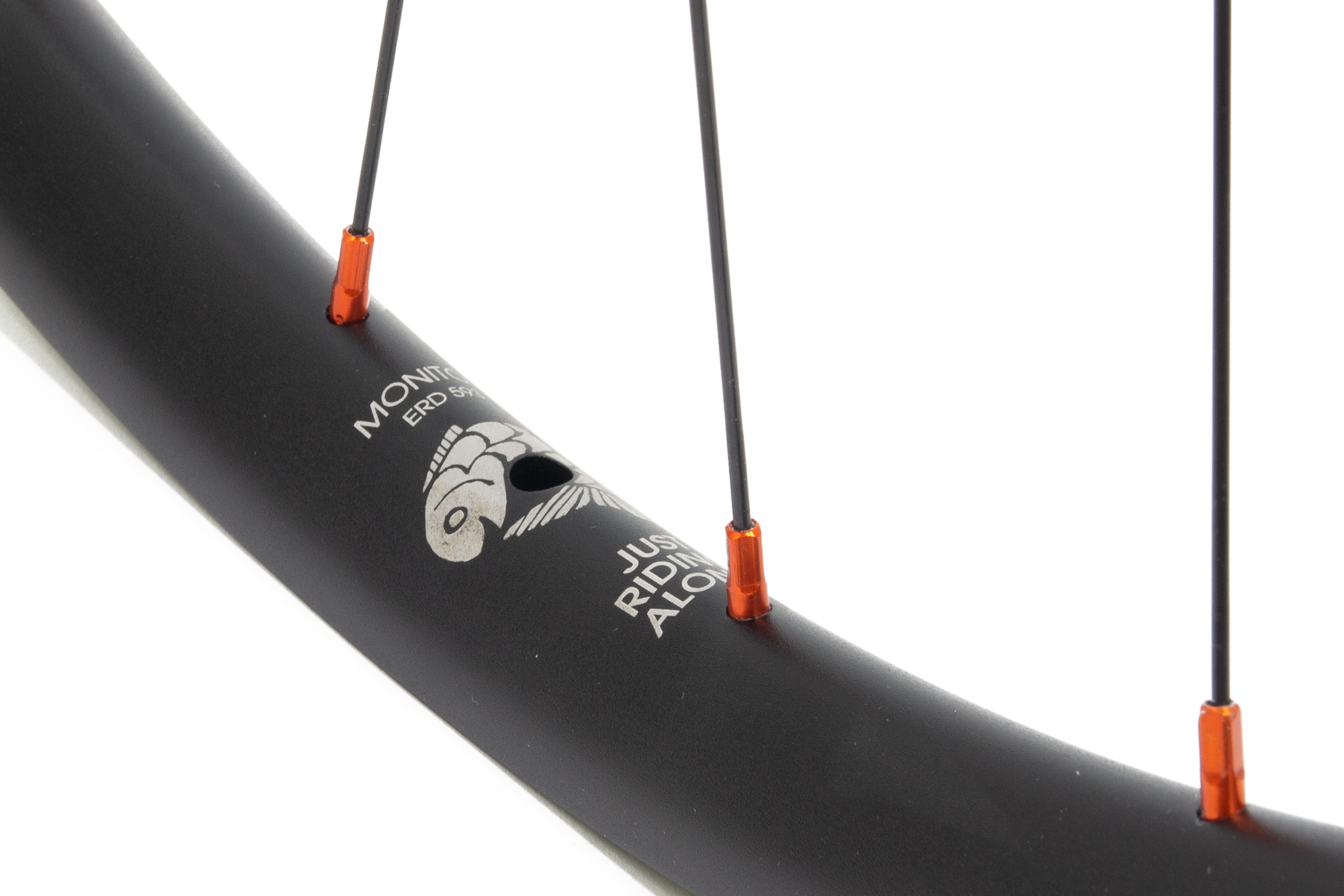

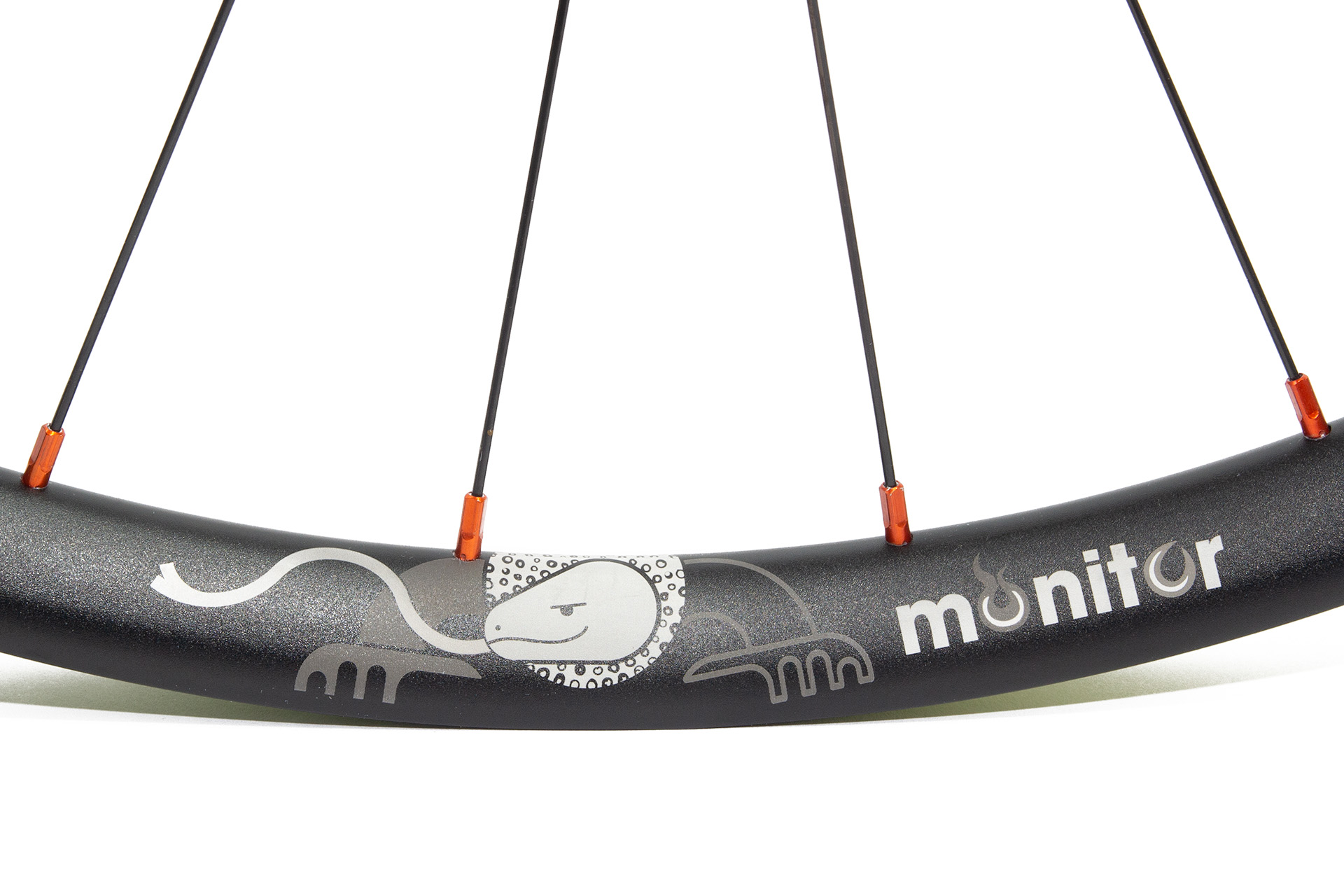

Monitor alu etched rim with orange nipples

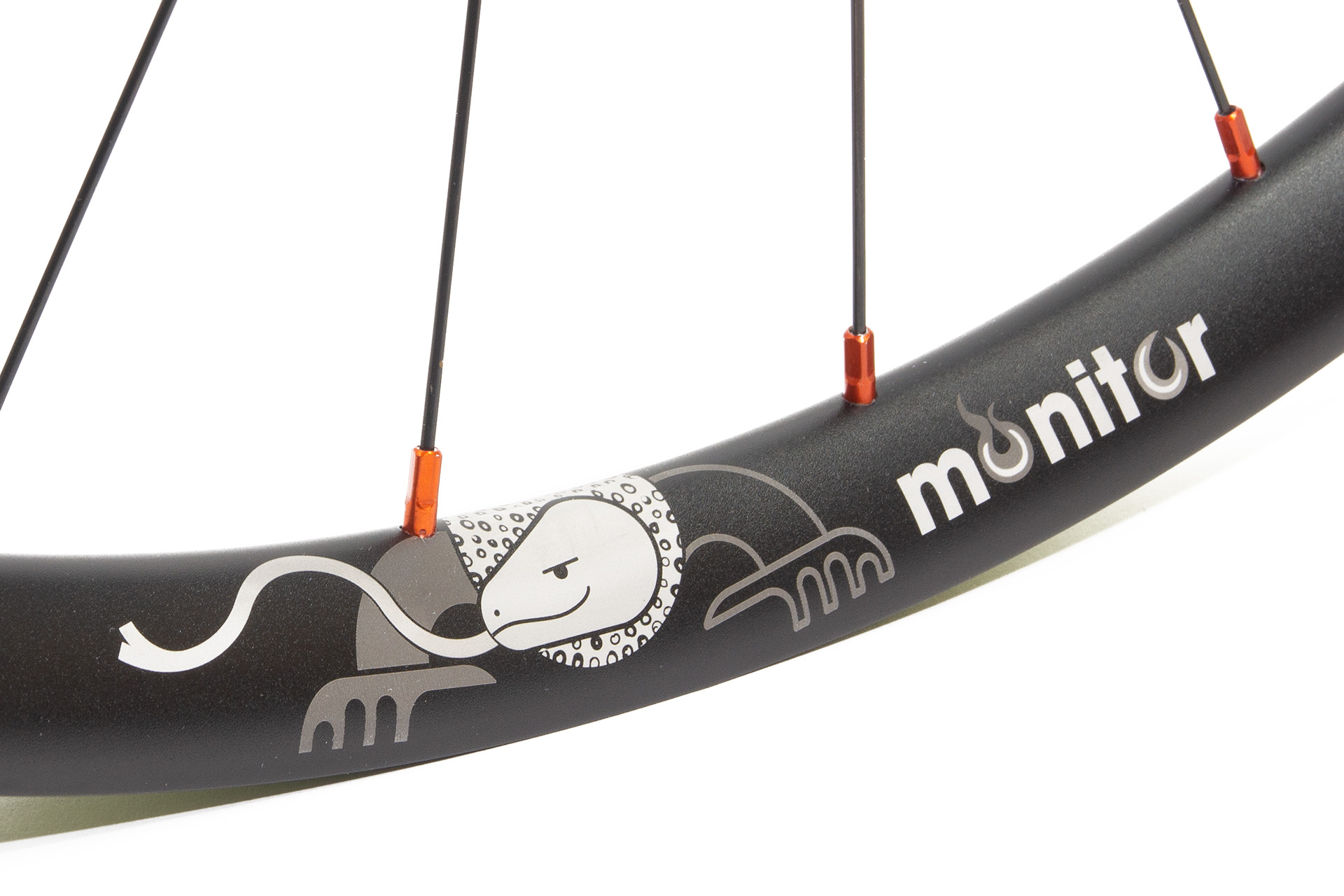

Monitor alu etched rim with orange nipples

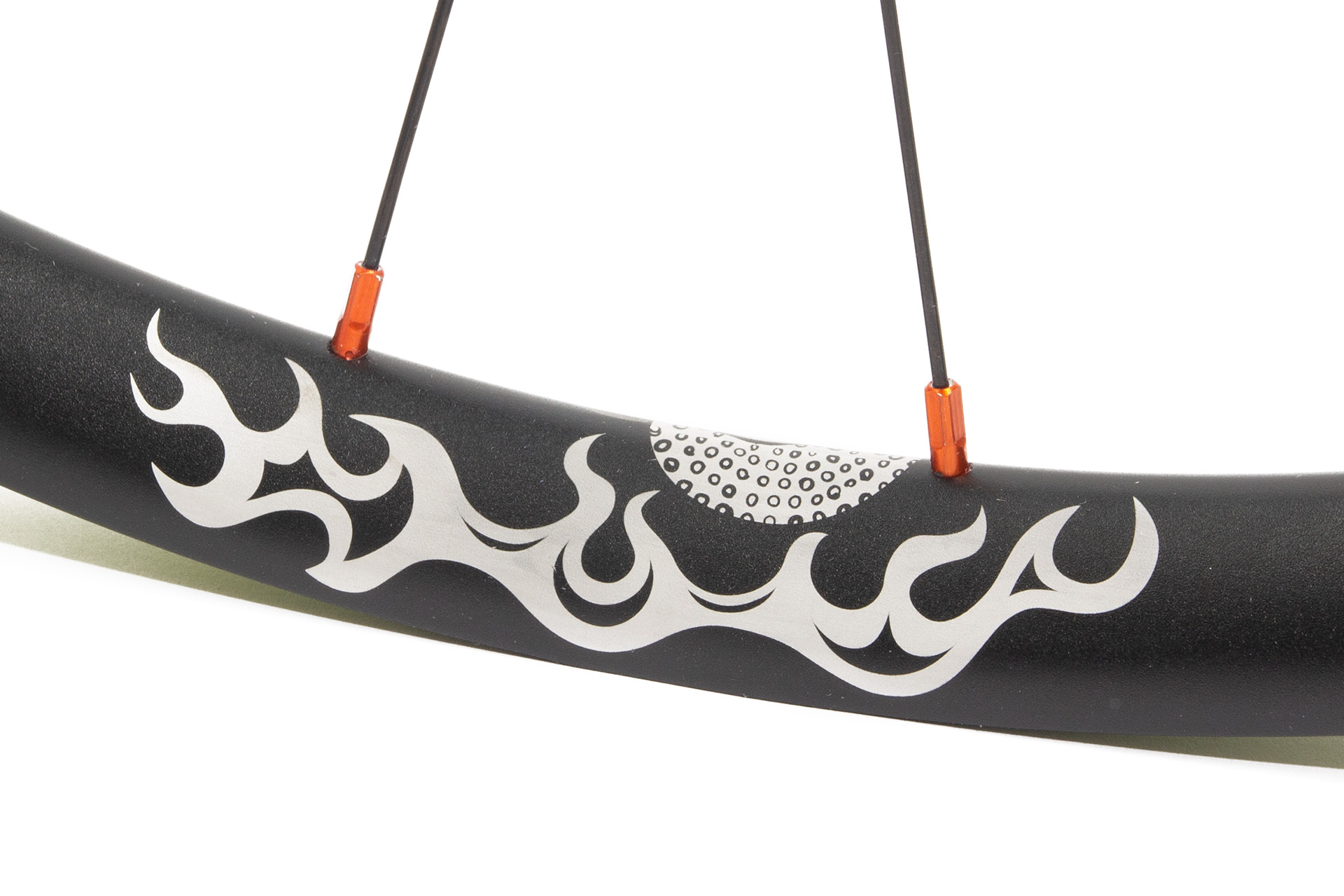

Monitor alu etched rim with orange nipples
Monitor alu etched rim with orange nipples
etched monitor design on a 6-bolt boost straight-pull hub
etched monitor design on a 6-bolt boost straight-pull hub
Monitor aluminium rim profile

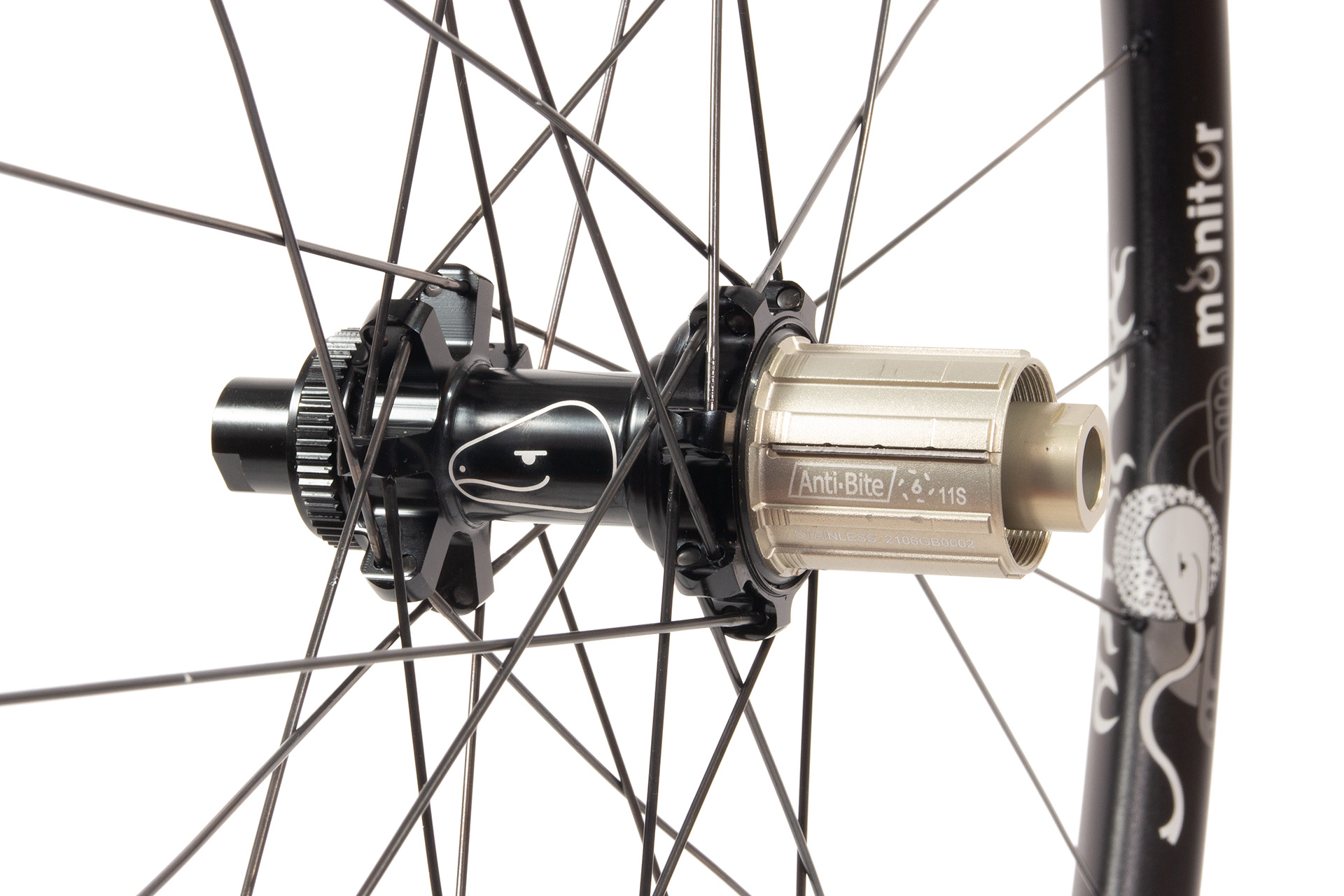

Monitor alu centre_lock straight-pull 28 hole rear wheel
Monitor alu centre_lock straight-pull front wheel

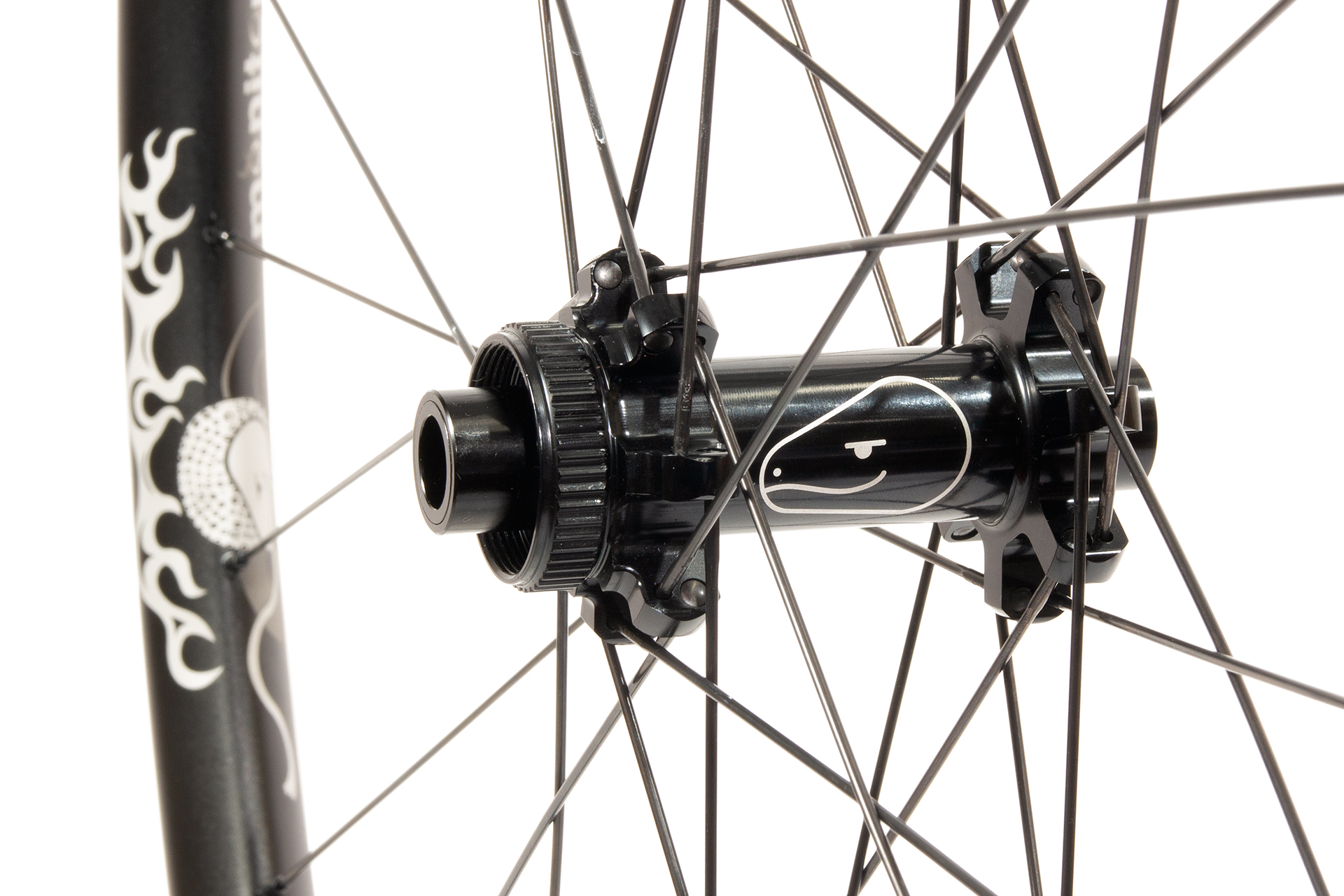

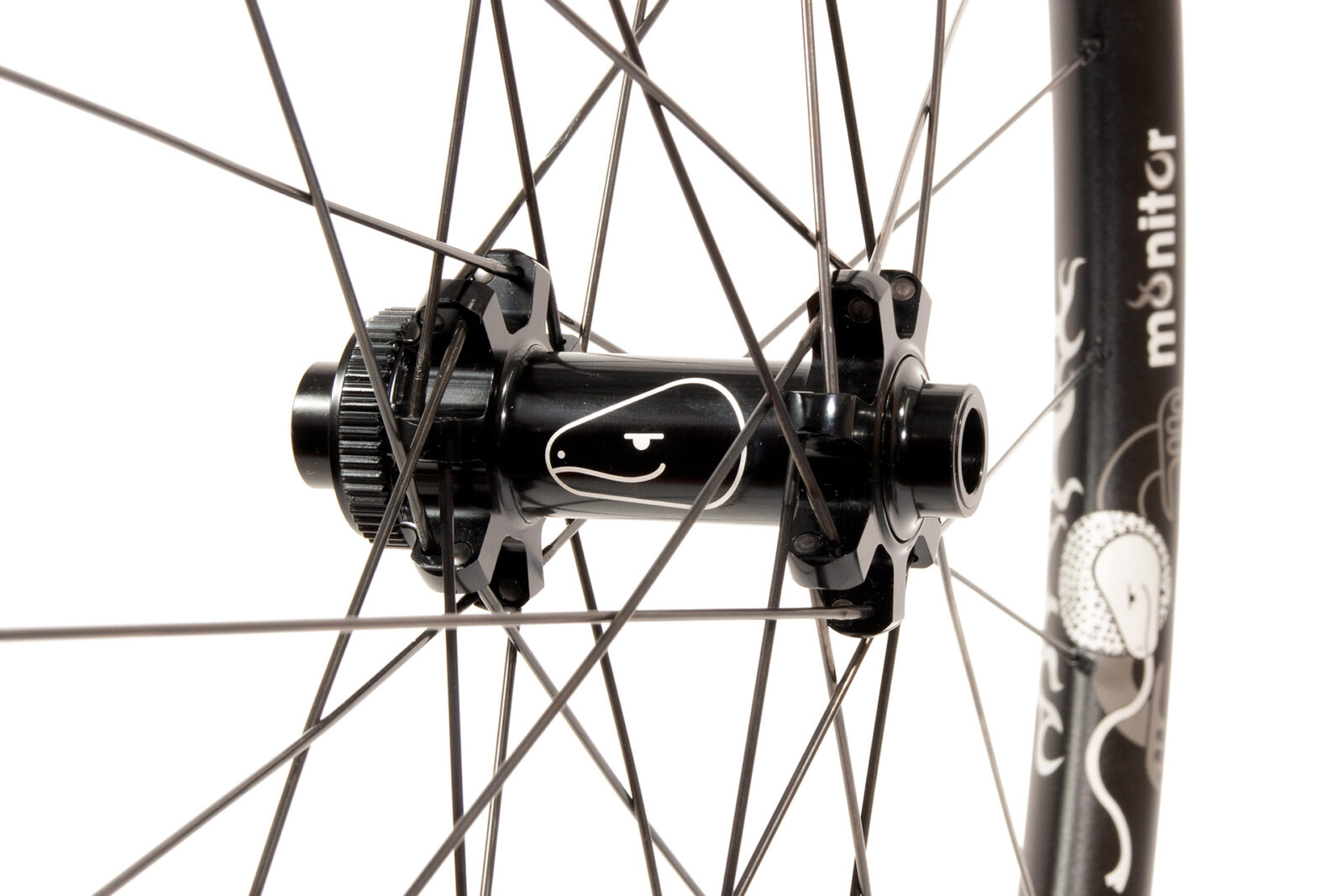

Monitor alu centre_lock straight-pull 28 hole front wheel

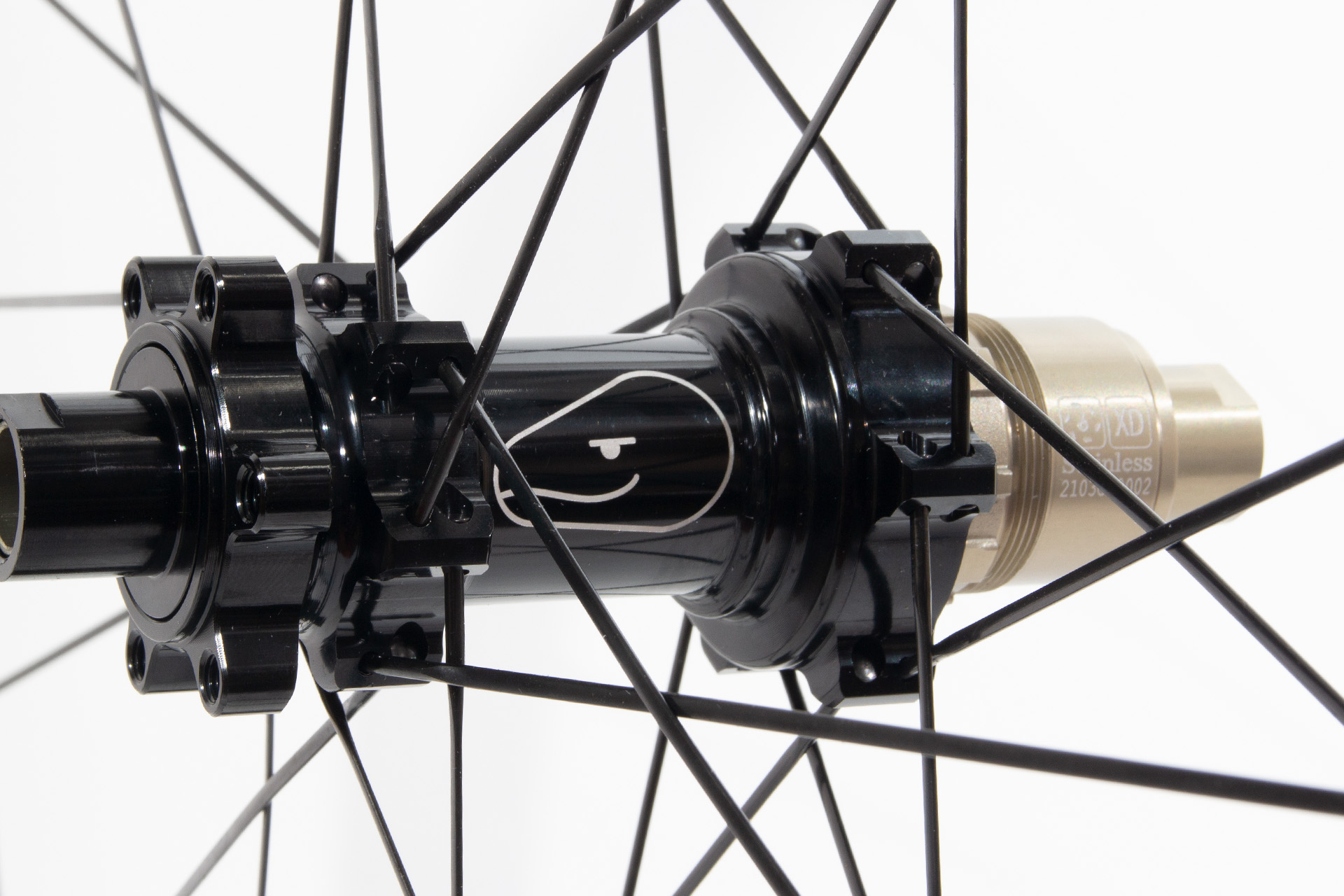

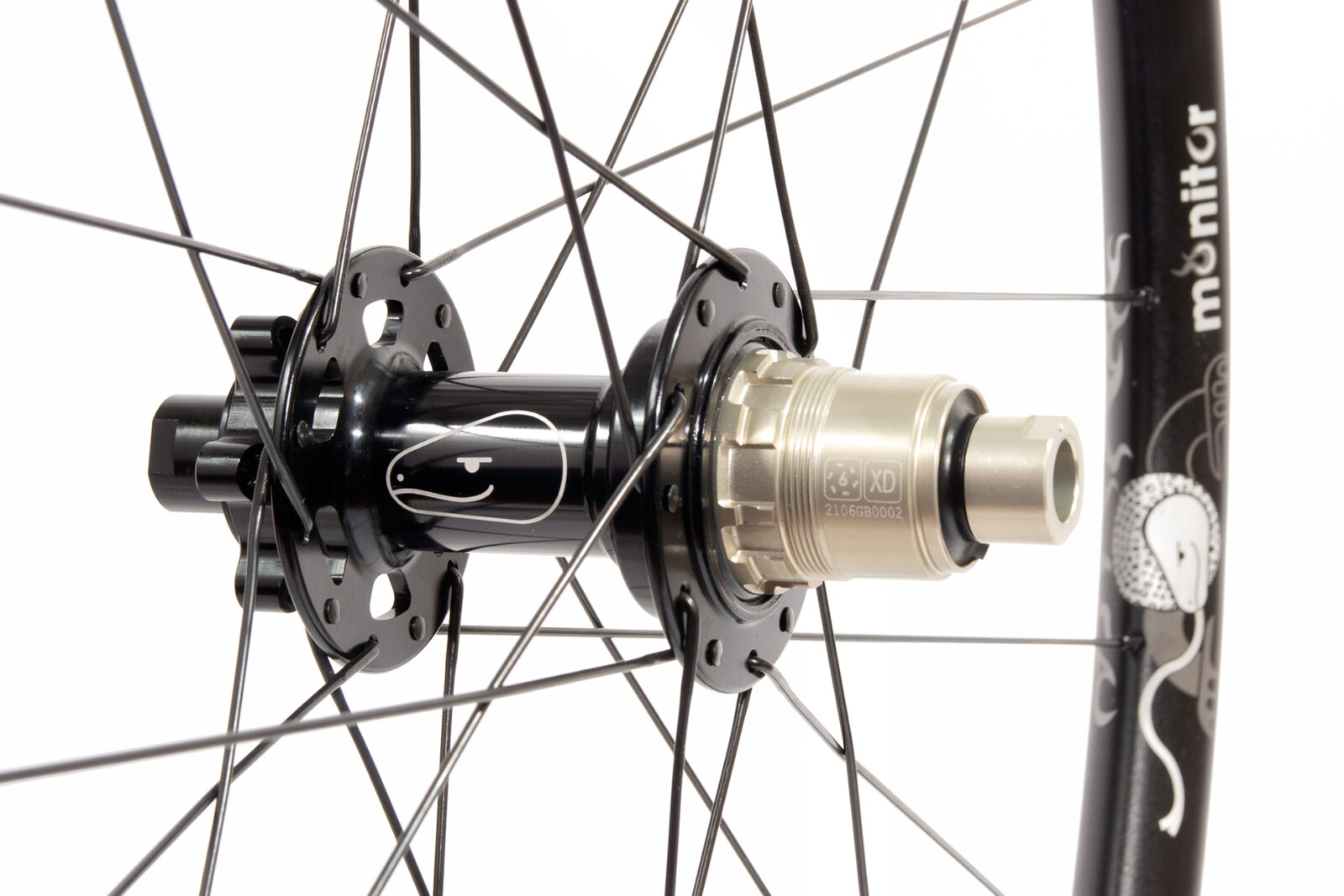

Monitor alu 6-bolt boost rear wheel

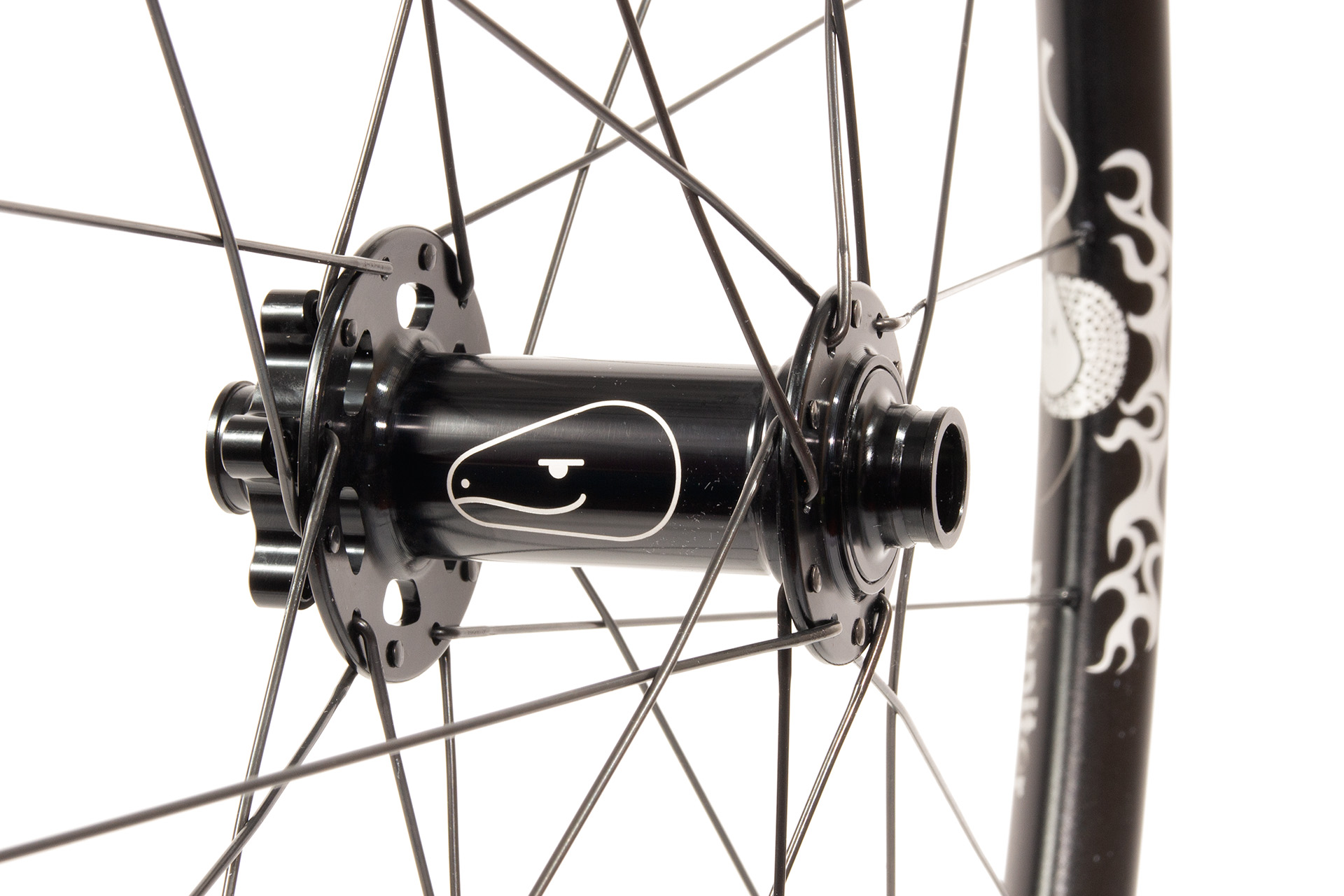

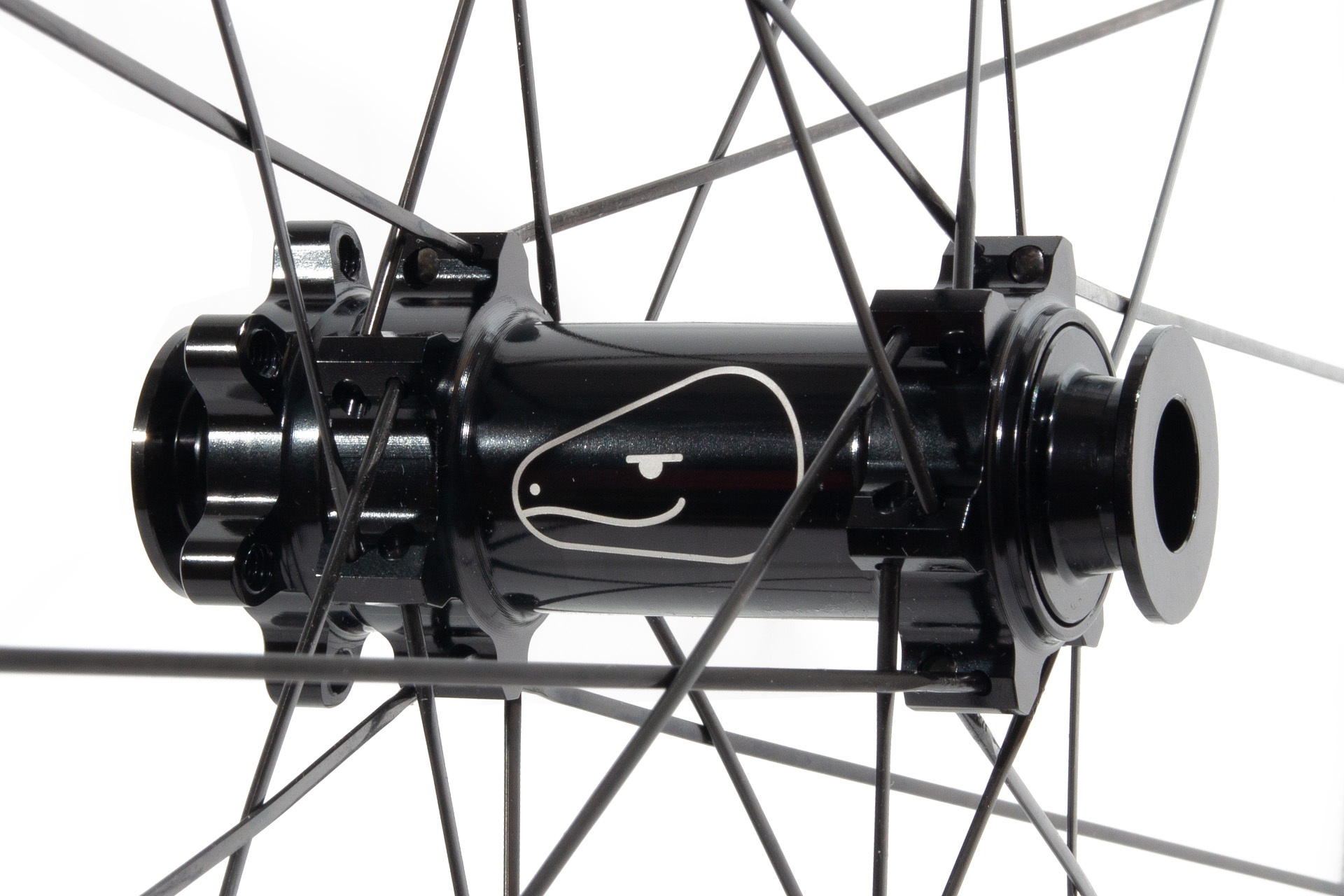

Monitor alu 6-bolt boost front wheel

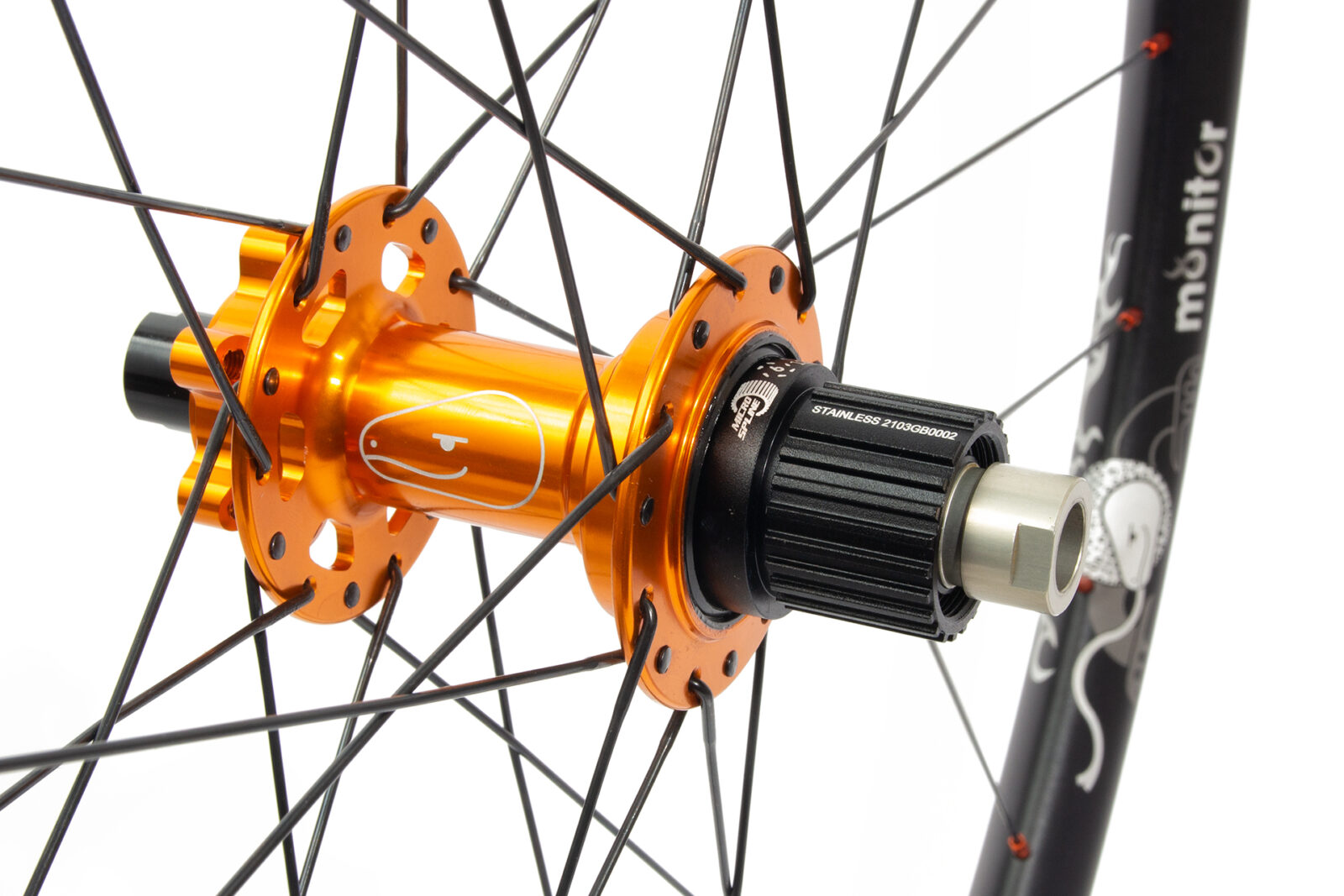

Monitor alu 6-bolt boost orange hub and nipples

Monitor alu wheels

from £390 / pair

Our fast cross-country or gravel aluminium wheelset based around Bitex hubs with stainless bearings. Tough 25mm wide, tubeless compatible rims are hand-built with Sapim D-Light spokes making these wheels fast off-road. Also ideal for running larger tyres on road-disk or gravel wheels.

build time for this wheelset: 10 days
jump to configure wheels >>

Categories: , Tags: , , , ,

Description

Available with either 24 or 28 spokes per wheel for a choice of lighter weight or greater wheels stiffness. We recommend 24 spokes up to about 90kg riders and 28 spokes over that, but some lighter riders may prefer the increased wheel stiffness of the higher spoke count.
The tubeless-ready rims are supplied with tubeless tape fitted, and tubeless valves are available as an optional extra – choose from our range of coloured aluminium valves.

These wheels are available with these options:

hubs : JRA hubs
rim : JRA Monitor Alu rims, 24 or 28 front and rear. Width 25mm internal, 29mm external, depth 22mm. 29er or 27.5″.
spokes : Sapim D-Light black
weight:
24 spokes per wheel / 650b / alu nipples 1495g
24 spokes per wheel / 29er / alu nipples 1559g

Options
freehub: Shimano, Sram XD or XD-R, Campag and Campag N3W (13 speed)
nipples: choose from brass or aluminium coloured nipples

Upgrades
SON dynamo hubs are available for the front wheel
Sapim CX-Ray bladed spoke upgrades are available for both wheels
Tubeless valves are an optional extra

Additional information

rim material & finish
material

aluminium

decal type

laser etched design
rim data
internal rim width

25mm

rim depth

wheel size

,

bead hook

hooked

spoke nipple type

external
info
brand

Just Riding Along

range
More
front lacing pattern

2 cross

rear lacing pattern

2 cross

riding type

gravel, MTB

Weight

1559 g

why buy from us

warranty

All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.

delivery

To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.

repairability

All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

our hubs

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.

warranty

All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.

drive

6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 54 POE, R-type hubs have 48 POE.

features

  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

custom built wheels

This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.
