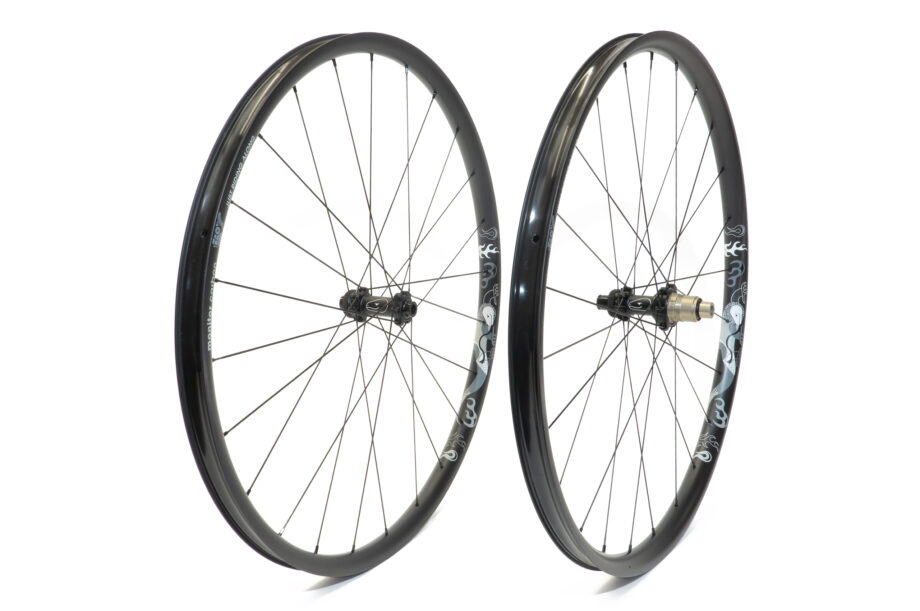

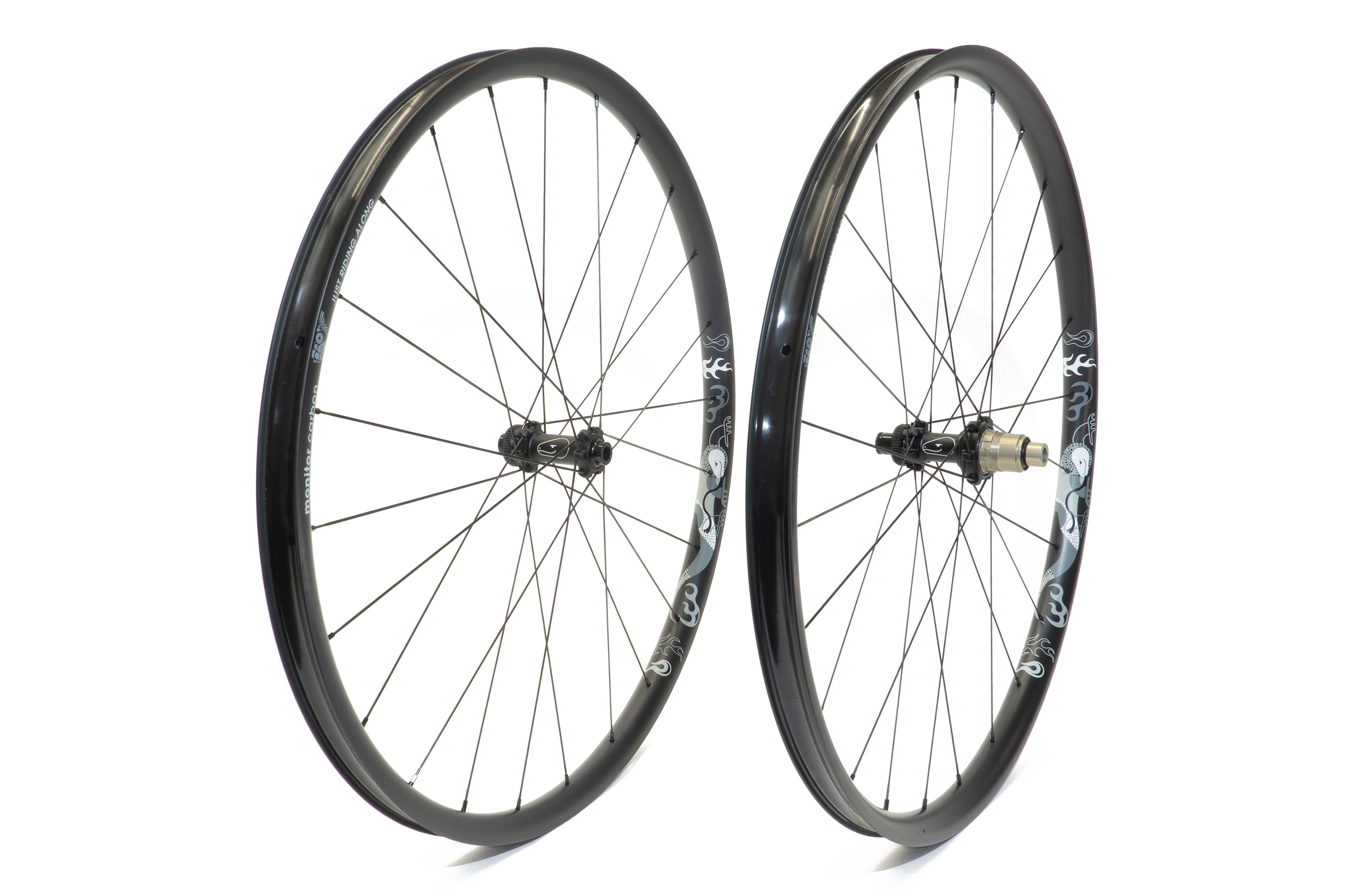

Monitor mk2 carbon wheels

from £945.00

Meet the Monitor mk2 carbon, our lightweight off-road carbon wheelset. Stiff and responsive with 28mm internal rim width and weights as low as 1366g/pair for 29er wheels.

build time for this wheelset: 5 days
jump to configure wheels >>

Category: Tags: , ,

The Monitor mk2 carbon is a tough wheelset for gravel bikes with a 28mm rim width suited to tyres from 34-60mm.

The wheelset features our usual choice of hub options with centre-lock or 6-bolt disk mounts available as well as straight-pull or traditional J-bend spokes. Choose the wheels for gravel bikes or XC mountain bikes.

Key components

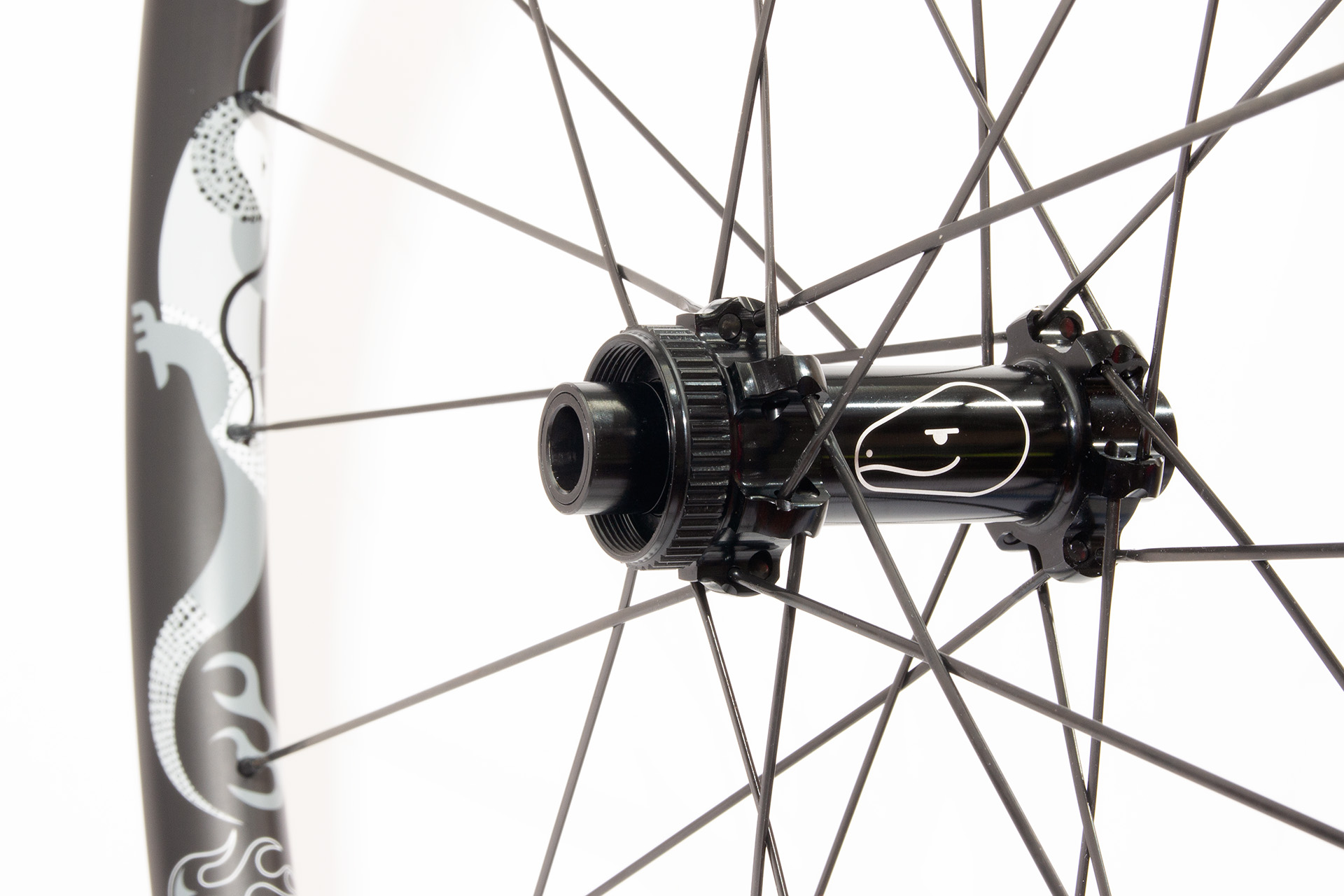

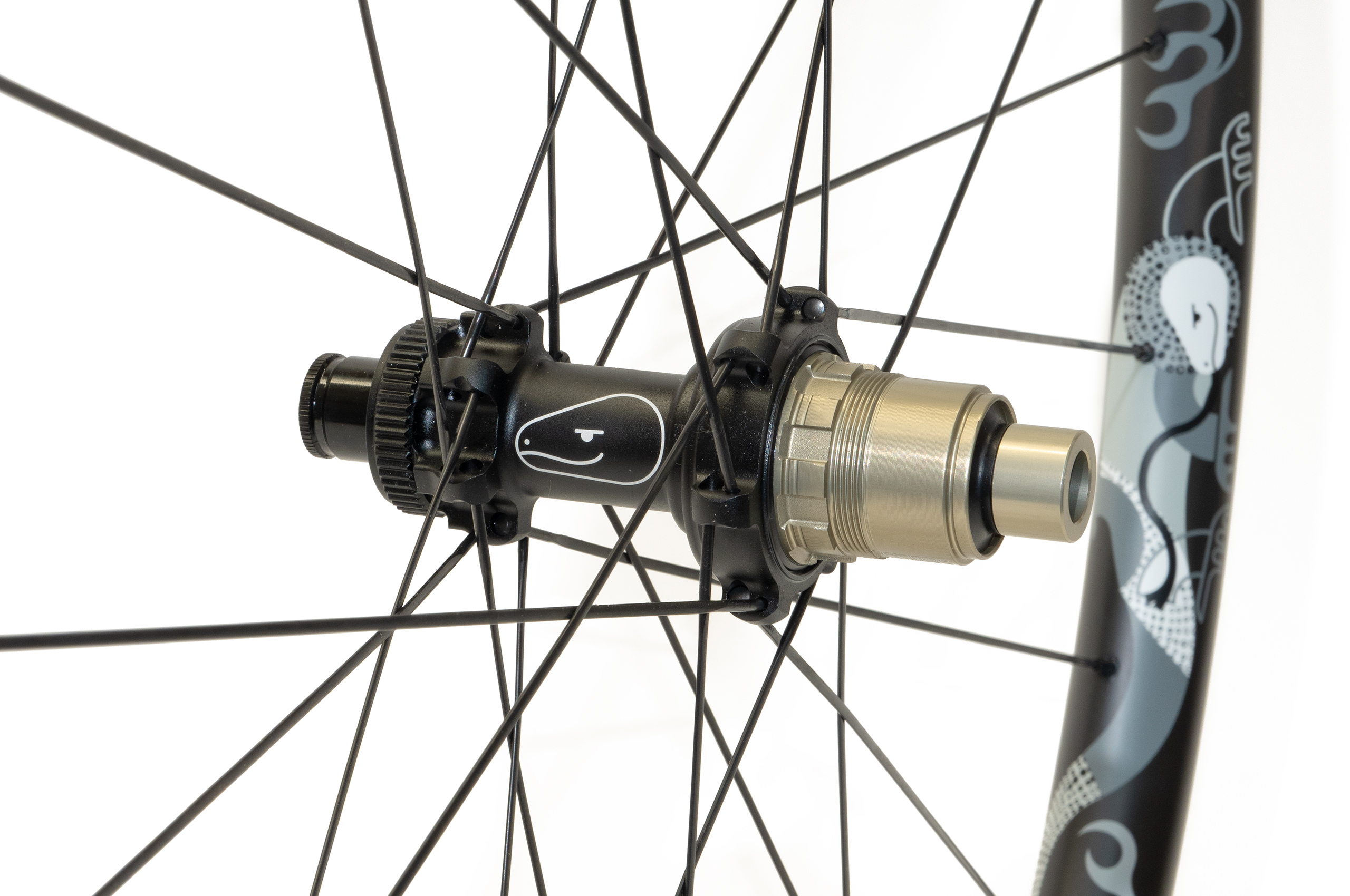

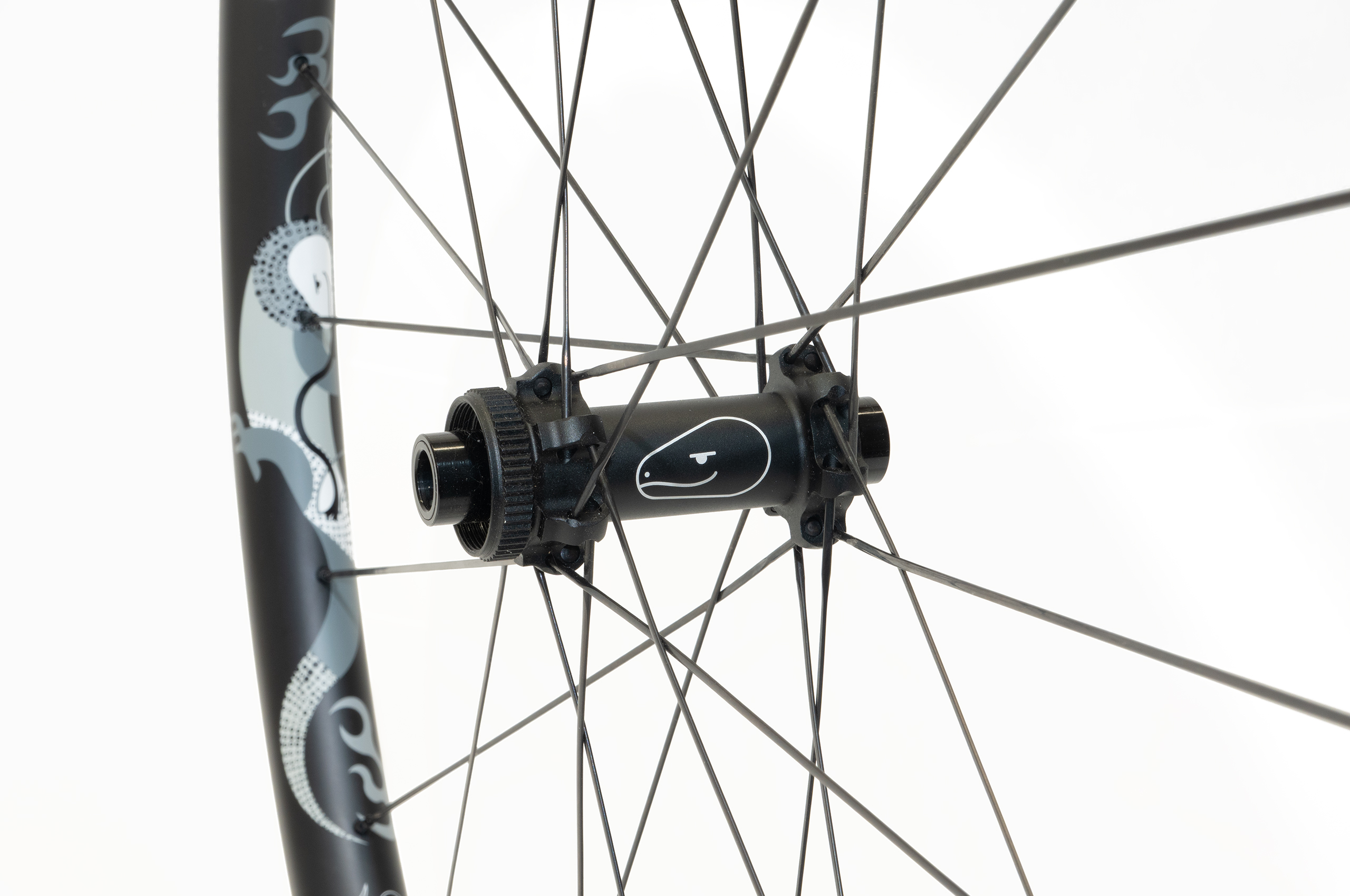

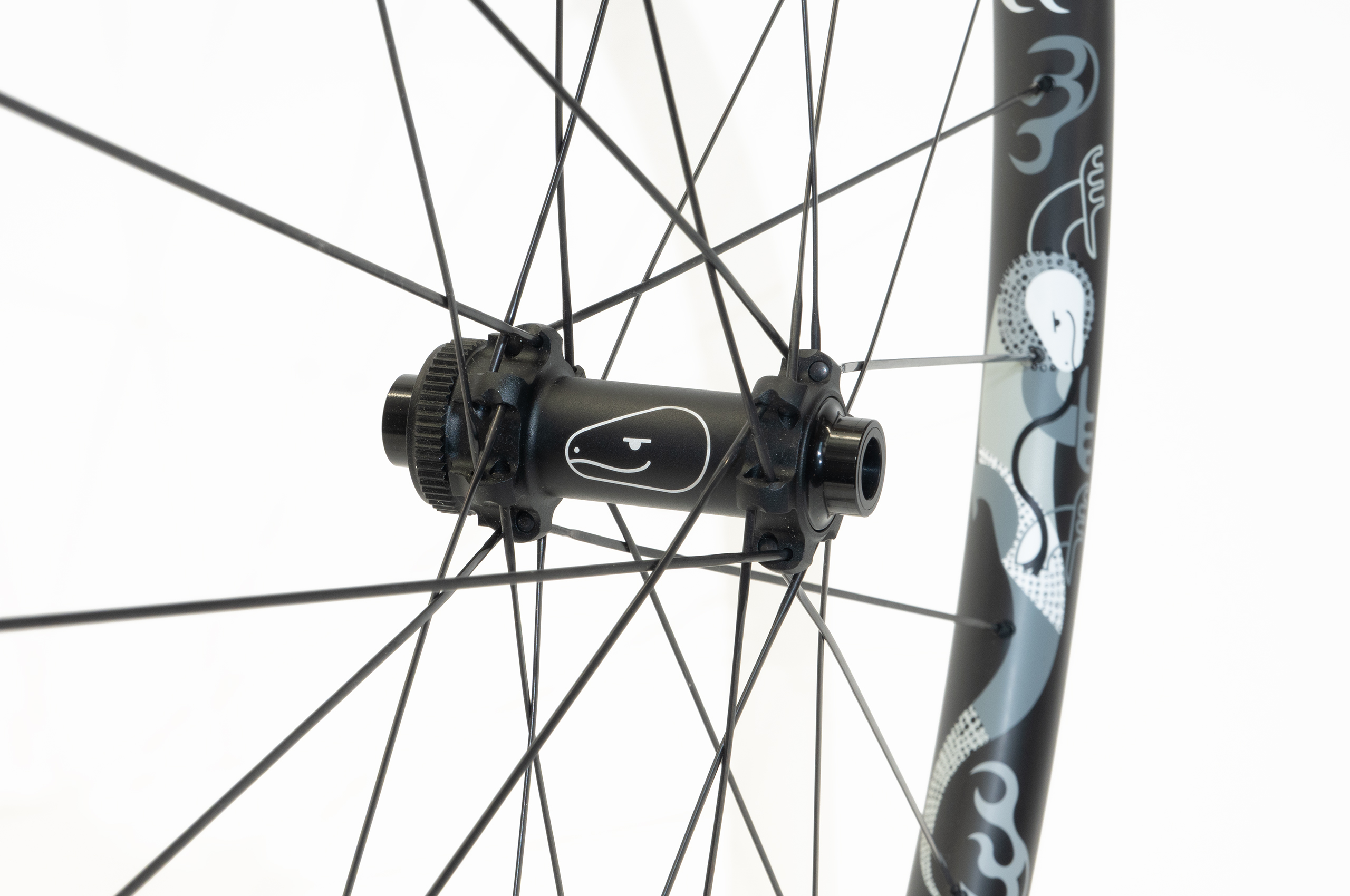

hubs choose from any of our J-bend or Straight-pull, centre-lock or 6-bolt disk mount including Son dynamo hubs
rims Monitor mk2 carbon rims
spokes Sapim CX-Ray black spokes
nipples Sapim secure-lock nipples – as selected
weights 1366g pair
* weighed with rim tape and Shimano freehub

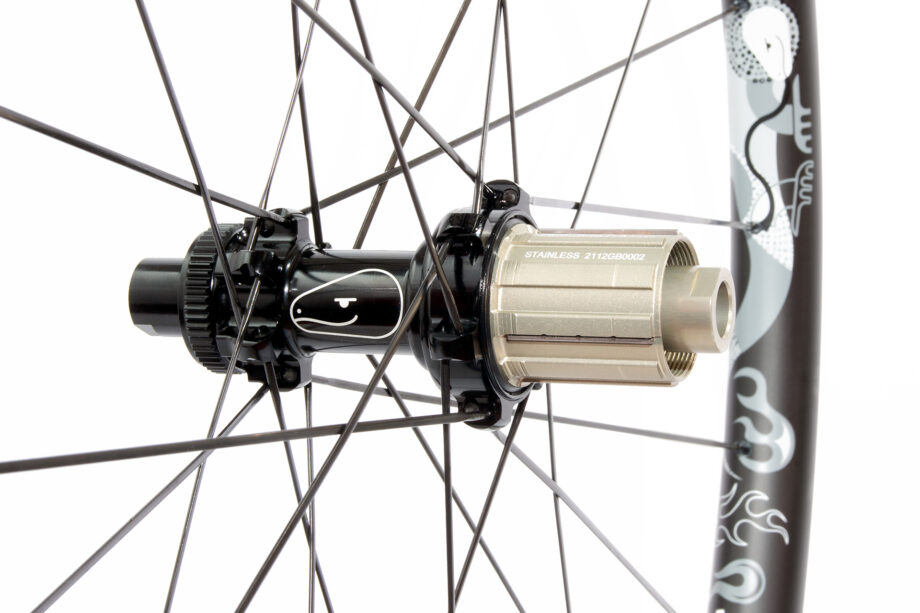

freehub Shimano 11 speed or Campagnolo 12 speed are included in base price. All other freehubs are available at extra cost.
rider weight limit 85kg for most 24-spoke wheels, no weight limit for 28 spoke wheels.
recommended tyre widths 34-60mm

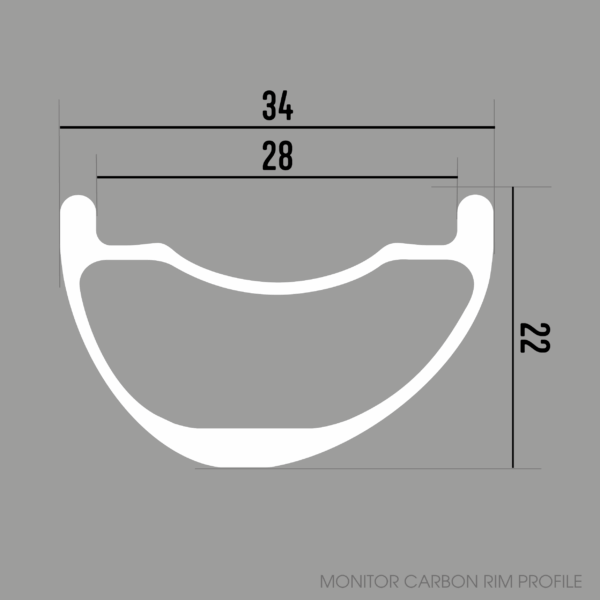

rim profile diagram coming soon. Mk2 Monitor rims are 28mm wide, 20mm deep.

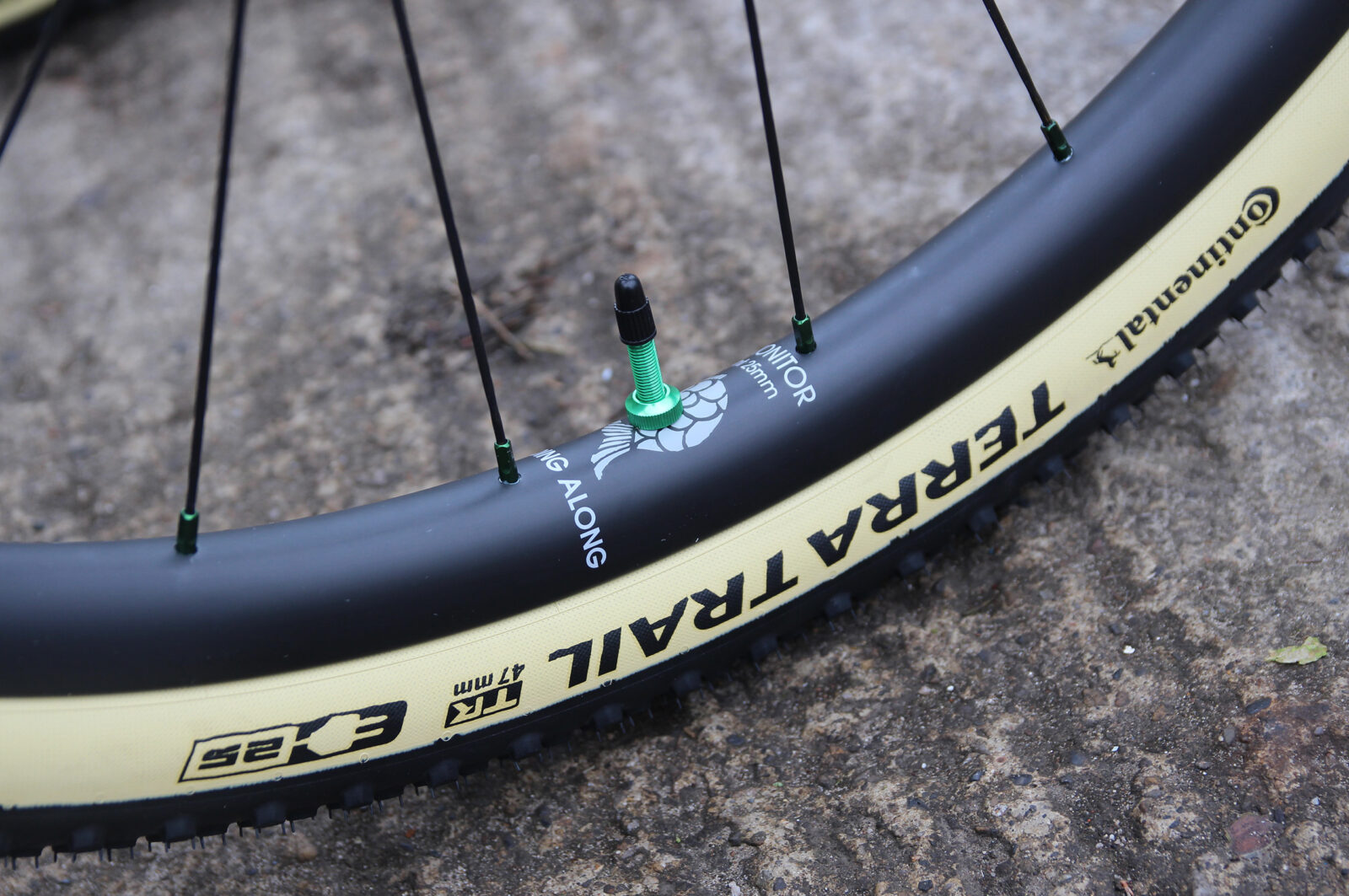

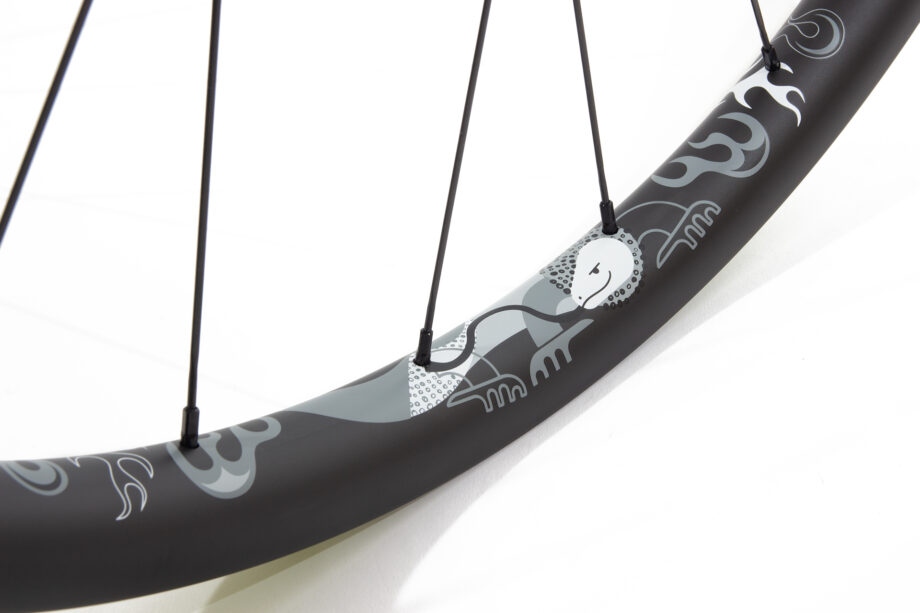

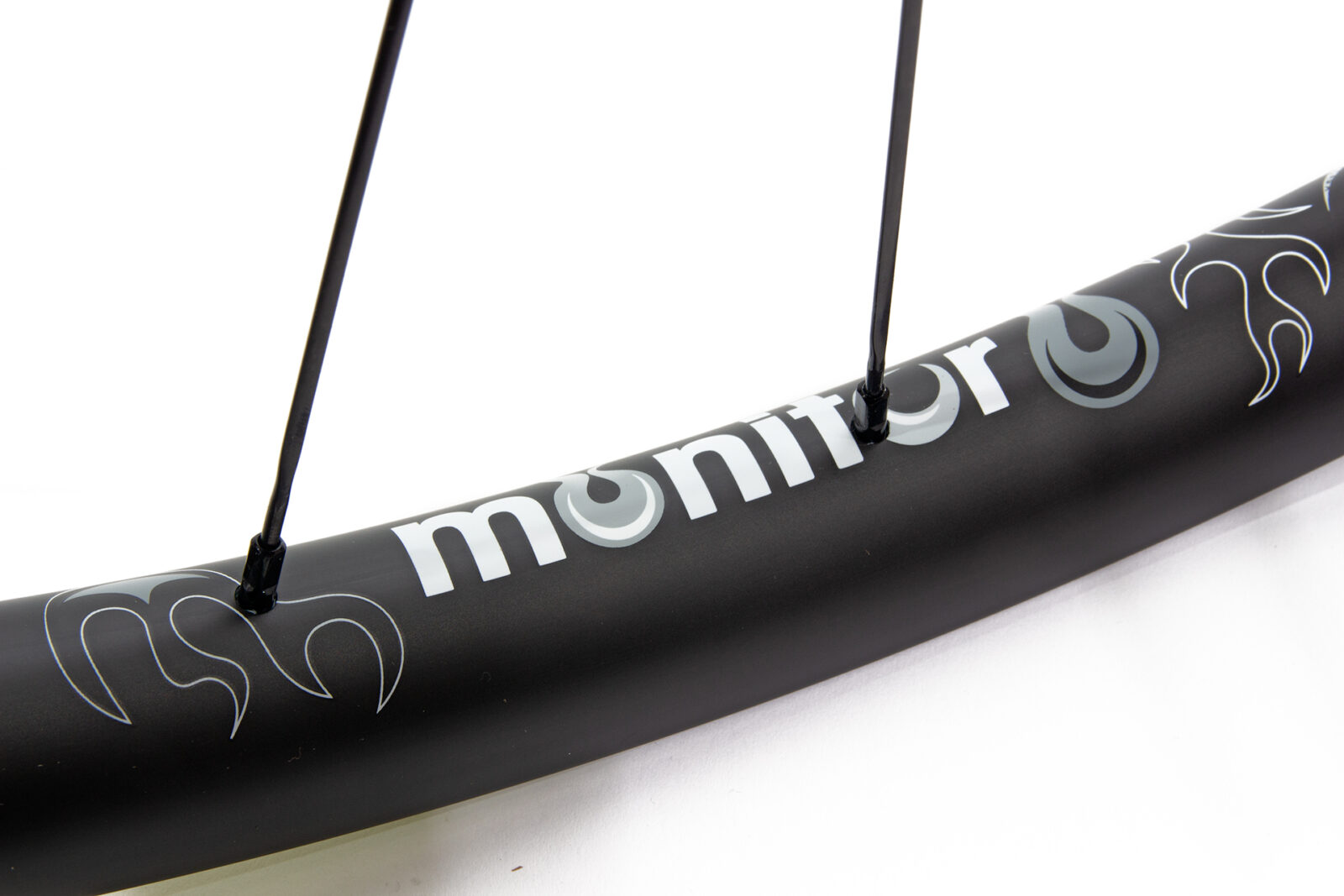

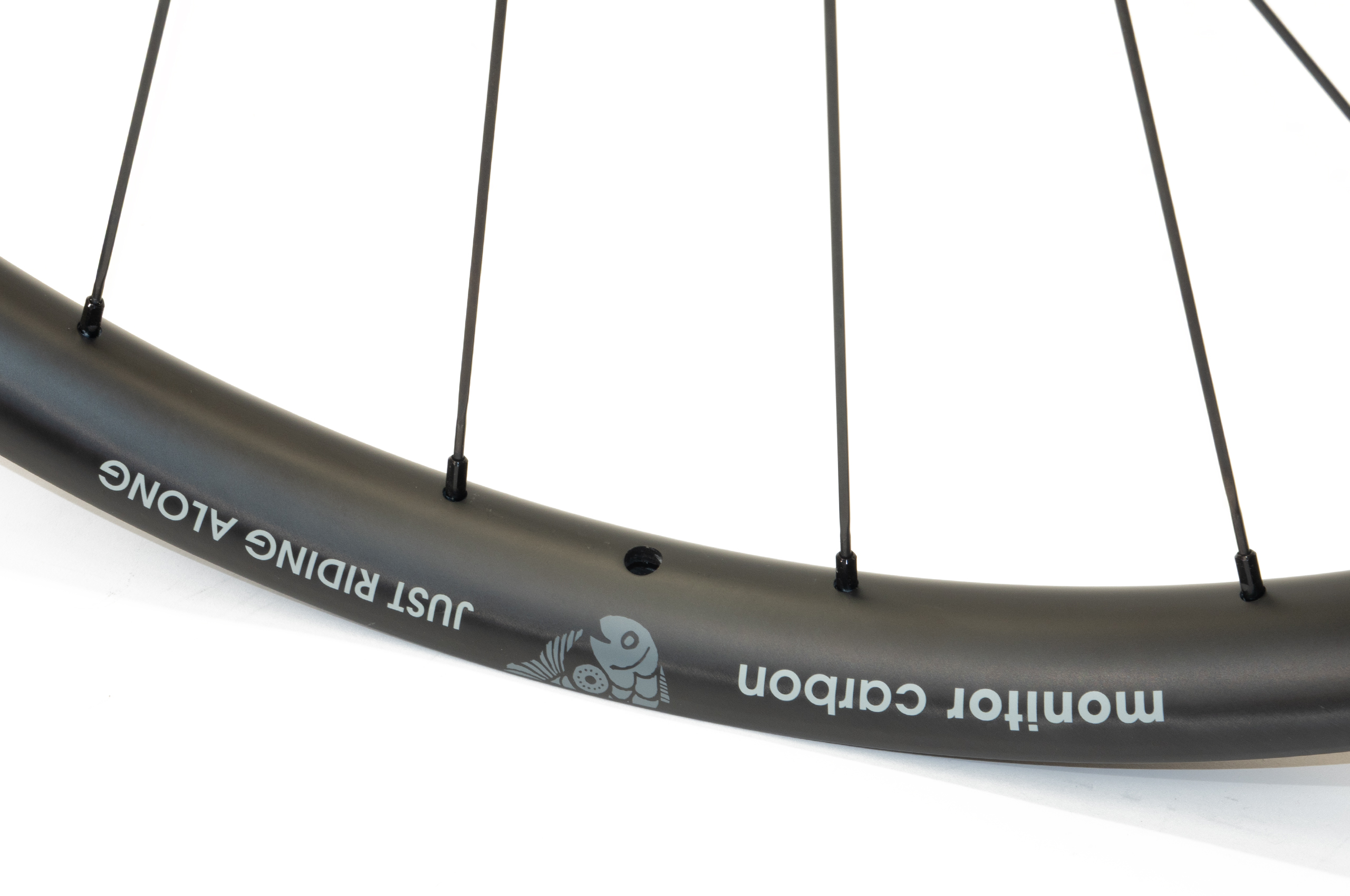

Monitor carbon rims

gravel or cross-country mountain bike carbon rims

material: Carbon fibre Toray T700 & T800 matt finish

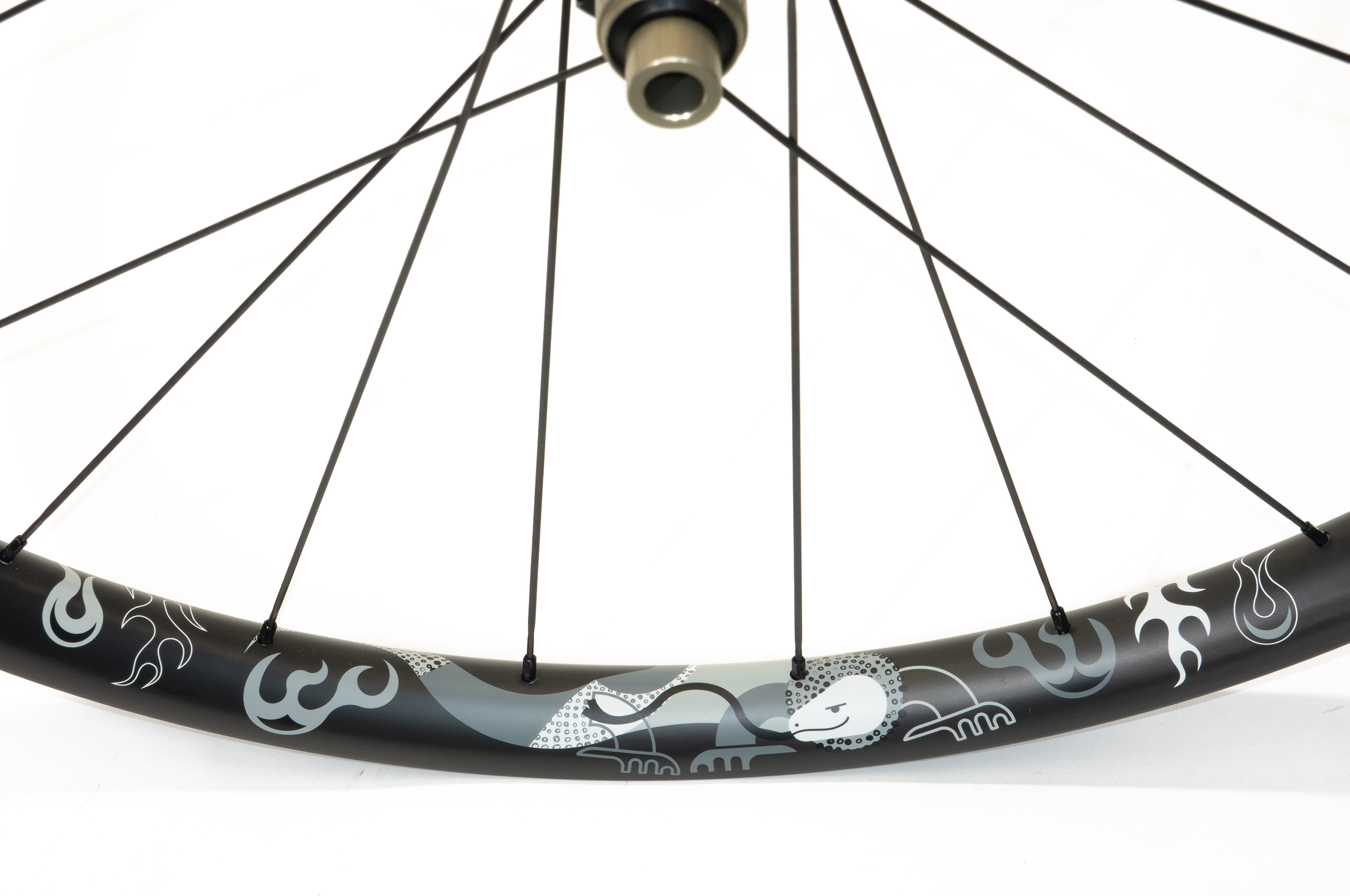

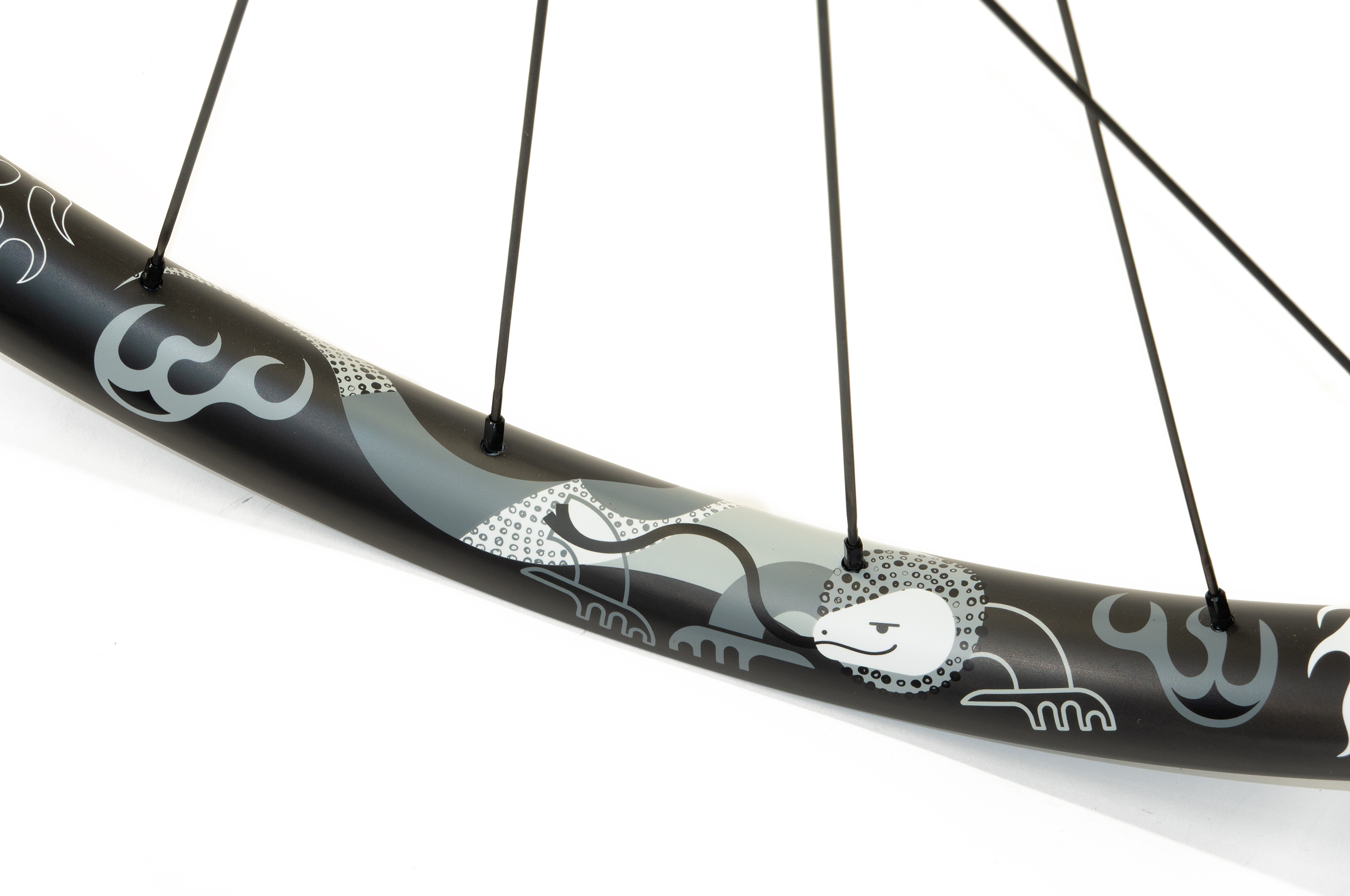

decals:
durable matt finish water transfer decals in grey or red, orange
dimensions: asymmetric rims with an internal width of 28mm with external 35mm and 20mm height
weight: 355g per rim
bead: tubeless compatible with a hookless bead profile for strength and easy inflation
options: available in, 29er –  24 & 28 hole
tyres:  suitable for tyres from 34-60c.
crash replacement: if you damage our carbon wheels we will replace the rim for a third of the cost of a new one + labour

wheelset weights (for 24-spoke 700c wheels):
With straight pull centre-lock hubs front 617g / rear 749g (pair 1366g)
With J-Bend centre-lock hubs front 639g / rear 764g (pair 1403g)
With J-bend 6-bolt front 664g / rear 802g (pair 1466g)

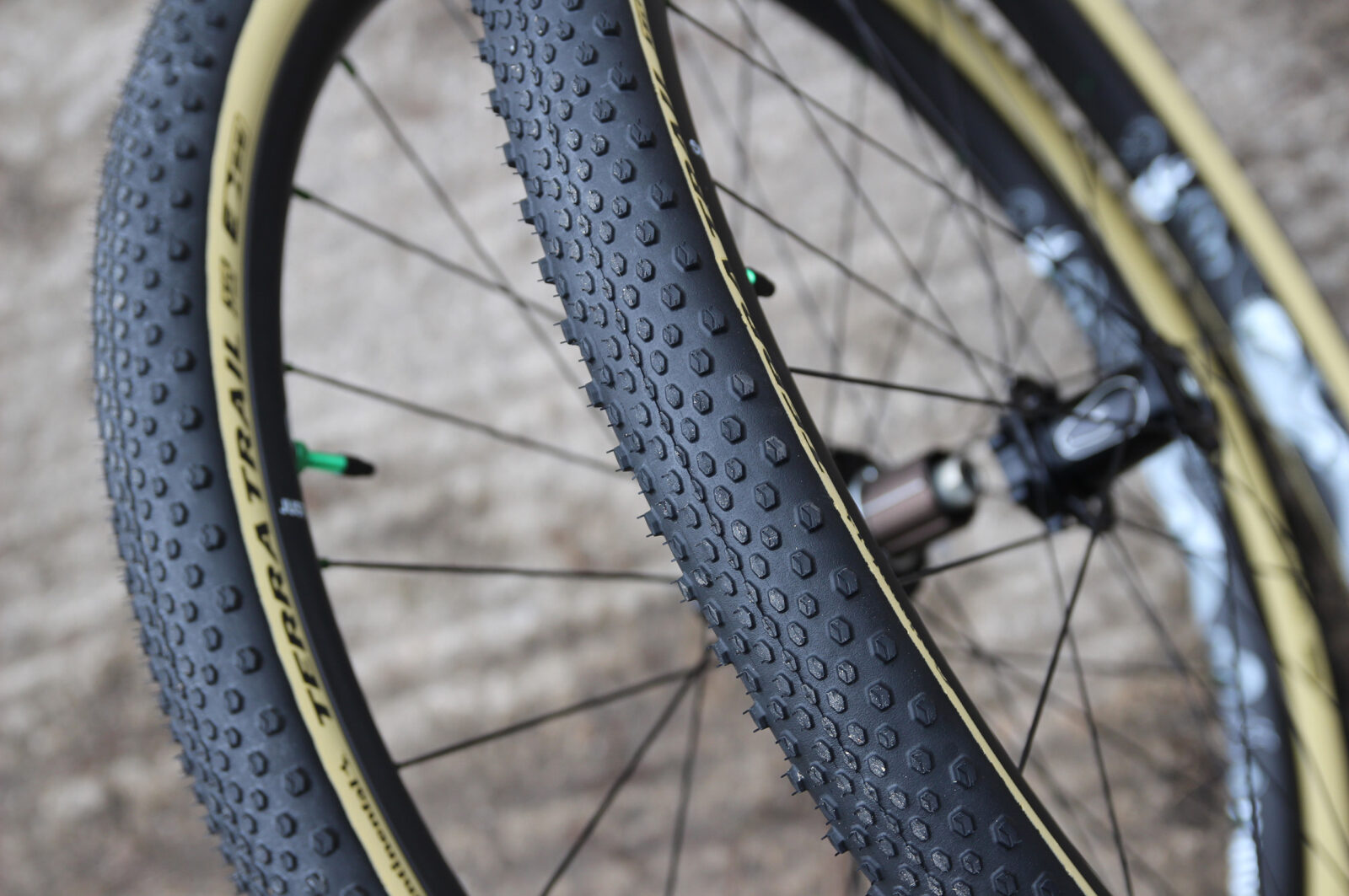

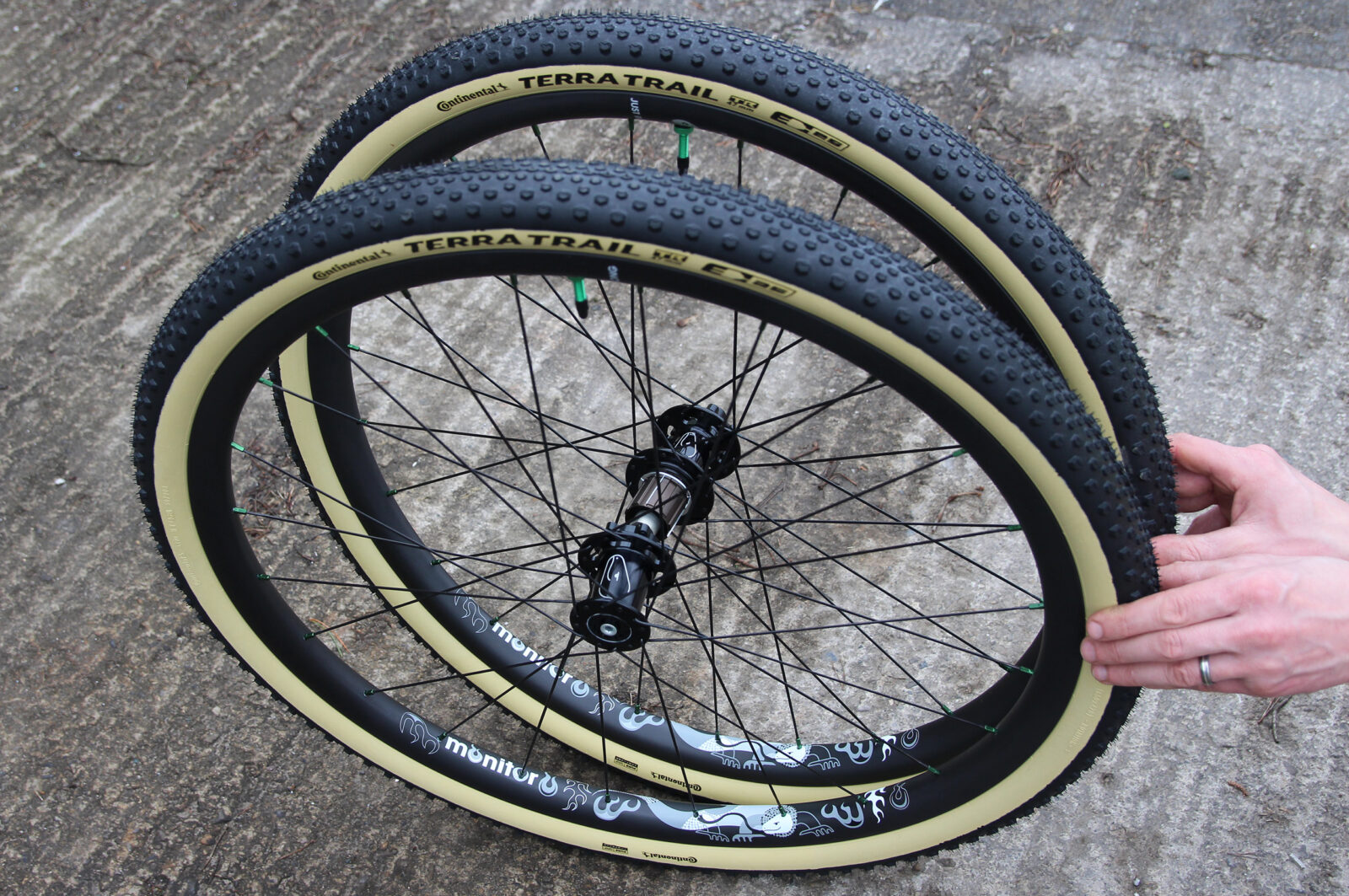

further images





product reviews

read our review on ROAD.CC

We scored 9/10 and they were rated 4.5/5 stars

“When you first roll out on these wheels they’re nicely silent. That’s good: a lack of pinging and popping is a sign of competent wheelbuilding that doesn’t leave the spokes twisted.”



product reviews

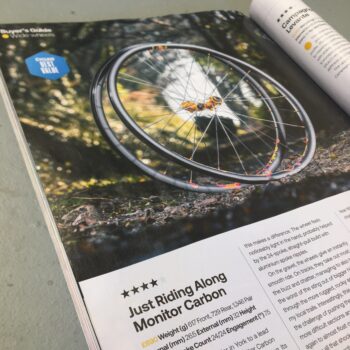

read our review in Cycling Plus June 2023

We rated 4/5 stars & awarded Best Value on test

Our wheels were up against plenty of big-brand gravel wheels with the reviewer most impressed by the ride quality, comfort and speed at such a competitive price.

why buy from us

warranty

All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.

delivery

To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.

repairability

All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

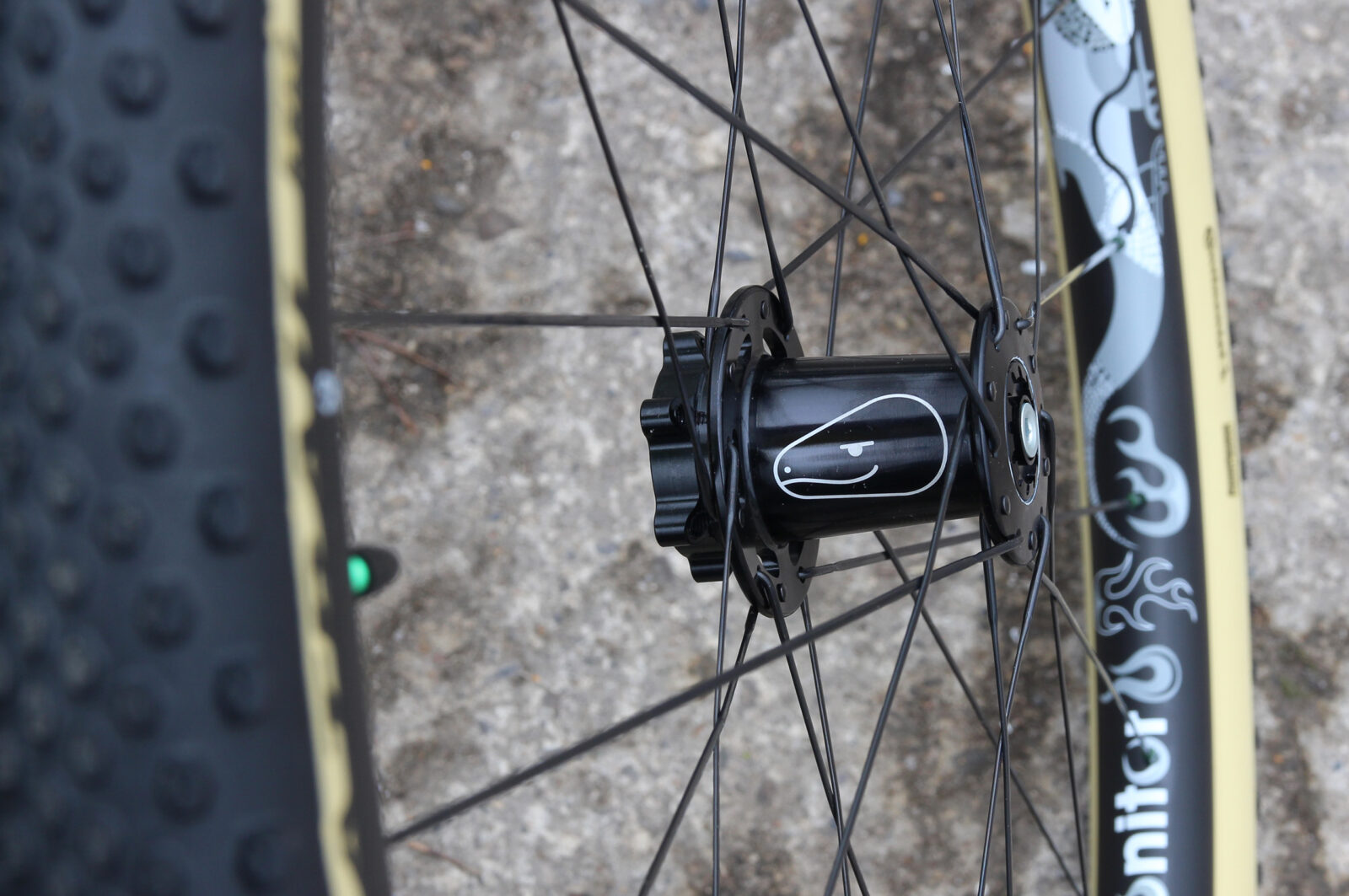

our hubs

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.

warranty

All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.

drive

6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 6.7 degree, 54 POE, R-type hubs have 7.5 degree, 48 POE.

features

  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

custom built wheels

This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.
