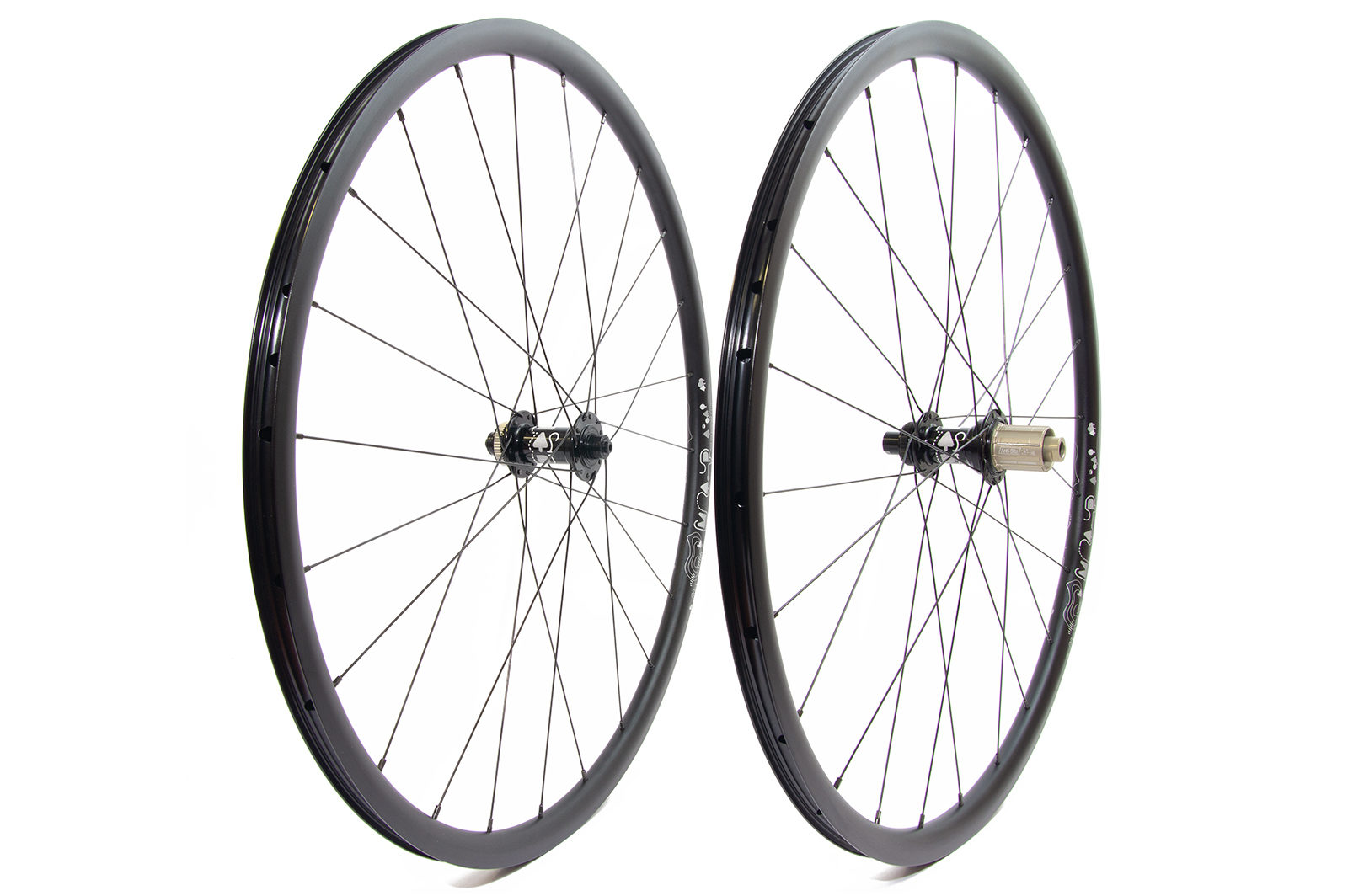

Map wheels with 28 spokes and centre-lock J-bend hubs
Map rim with etched design
Map rim with etched design and black spoke nipples
Centre-lock J-bend hub showing the JRA logo underneath

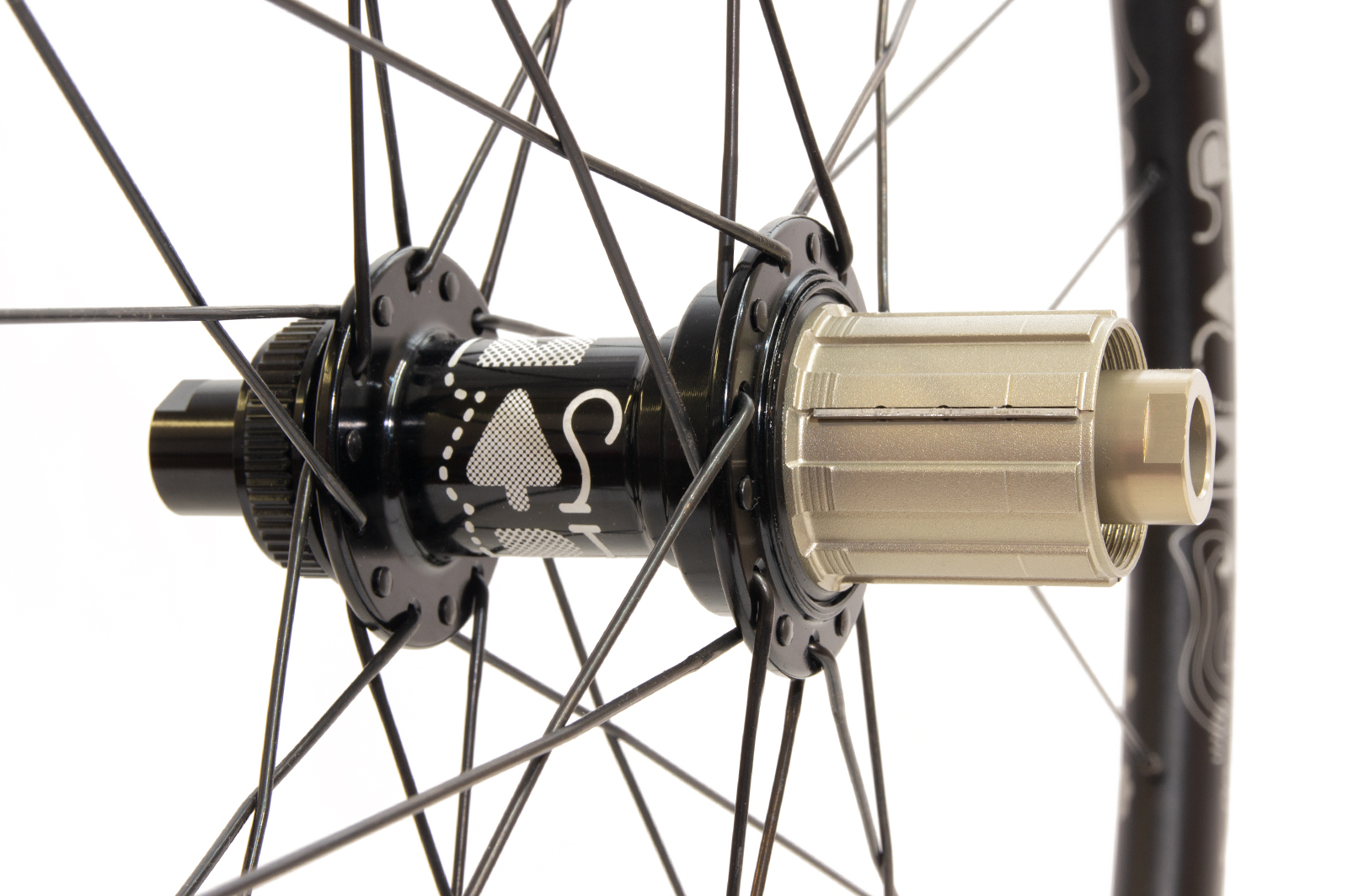

Centre-lock J-bend rear hub with Map etching

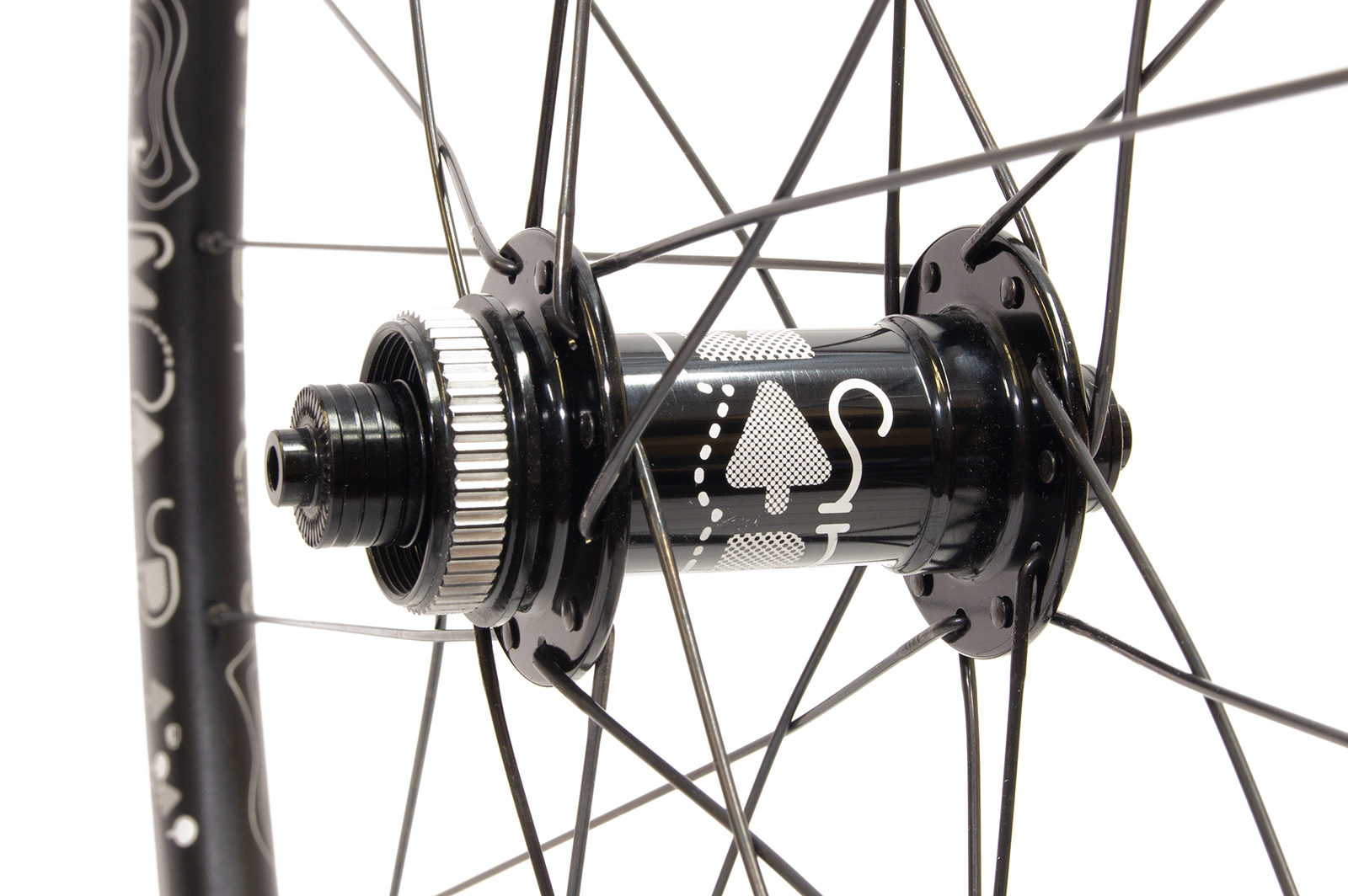

Centre-lock J-bend front hub QR end-caps with Map etching
Map rim profile
Centre-lock J-bend rear hub with Shimano freehiub and 12x142 axle

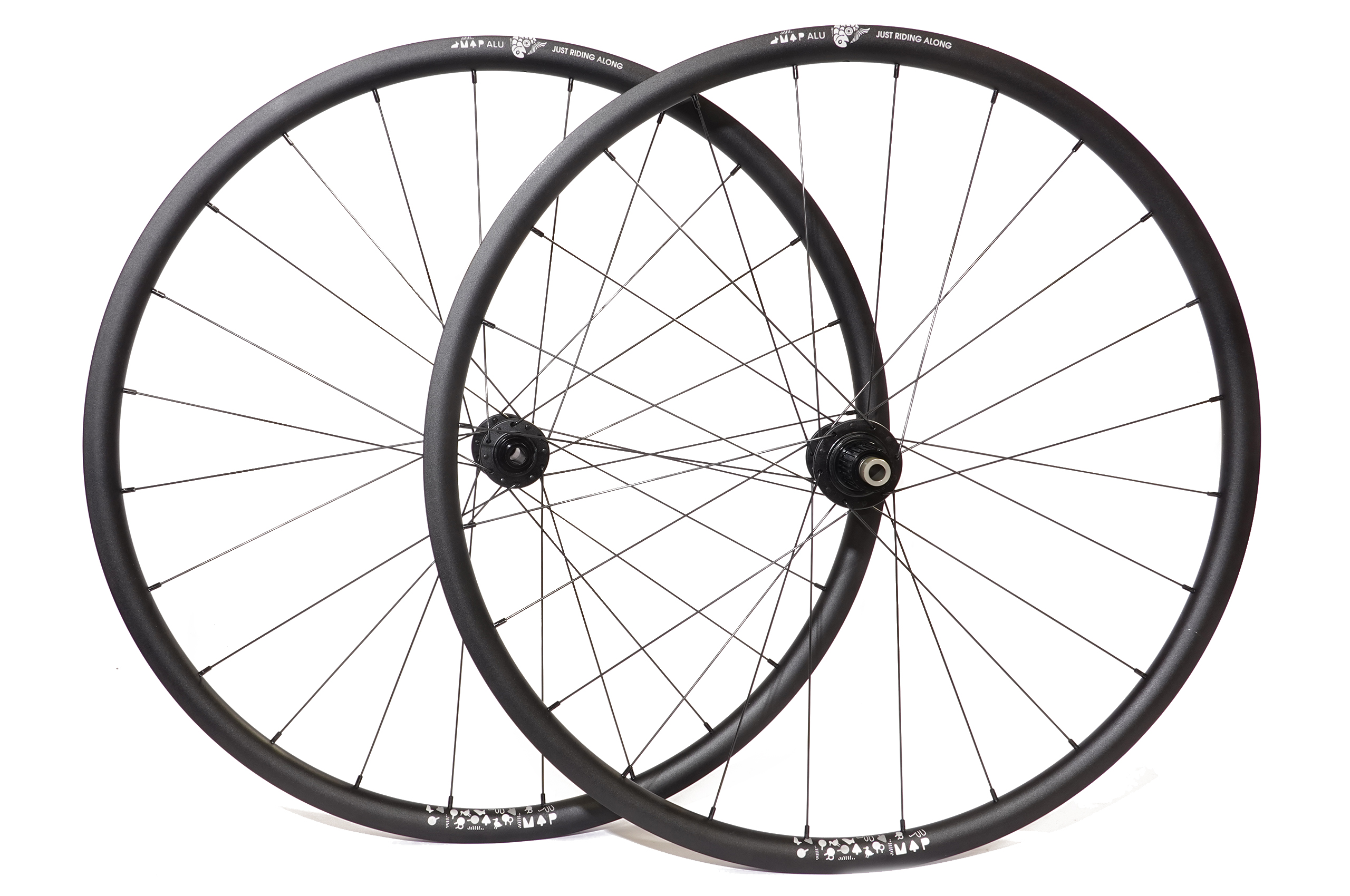

Map wheels

from £390 / pair

Lightweight, dependable and fast wheelset for road disk bikes we would like to introduce the Mud And Pavement wheelset, or MAP for short. Please see the build time indicator on the front page for latest delivery times.

build time for this wheelset: 5 days
jump to configure wheels >>

Categories: , , , , Tags: ,

Description

Based around our 6-bolt or Centre-lock disk hubs including stainless bearings laced to our new 19mm wide, tubeless compatible road disk rim. Sapim D-Light spokes make these wheels fast on road and tough enough for cyclocross.

Map wheels are available with these options:

hubs : JRA 6-Bolt hubs or Centre-Lock in J-Bend or Straight-Pull
rim : JRA Map rims, 24,28 or 32 hole front and rear. Width 19mm internal, 24mm external, depth 25mm.
spokes : Sapim D-Light black
weight: centre-lock J-bend hubs / 24 spokes / alu nipples 1537g
straight-pull centre-lock hubs / 24 spokes / alu nipples front 676g / rear 793g / pair 1469g

Options
freehub: Shimano, Sram XD-R or Campagnolo freehub
colours: 11 colours of spoke nipples, black hubs (J-bend) or black / red / orange / blue hubs (centerlock straight-pull). Laser etched hub and rim logos.
nipples: choose from brass or aluminium coloured nipples

Upgrades
SON dynamo hubs are available for the front wheel
Sapim CX-Ray upgrades are available for both wheels
Tubeless valves are an optional extra

Additional information

info
brand

Just Riding Along

range
More
riding type

timescale

custom

Weight

1600 g

why buy from us

warranty

All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.

delivery

To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.

repairability

All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

our hubs

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.

warranty

All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.

drive

6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 54 POE, R-type hubs have 48 POE.

features

  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

custom built wheels

This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.
