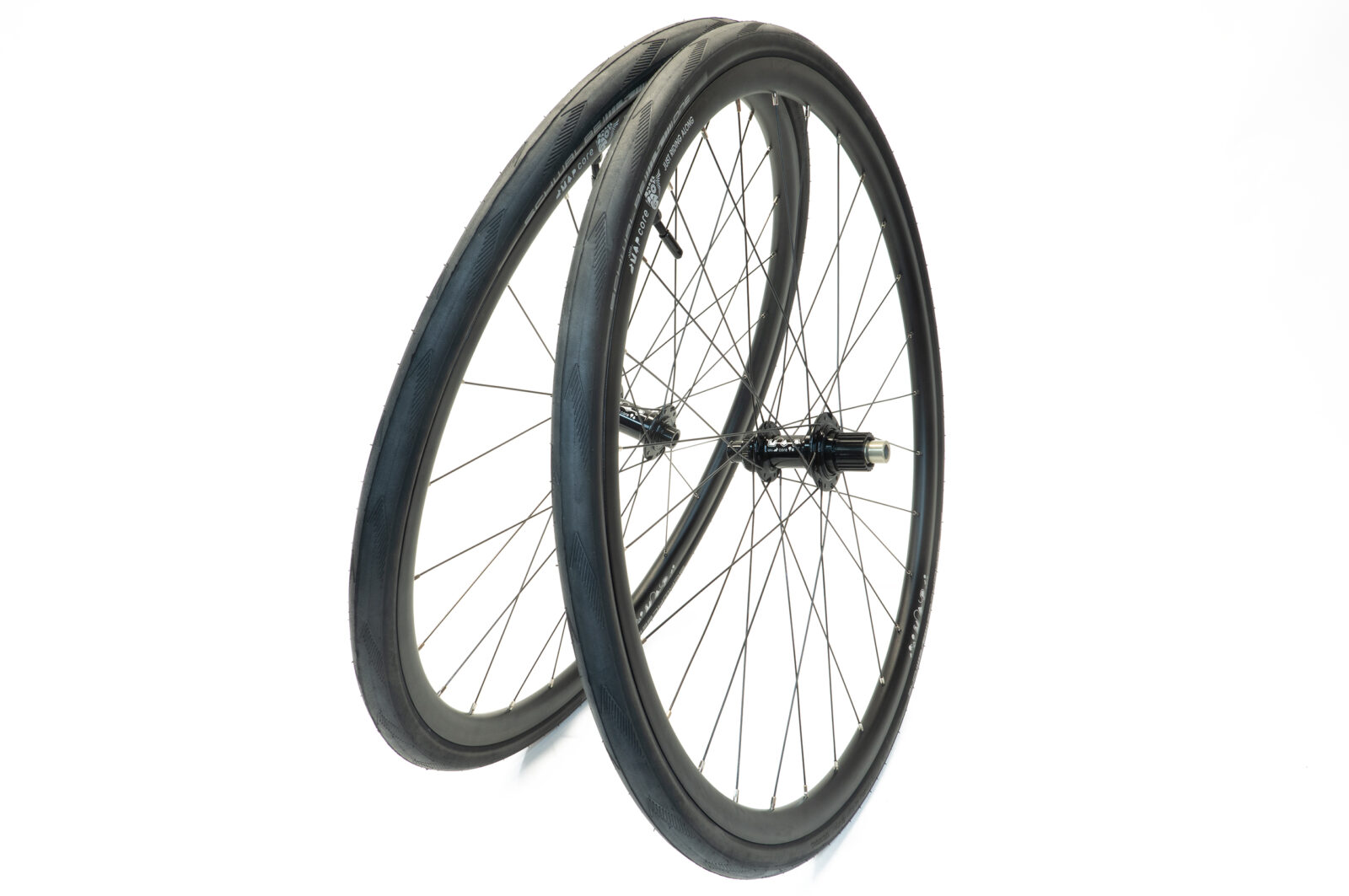

Map Core wheels

from £300 / pair

build time for this wheelset: 2 days
jump to configure wheels >>

Description

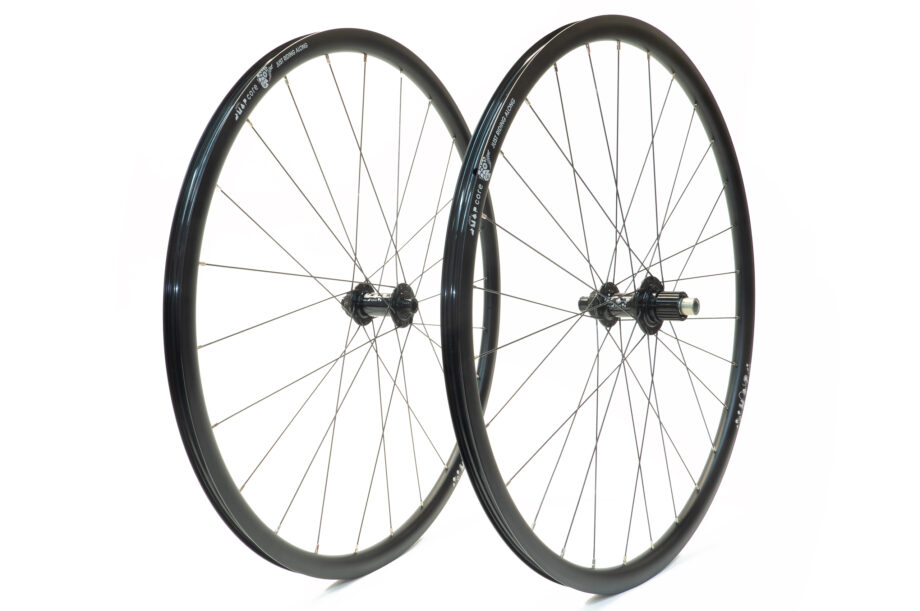

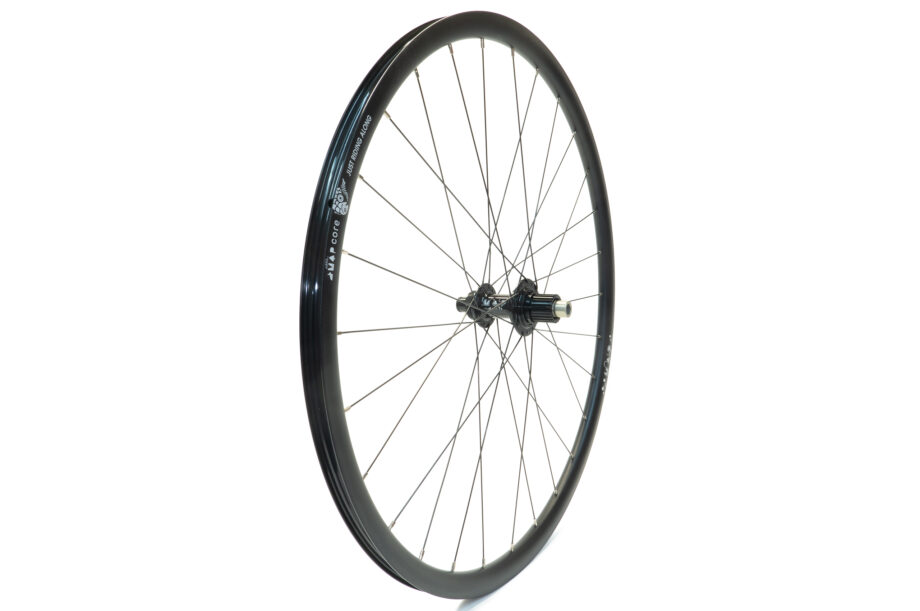

Fast and reliable road disk brake wheelset featuring our popular aluminium Map rim. In our Core series wheels it is built onto our proven reliable Centre-lock J-bend hubs for a light weight, fast wheelset at a new lower price.

We offer the Map Core in 24 and 28 spokes wheels. Photos show current Map etchings, these will be used until a smaller Map Core etching is developed.

Key components

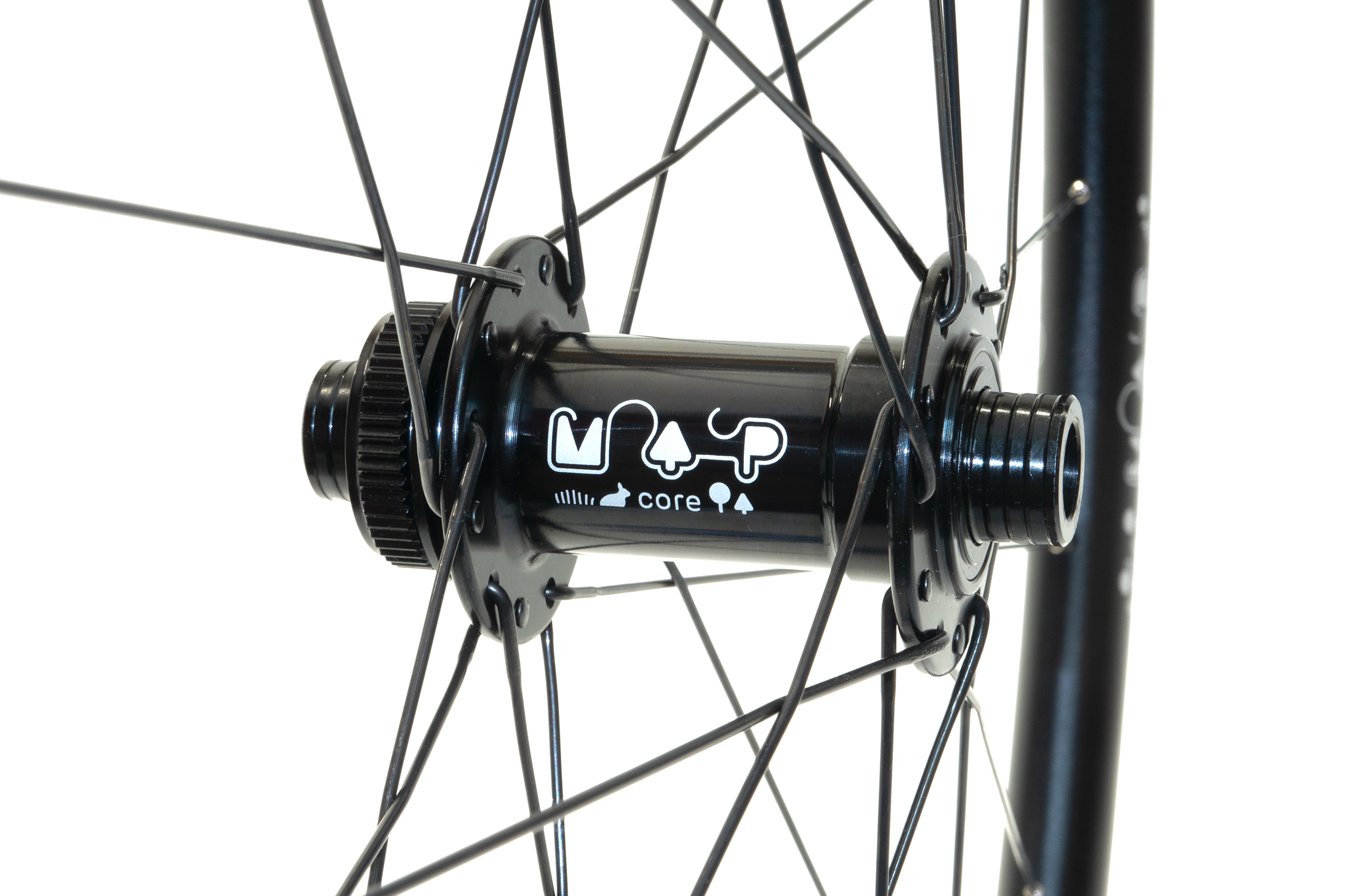

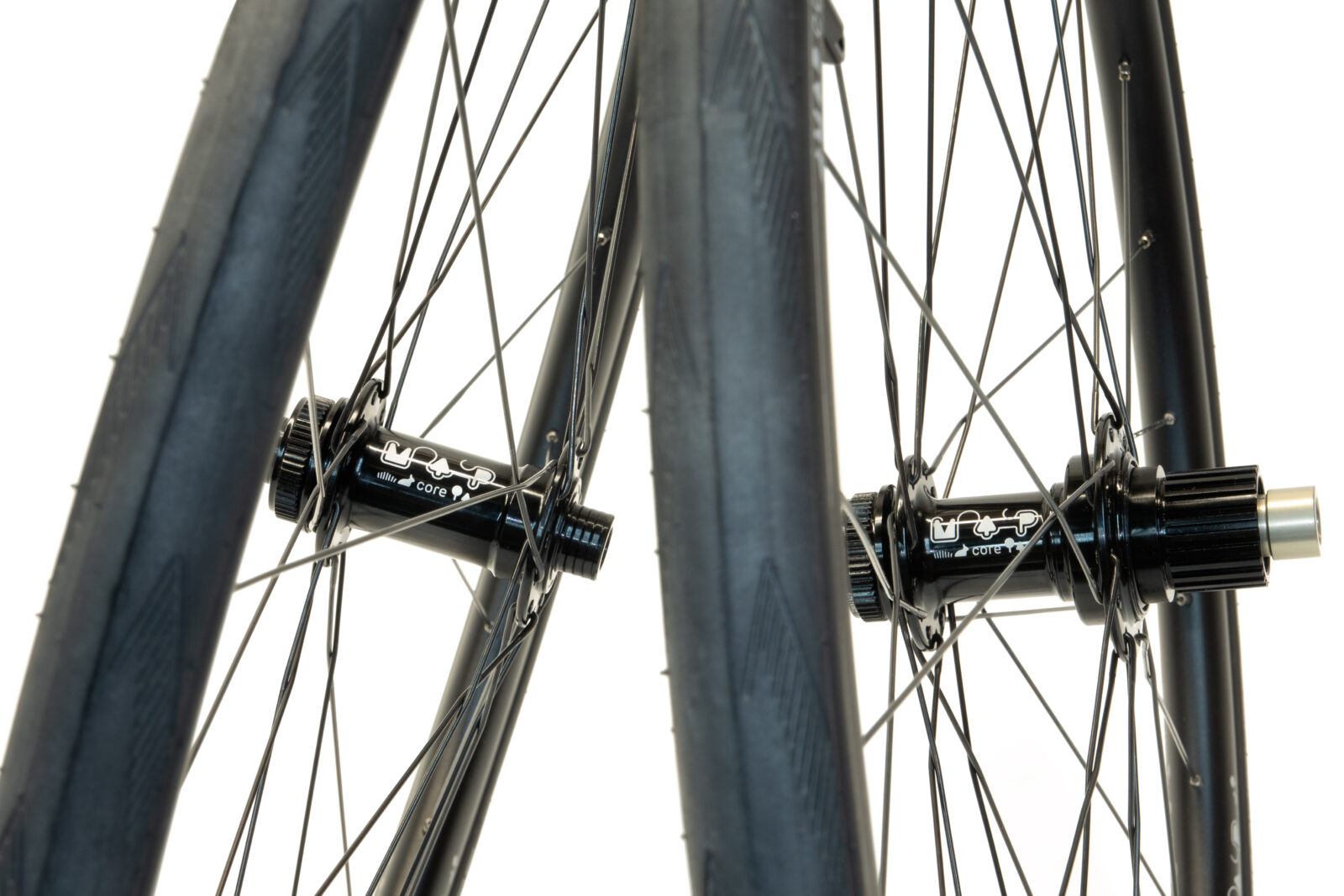

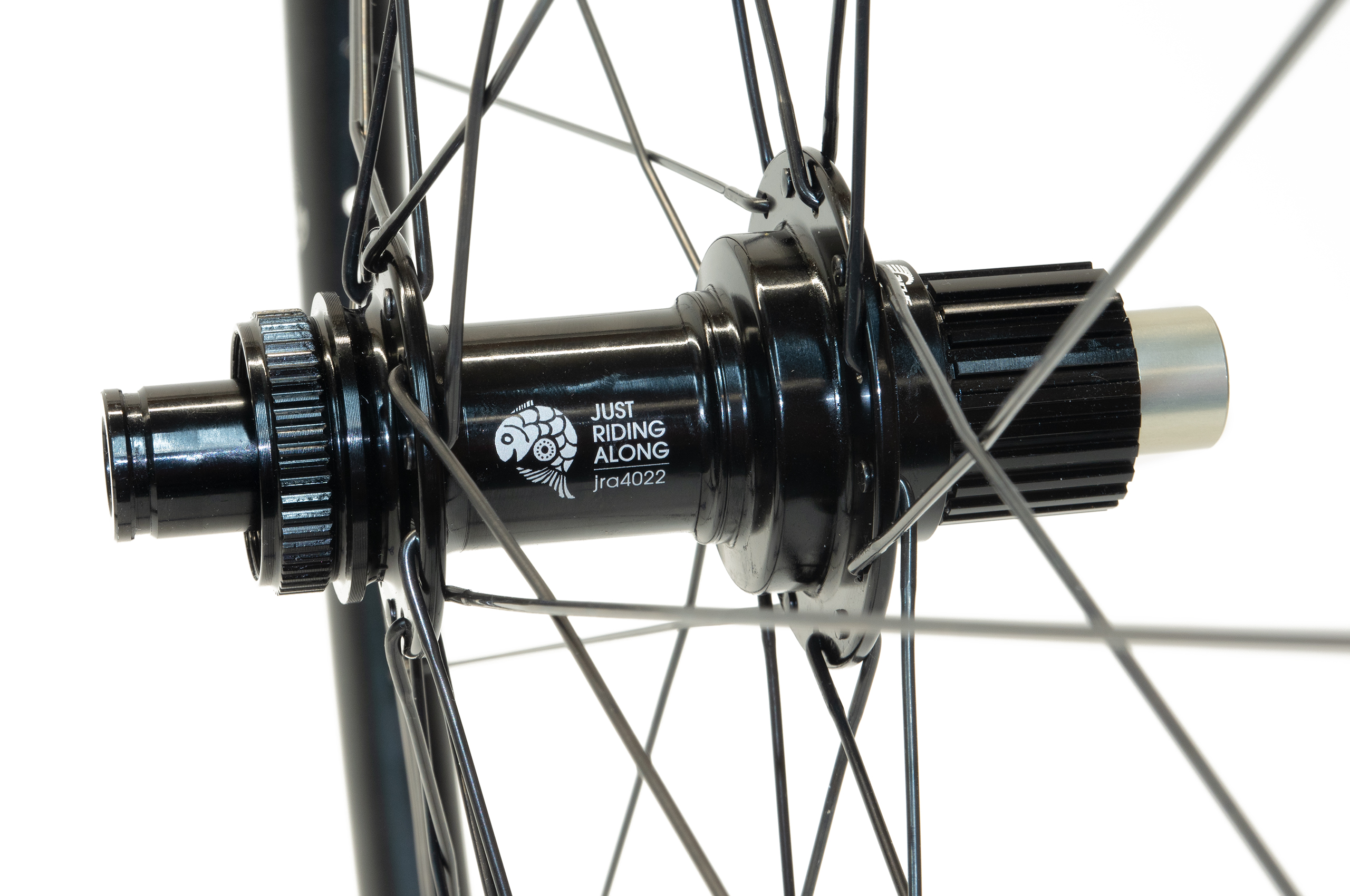

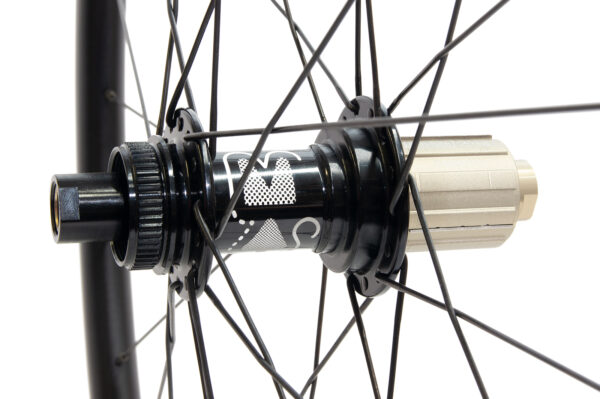

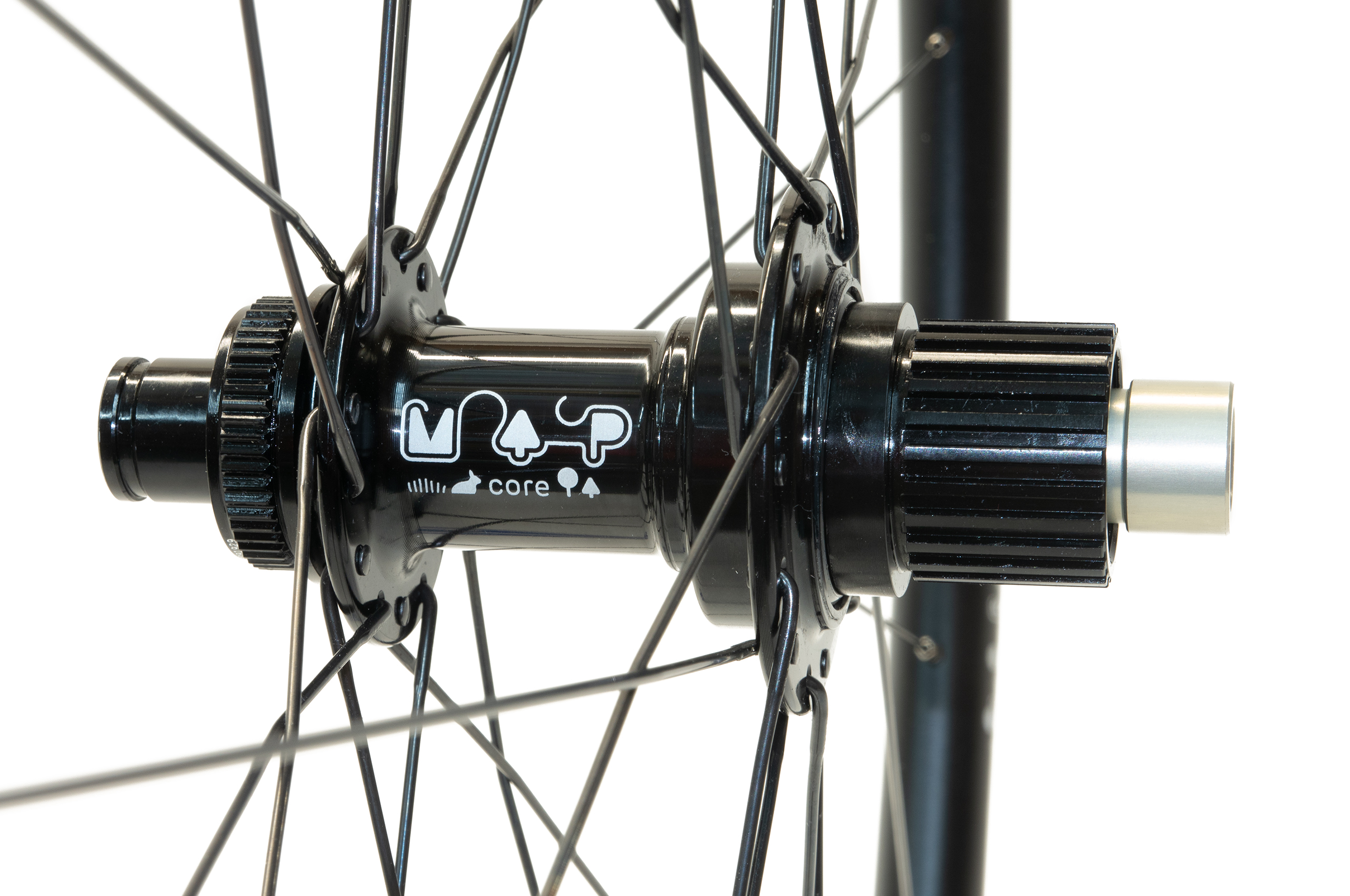

hubs : JRA centre-lock J-bend hubs with laser etched JRA logo, steel bearings

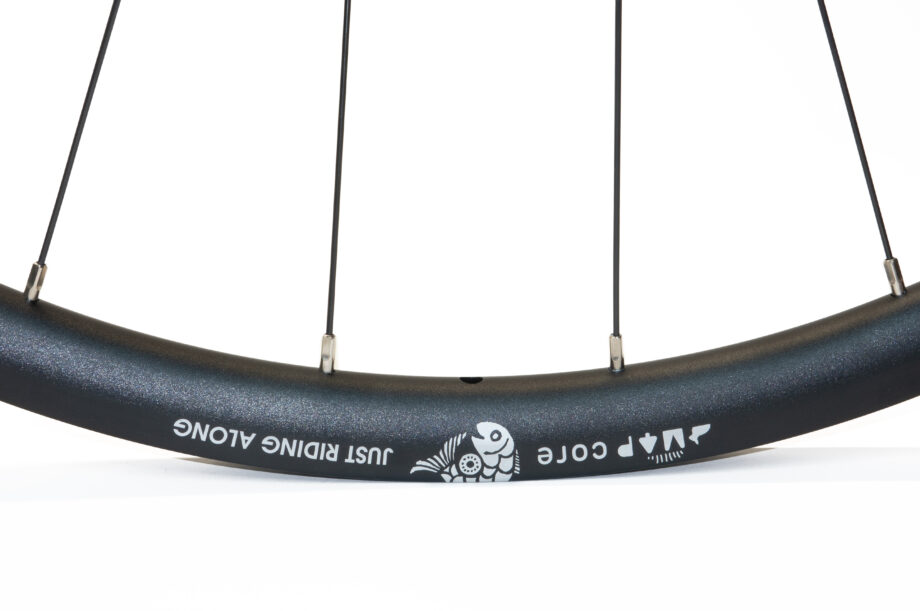

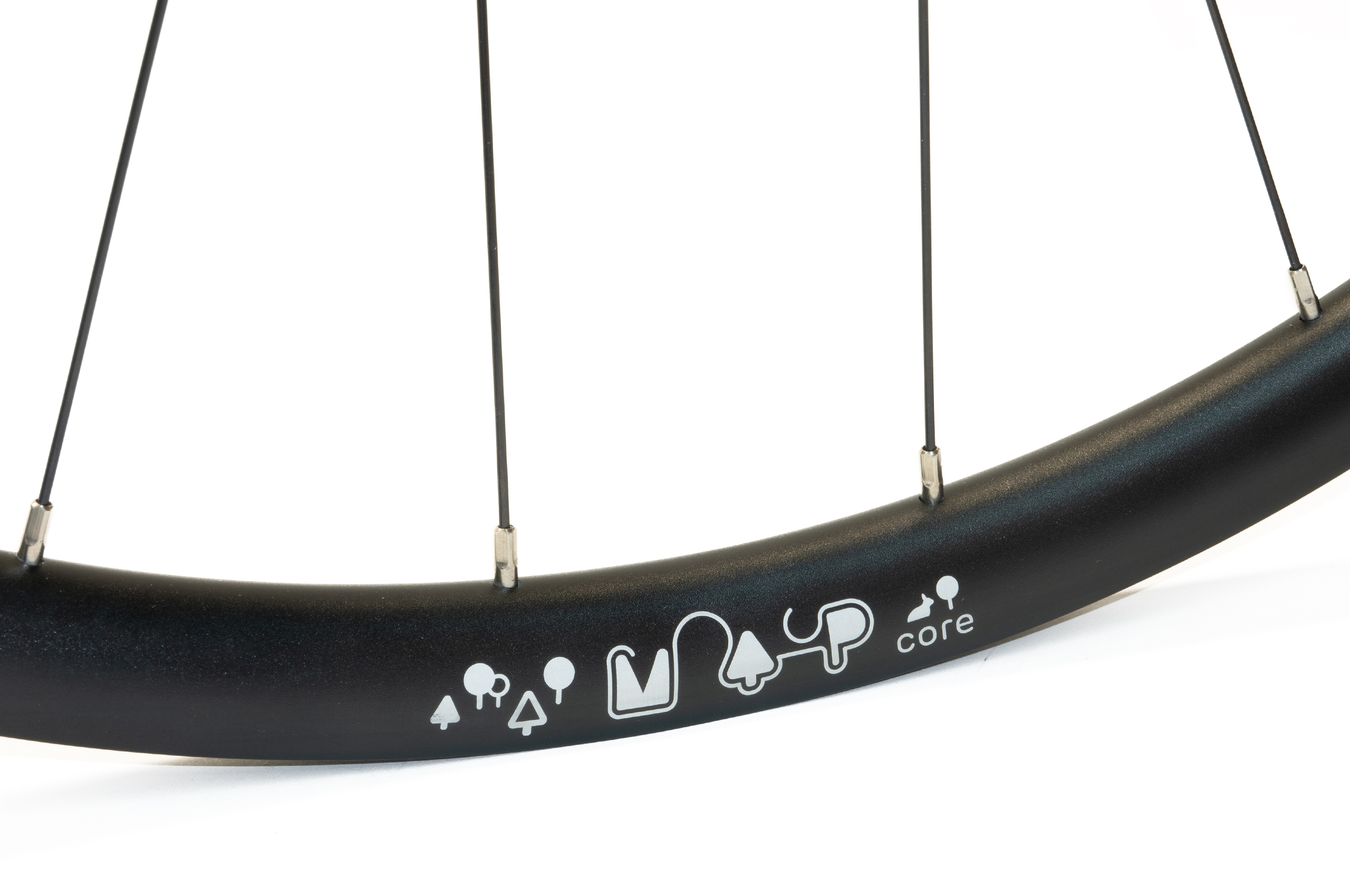

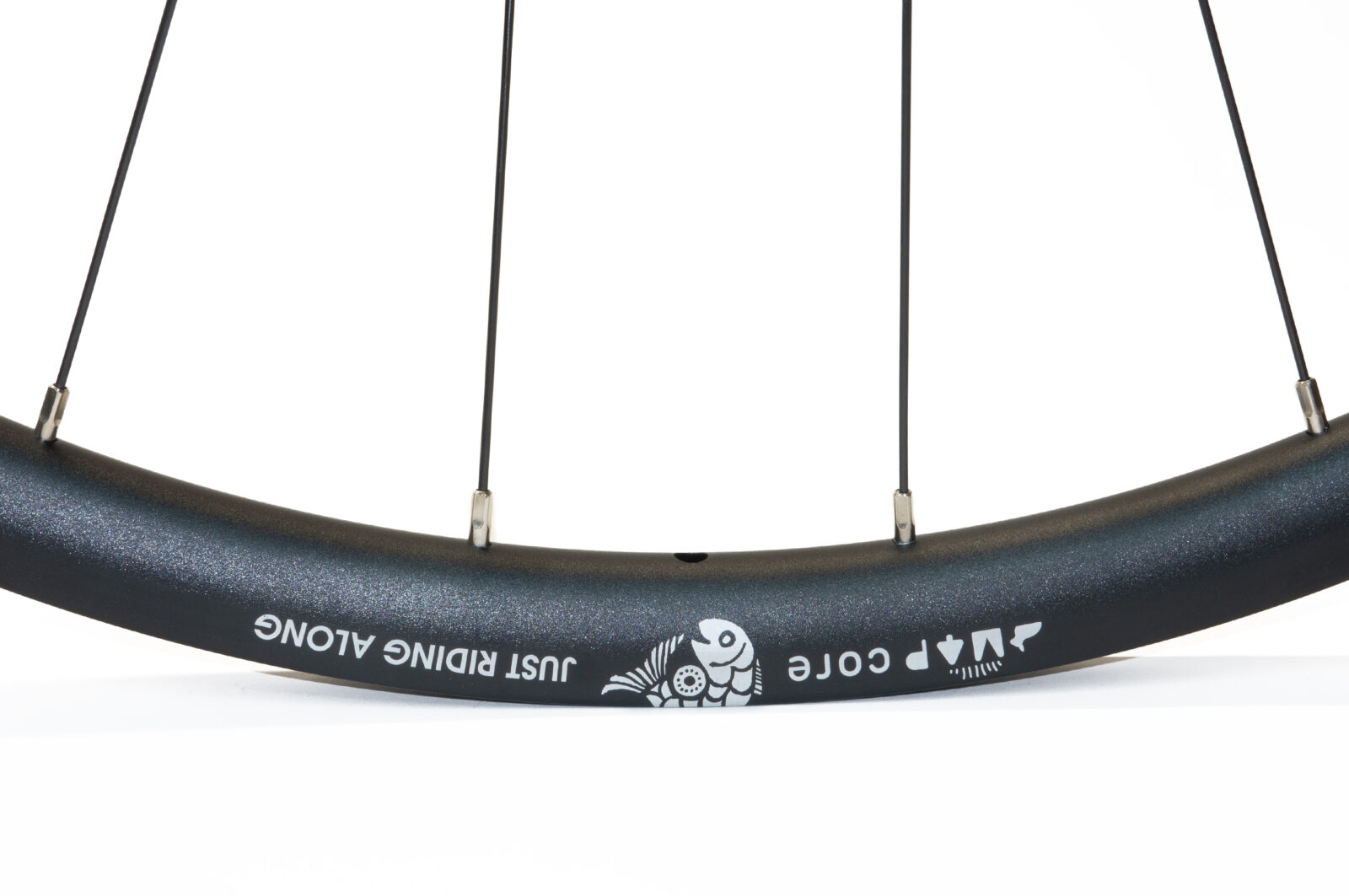

rim : JRA Map rims, matt black with laser etched logos.
spokes : Sapim D-Light J-bend black spokes
nipples :  Sapim silver brass secure-lock nipples
freehub: Shimano 11 speed or Campagnolo 12 speed are included in base price. All other freehubs are available at extra cost.

wheel weights
24 hole 1557g pair – front 732g / rear 825g
28 hole 1620g pair – front 760g / rear 860g
32 hole 1690g pair – front 780g / rear 910g

rider weight limit:
24 hole 90kg 14st
28 hole 110kg 17st
32 hole no rider weight limit

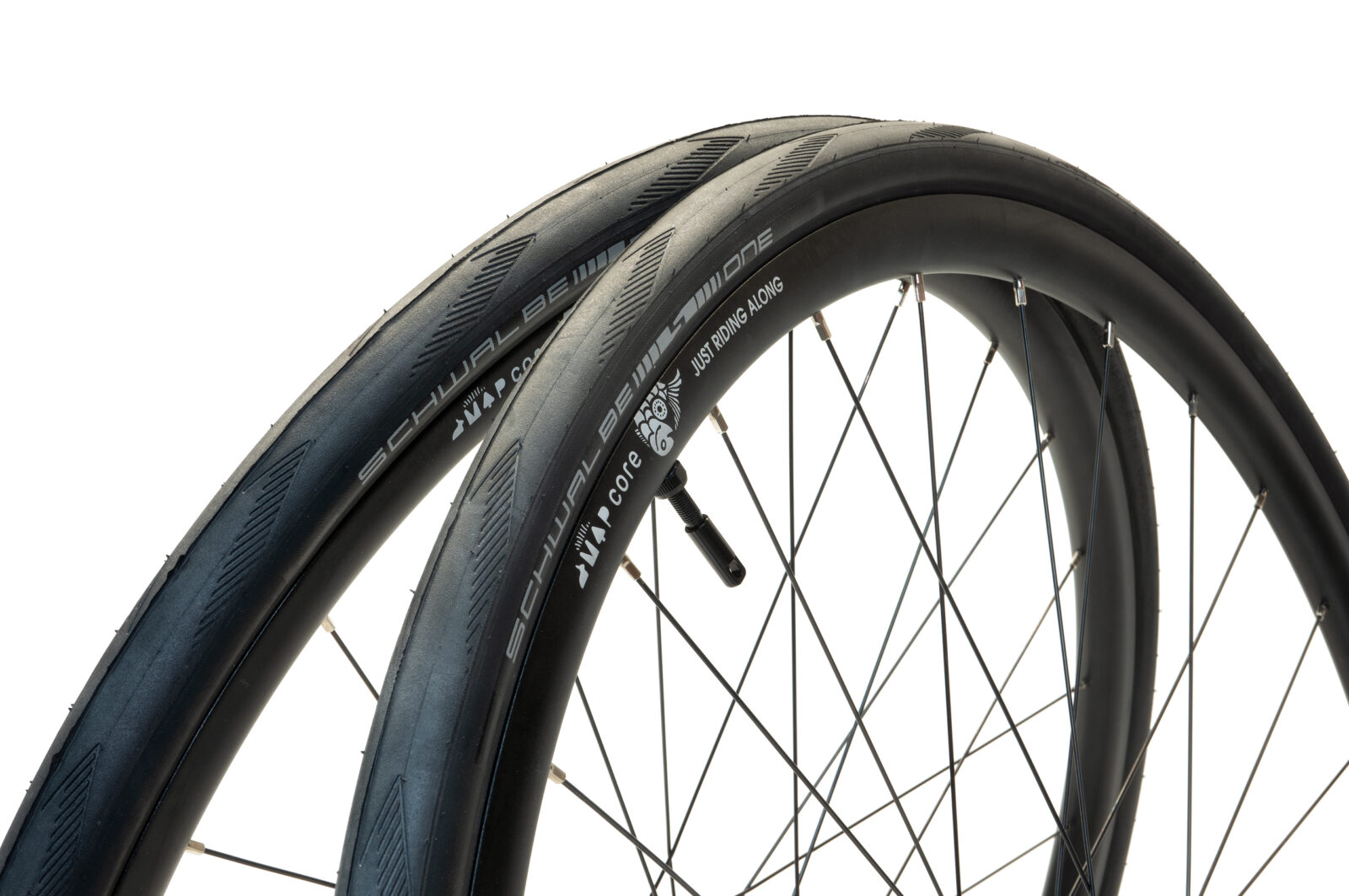

recommended tyre widths: 25mm – 30mm

Core series wheels

Our back to basics wheel range, we've cut out the frills - such as colours and kept to simpler specs to keep the price down. But we haven't compromised on the build quality or the wheels core functionality, hence the name Core wheels.
  • TPI steel bearings not TPI stainless steel - Excellent bearing without the top prices we pay for stainless
  • Sapim silver brass pro-lock nipples used throughout - These reduce the wheel building time by being non-binding
  • J-bend hubs The lowest price and most reliable hubs in our range
    Limited options allow us to build multiple wheels at once saving time in the workshop.
  • Limited logos Smaller logos that take less time to etch

All our wheels are still handbuilt in our York workshop with the same high quality of finish, backup and warranty you would expect.

warranty and repair

2 year warranty applies to all wheel components and build quality. 5 year warranty on hub shells.

See our warranty page for more details and the small print.

what’s included

wheels are set-up with the axles and freehub you have selected

all wheels have tubeless tape applied

there are no additional parts provided

ready-built wheels

these wheels are normally in stock and are sent within 2 days

wheels can be returned un-used if you are not 100% happy

Additional information

material & finish
material

carbon

rim dimensions
external rim width

24mm

internal rim width

19mm

info
range

wheel size

hole count

, ,

More
front lacing pattern

2 cross, 3 cross

rear lacing pattern

2 cross, 3 cross

Weight

1536 g
