Map centre-lock straight-pull wheels – 24 hole blue hubs
£424.00 £339.00
New wheelset reduced to clear, blue hubs use the R-type freehub which has now been replaced by the M-type on this hub model.
build time for this wheelset: 2 days
jump to configure wheels >>
Reduced wheelset, lightweight road-disk wheelset.
Blue straight-pull hubs reduced as the newer models have a 54 tooth M-type drive ring, these have a 48 tooth R-type drive ring.
Key components

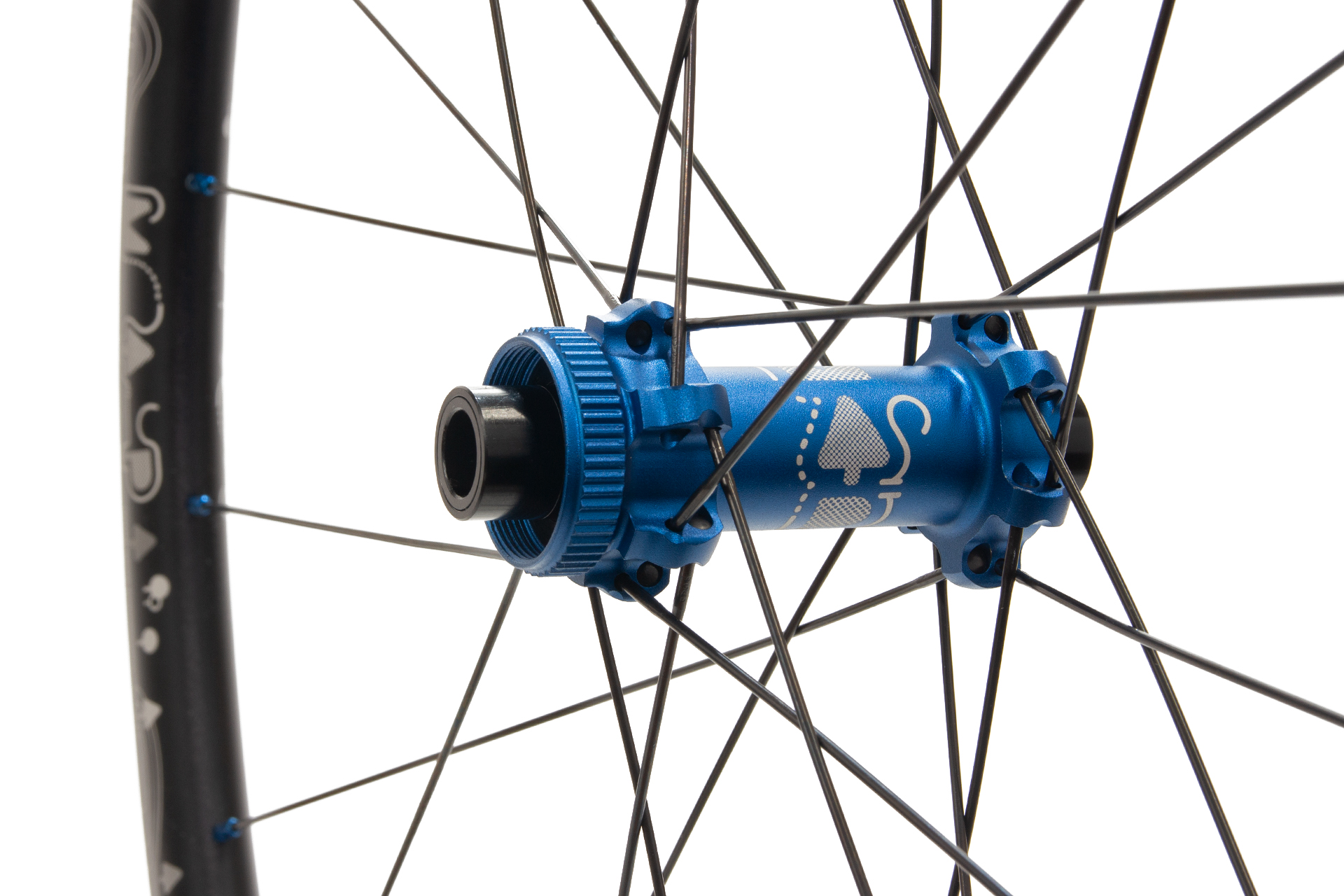

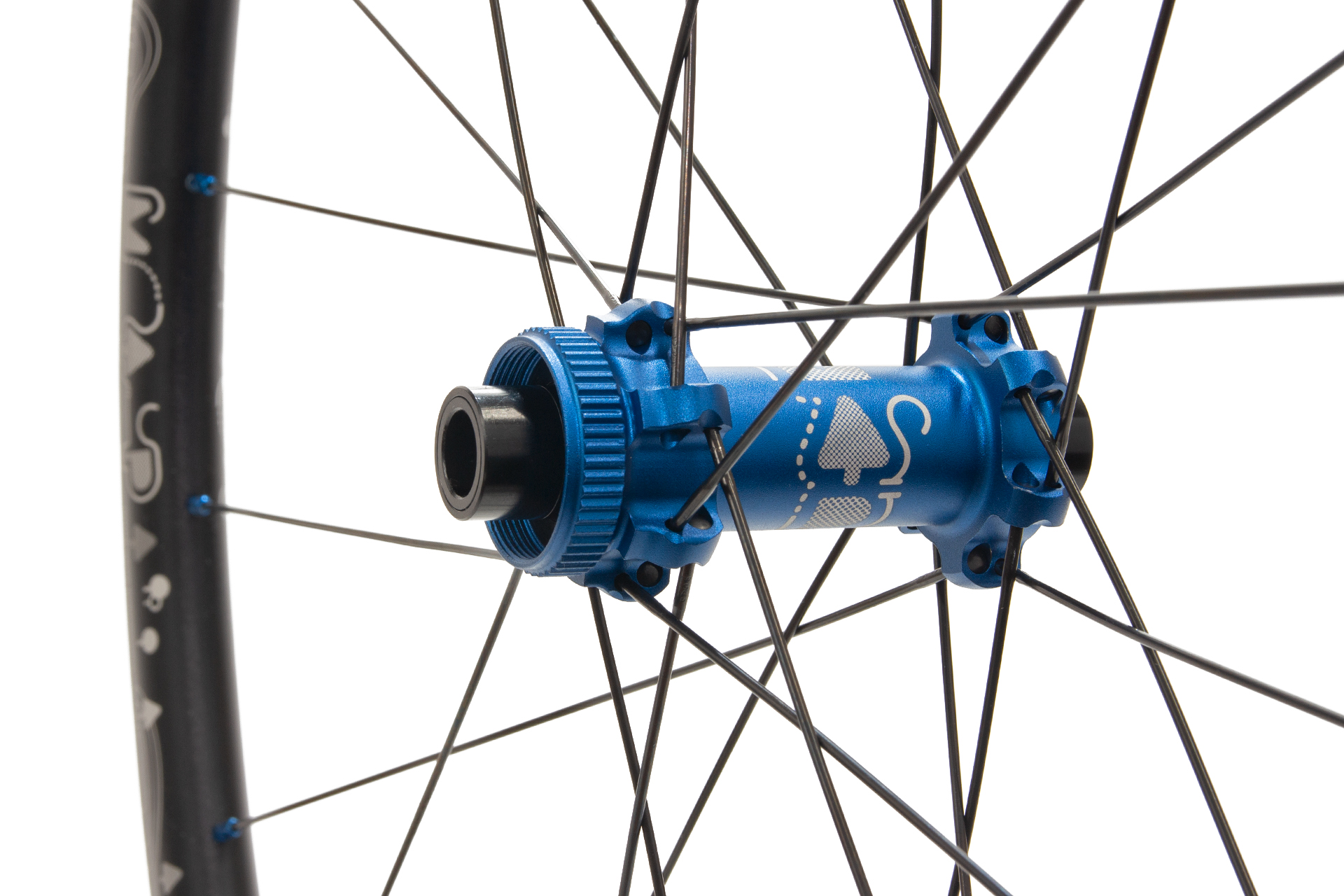

hubs straight-pull centre-lock hub, 24 hole. Blue matt finish, etched map design
rims Map aluminium rims with laser etched design
spokes Sapim D-Light straight-pull black
nipples Sapim secure-lock aluminium – blue
weights front 700g / rear 818g / pair 1518g
* weighed with rim tape and Shimano freehub
freehub Shimano 11 speed or Campagnolo 12 speed are included in base price. All other freehubs are available at extra cost.
rider weight limit 85kg
recommended tyre widths 25mm – 30mm
Map aluminium rims
aluminium road-disk rims
material: 6069 aluminium with a matt finish and welded join
decals: durable laser etched decals
dimensions: 19mm internal and 24mm external width with 25mm depth
weight: 440g (+/-15g) per rim
bead: tubeless compatible with a hooked bead
tyres: best for 25-30c tyres
click here to go to the Map rim page
why buy from us
warranty
All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.
delivery
To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.
repairability
All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.
about us
We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.
our hubs
Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.
warranty
All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.
Bearing wear is not included.
drive
6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 6.7 degree, 54 POE, R-type hubs have 7.5 degree, 48 POE.
features
- Durable
- changeable axles
- repairable
- lightweight
- TPI bearings
- anti-bite guard
- laser etched decals
about your wheels
ready built wheels
This wheelset is built in our workshop in advance so you can receive it quicker. We normally despatch the wheels in 1-2 days and you should receive them the next day.
what’s included
- Wheels are set-up with the axles and freehub you have selected.
- All wheels have tubeless tape applied.
- There are no additional parts provided.
build quality
During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.
handbuilt in the UK
We built the wheels in our York, UK workshop.
