Mahi Mahi rim brake wheels

from £650 / pair

Reduced from £850  to make way for new wider model with textured brake track

Carbon road rims with a high TG braking surface and a 19mm internal width for 25-28mm tyres. Available in 35, 45 and 55mm rim depths build onto your choice of J-bend or Straight-Pull hubs.

build time for this wheelset: 10 days
jump to configure wheels >>


Our fastest road wheelset yet, named after one of the fastest fish in the ocean. Like the fast fish, the streamlined shape of our Mahi mahi wheelset cuts through the air for faster riding in races, chaingangs or just riding along.

Go aero with our super fast new carbon road wheelsets. Built for speed and strength these wheels will perform in all conditions including rain and wind.

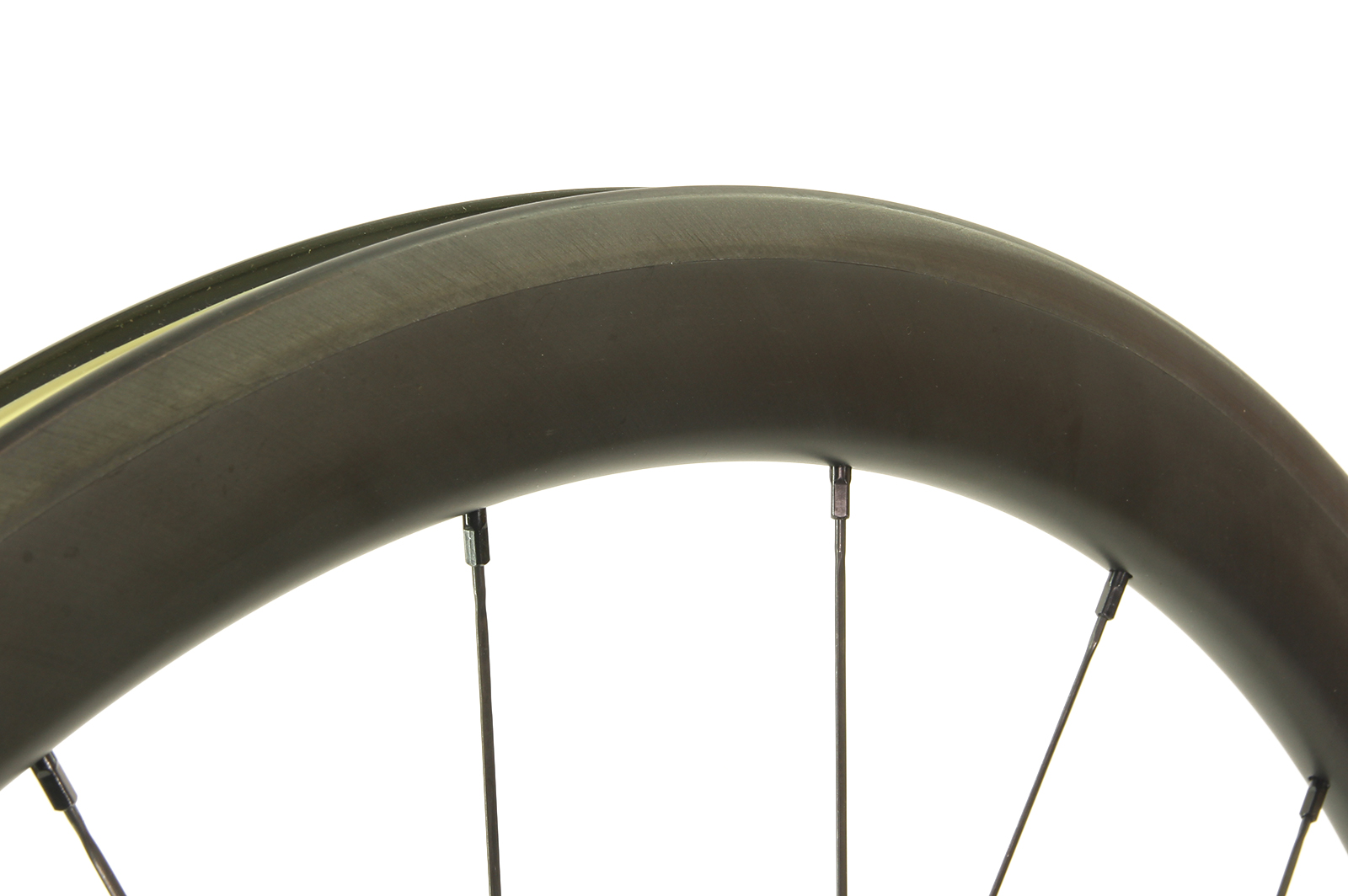

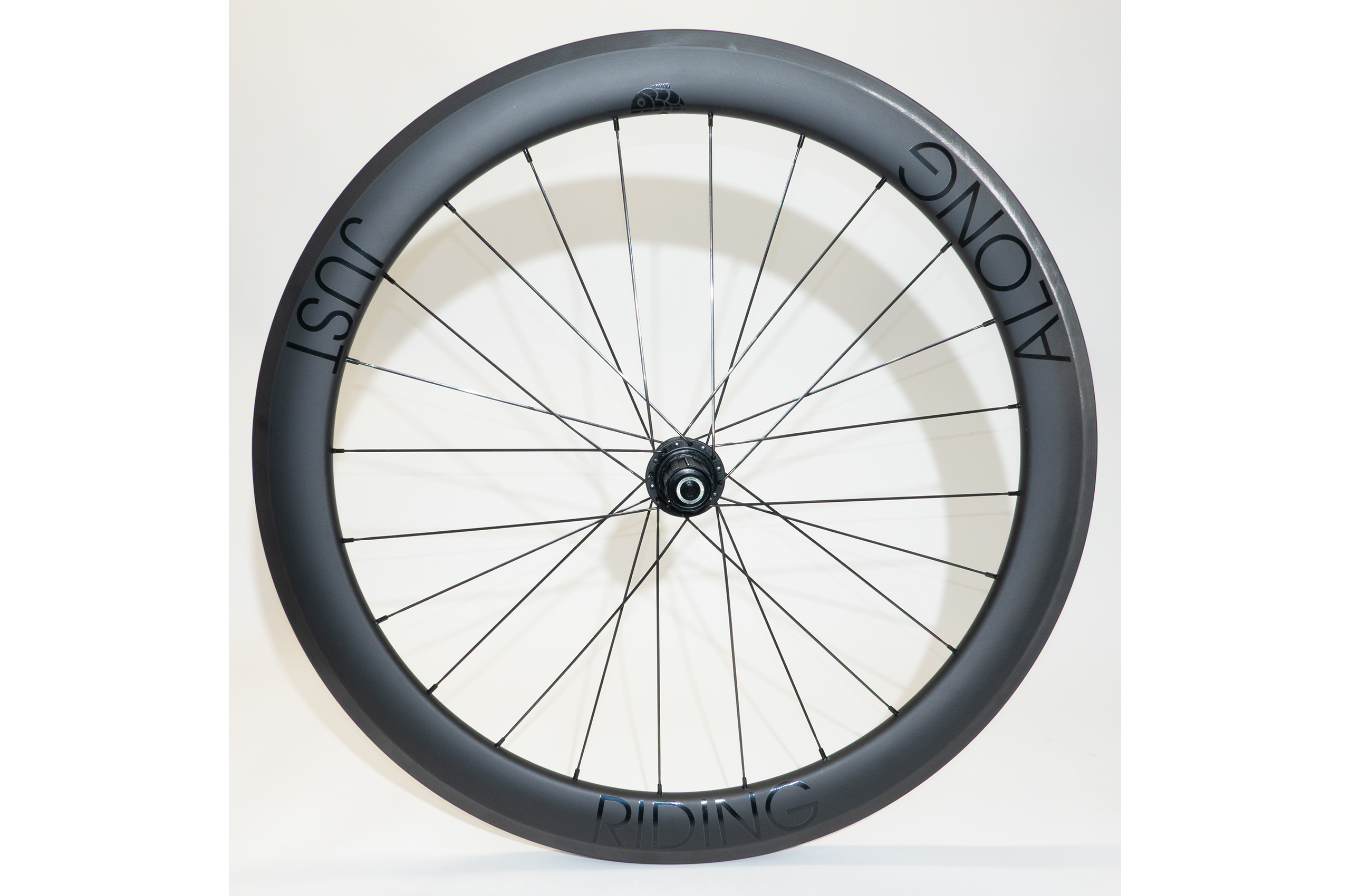

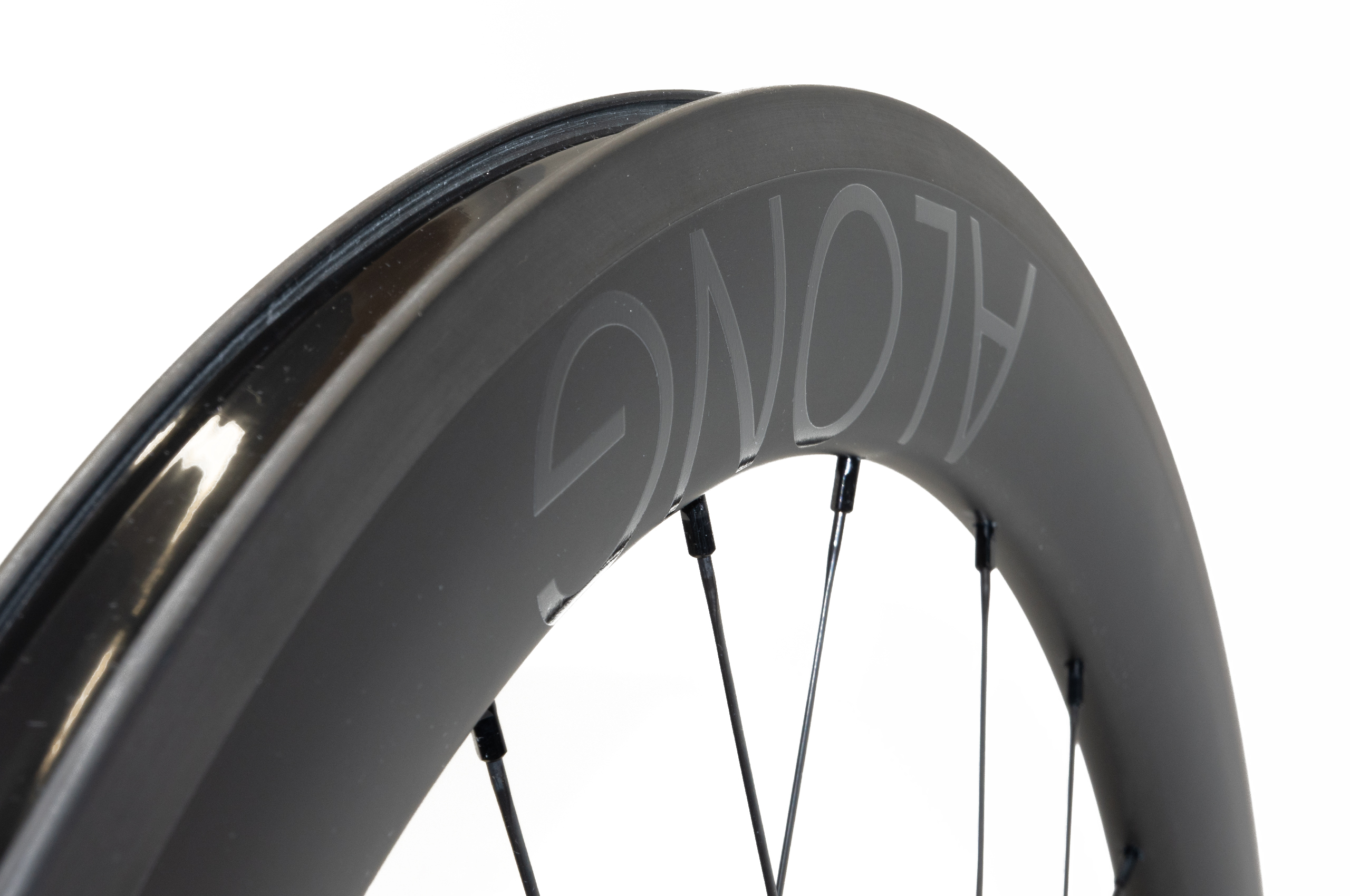

Built around our lightweight jra hubs with 20 Sapim CX-Ray spokes front, 24 rear, the Mahi Mahi is normally available from stock in rim depths of 10mm increments – 35, 45 and 55mm (with others to order up to 80mm). The rims feature an ultra flat, non-textured braking surface for consistent, powerful braking in all conditions. The rims feature a tubeless profile for use with any road tubeless tyre, and are equally at home with standard tyres and tubes. Wheels are taped ready for tubeless or standard tyres. Valves are available separately – please note that most of these rims require extra-long valves, and our long-base valves with extenders will work on these.

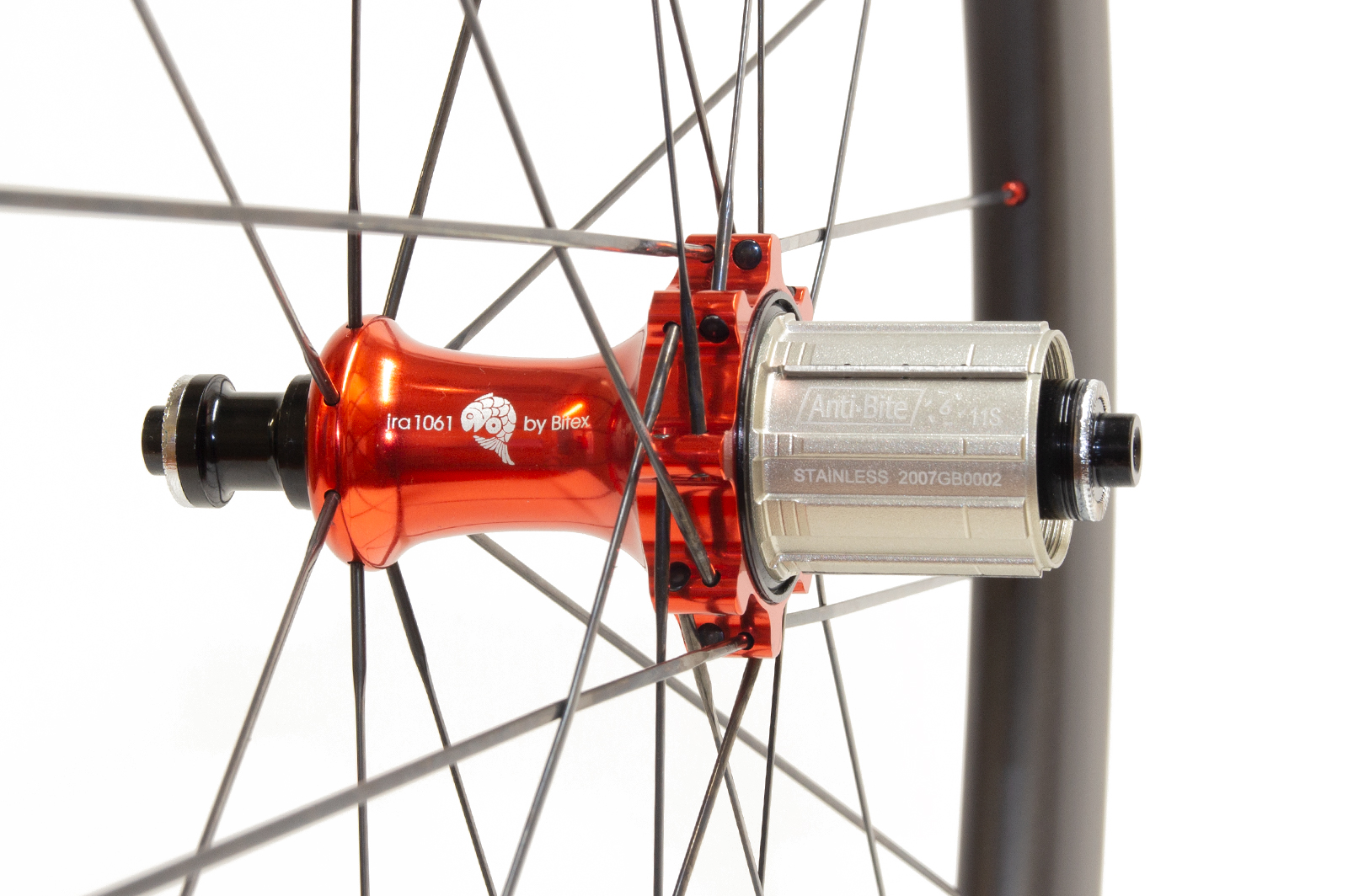

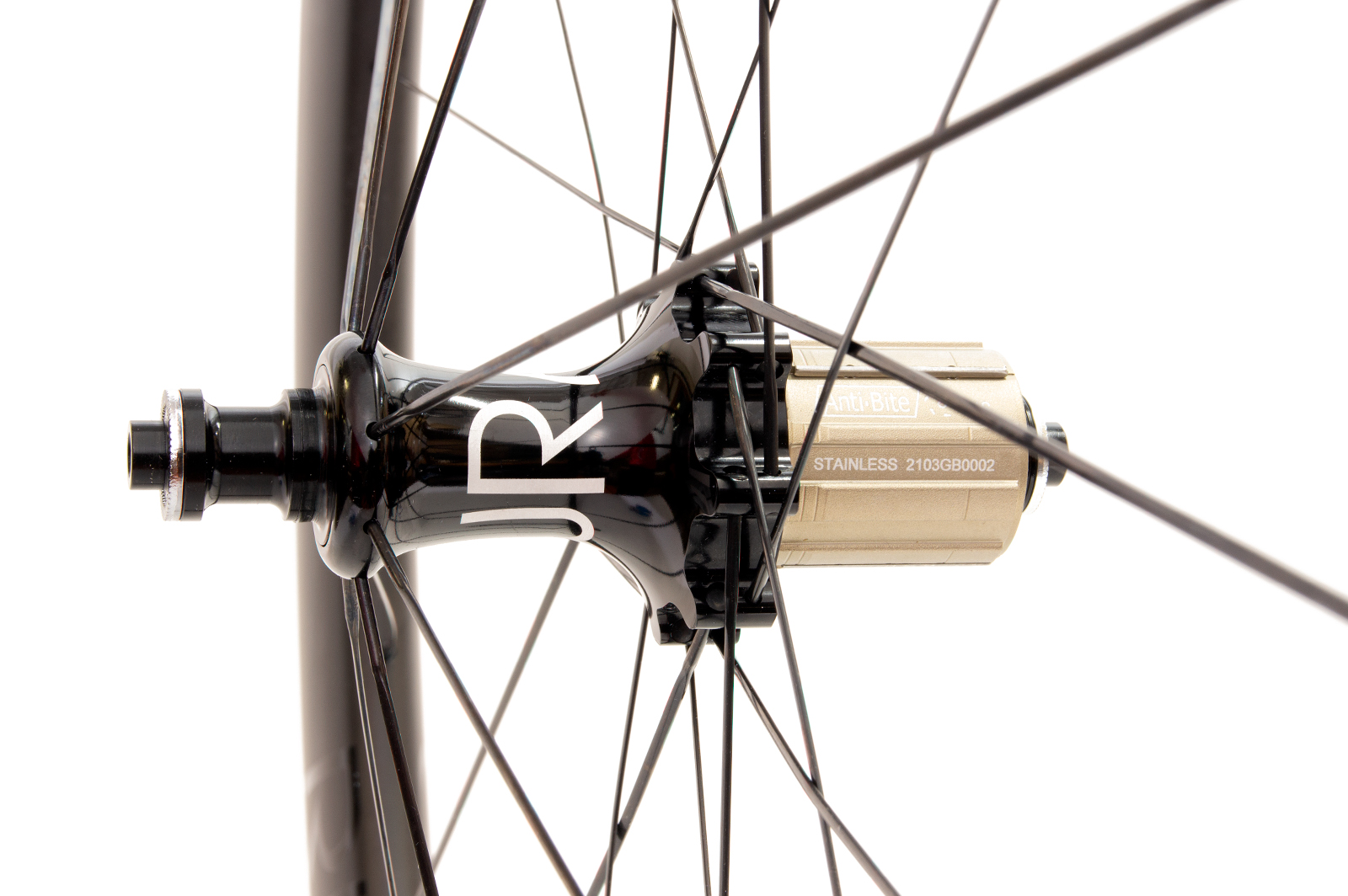

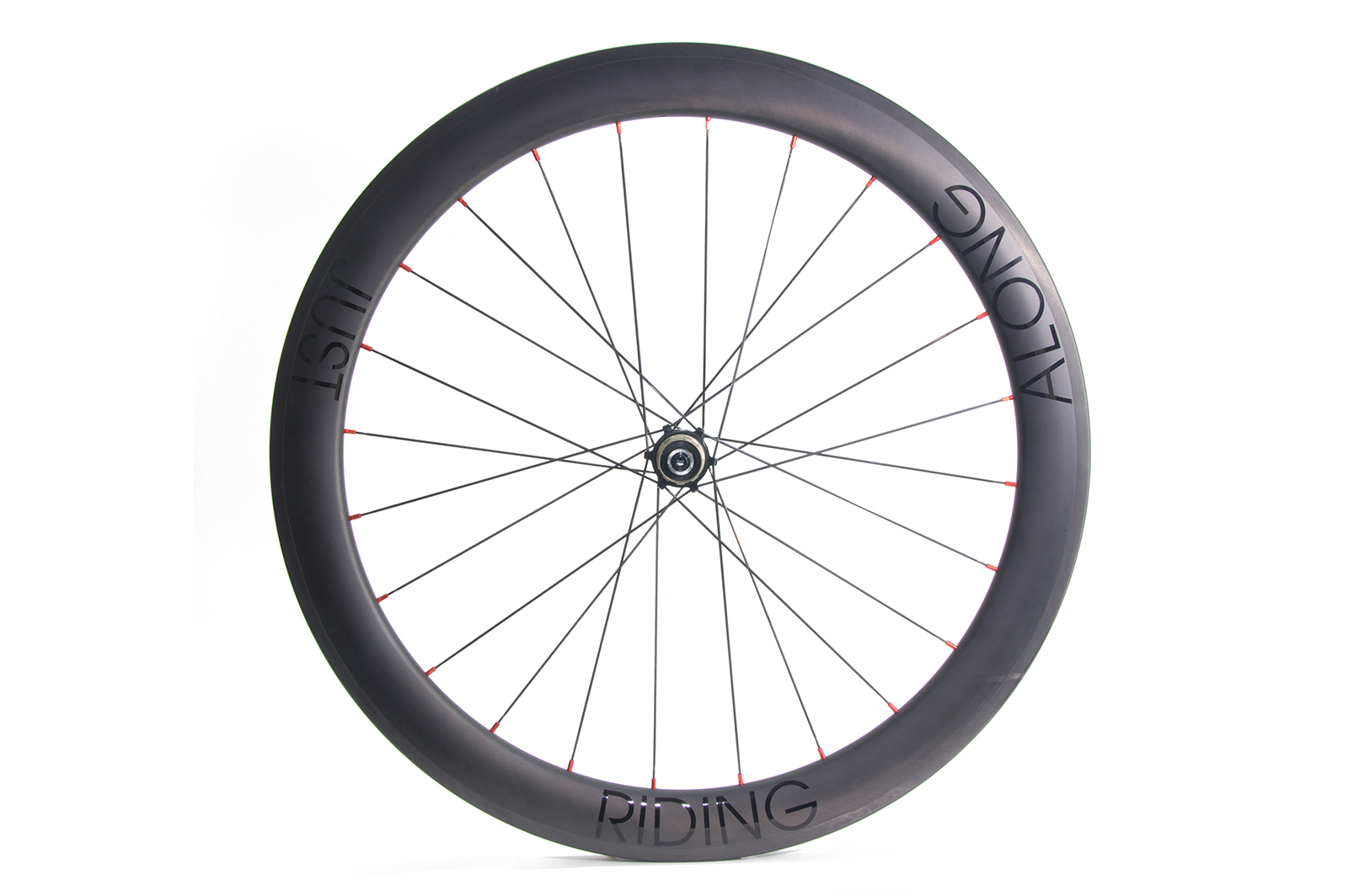

The rear wheels feature our 2:1 spoke lacing pattern with 16 spokes on the drive side, and 8 on the non-drive side. This solves the problem of uneven spoke tensions on rear wheels caused by the offset required for the cassette (wheel dish) and gives our 24-spoke wheels similar strength to conventionally laced 28 or 32 spoke wheels.

The 35, 45 and 55mm rims are normally held in stock, but please contact us to confirm availability.

Valve lengths:  35mm – use our 60mm tubeless valve stems (optional selection below), 45mm use 70mm valves. For 55mm rims you will need a 45mm valve and 40mm extension or 80mm valve (black only).

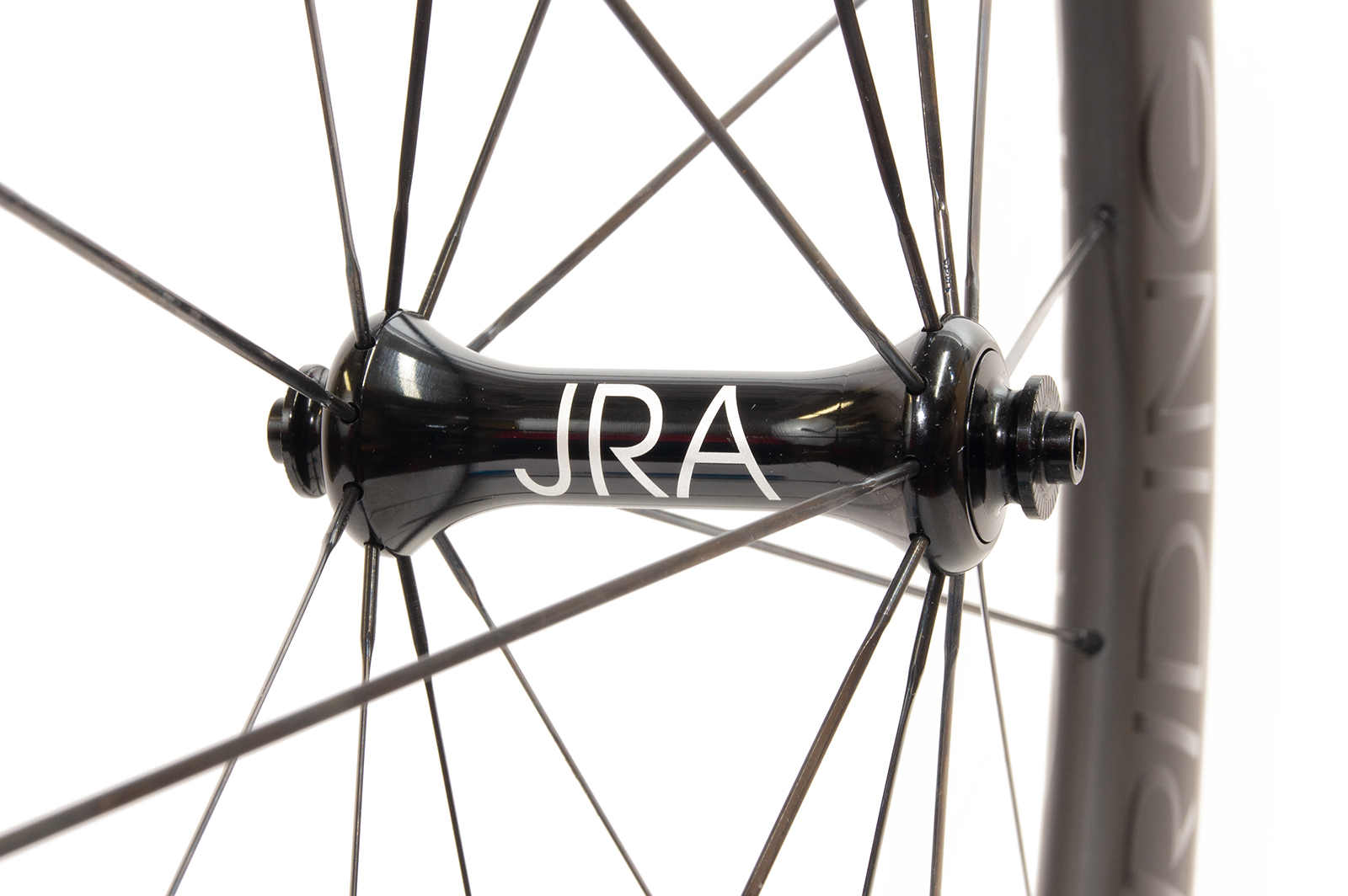

Weights: straight-pull hubs use larger bearings than our usual light hubs and so weigh 24g per pair more:
Pair of J-bend hubs: 260g
Pair of SP hubs: 284g

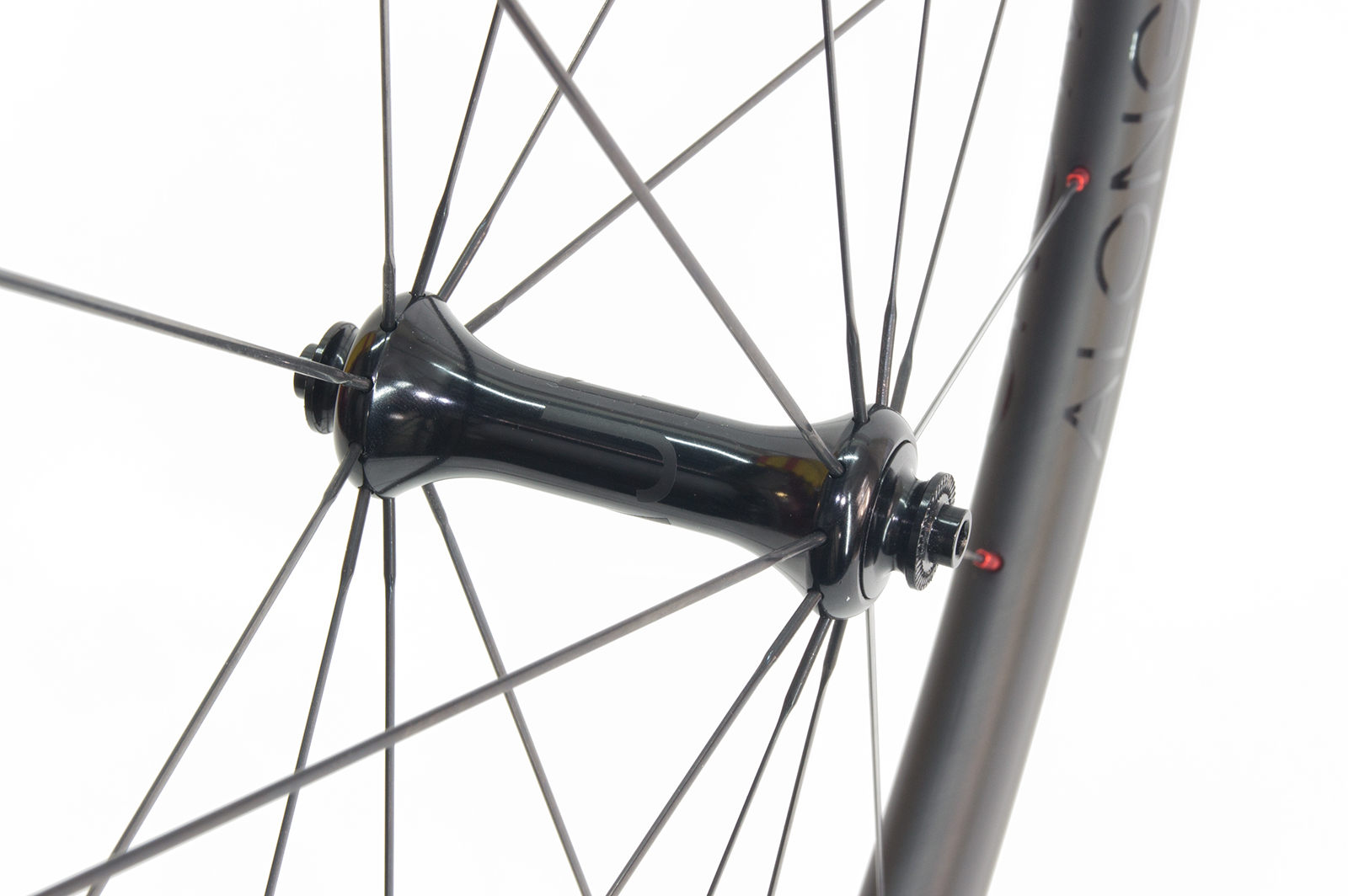

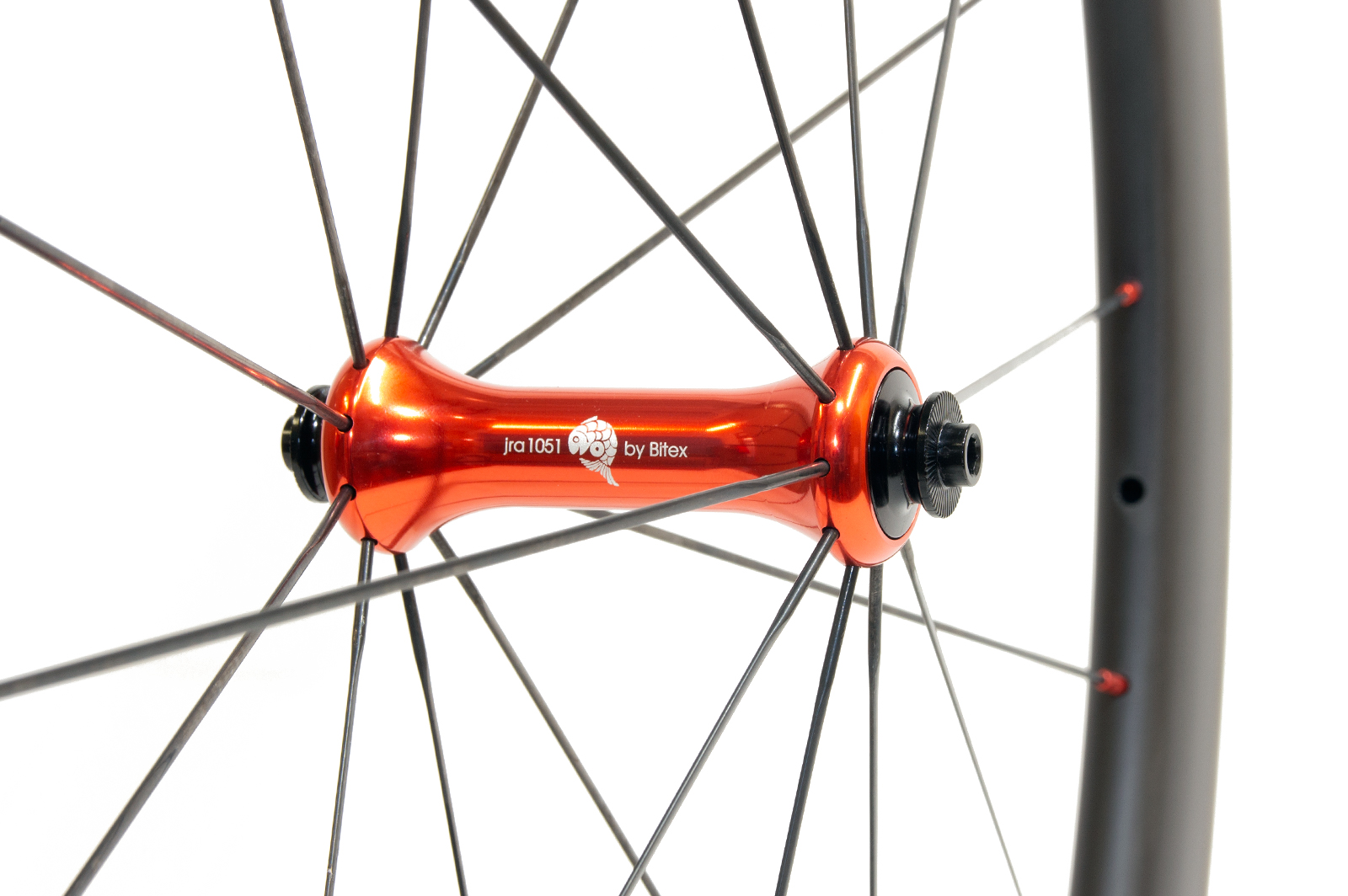

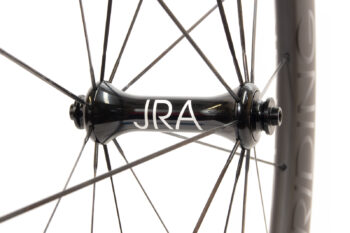

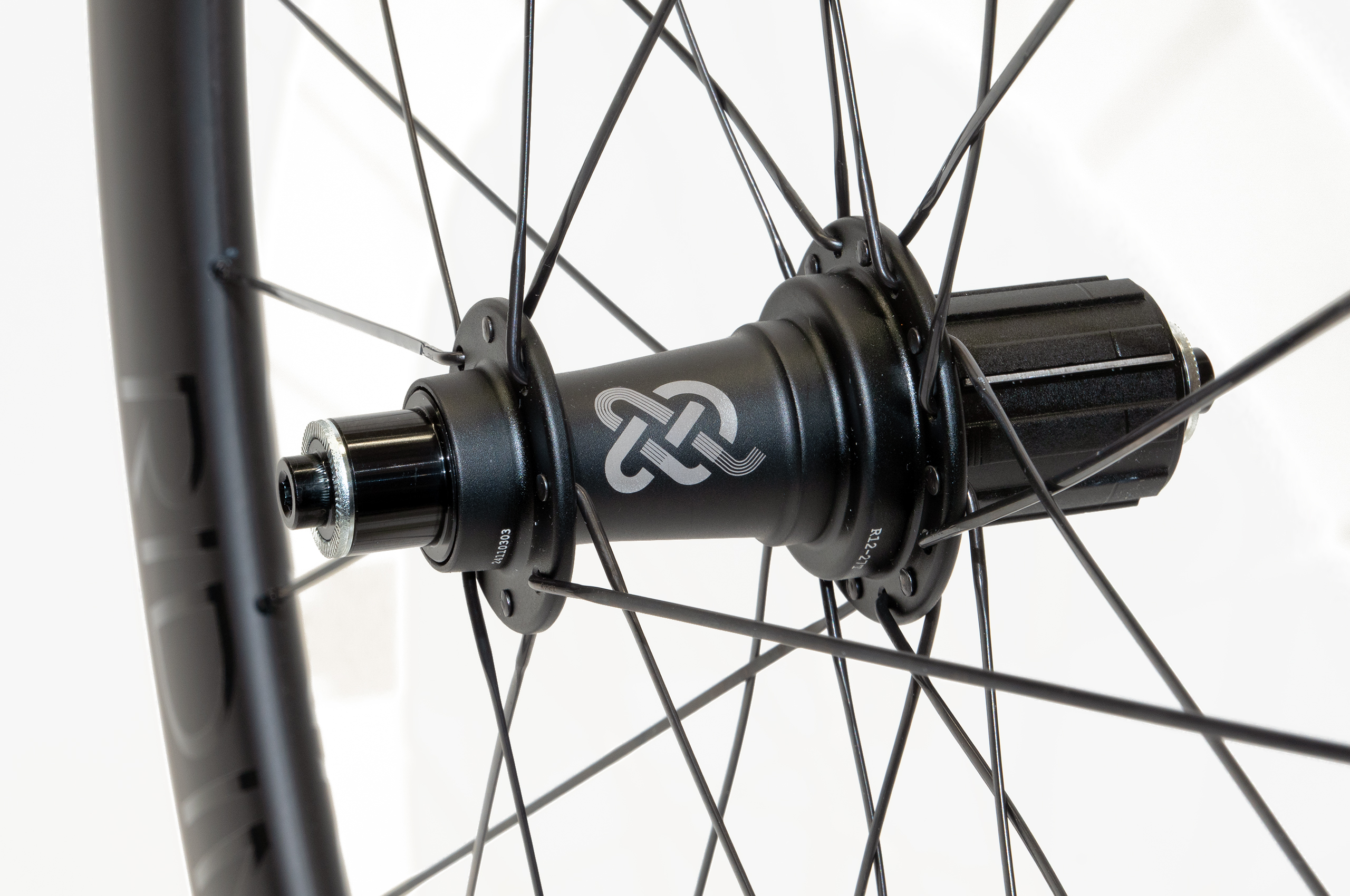

hubs : JRA light road hubs

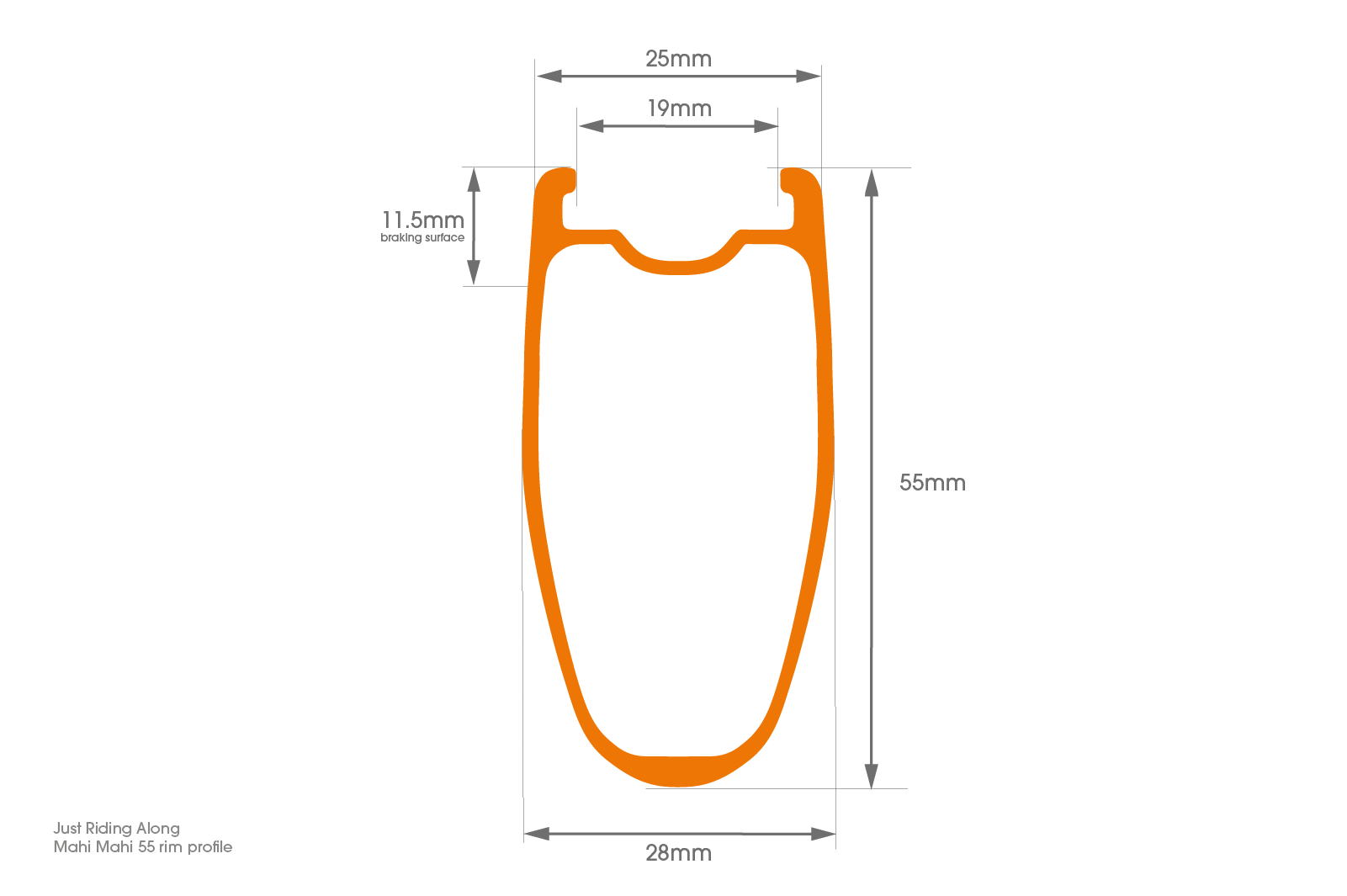

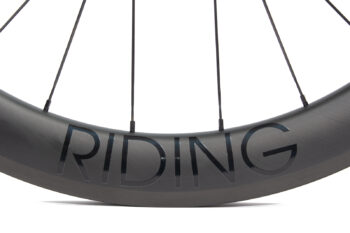

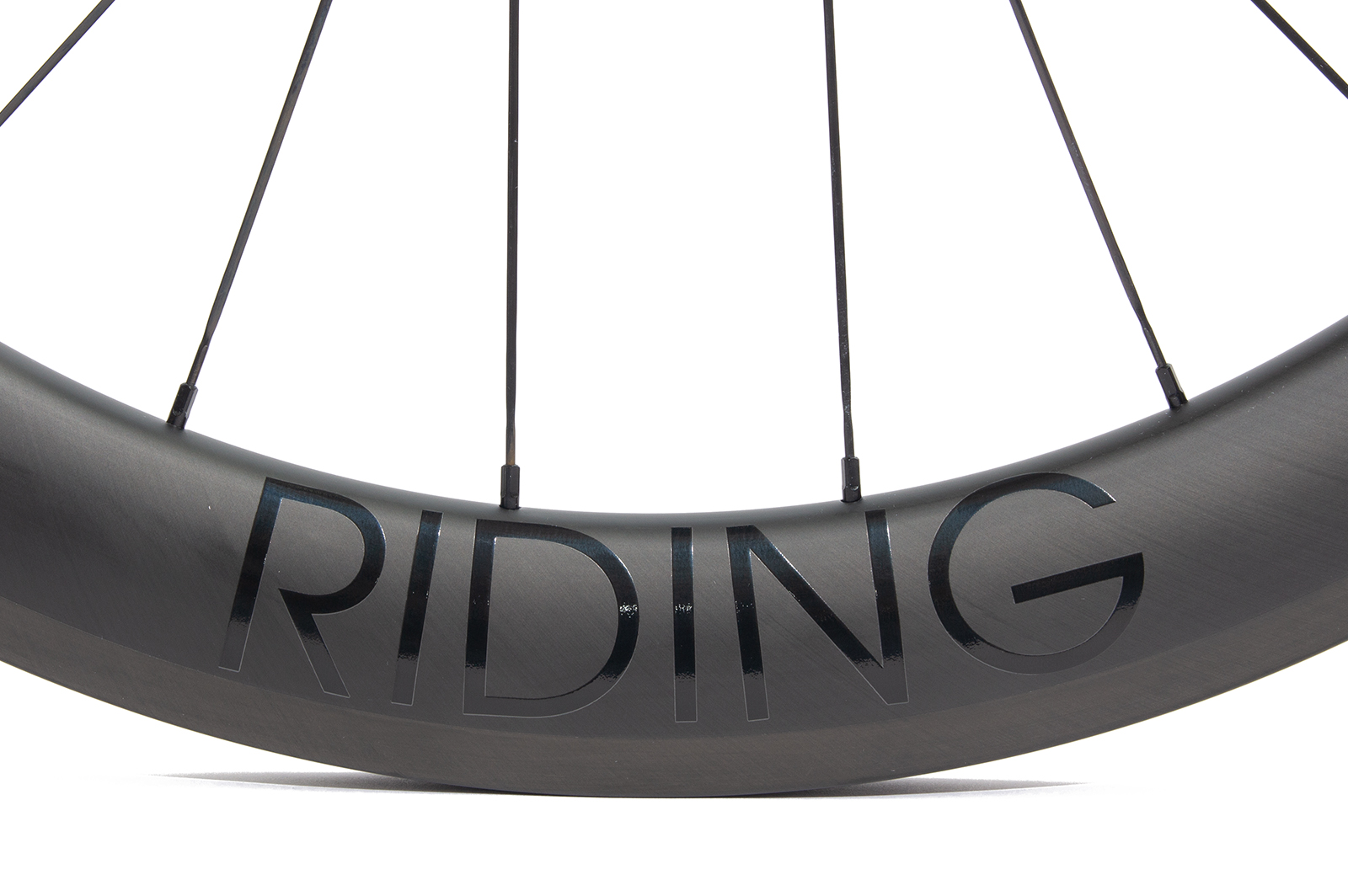

rim : JRA Mahi mahi carbon rims, 20 hole front 24 hole rear. 19mm internal, 26mm external. Depths of 35-55mm in 10mm increments.
spokes : Sapim CX-Ray black spokes

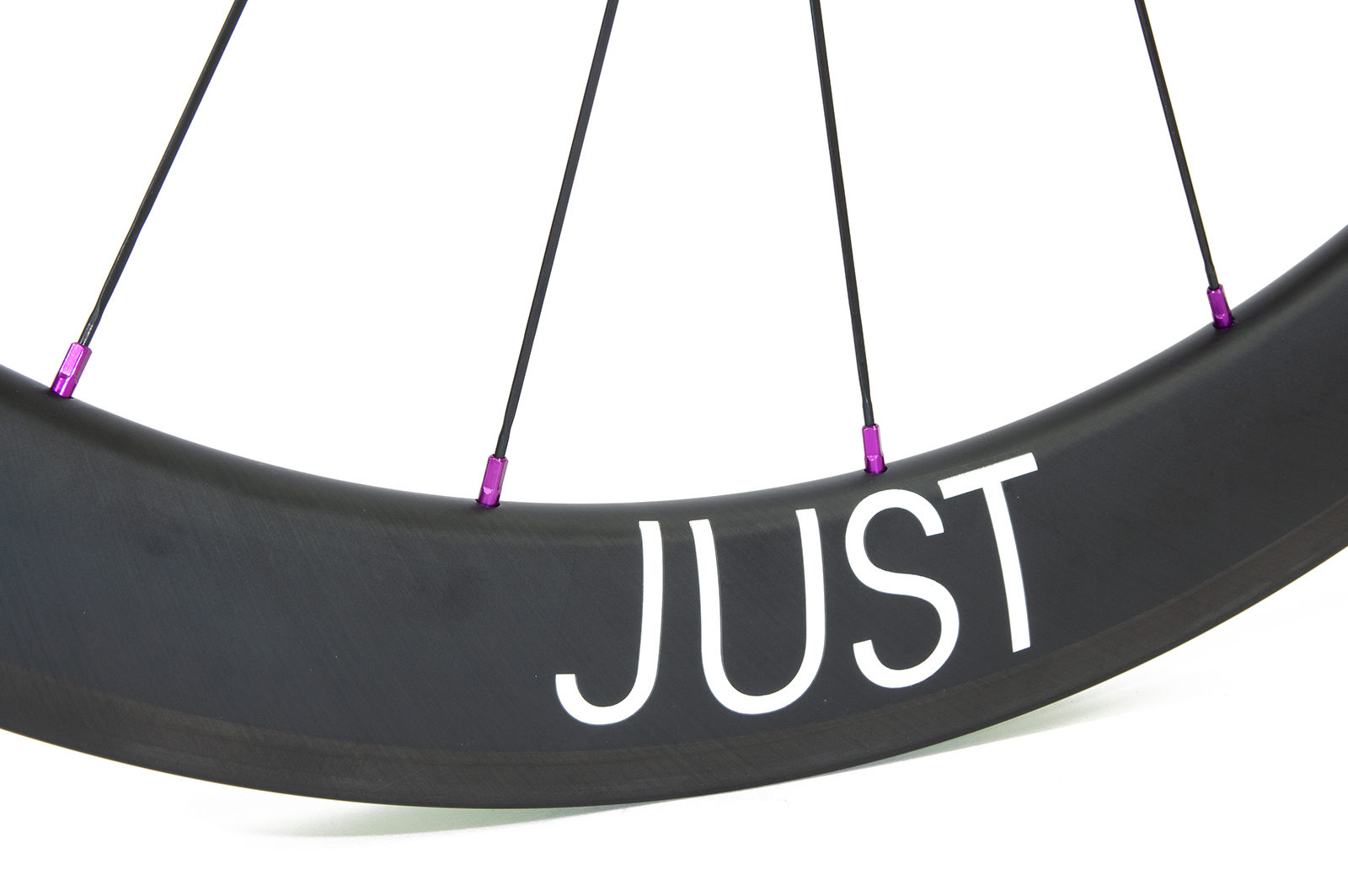

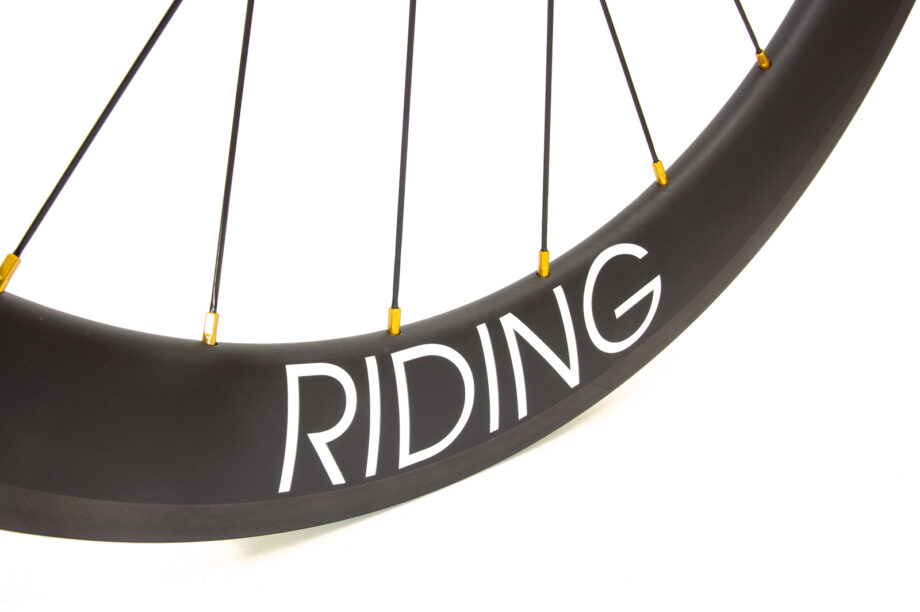

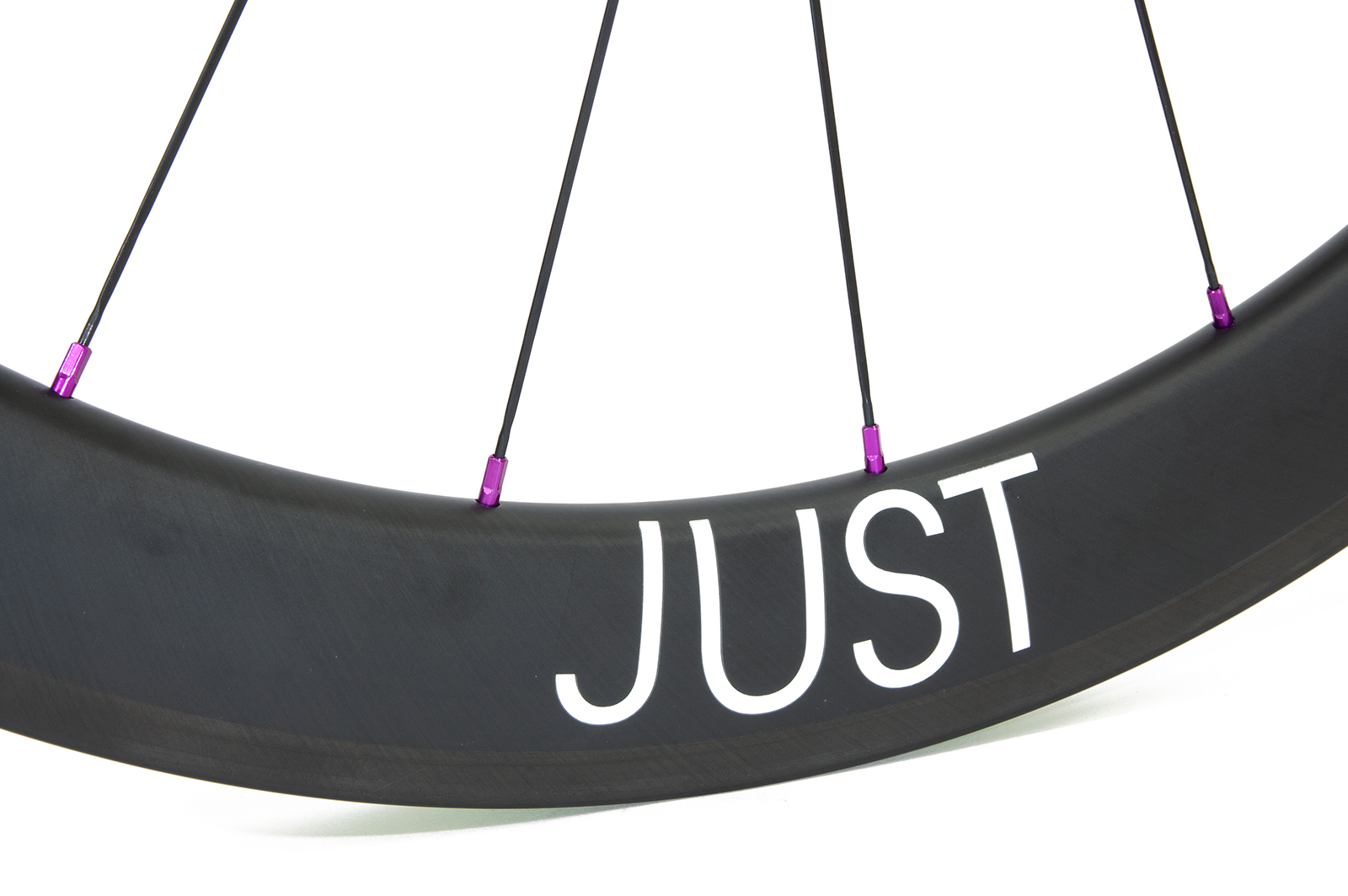

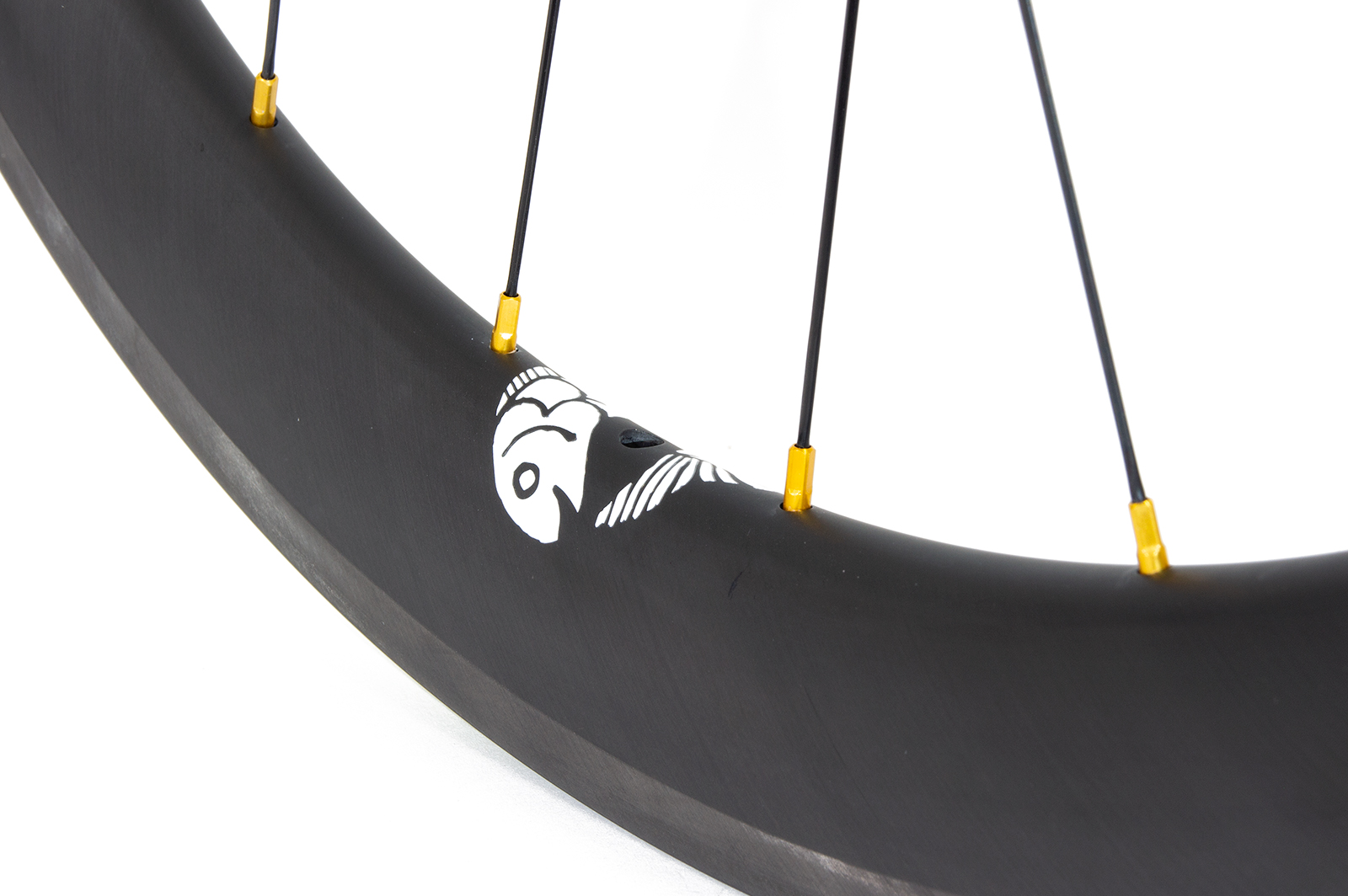

nipples : choose from brass or aluminium coloured nipples
weight: all on straight-pull hubs:
35mm front 624g, rear 799g (pair 1423g)
45mm front 653g, rear 828g (pair 1481g)

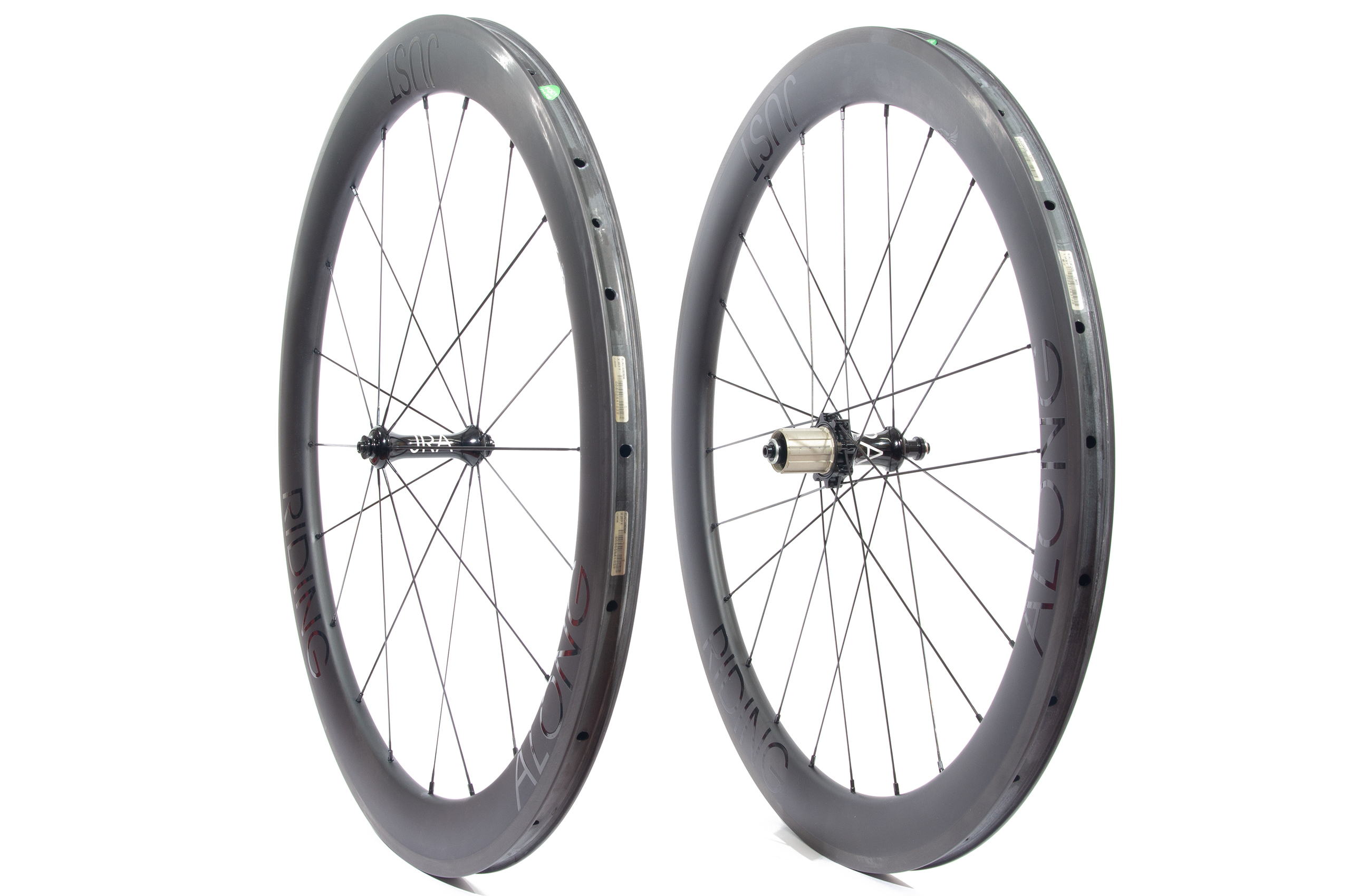

55mm front 711g, rear 888g (pair 1599g)
suggested max rider weight around 95kg
brake pads: a set of our carbon-specific pads are included with each wheel. Any good quality carbon-specific pads will work with these rims.
freehub: Shimano, Campagnolo, Sram XD freehubs

Additional information

material & finish


rim dimensions
internal rim width



Just Riding Along


wheel size

front axle options


rear axle options


braking options

rim brake

front lacing pattern


rear lacing pattern

triplet laced 2:1


1432 g
