Gecko 24 carbon wheels

from £945.00

Our lightest road disk and gravel Gecko wheelset with weights from 1258g.

build time for this wheelset: 5 days
jump to configure wheels >>

Category: Tags: ,

New for 2023, our classic Gecko road, gravel and cyclocross wheelset is updated with a 24mm wide, asymmetric profile rim for great tyre support and wheel strength.

key components

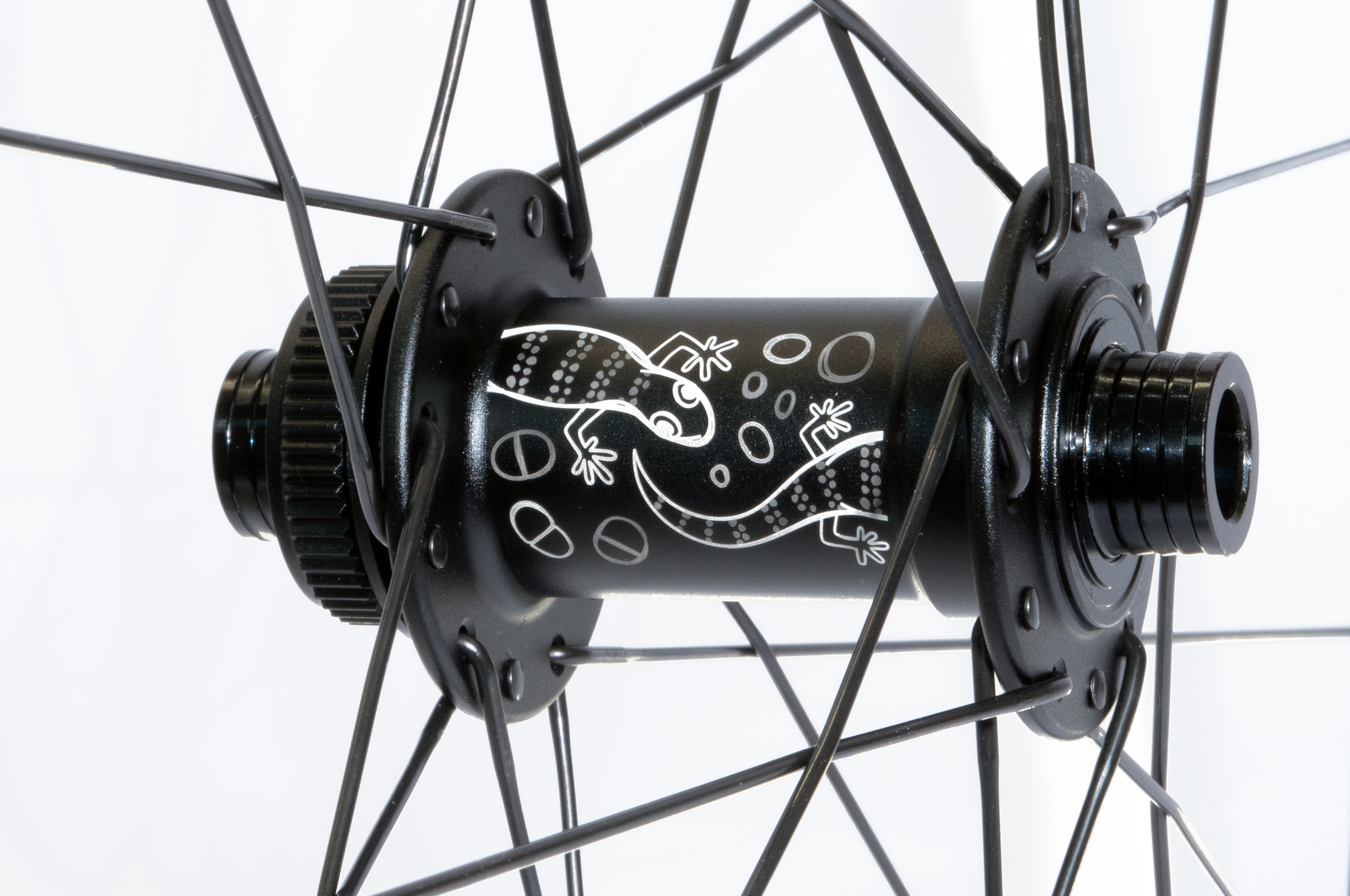

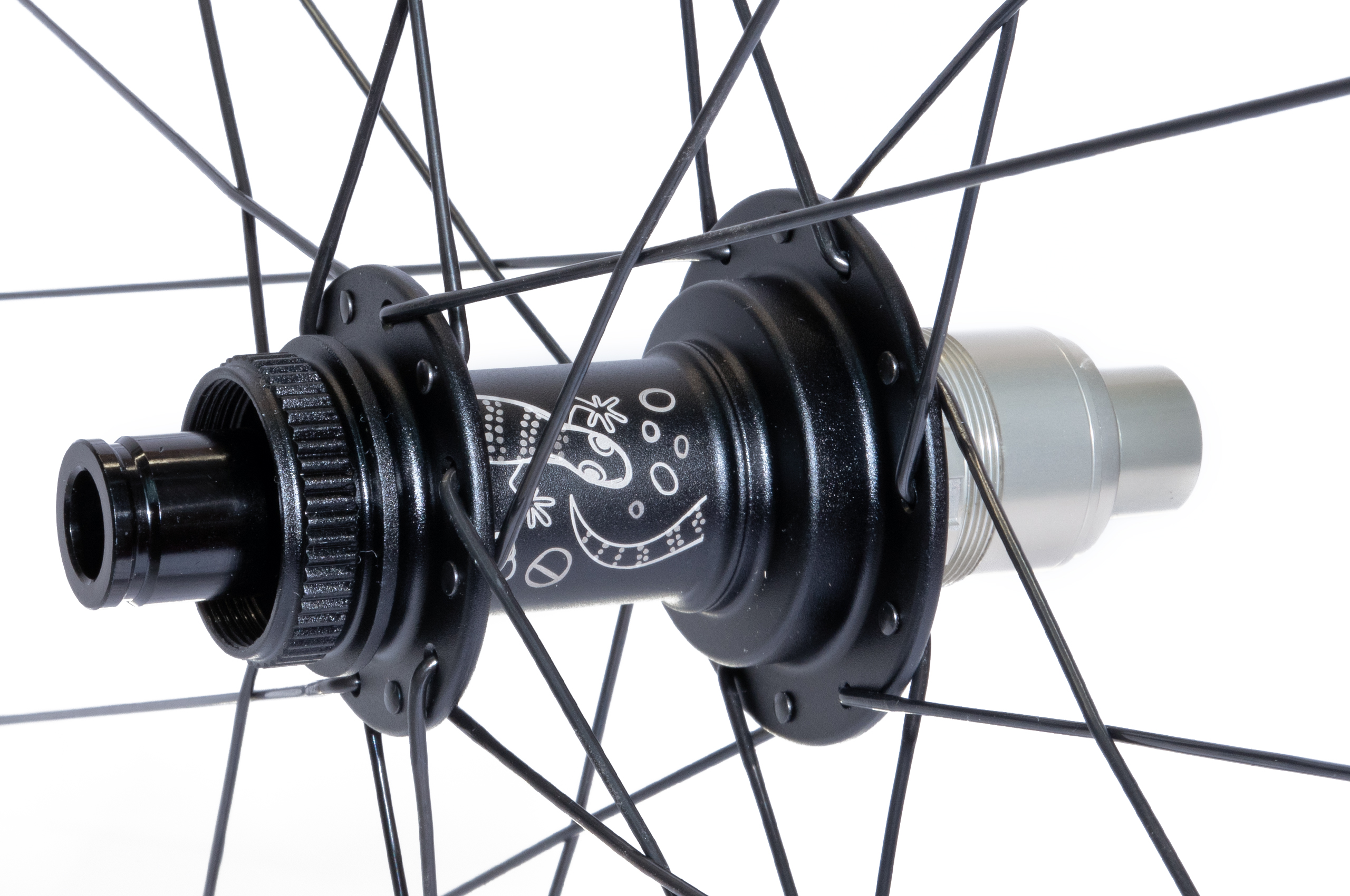

hubs : choose from any of our J-bend or Straight-pull, centre-lock or 6-bolt disk mount including Son dynamo hubs
rim : Gecko 24 carbon rim, 29er 24 hole
spokes : Sapim CX-Ray black spokes J-bend or straight-pull
nipples :  Sapim aluminium or brass secure-lock nipples, colours and colour
Straight-pull centre-lock wheelset: front 574g / rear 684g / pair 1258g
J-Bend centre-lock wheelset: front 616g / rear 716g / pair 1332g
(weighed with 12mm front, 12x142mm rear axles; other end caps and small variations may add up to 20g per wheel. Weighed with rim tape & aluminium nipples.)

freehub: Shimano 11 speed or Campagnolo 12 speed are included in base price. All other freehubs are available at extra cost.

rider weight limit: 85kg
recommended tyre widths: 30mm – 40mm

Gecko carbon rims

lightweight gravel carbon rims

material: Carbon fibre Toray T700 & T800 matt finish, water drain hole
durable matt finish water transfer decals in grey
dimensions: asymmetric rims with an internal width of 24mm with external 30mm and 20mm depth
weight: 346g (+/-5g) per rim and a with rider weight limit of 85kg for 24 spoke wheels and 100kg for 28 spoke wheels.
bead: tubeless compatible with a hookless bead profile for strength and easy inflation
tyres:  best for 30-40c tyres
crash replacement: if you damage our carbon wheels we will replace the rim for a third of the cost of a new one + labour

Additional information

rim material & finish


rim data
internal rim width


wheel size

bead hook


hole count



Just Riding Along


hub features
braking options

6-bolt disk brake, centre-lock disk brake

riding type



1274 g

Configure your wheels
