Traildog alu wheels

£390.00 £351.00

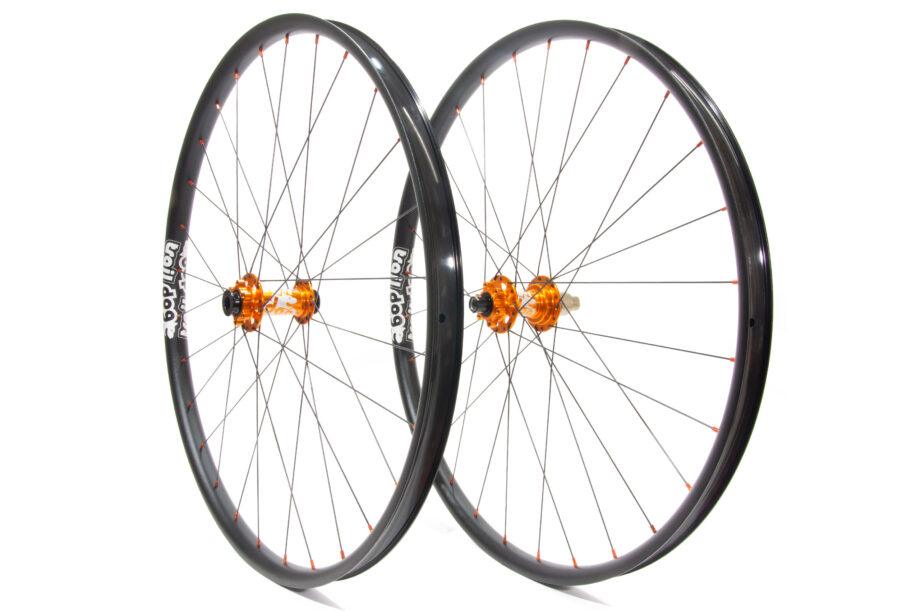

Lightweight wheelset with 30mm rim for all round trail riding. Now with updated higher strength rims in 6069 aluminium.

29er rims in stock in 32h (not 28h), we have good stock of 27.5″ rims in 28 & 32 hole

build time for this wheelset: 5 days
jump to configure wheels >>

Category: Tags: ,

Lightweight wheelset with 30mm rim for all round trail riding. Now with updated higher strength rims in 6069 aluminium.

Key components

hubs choose from any of our J-bend or Straight-pull, centre-lock or 6-bolt disk mount including Son dynamo hubs
rims Traildog aluminium rims, choice of outline or solid silver decal
decals laser etched decals
spokes Sapim D-light black spokes
nipples Sapim secure-lock nipples – as selected
weights front 816g / rear 953g / pair 1769g
* weighed with rim tape and Shimano freehub
freehub Shimano 11 speed is included in base price. All other freehubs are available at extra cost.
recommended tyre widths 2.25-2.5″

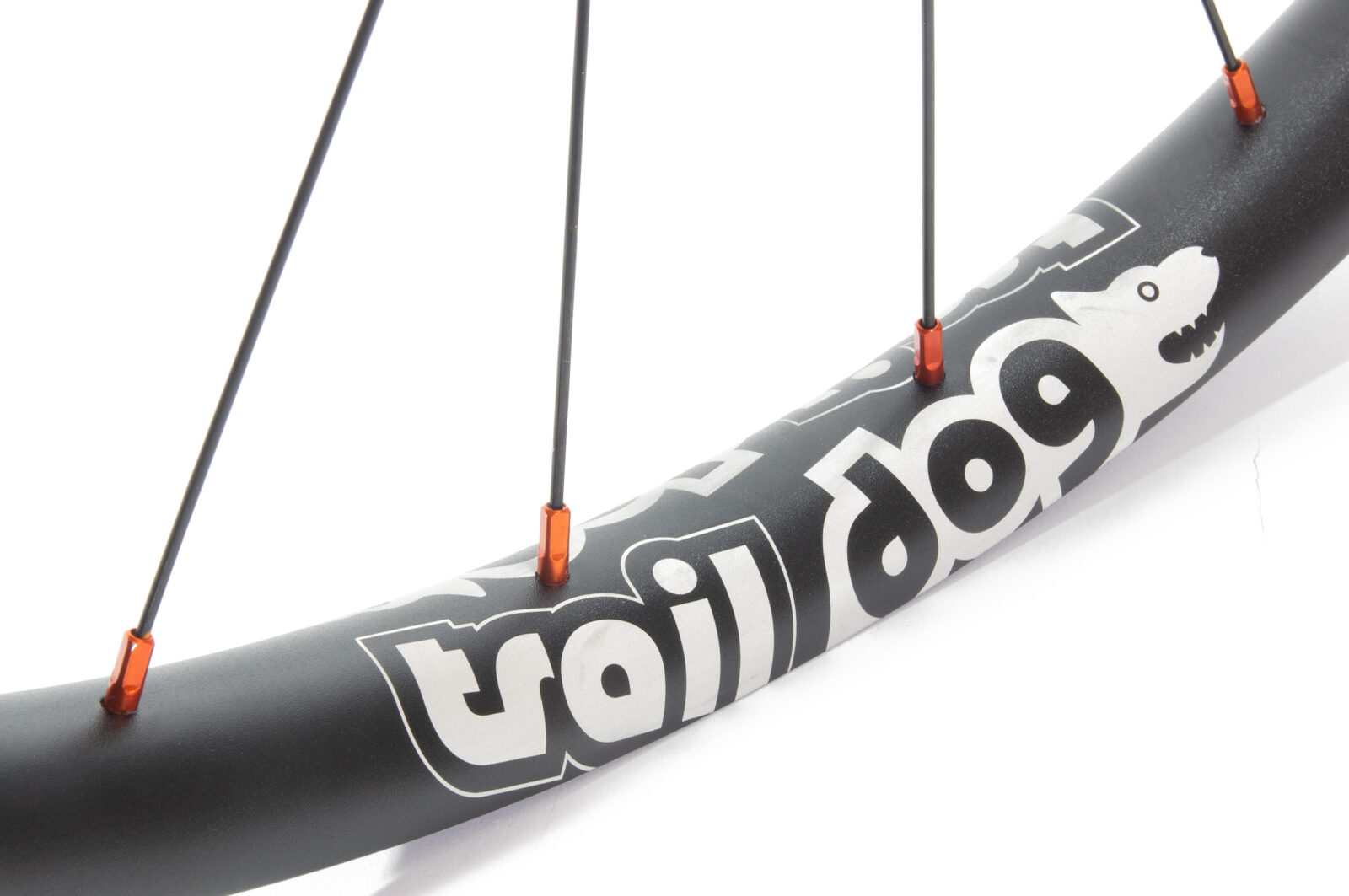

Traildog aluminium rims

30mm wide aluminium rims

material: 6069 aluminium with a matt finish and welded join
decals:
durable laser etched decals
dimensions: 30mm internal and 34.5mm external width with 18mm depth
weight: 503g (+/-15g) per 29er rim
bead: tubeless compatible with a hooked bead
tyres:  best for 2.25-2.5″ tyres

why buy from us

warranty

All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.

delivery

To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.

repairability

All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

our hubs

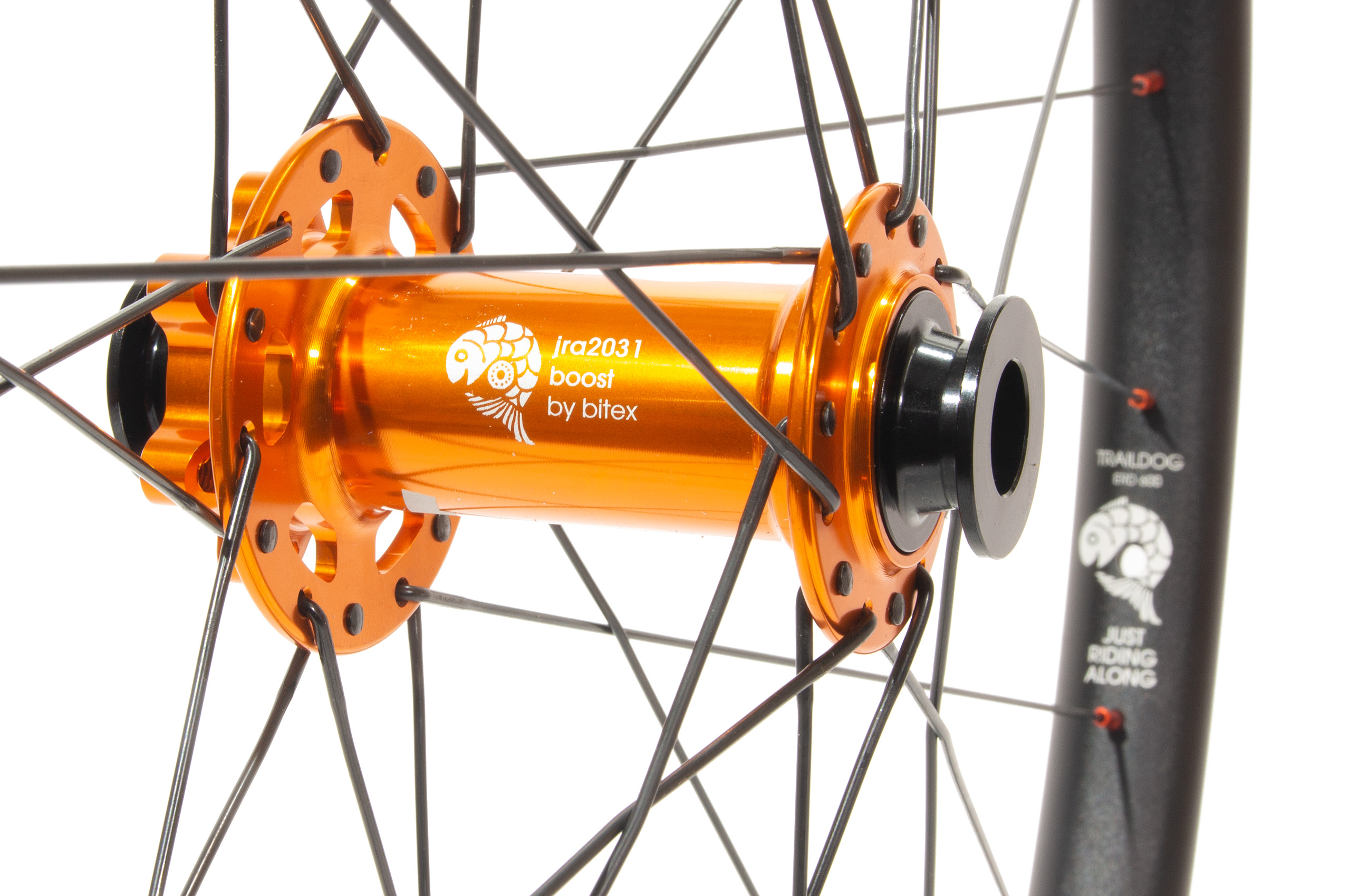

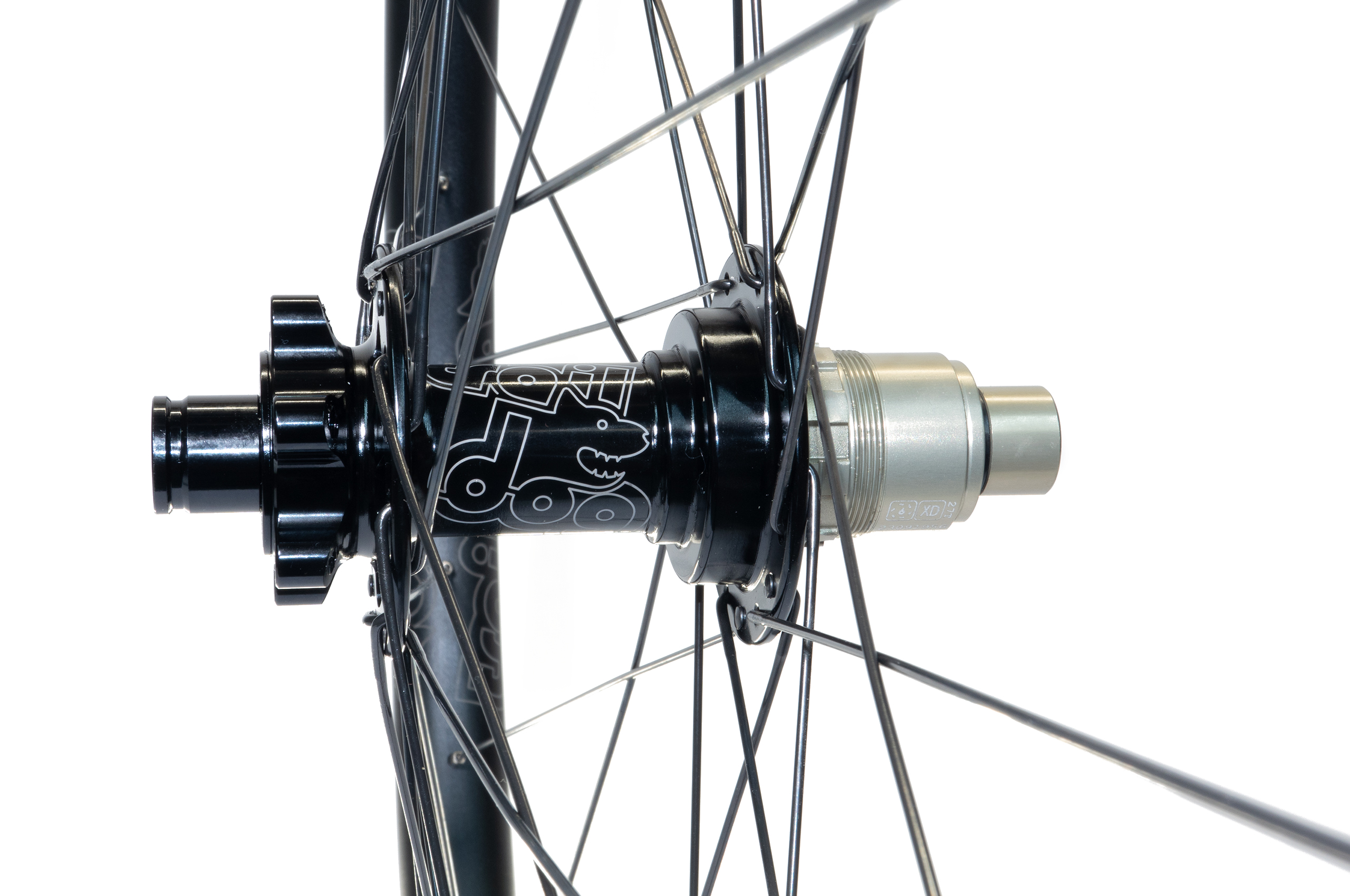

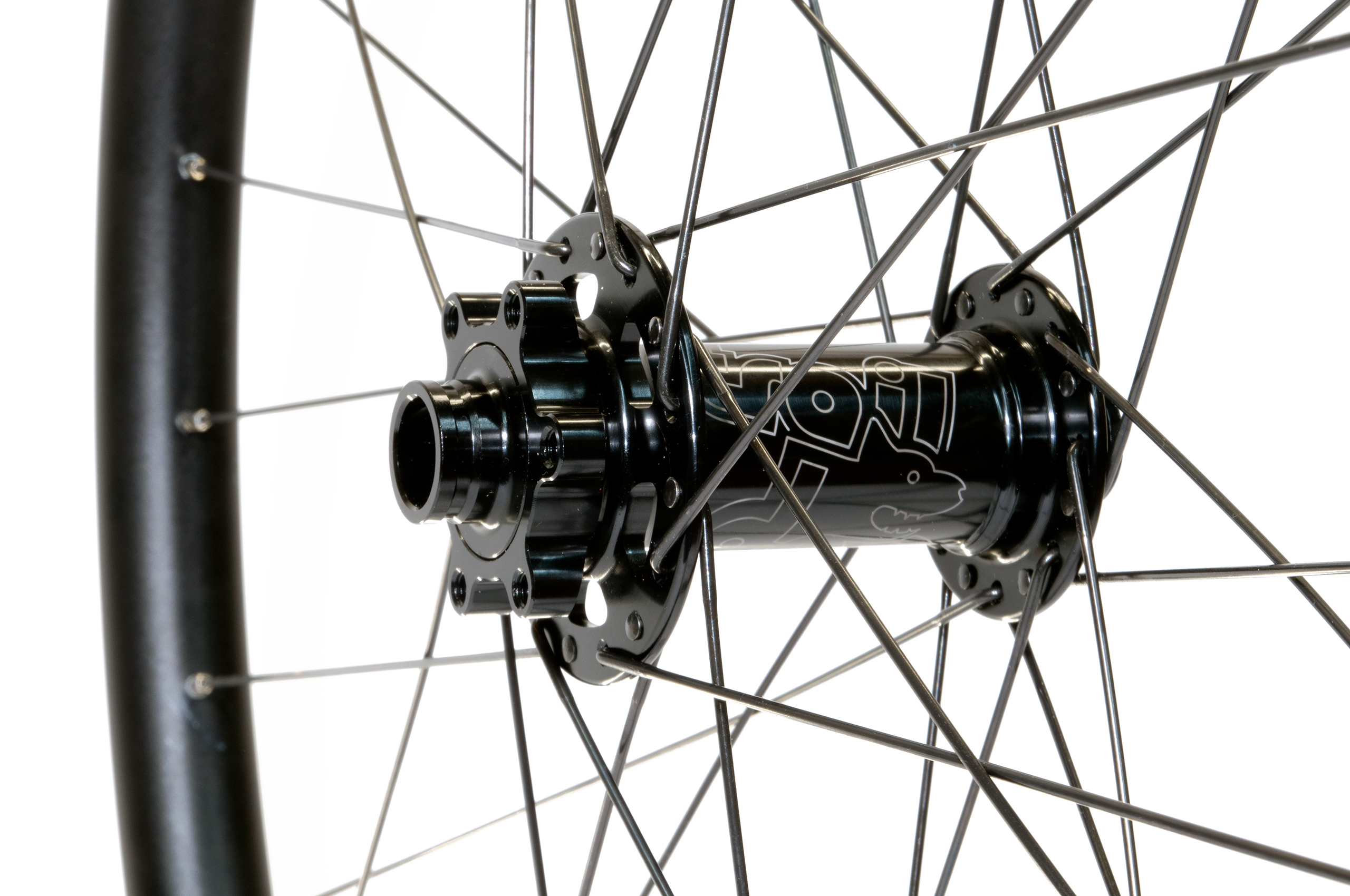

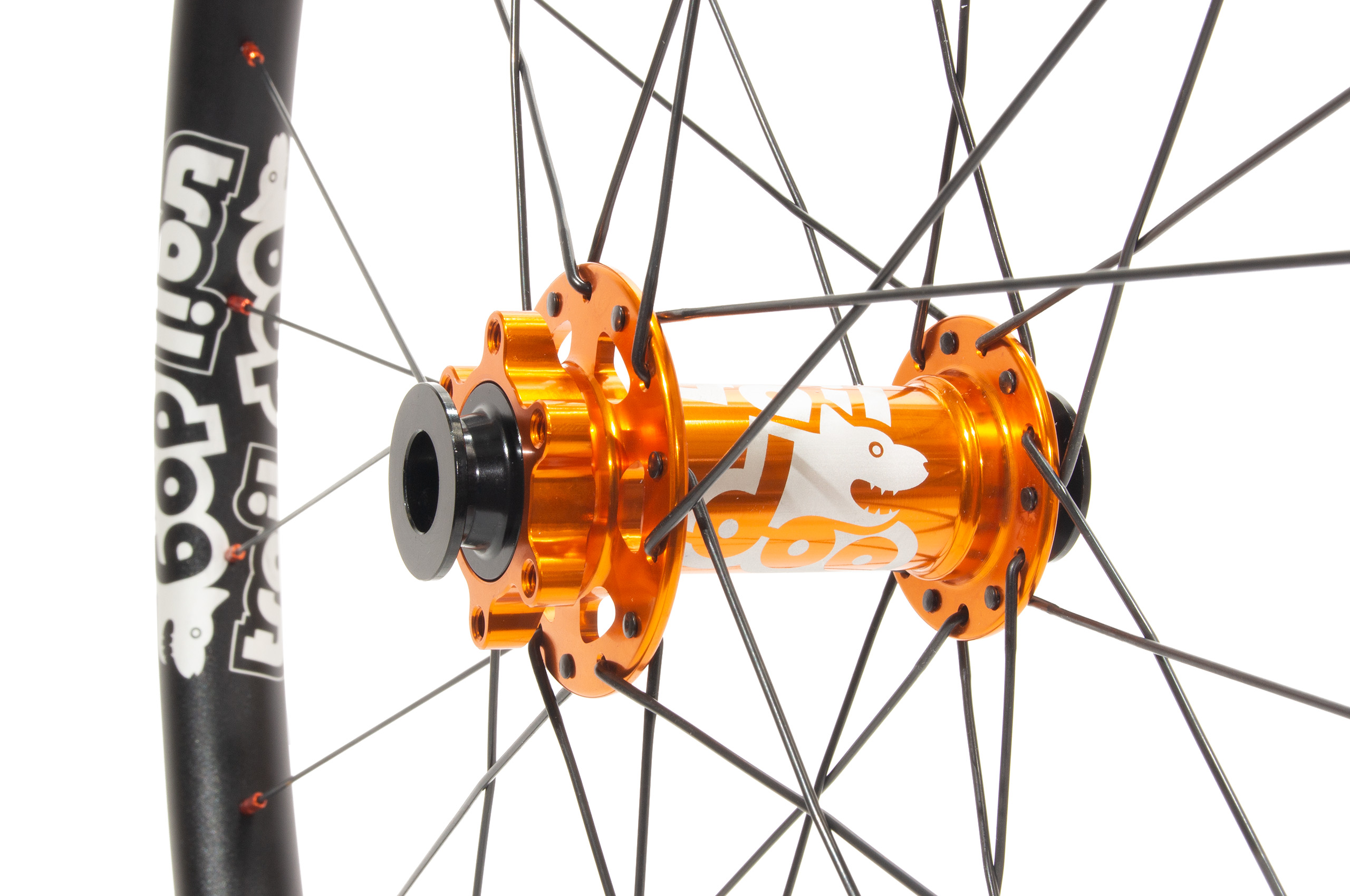

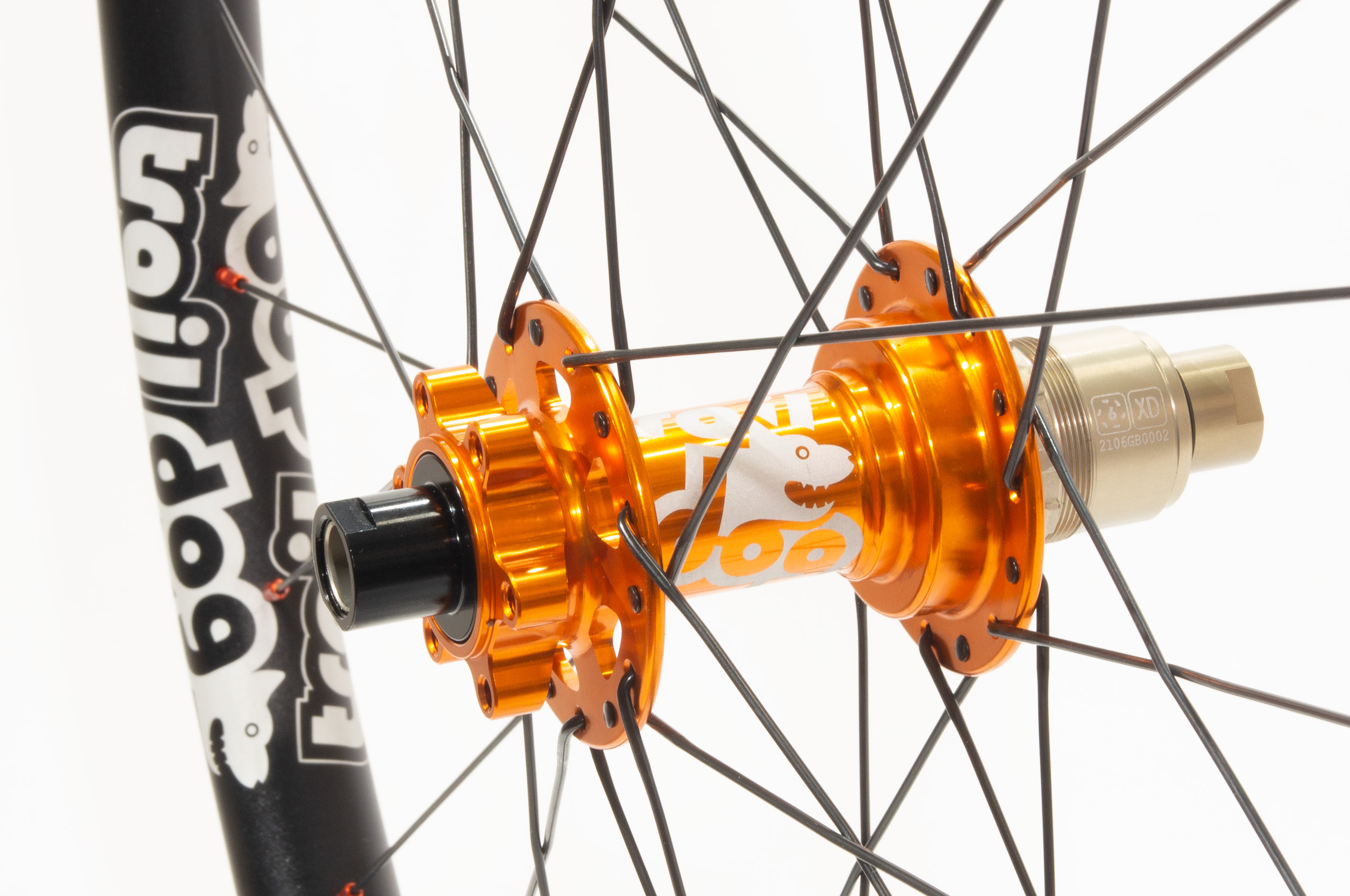

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.

warranty

All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.

drive

6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 6.7 degree, 54 POE, R-type hubs have 7.5 degree, 48 POE.

features

  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

custom built wheels

This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.

Additional information

rim material & finish
material

aluminium

rim data
internal rim width

30mm

wheel size

,

hole count

,

info
brand

Just Riding Along

range

More
riding type

,

timescale

custom

Weight

1770 g

Configure your wheels
