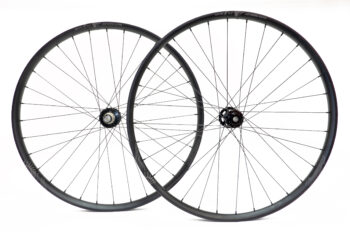

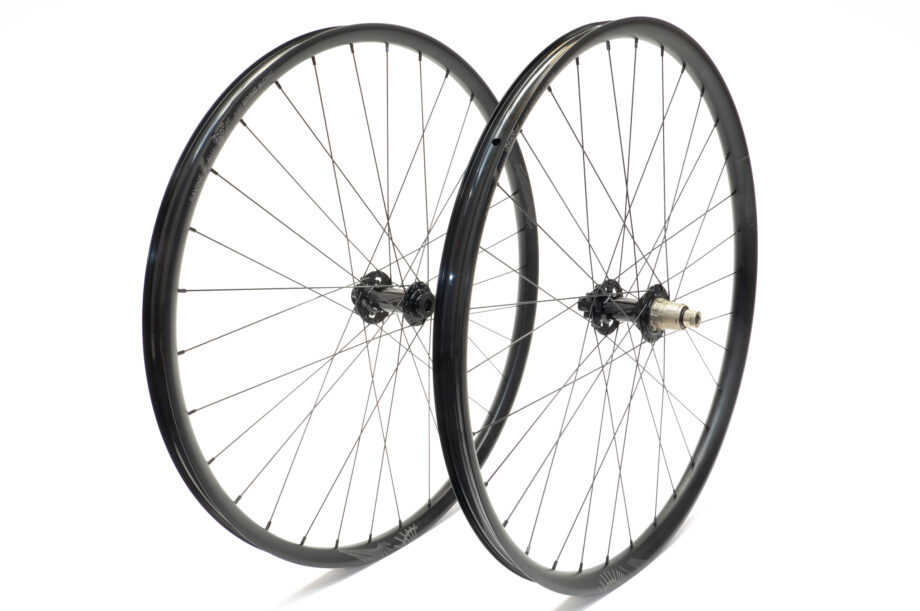

Ravine wheels

from £450.00

Tough lightweight wheelset for trail and enduro riding with a 30mm internal width.

build time for this wheelset: 5 days
jump to configure wheels >>

Category: Tags: ,

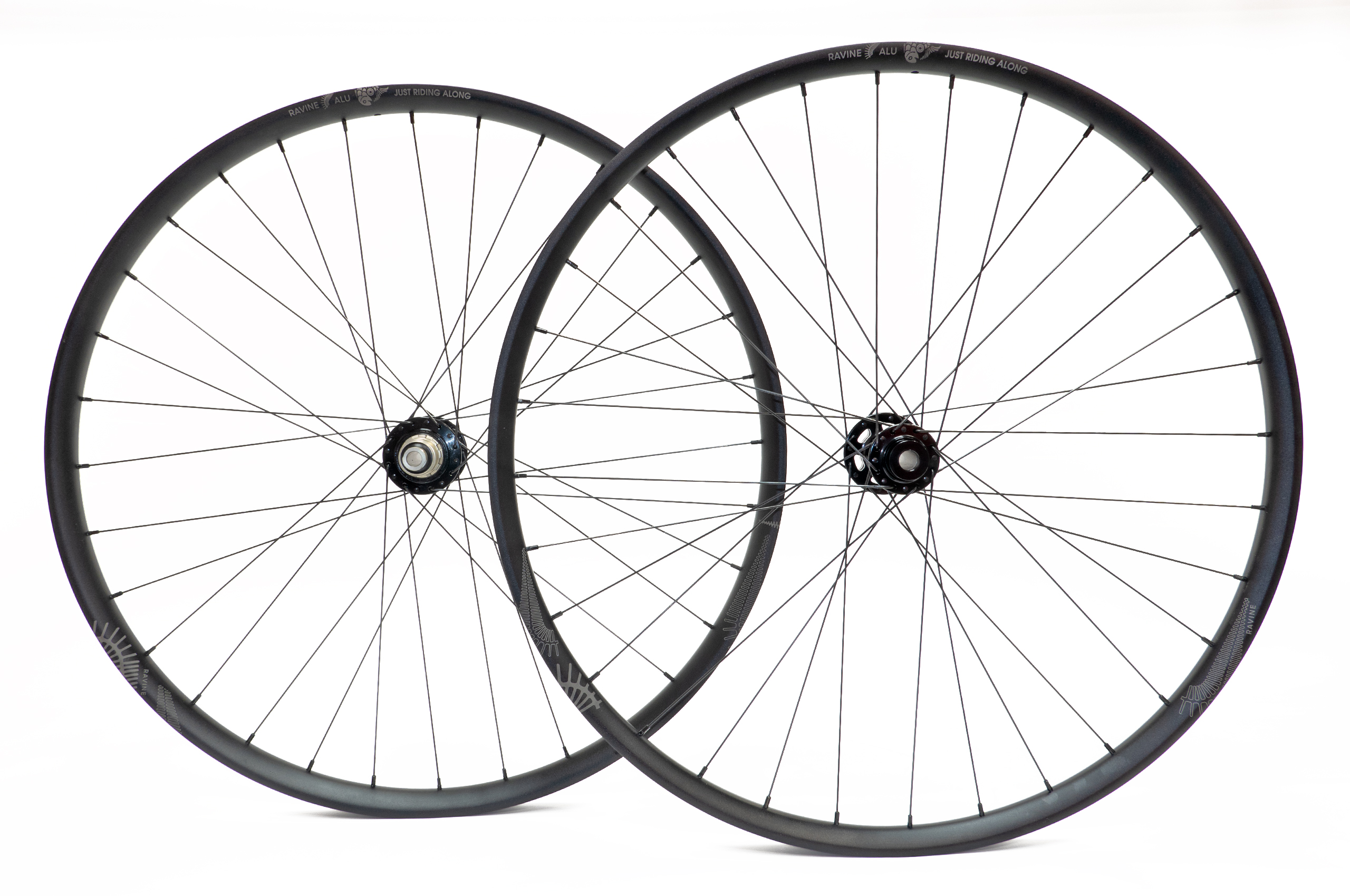

The perfect combination of light weight and strength in an aluminium wheelset

The Ravine aluminium wheelset is designed to take on any trails with its reinforced, asymmetric drilled rims and our usual unrivalled build quality.

Key components

hubs choose from any of our J-bend or Straight-pull, centre-lock or 6-bolt disk mount hubs
rims Ravine aluminium rim, 28 or 32 hole
decals laser etched rim and hub decals
spokes Sapim D-Light – black (CX-Ray upgrade available at extra cost)

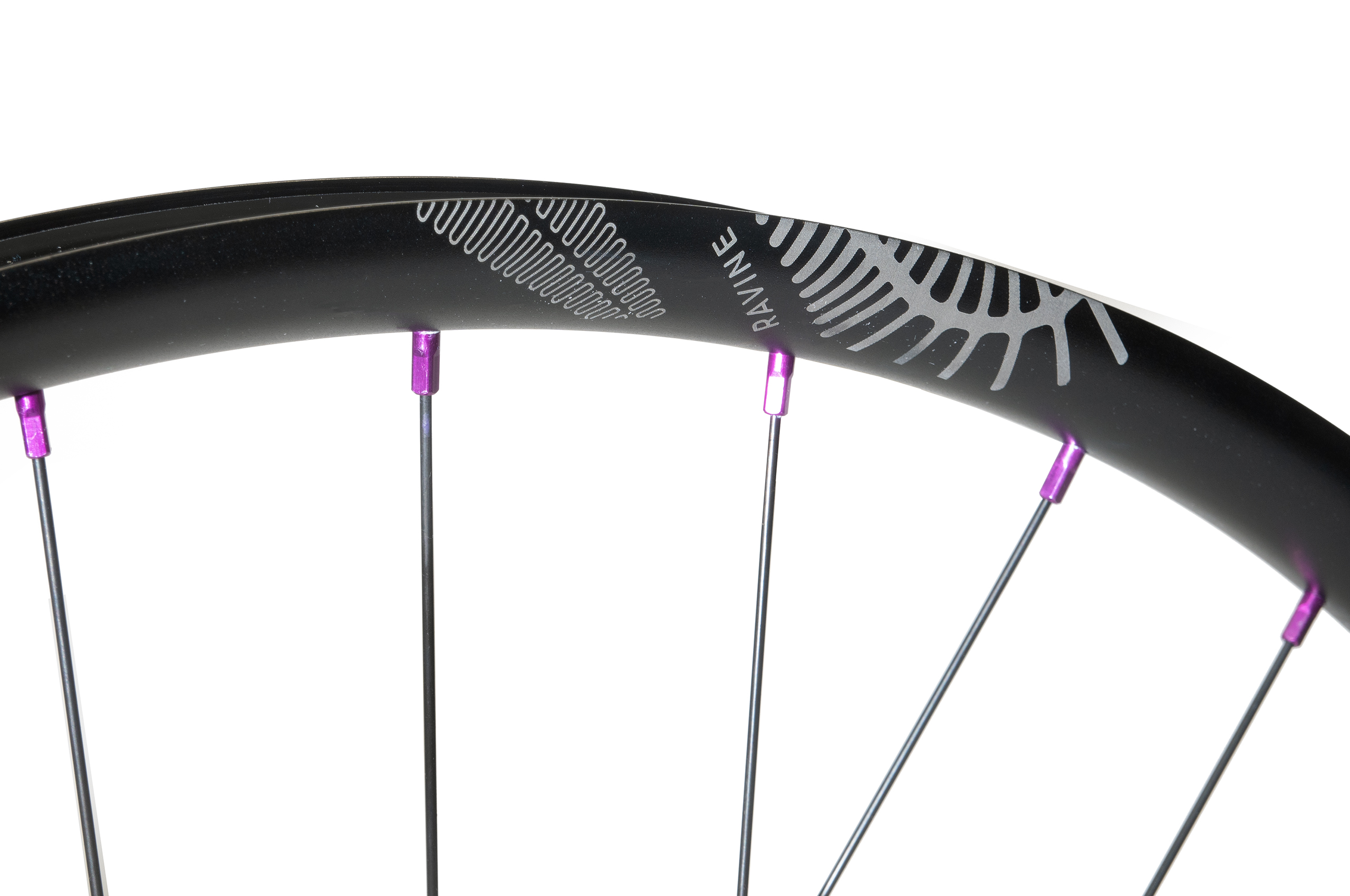

nipples Sapim aluminium, or brass (+32g per wheelset)
rim tape all our wheels are fitted with tubeless tape
weights 28 spoke – front 839g / rear 940g / pair 1779g
* weighed with rim tape and Shimano freehub
freehub Shimano 11 speed included in base price. All other freehubs are available at extra cost.
recommended tyre widths 2.25-2.5″

weights for 29er rims, Boost J-bend 6-bolt hubs:

28 spokes per wheel: front 839g rear 940g pair 1779g
32 spokes per wheel: front 863g rear 963g pair 1826g
all weights are given with aluminium nipples, tubeless tape installed and a Shimano freehub

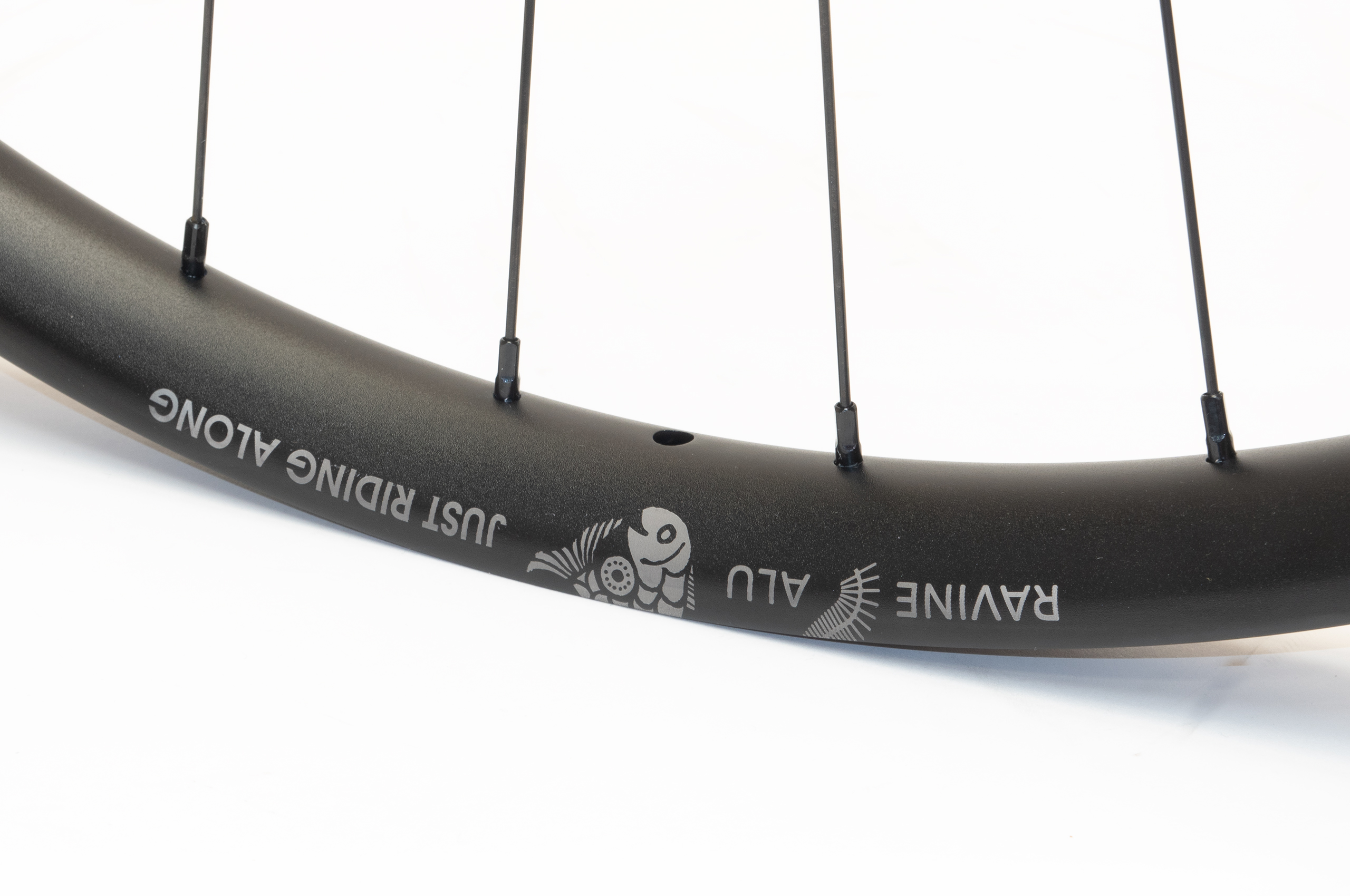

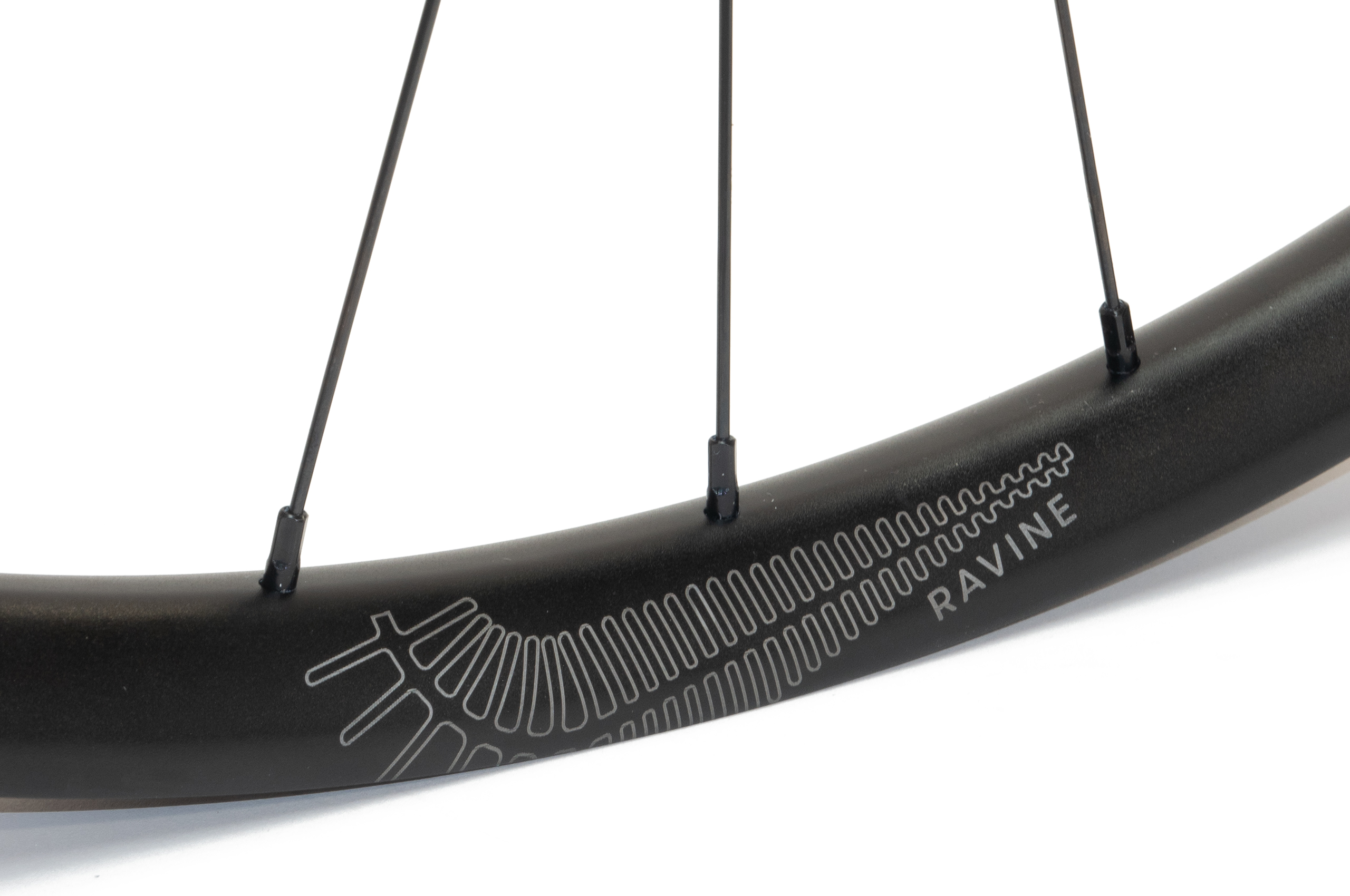

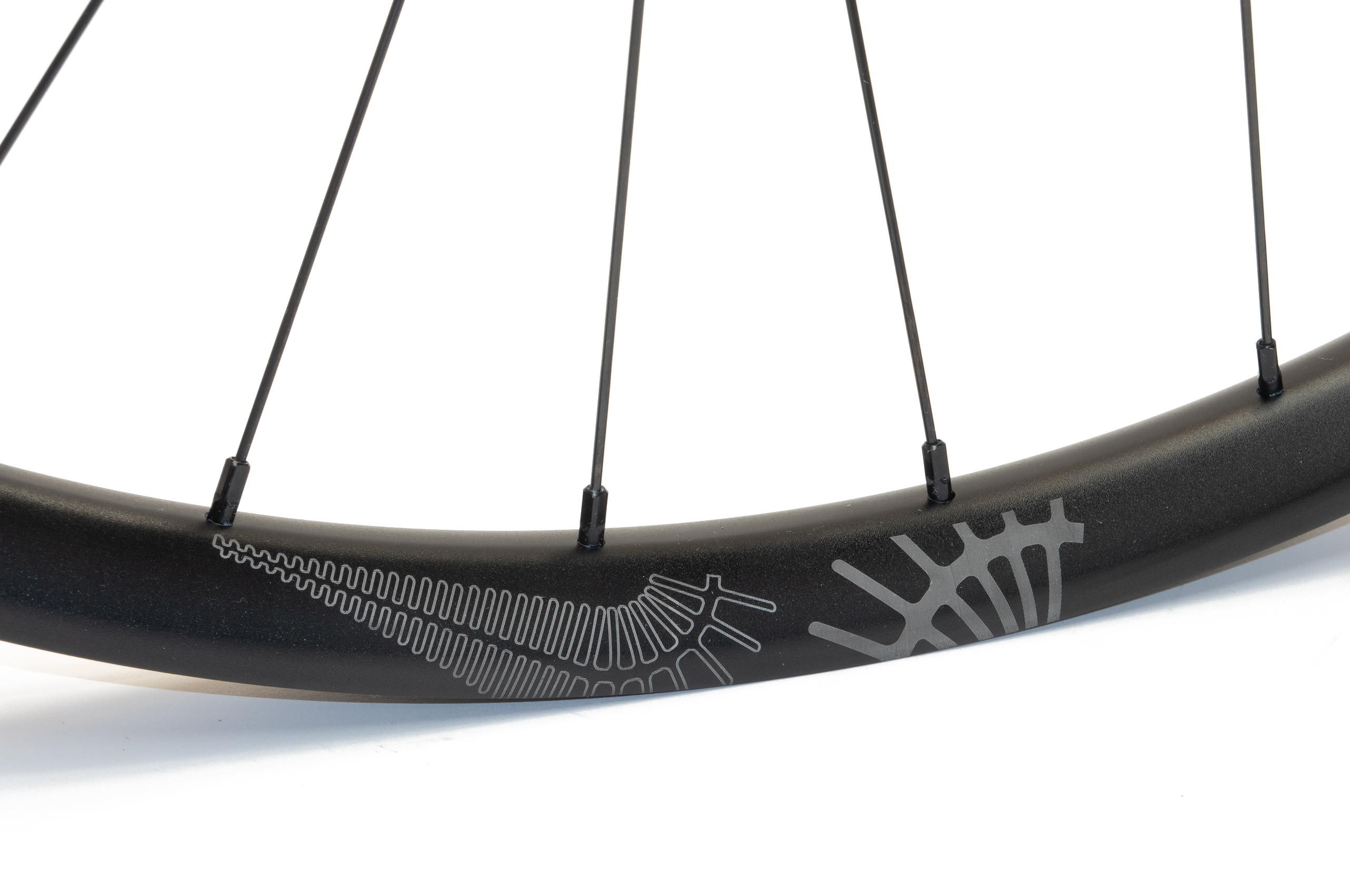

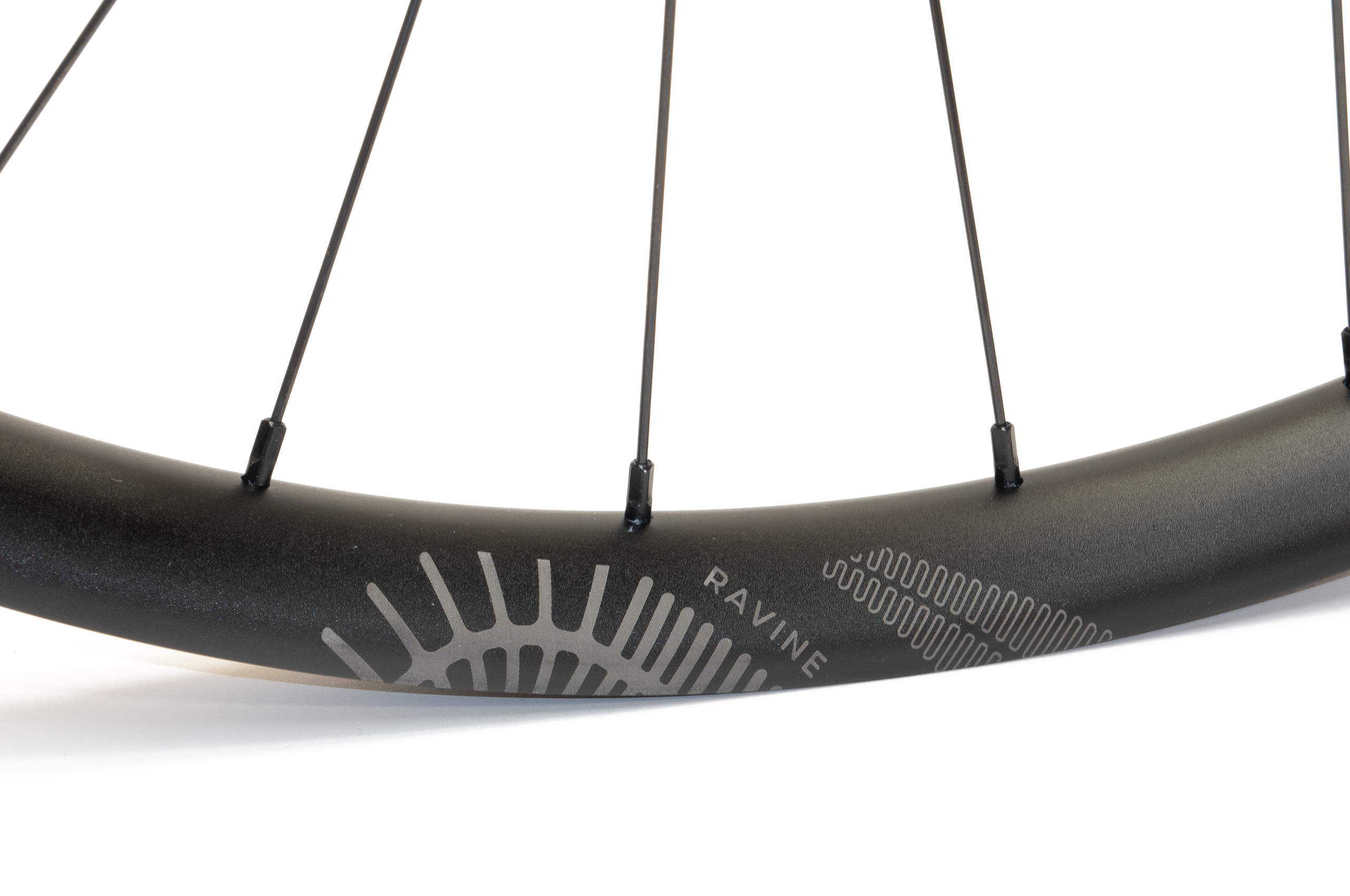

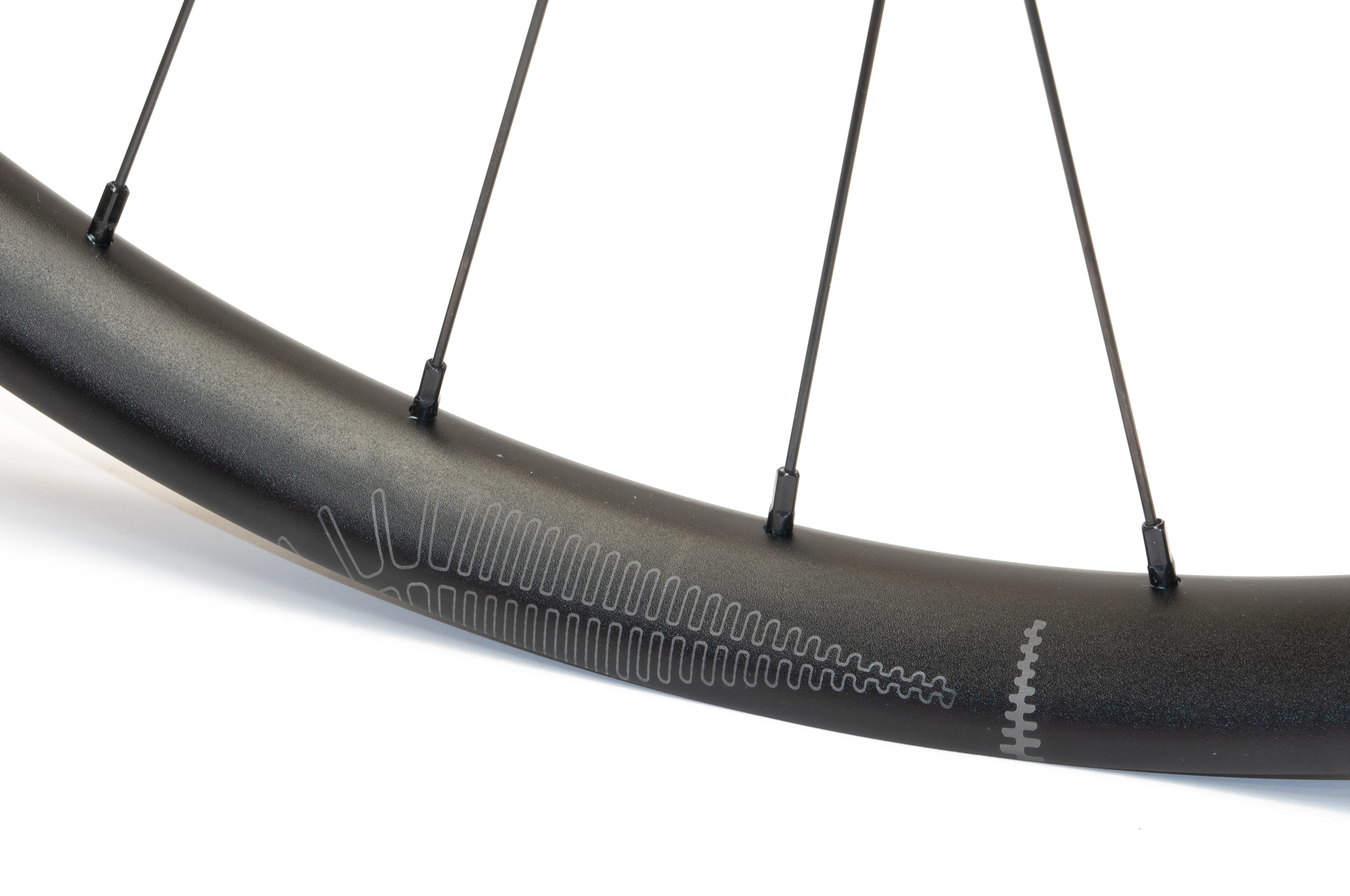

Ravine aluminium rims

built with durable aluminium mountain bike rims

material: 6069 aluminium with a matt finish, welded join
durable laser etched decals
dimensions: asymmetric rims with an internal 30mm and external 34.5mm width and 20mm height
weight: 497g per rim, no rider weight limit
bead: tubeless compatible with a hooked bead
tyres:  suitable for tyres from 2.25- 2.5″

product reviews

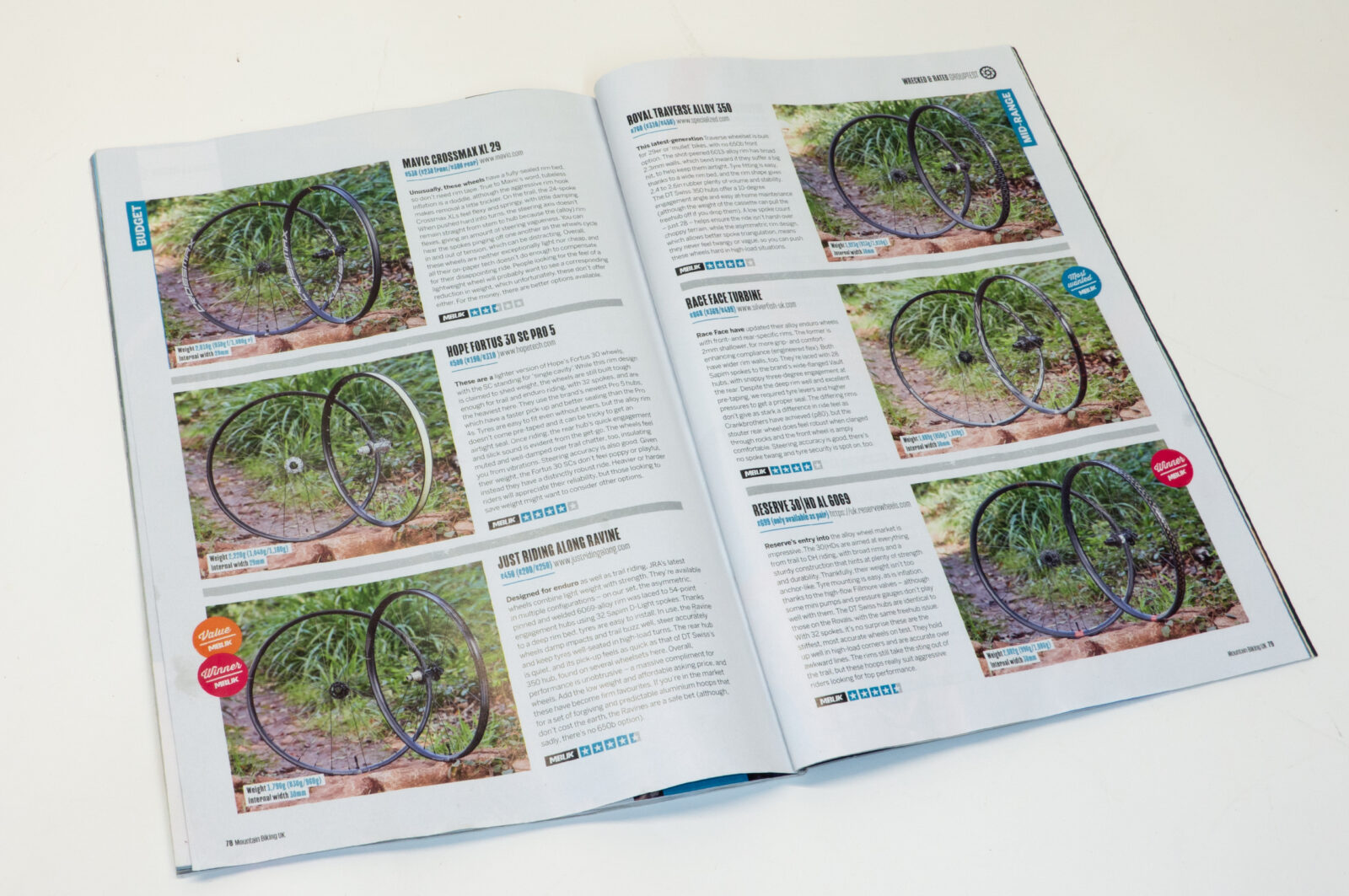

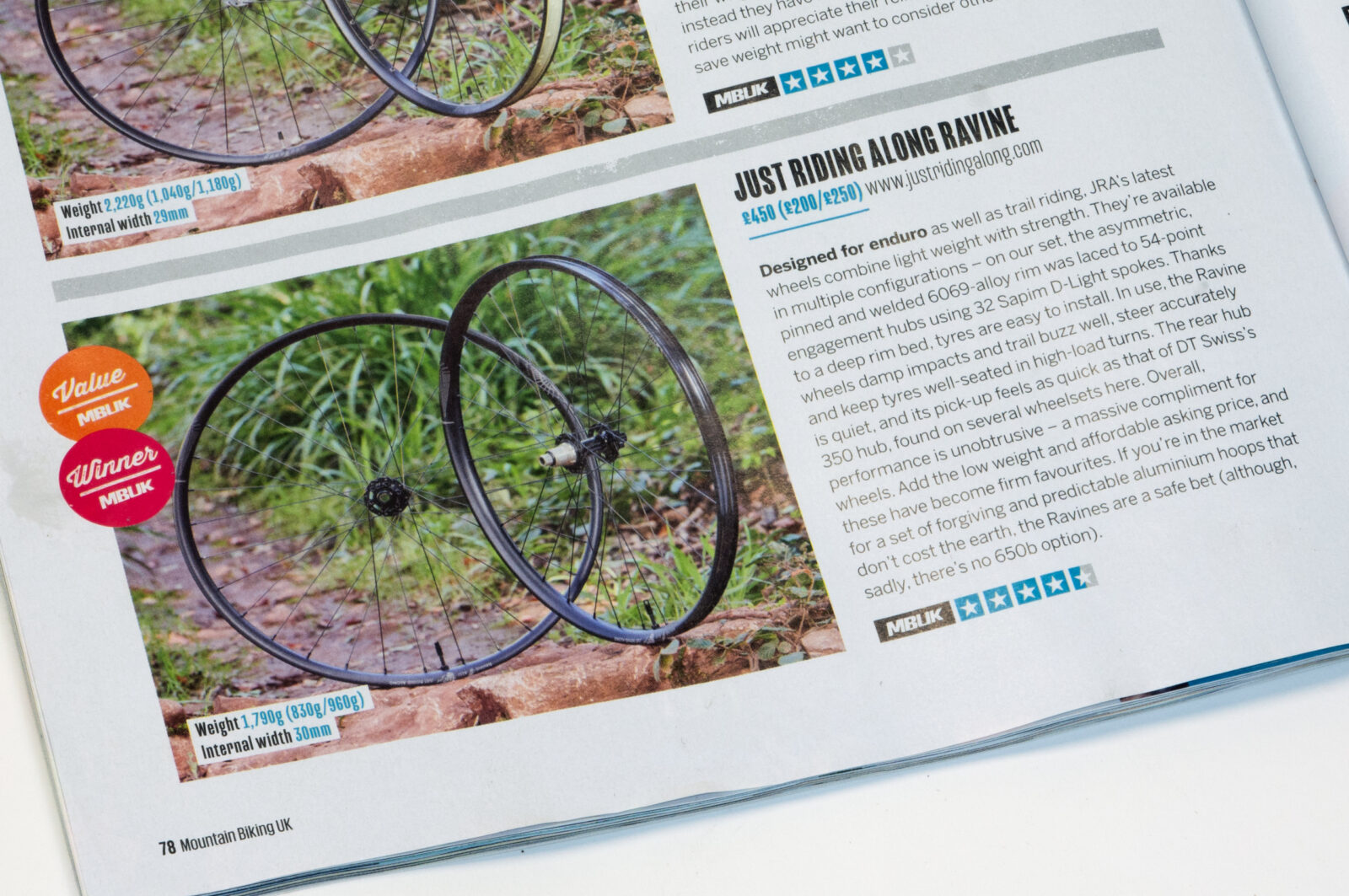

MBUK Feb 2024 winner of the budget wheel group

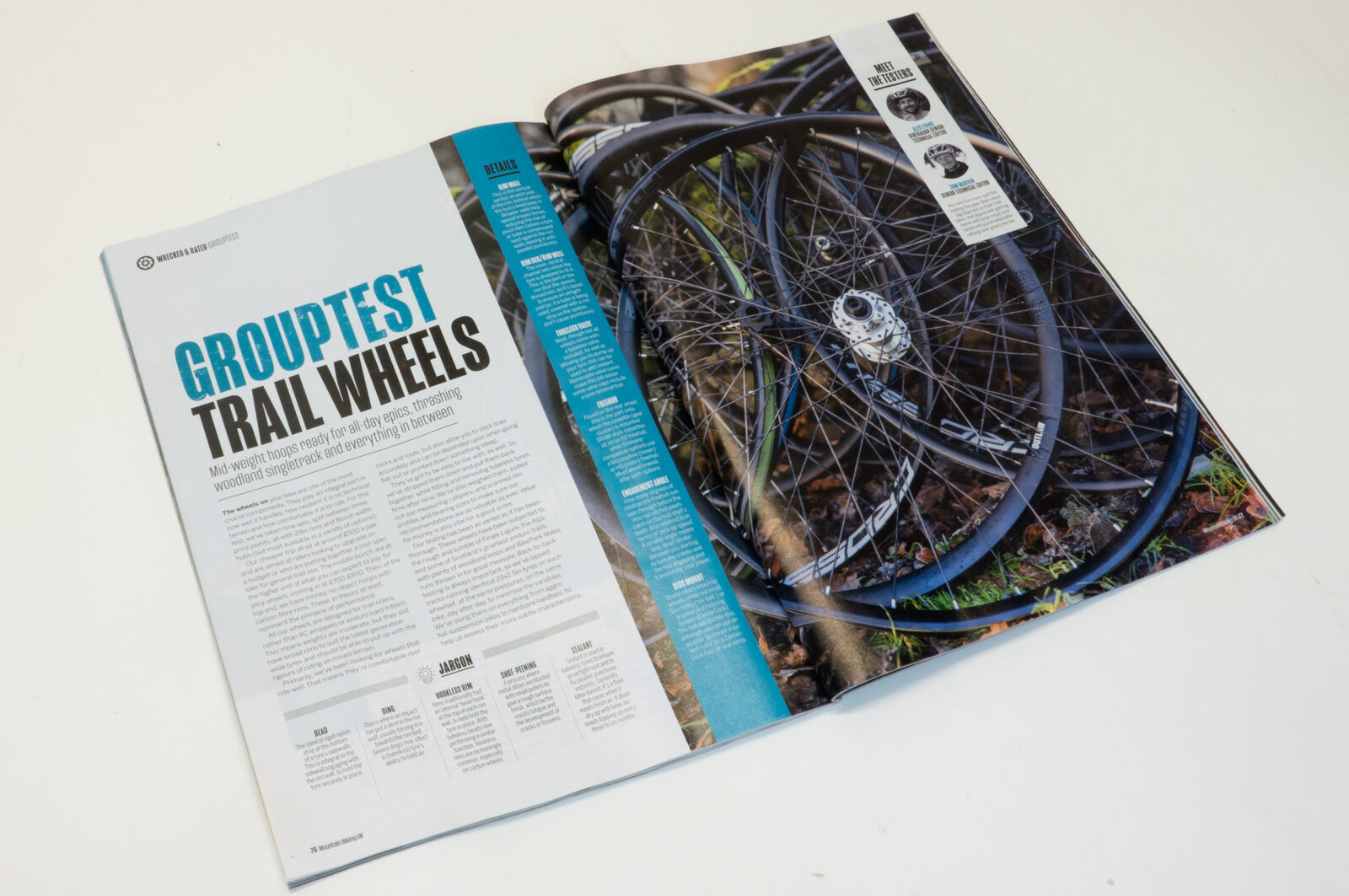

Our wheels were reviewed in the Wheel Group Tests on the Budget page, and won the overall Value award and the winner of the Budget wheels. The reviews liked that the

“wheels damp impacts and trail buzz well, steer accurately and keep tyres seated in high-load turns…overall the performance is unobtrusive a massive compliment for wheels.”

read the review on Bike Radar

why buy from us


All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.


To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.


All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

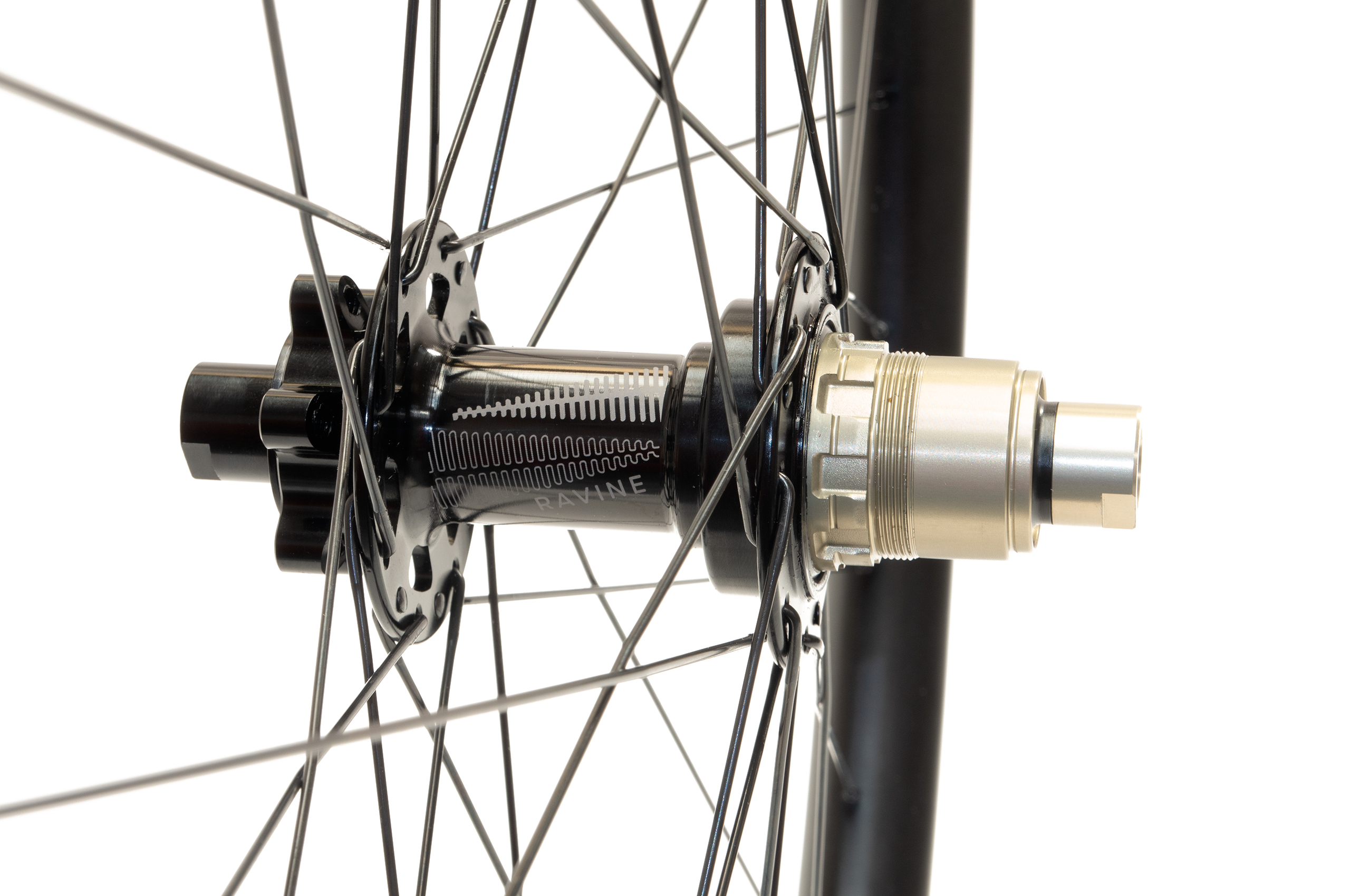

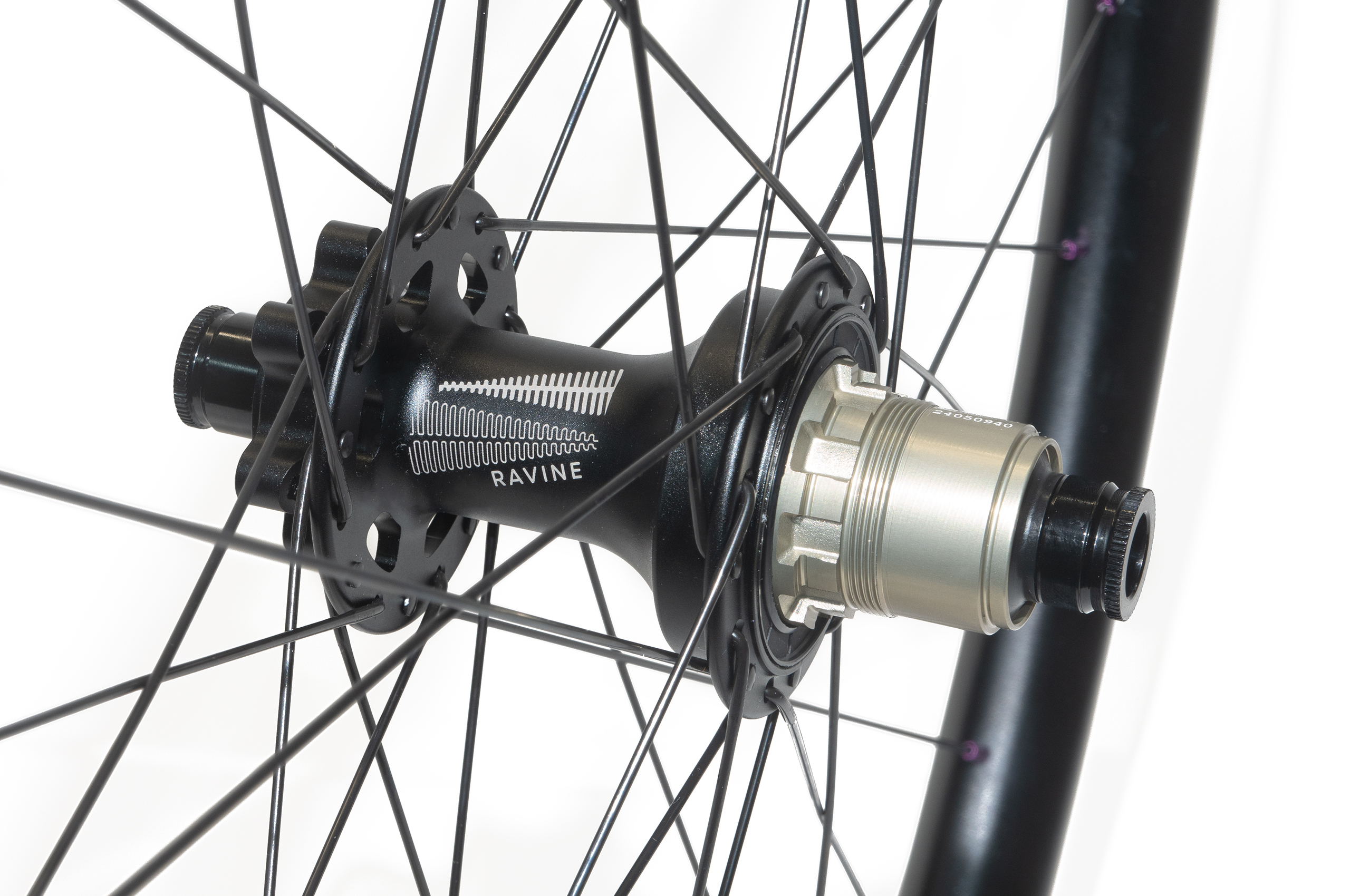

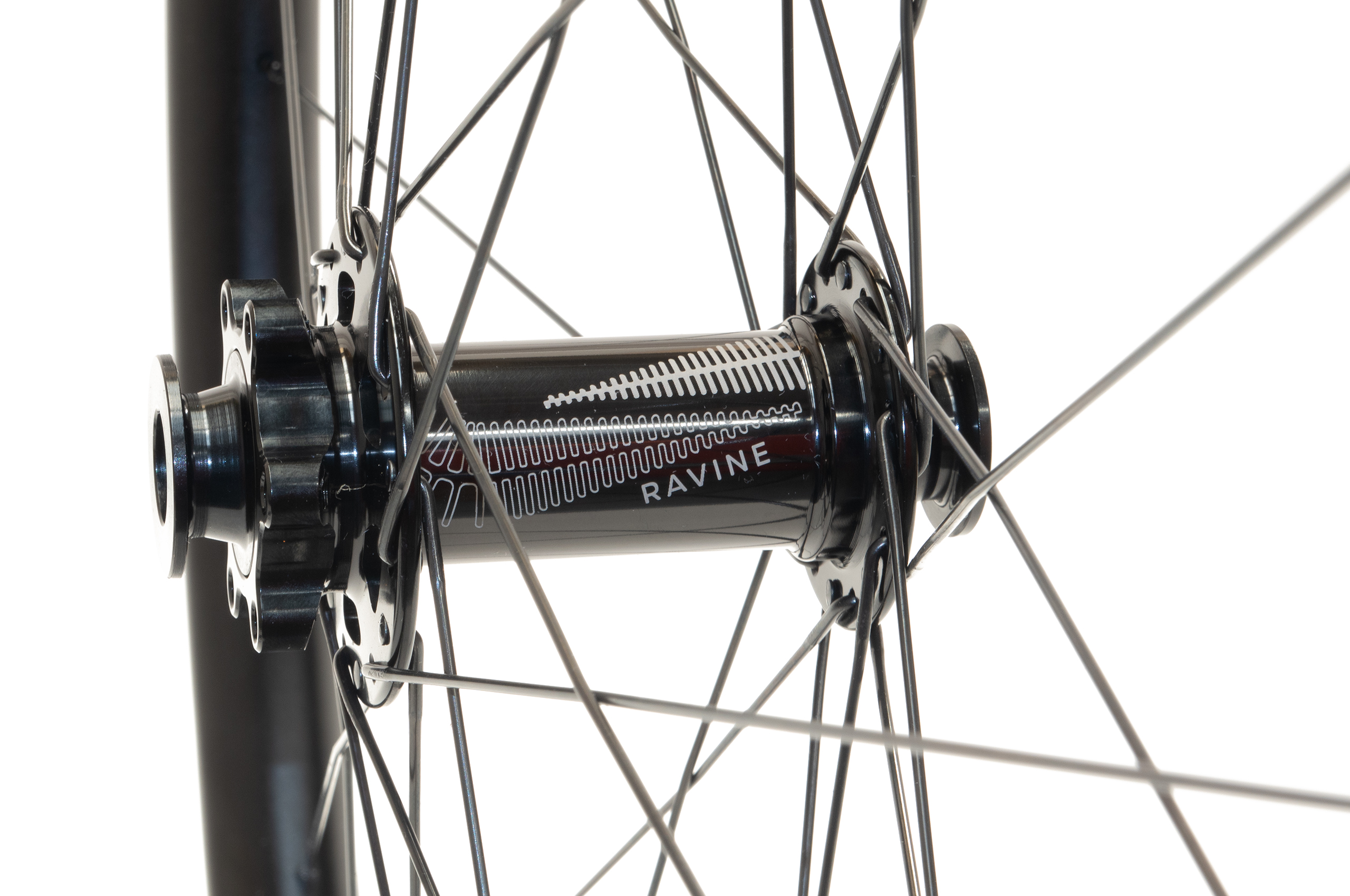

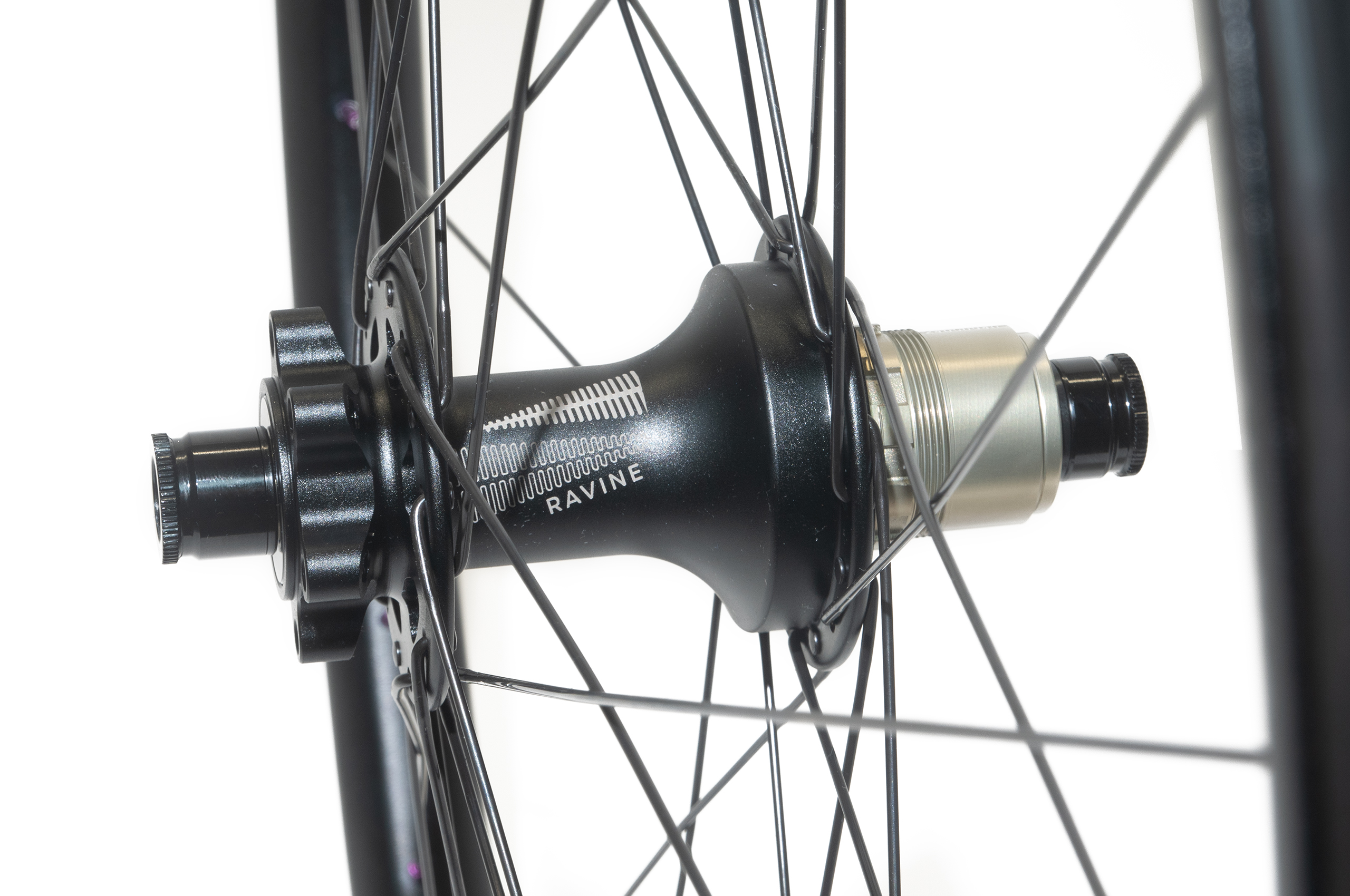

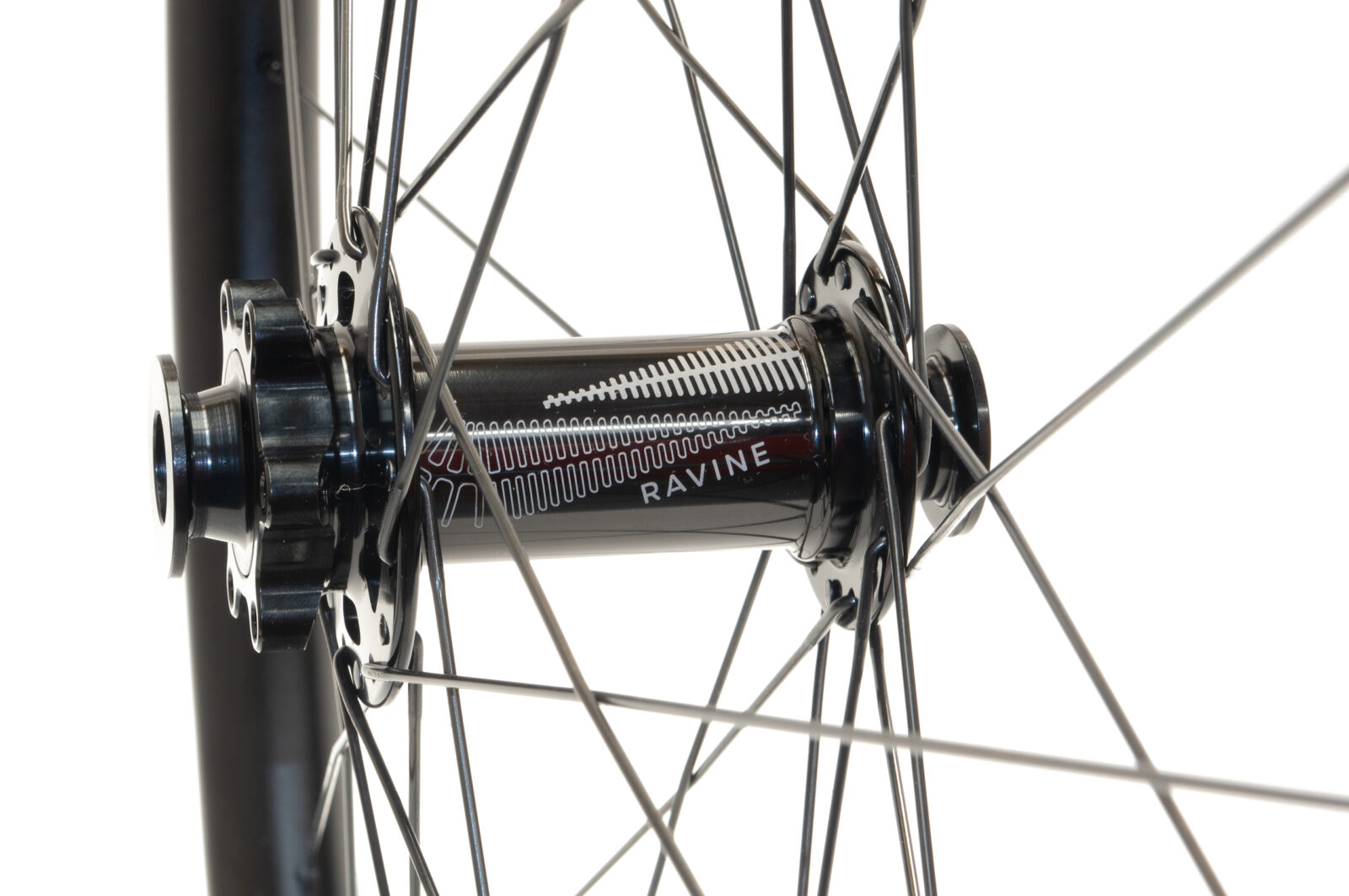

our hubs

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.


All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.


6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 6.7 degree, 54 POE, R-type hubs have 7.5 degree, 48 POE.


  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

custom built wheels

This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.
