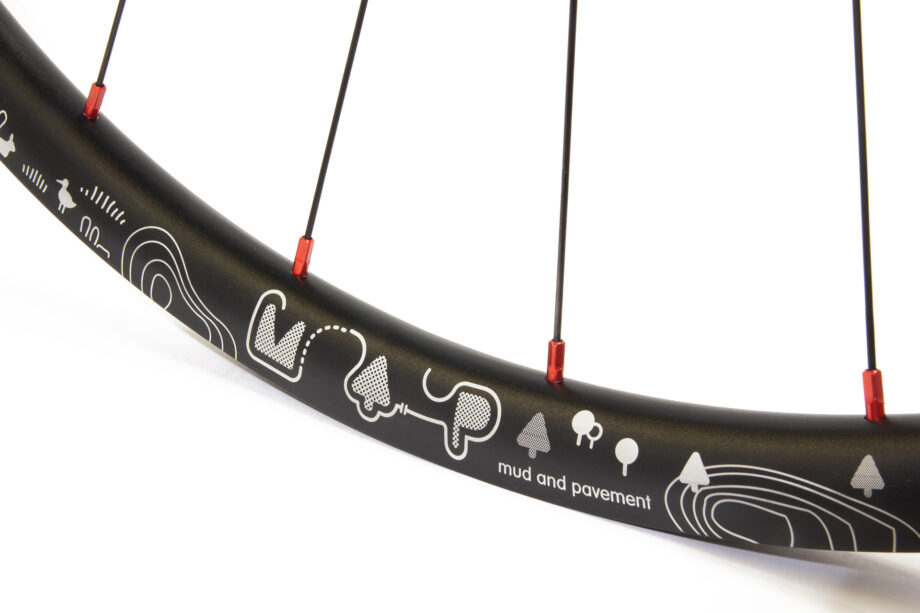

Map etched rim with red spoke nipples
Map centre-lock straight-pull wheel in red
Map centre-lock straight-pull wheel in orange
Map centre-lock straight-pull rear wheels with matt blue hub and etched graphics
Centre-lock J-bend front hub QR end-caps with Map etching

Map tubular wheels

from £290 was £390 / pair

Our Map road-disk / cyclocross wheelset in a tubular version with semi-aero 30mm deep rims. These wheels require tubular (glued-on) tyres – not to be confused with “tubeless”.

now £290 was £390

build time for this wheelset: 10 days
jump to configure wheels >>

Categories: , , , , , , , Tags: , ,

Description

Based around our 6-bolt or Centre-lock disk hubs including stainless bearings laced to our 24mm wide tubular road disk rim. Sapim D-Light spokes make these wheels fast on road and tough for cyclocross. Map tubular wheels are available with these options:

hubs : JRA 6-Bolt hubs or Centre-Lock in J-Bend or Straight-Pull
rim : JRA Map tubular rims, 24 or 28 hole front and rear. Width 24mm, depth 30mm.
spokes : Sapim D-Light black
weight: centre-lock J-bend hubs / 24 spokes / alu nipples 1657g
straight-pull centre-lock hubs / 24 spokes / alu nipples front 736g / rear 853g / pair 1589g

Options
freehub: Shimano, Sram XD-R or Campagnolo freehub
stickers : your choice of sticker colour
nipples: choose from brass or aluminium coloured nipples

Upgrade options
Sapim CX-Ray bladed spokes

Additional information

rim data
internal rim width

24mm

rim depth
info
brand

Just Riding Along

range
More
rim fitting

tubular

riding type

road

Weight

1600 g

why buy from us

warranty

All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.

delivery

To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.

repairability

All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

our hubs

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.

warranty

All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.

drive

6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 54 POE, R-type hubs have 48 POE.

features

  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

custom built wheels

This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.
