Karve carbon wheels

from £895.00

Very fast lightweight wheelset with a 30mm internal rim width.

build time for this wheelset: 5 days
jump to configure wheels >>

Category: Tags: ,

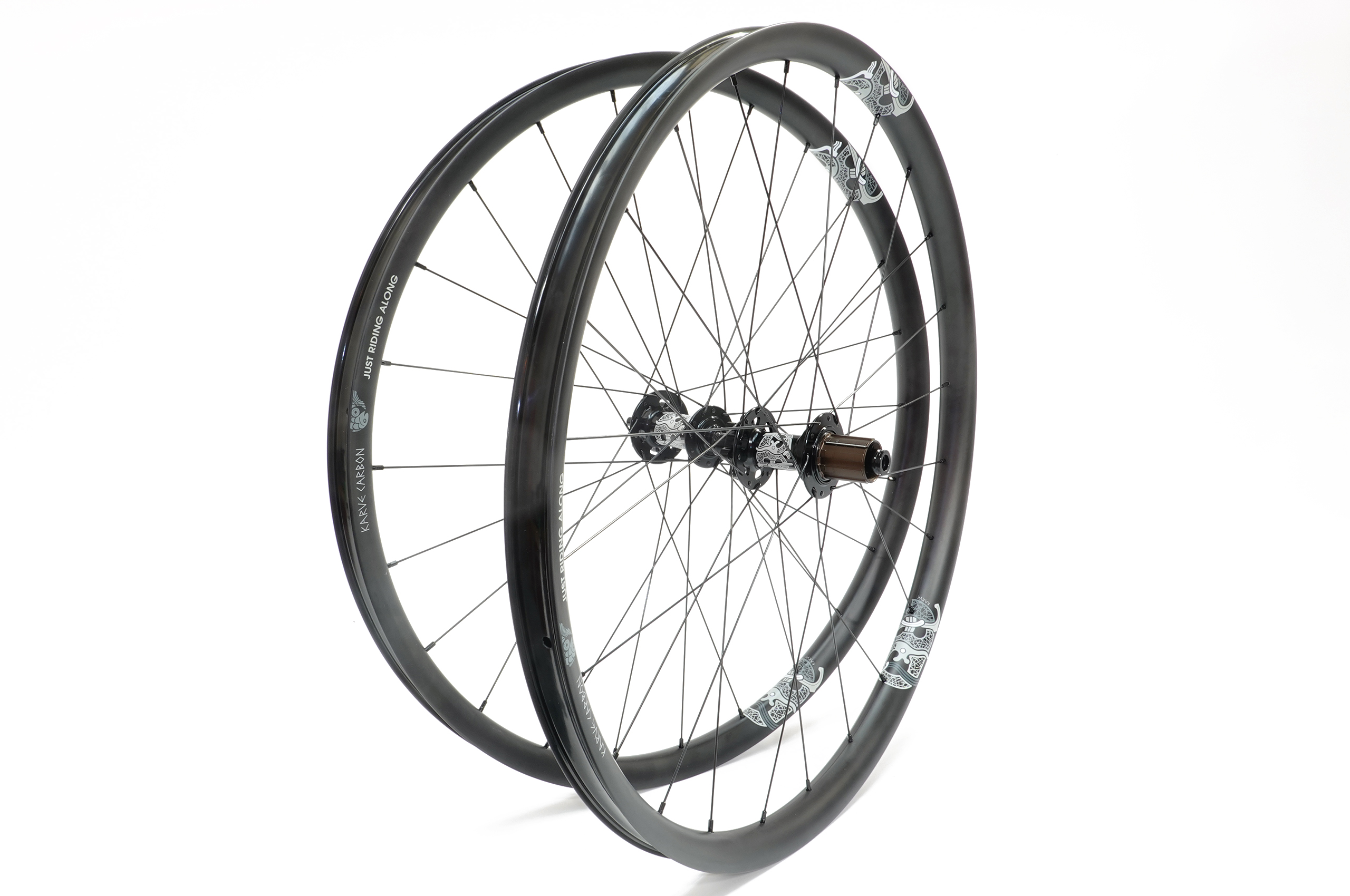

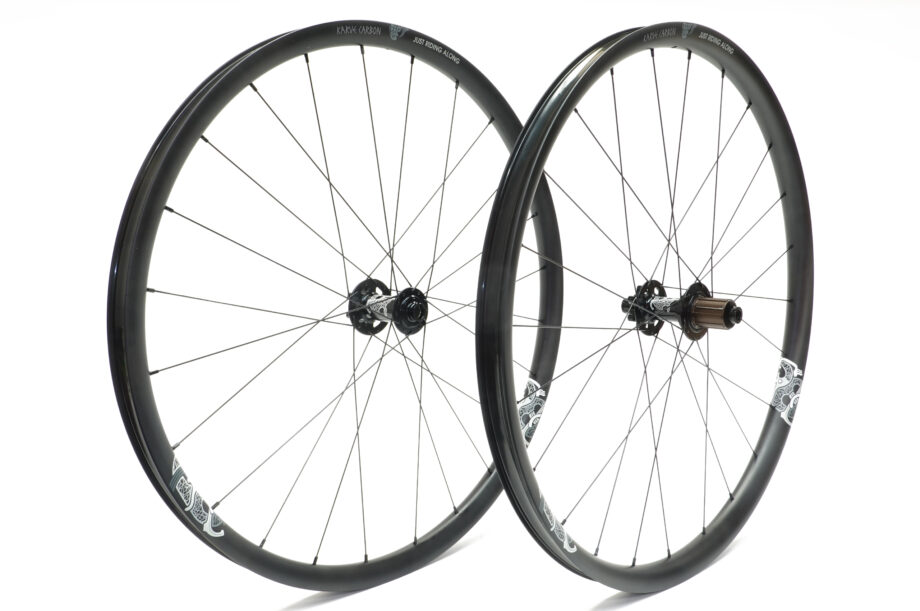

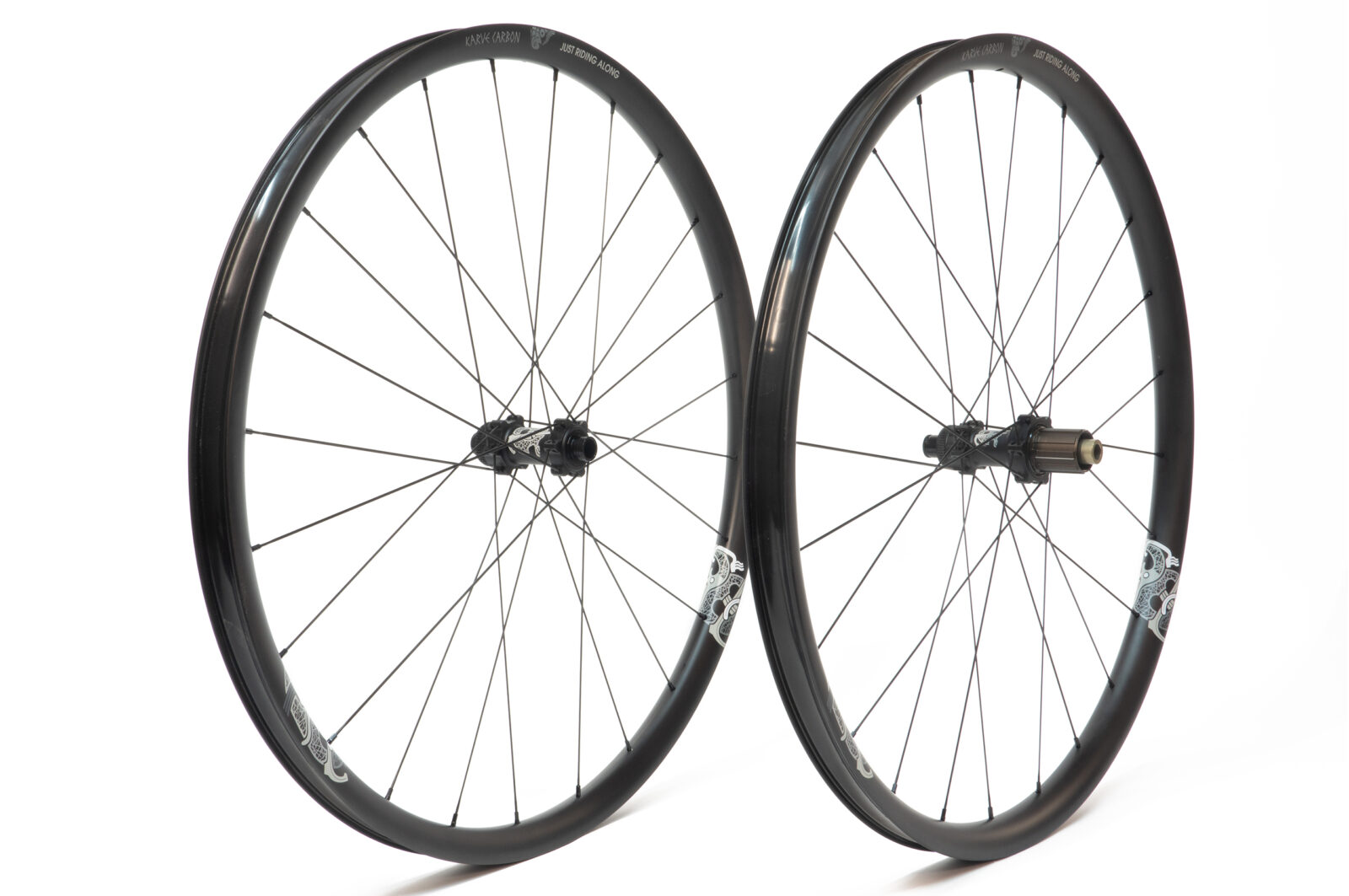

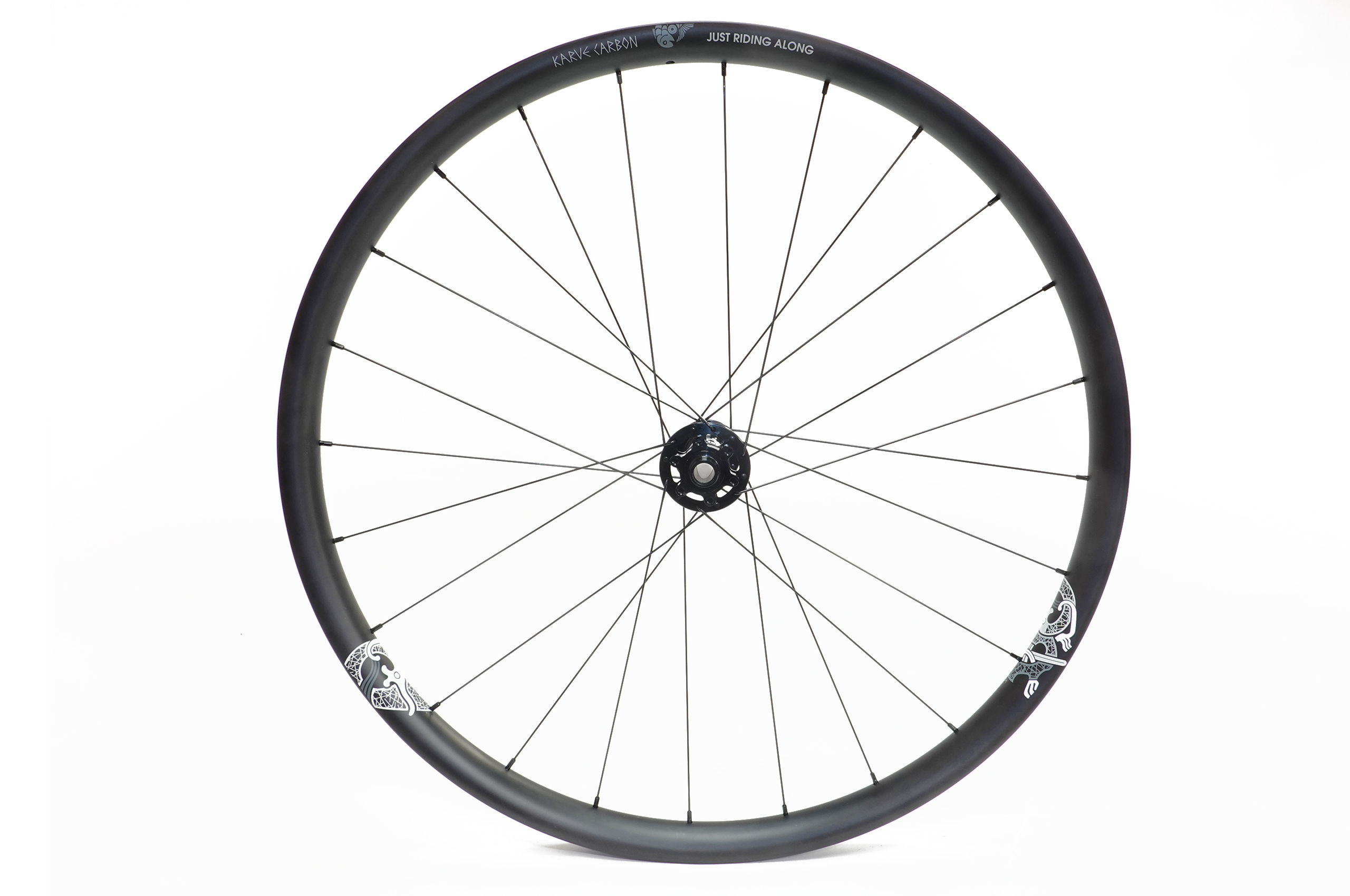

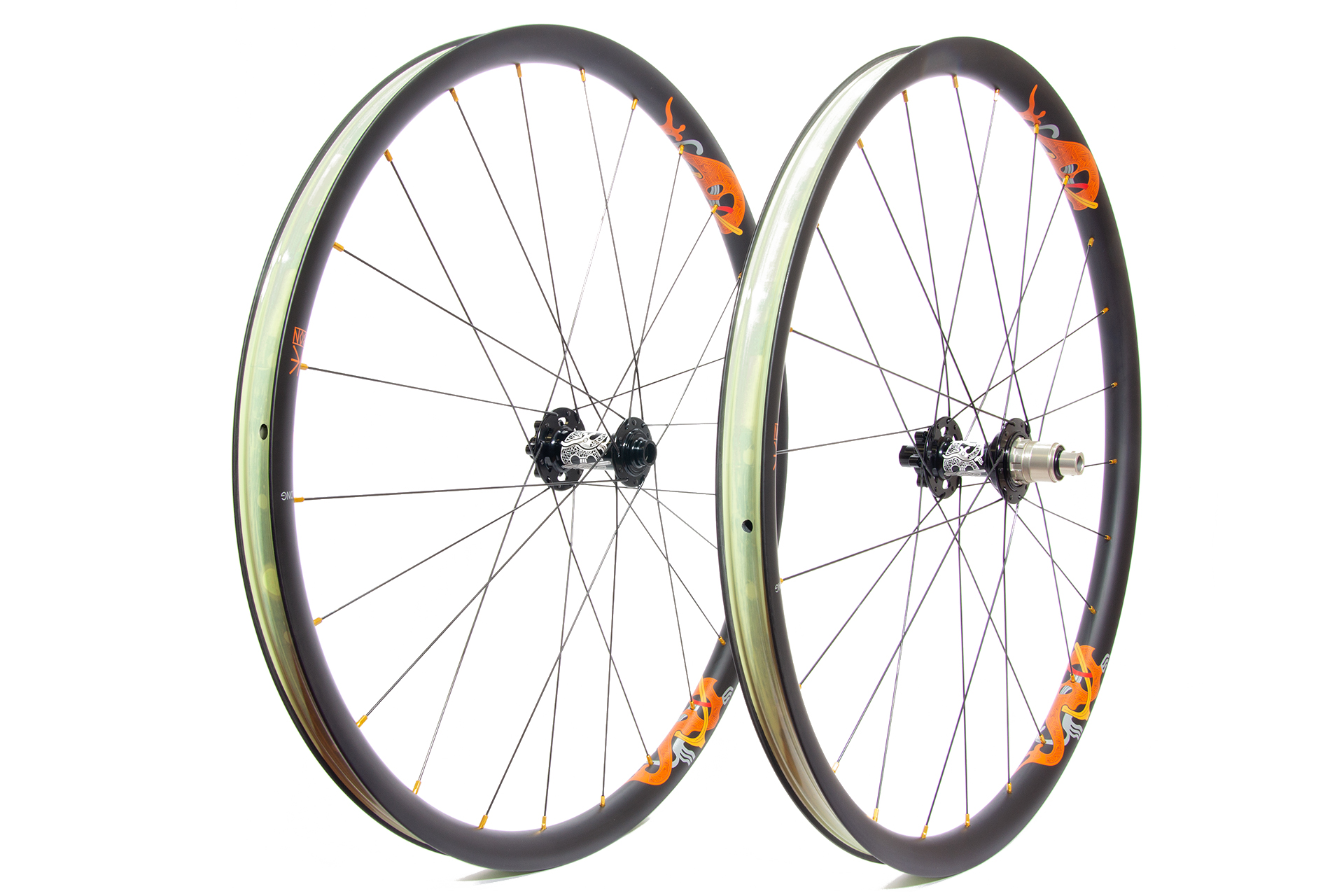

Very fast, light carbon wheelset with a 30mm rim width to suit modern cross-country tyres

New for 2023 is an asymmetric rims design for stronger wheels at the same low weight of around 1430g per pair in 29er/700c

Key components

hubs choose from any of our J-bend or Straight-pull, centre-lock or 6-bolt disk mount including Son dynamo hubs
rims Karve carbon rims with grey water transfer decal, 24 hole, 29er
spokes Sapim DLight spokes – black (CX-Ray at additional cost)
nipples Sapim brass or aluminium secure-lock nipples
weights front 646g/ rear 784g/ pair 1430g
* weighed with rim tape and Shimano freehub
freehub Shimano 11 speed is included in base price. All other freehubs are available at extra cost.
rider weight limit 85kg
recommended tyre widths 2.25″-2.5″

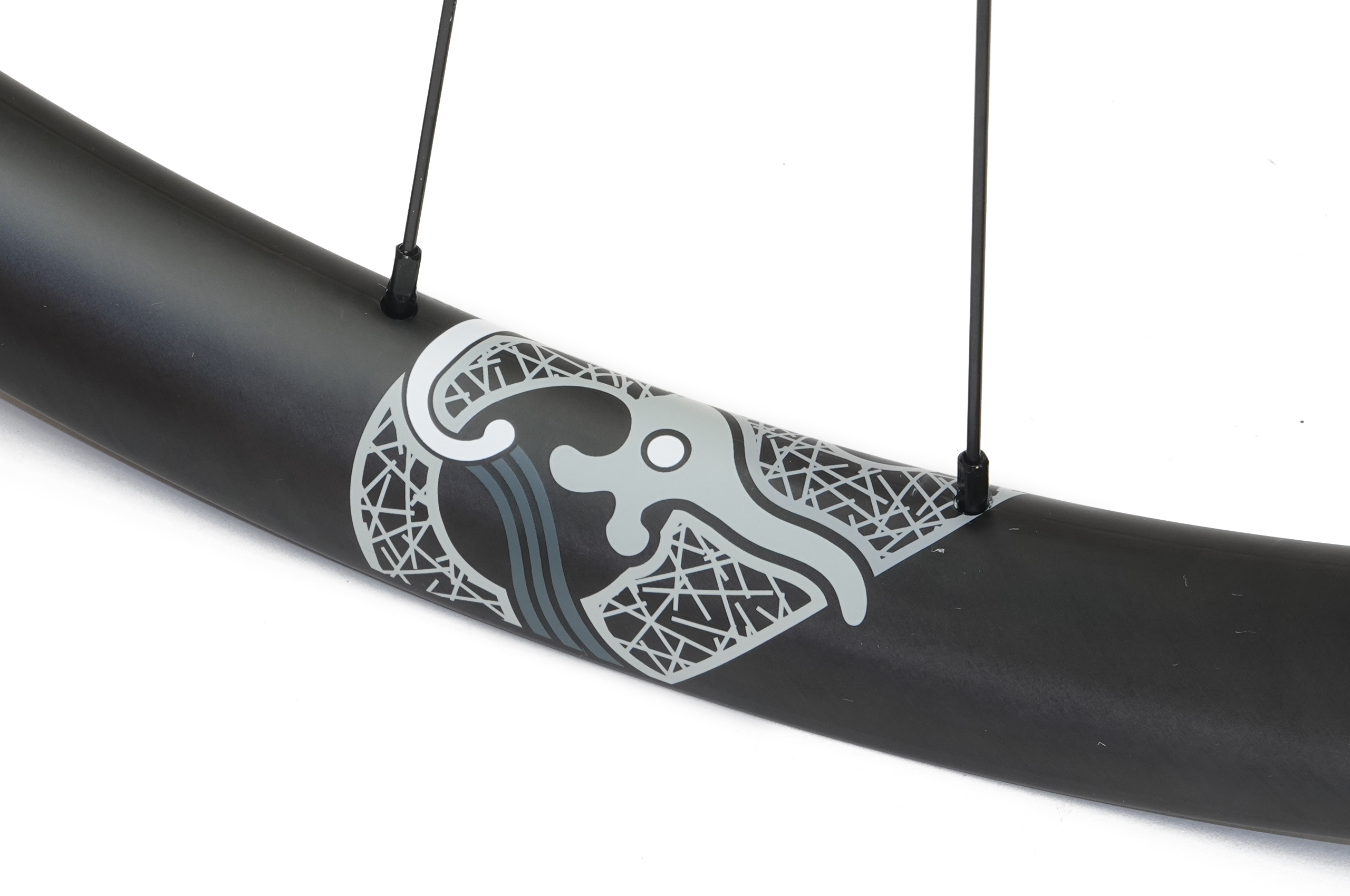

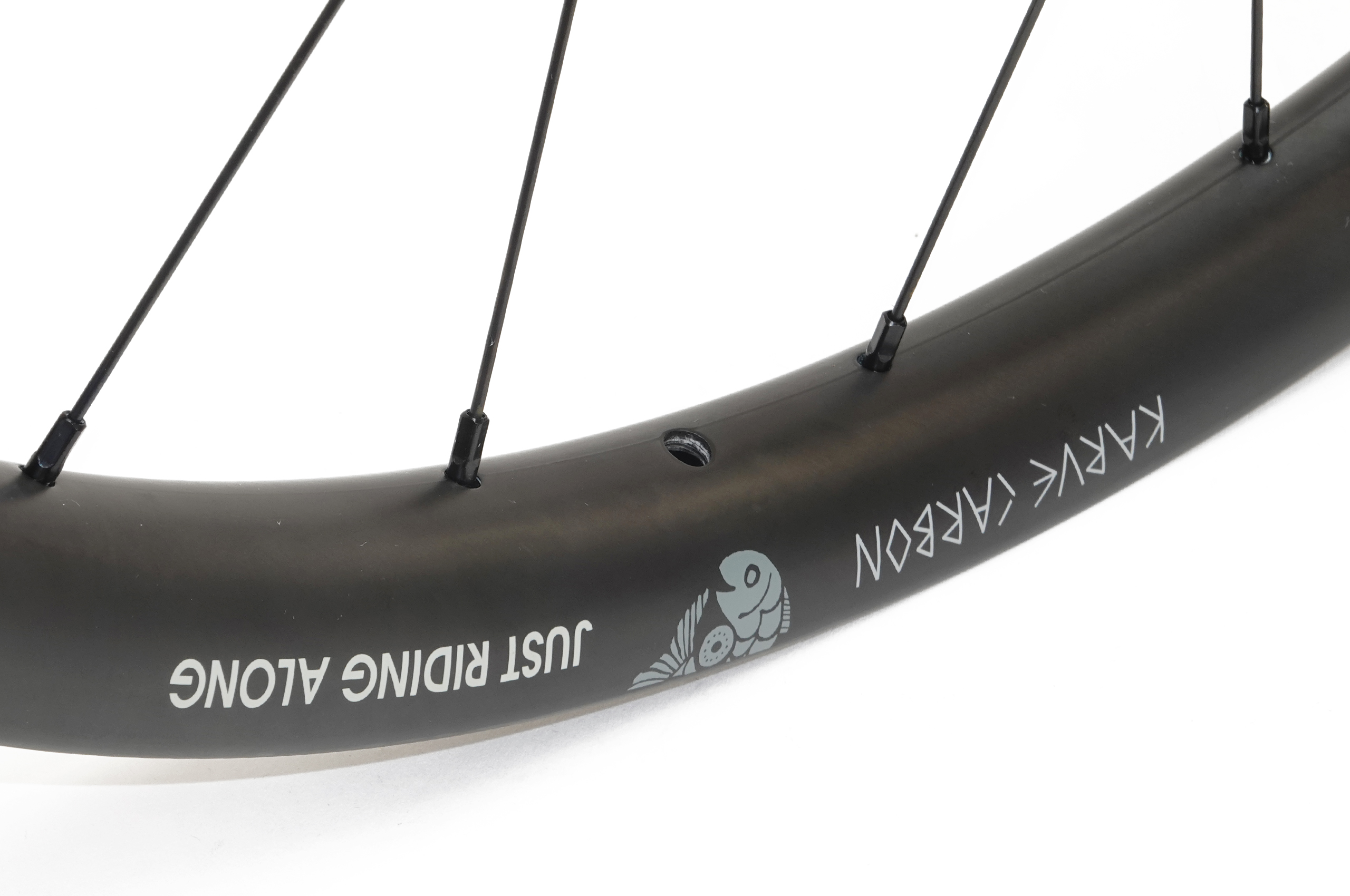

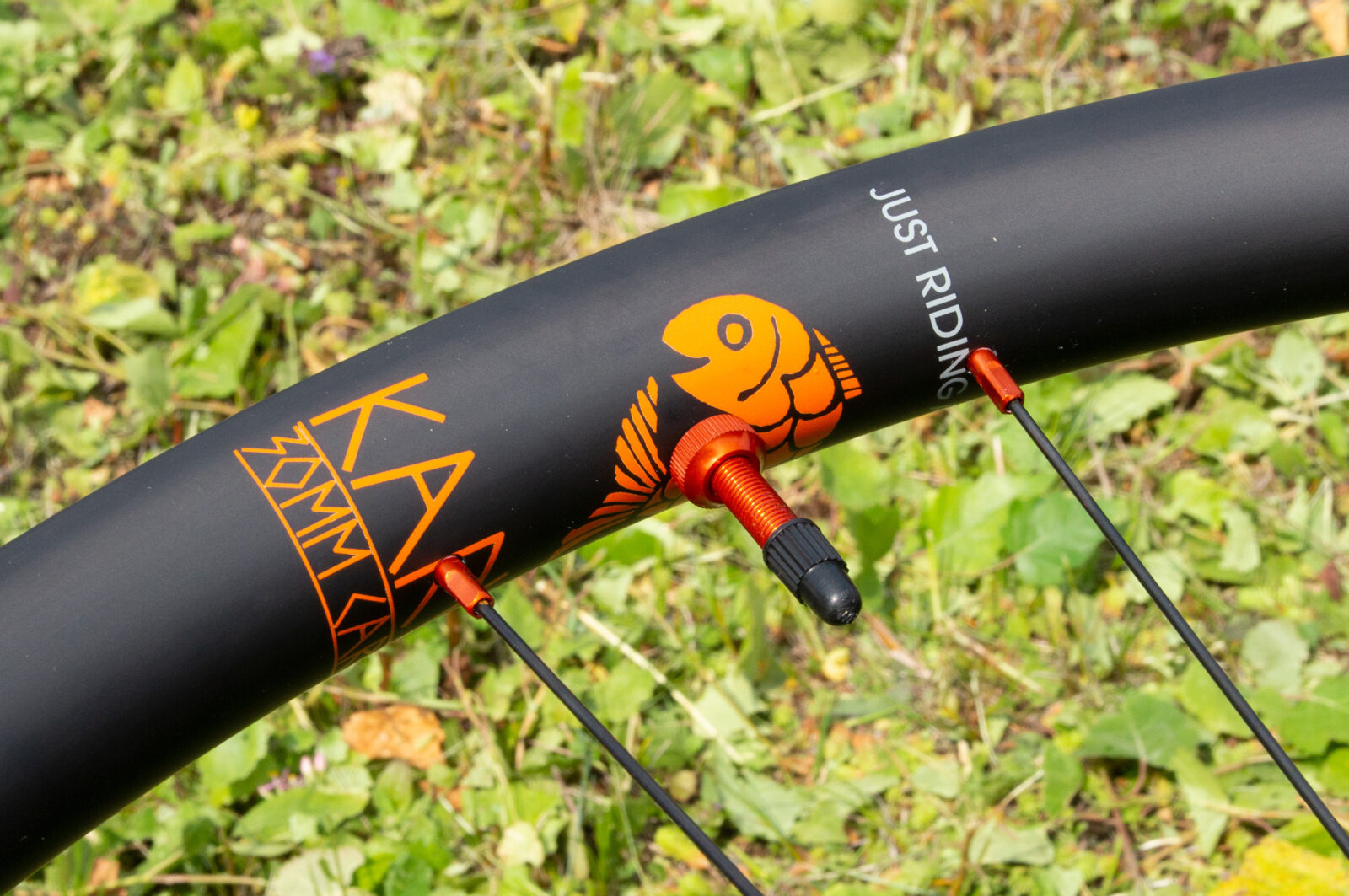

Karve carbon rims

built with lightweight cross-country mountain bike carbon rims

material: Carbon fibre Toray T700 & T800 matt finish

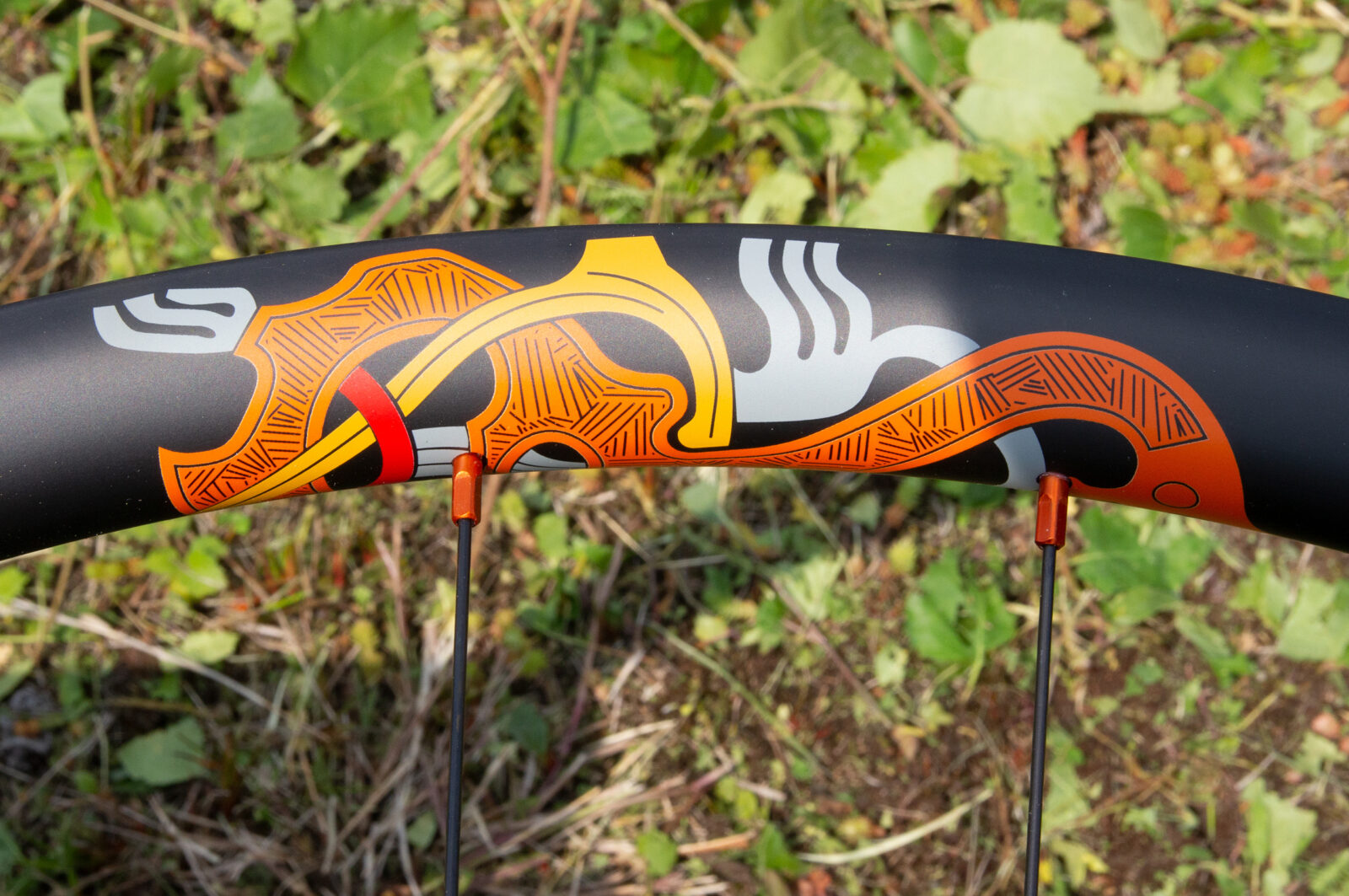

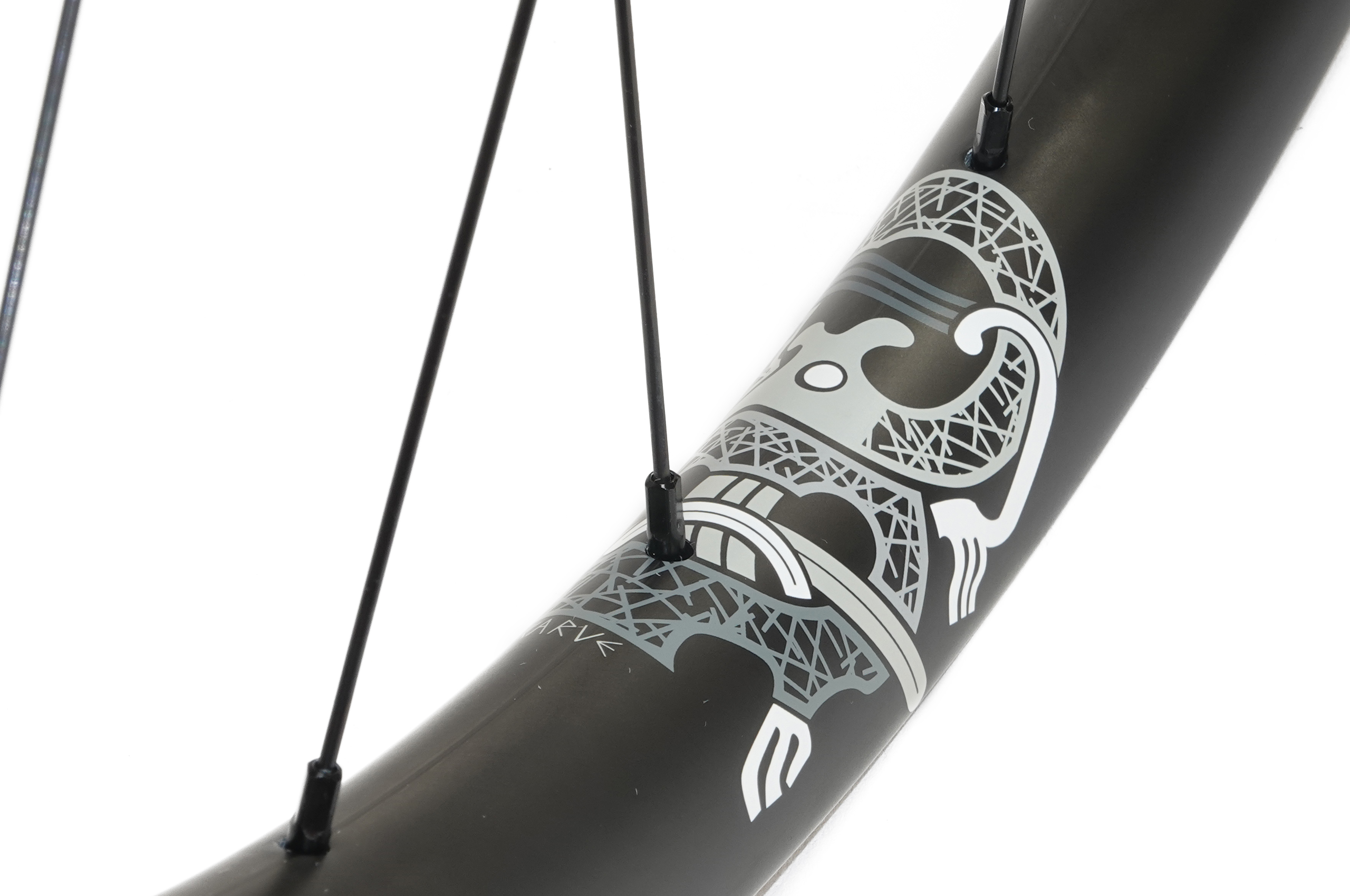

decals:

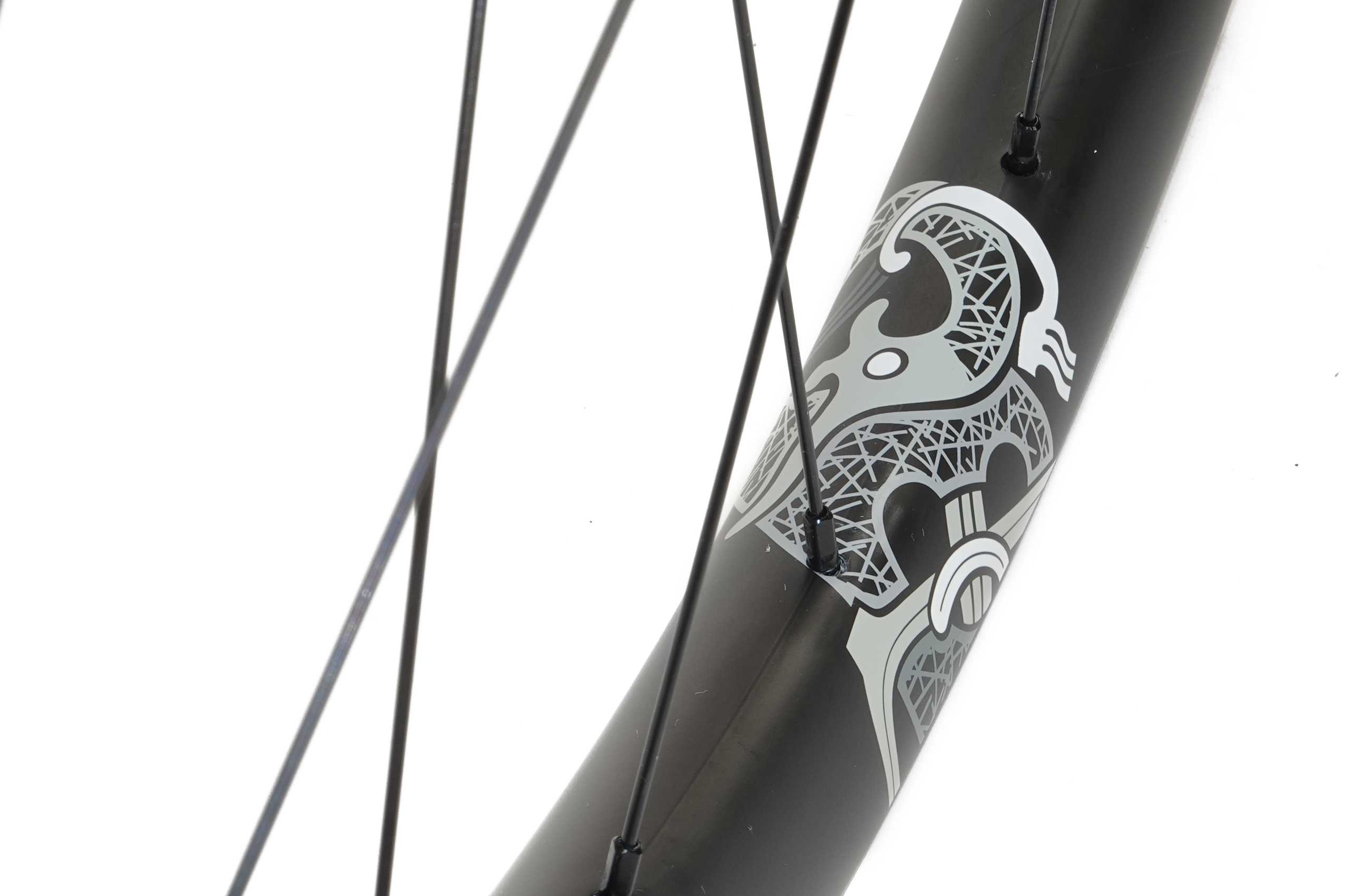

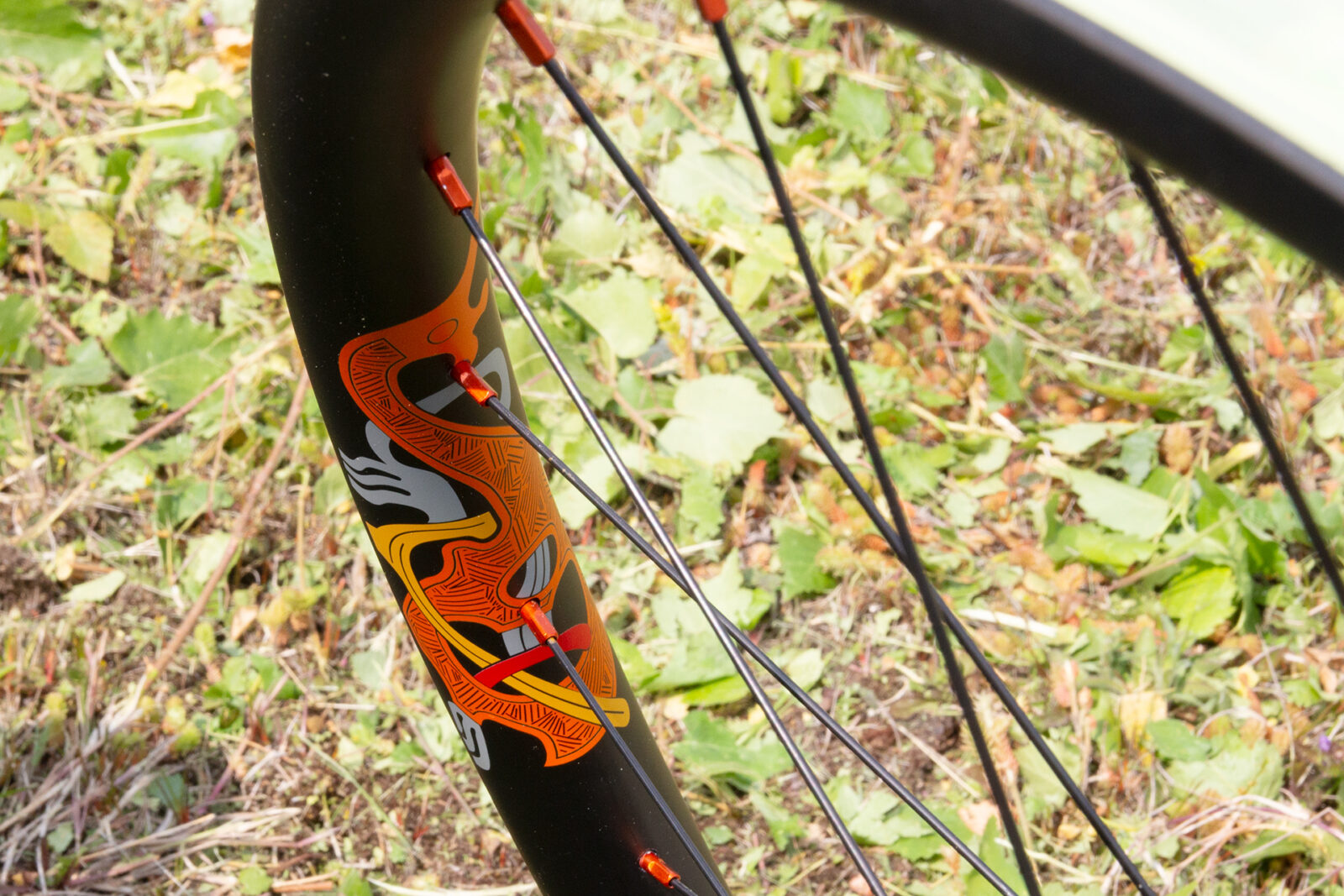

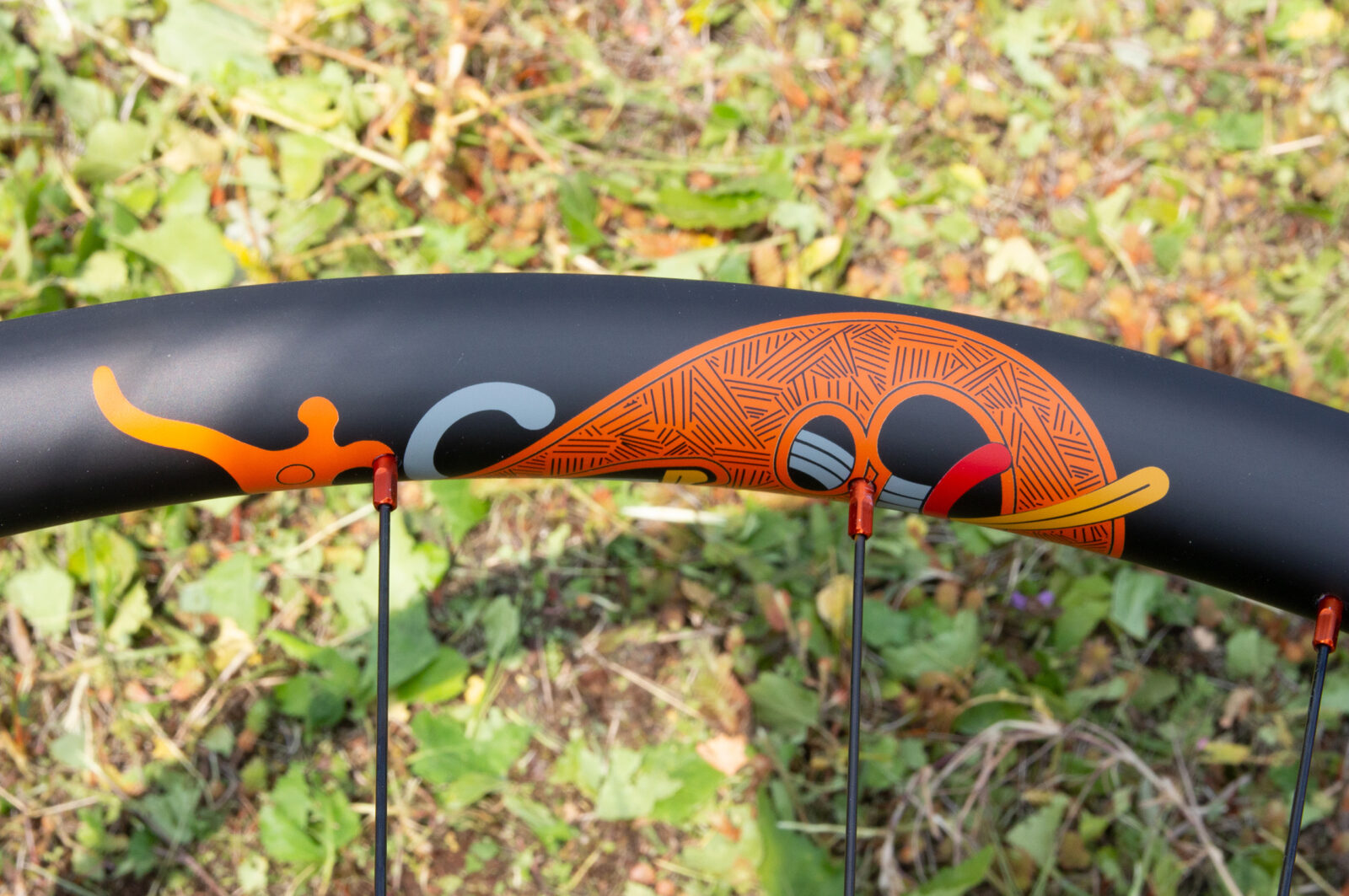

durable matt finish water transfer decals in grey with viking design
dimensions: asymmetric rims with an internal width of 30mm with external 36mm and 25mm height
weight: 360g per rim and a with rider weight limit of 85kg
bead: tubeless compatible with a hookless bead profile for strength and easy inflation
options: available in 29er 24 hole only
tyres:  suitable for tyres from 2.25- 2.5″
crash replacement: if you damage our carbon wheels we will replace the rim for a third of the cost of a new one + labour

why buy from us

warranty

All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.

delivery

To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.

repairability

All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

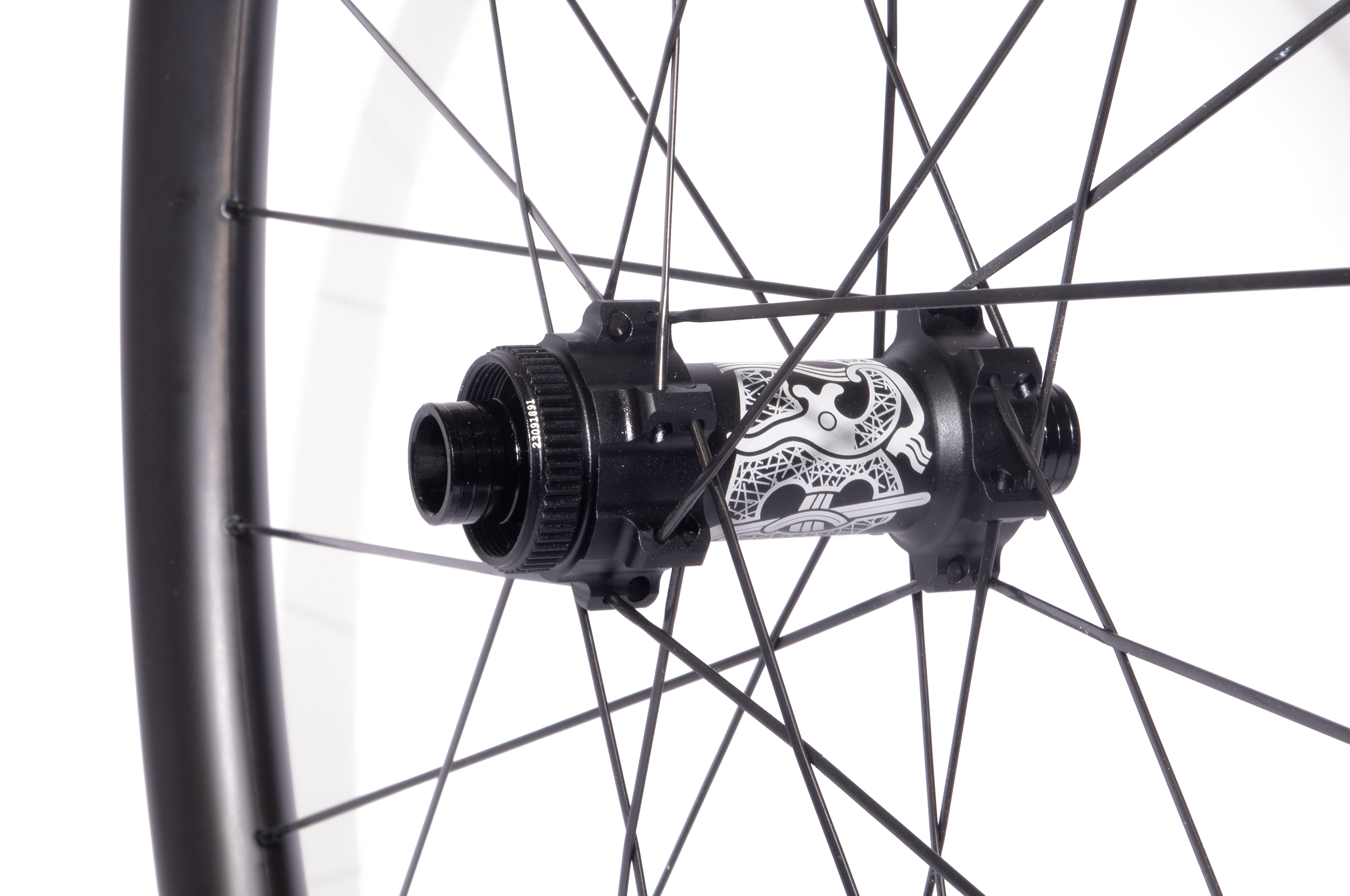

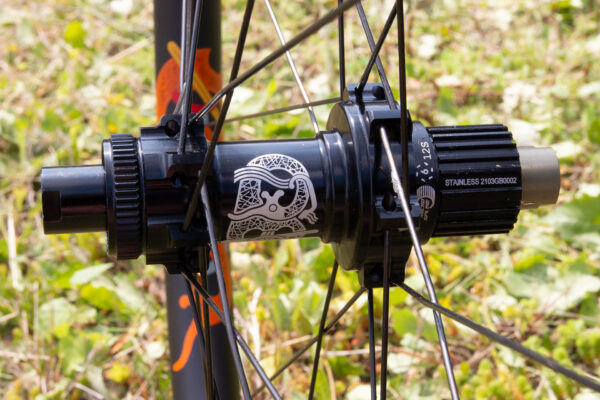

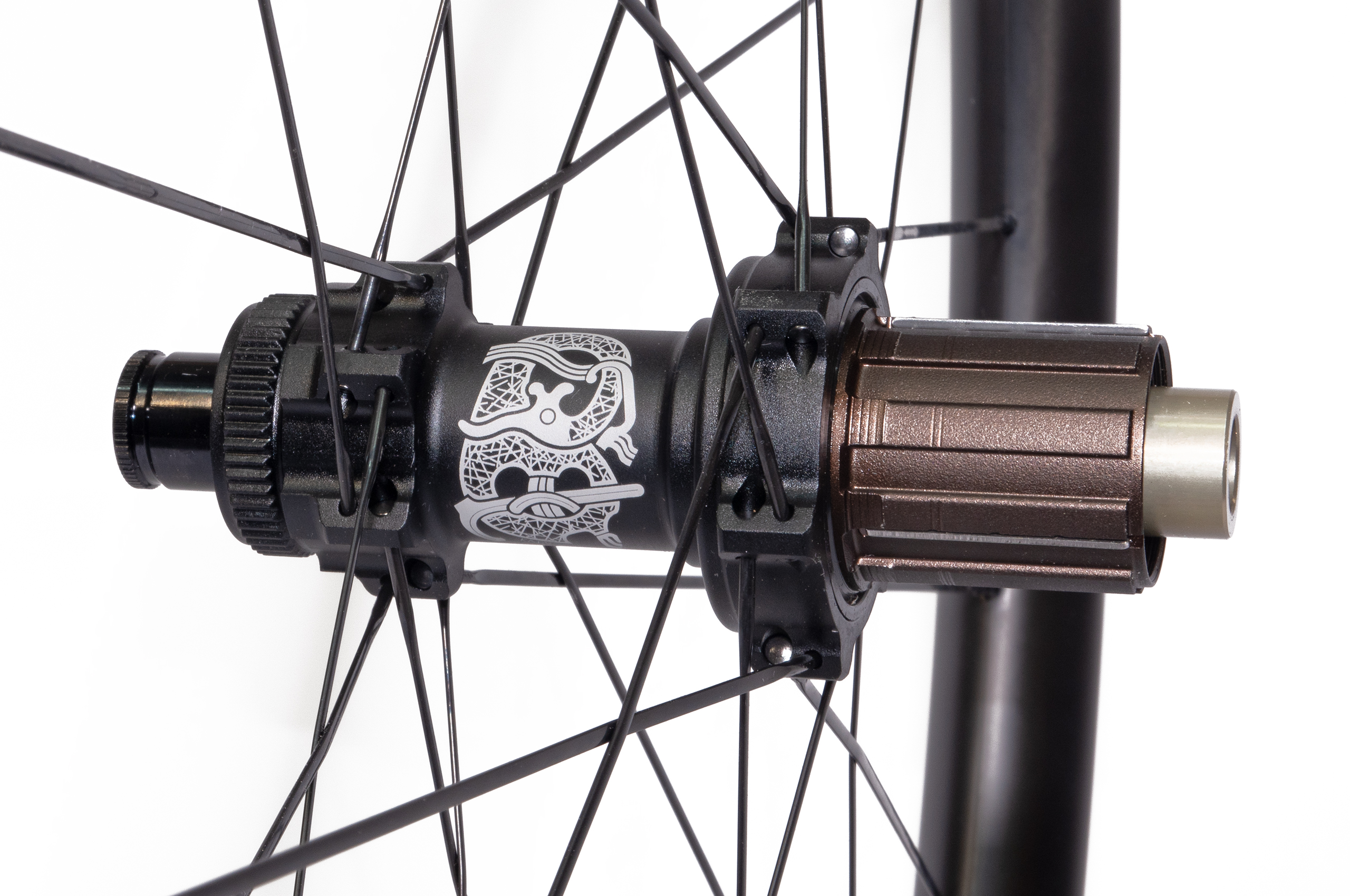

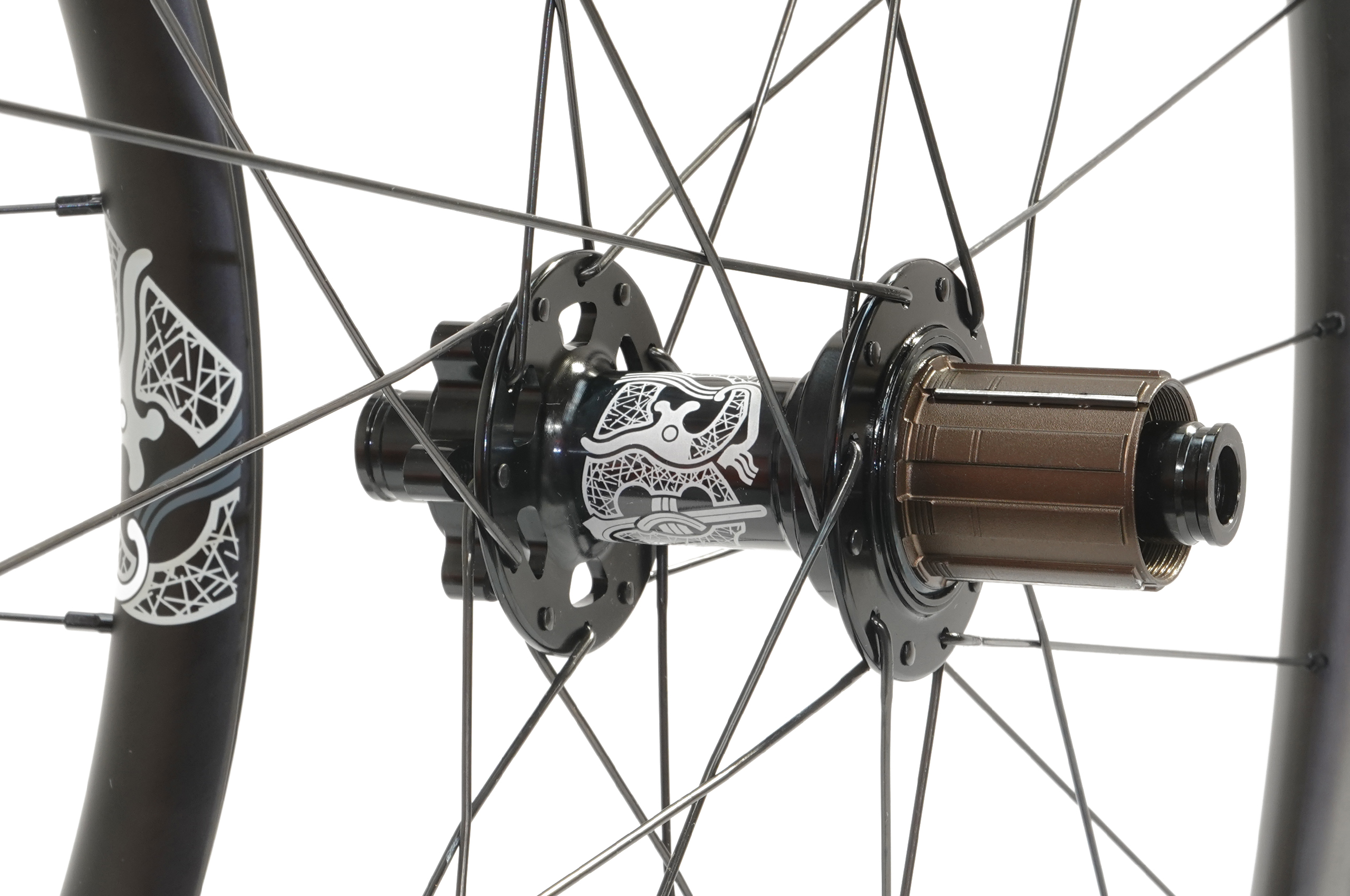

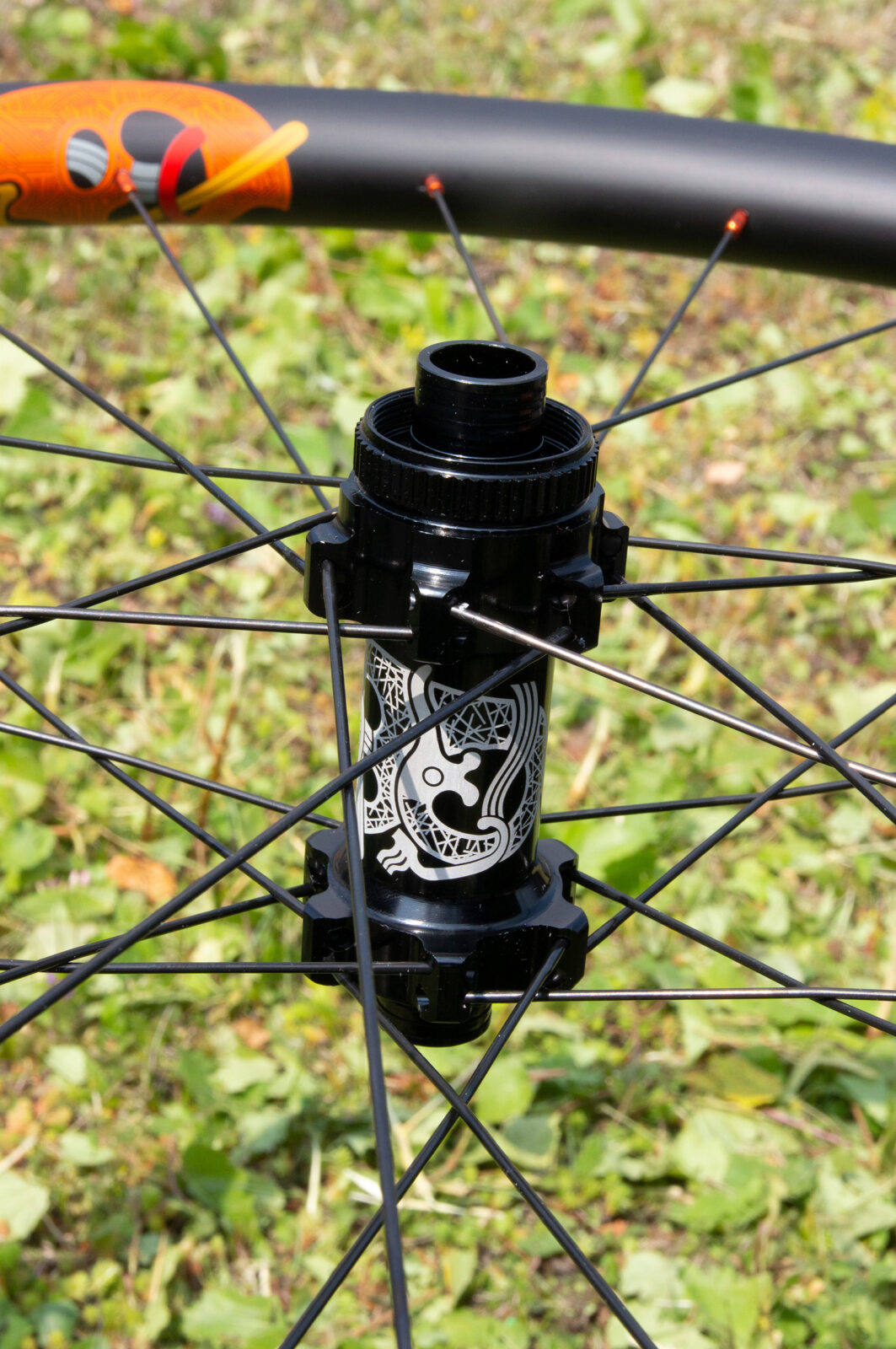

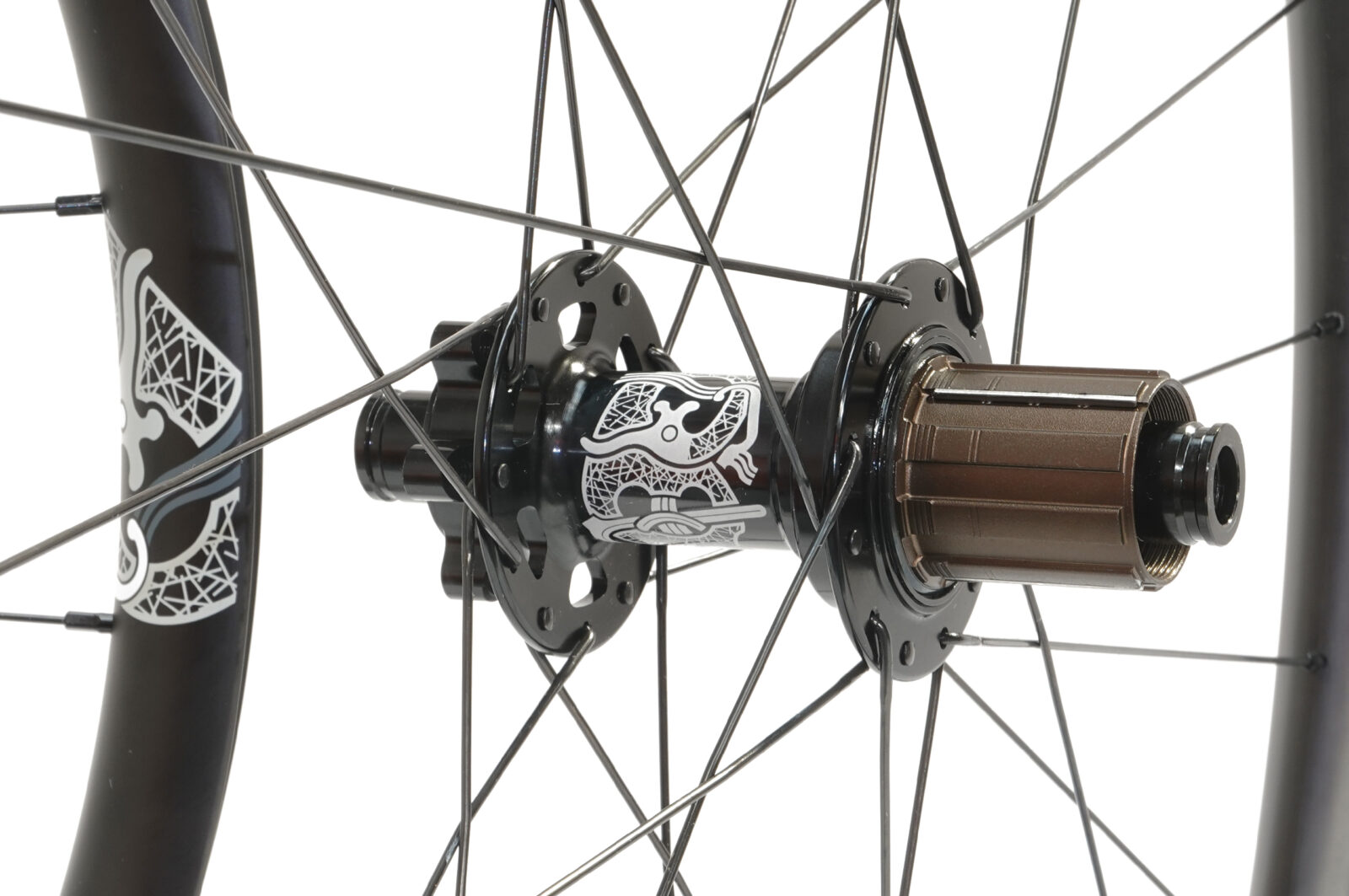

our hubs

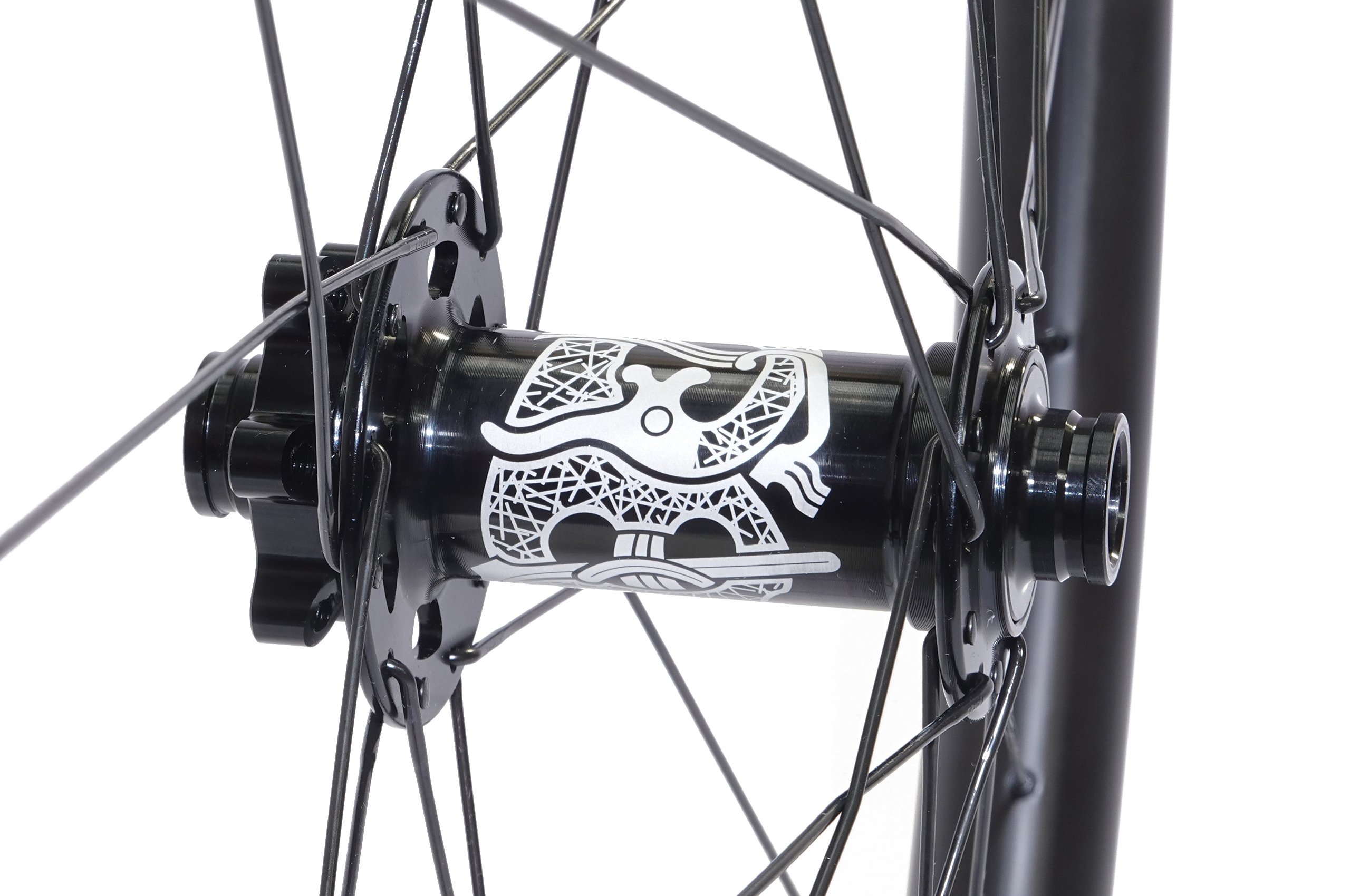

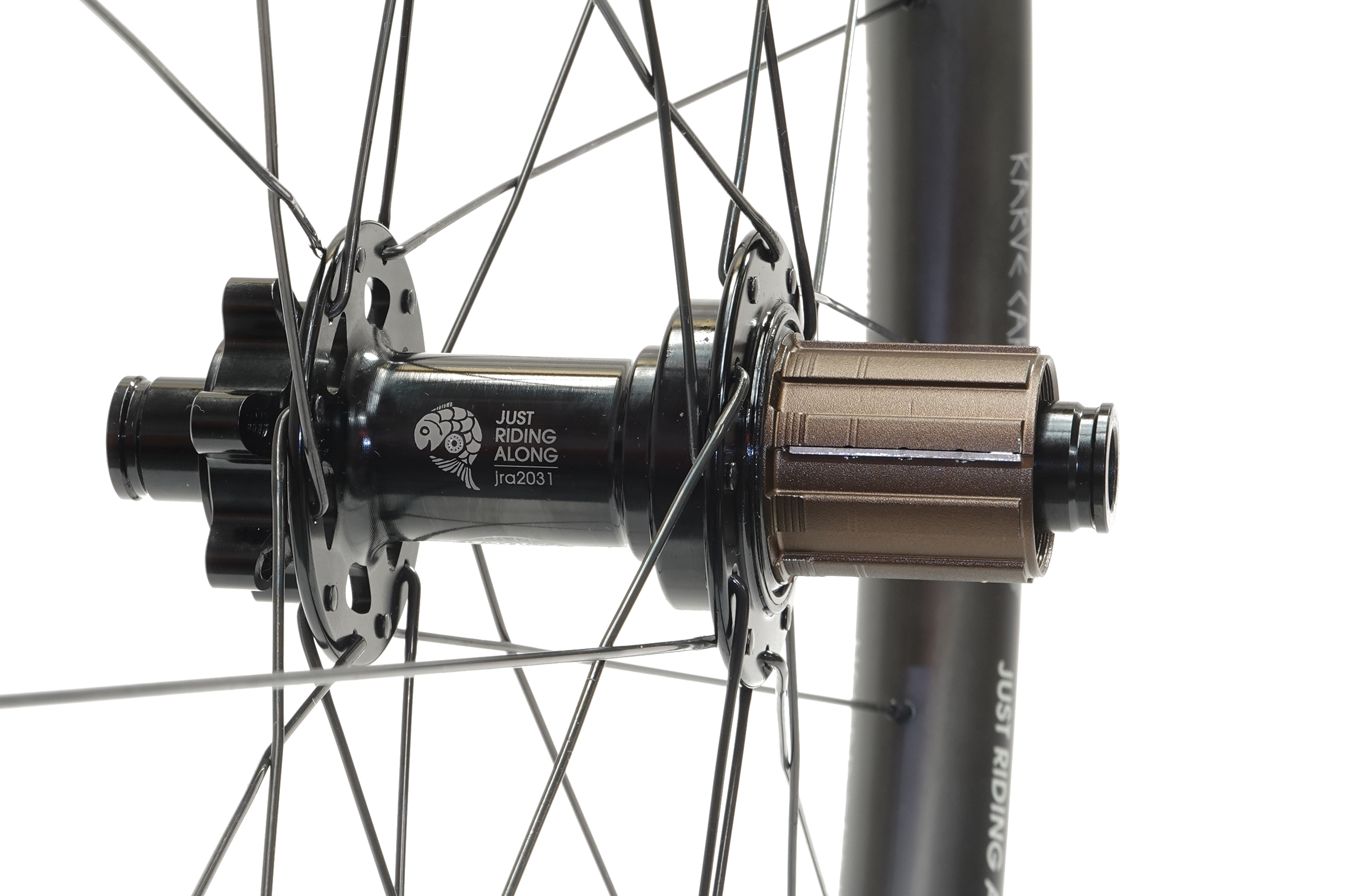

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.

warranty

All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.

drive

6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 6.7 degree, 54 POE, R-type hubs have 7.5 degree, 48 POE.

features

  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

custom built wheels

This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.
