Fat rear hubs – 170mm


High quality fat rear hubs fitted with stainless steel bearings, 170mm to 177mm widths.

All our hubs come with a small JRA logo etching.

fat rear hubs

Fat rear hubs with 6-bolt disk mount, 32 hole.

  • fat 170mm
  • 32 hole

axle & end caps for rear 170mm fat hubs

Axle kits for fat 170mm rear hubs.

  • QR 170mm
  • 12x170mm
  • 12x177mm

M-type aluminium freehubs

Freehubs for JRA hubs. Can be interchanged to convert your hub to run a different cassette.

  • Shimano 11sp
  • Shimano Microspline
  • Sram XD
  • Sram XD-R
  • Campag 13 speed N3W
Categories: ,

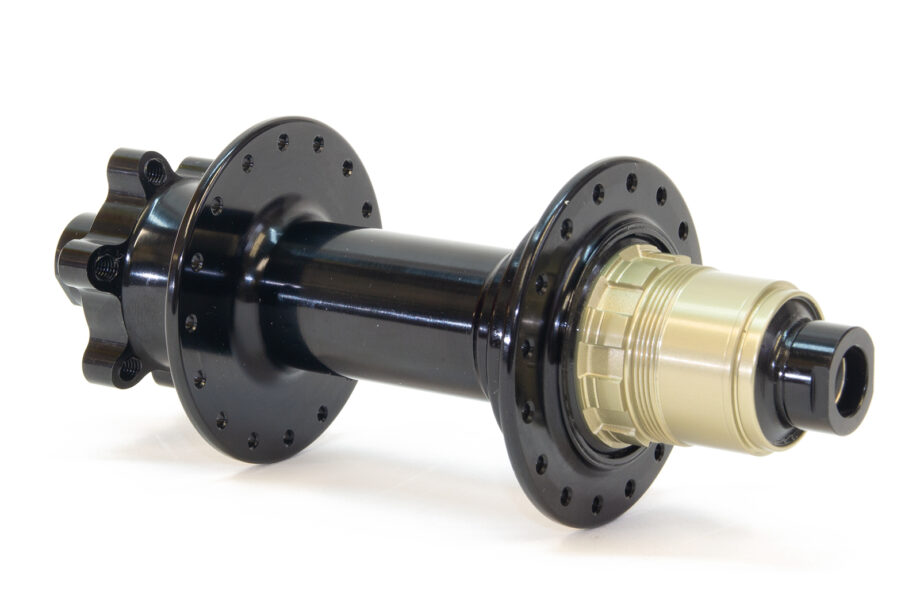

The JRA rear fat hubs are available in 32 hole drilling and comes fitted with TPI stainless steel bearings. The 170mm hub has axle conversions to fit 170 and 177mm standards.

Weight: 323g (170mm)
Main hub bearings: 2 x 6902 stainless steel /  freehub 2 x 6802 (XD) or 1 x 6802, 1 x 6902 (shimano).
Hole count: 32

Hub measurements for spoke length calculations:
170mm hubs
c-left: 38mm
c-right: 35mm
left flange diameter: 58mm
right flange diameter: 58mm


We used the best hubs we could find for our range of wheels and hubs: Bitex. We have ridden them extensively and we are convinced that they offer outstanding durability, reliability and serviceability.

All jra hubs are fitted with sealed stainless steel bearings from TPI and Enduro. Freehubs feature a patented 6 pawl engagement with 48 points in road hubs and 54 point pick-up for MTB hubs.

Additional information


142 g

fat rear hubs

rim data
hole count

hub features
hub width

fat 170mm, fat 190mm



axle & end caps for rear 170mm fat hubs

rear axle options

QR 170mm, 12x170mm, 12x177mm


20 g

M-type aluminium freehubs

freehub info
freehub type

Shimano 11sp, Shimano Microspline, Sram XD, Sram XD-R, Campag 13 speed N3W


85 g
