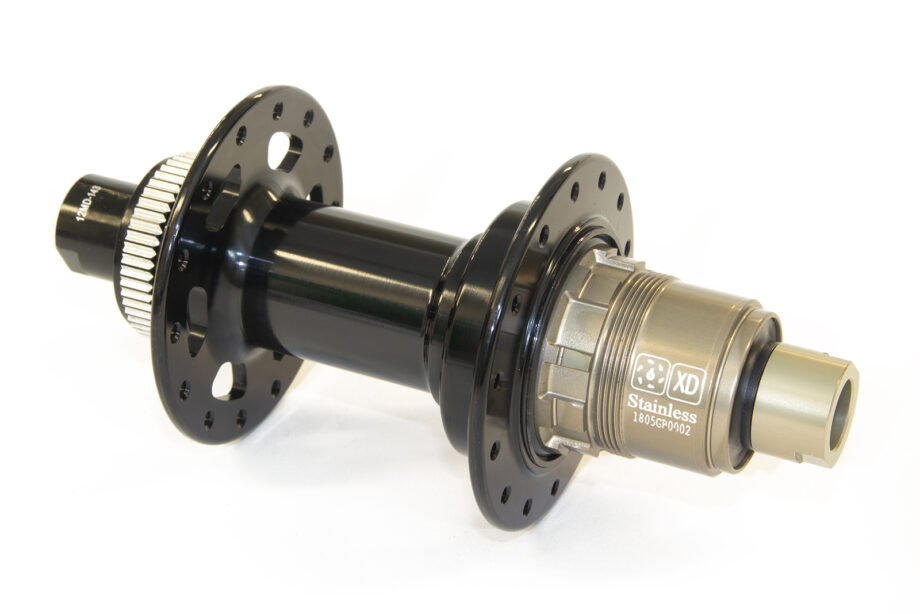

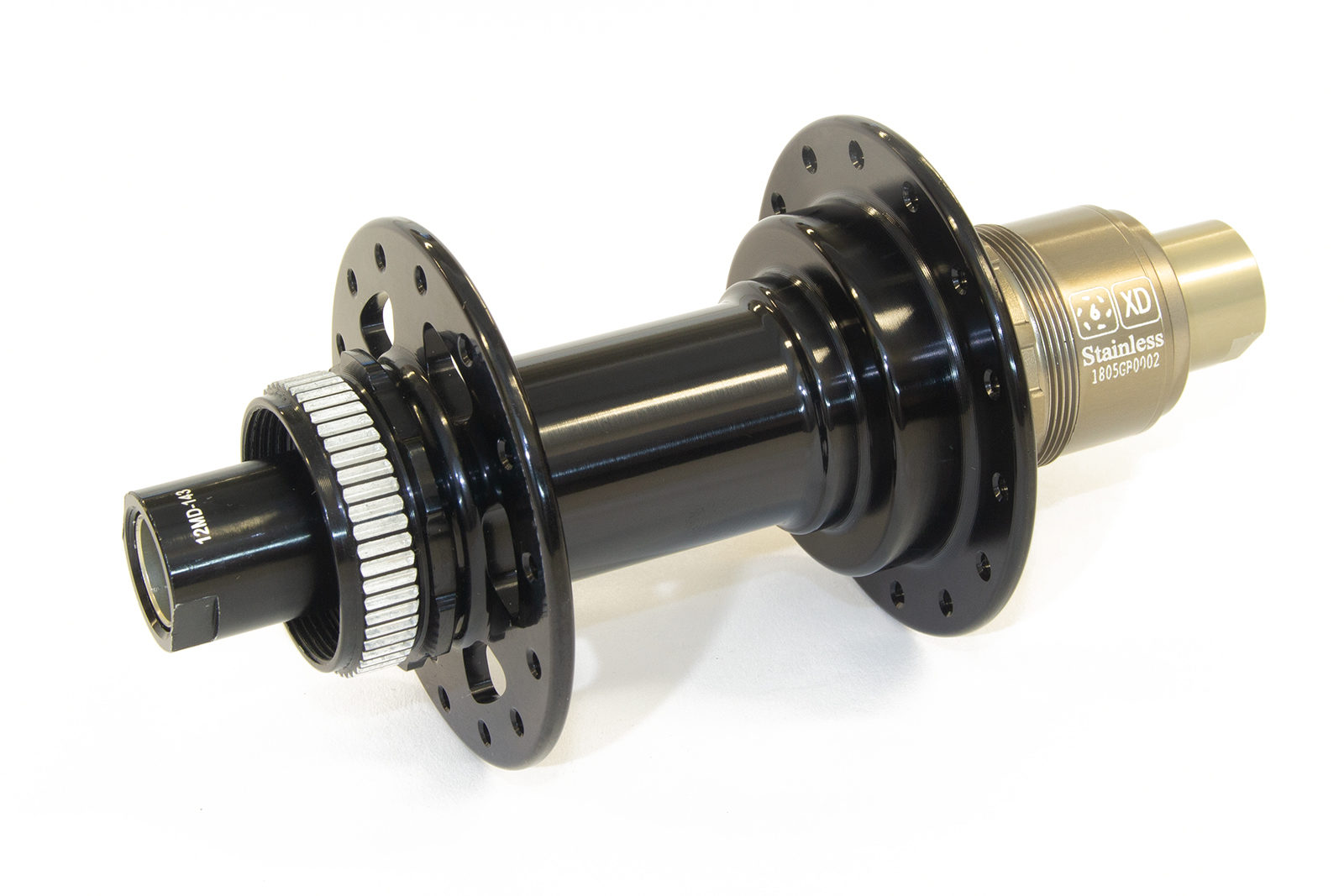

centre-lock J-bend Boost 148 rear hub

£131.00

High quality, light weight centre-lock Boost 148 rear hub fitted with stainless steel bearings.

centre-lock J-bend rear hubs – Boost 148mm spacing

axle & end caps for rear centre-lock Boost 148mm hubs

Axle end cap kits for Boost centre-lock rear hubs.

  • Boost 12x148mm

M-type aluminium freehubs

Freehubs for JRA hubs. Can be interchanged to convert your hub to run a different cassette.

  • Shimano 11sp
  • Shimano Microspline
  • Sram XD
  • Sram XD-R
  • Campag 13 speed N3W

Description

The JRA rear Boost 148 centre-lock hub is available in 24, 28 or 32 hole drillings and comes fitted with TPI stainless steel bearings. One of the lightest, most reliable centre-lock Boost compatible hubs available.

Weight: 251g
Main hub bearings: 2 x 6903 stainless steel /  freehub 2 x 6803 (XD) or 1 x 6803, 1 x 6903 (shimano).
Hole counts: 24 / 28 / 32

Hub measurements for spoke length calculations:
c-left: 36mm
c-right: 21mm
left flange diameter: 58mm
right flange diameter: 58mm

ALL ABOUT BITEX HUBS

We used the best hubs we could find for our range of wheels and hubs: Bitex. We have ridden them extensively and we are convinced that they offer outstanding durability, reliability and serviceability.

All jra hubs are fitted with sealed stainless steel bearings from TPI and Enduro. Freehubs feature a patented 6 pawl engagement with 48 points in road hubs and 54 point pick-up for MTB hubs.

Additional information

More
Weight

142 g

centre-lock J-bend rear hubs – Boost 148mm spacing

rim data
hole count

, ,

axle & end caps for rear centre-lock Boost 148mm hubs

More
rear axle options

Boost 12x148mm

Weight

20 g

M-type aluminium freehubs

freehub info
freehub type

Shimano 11sp, Shimano Microspline, Sram XD, Sram XD-R, Campag 13 speed N3W

More
Weight

85 g
